DIGITAL IMAGE PROCESSING

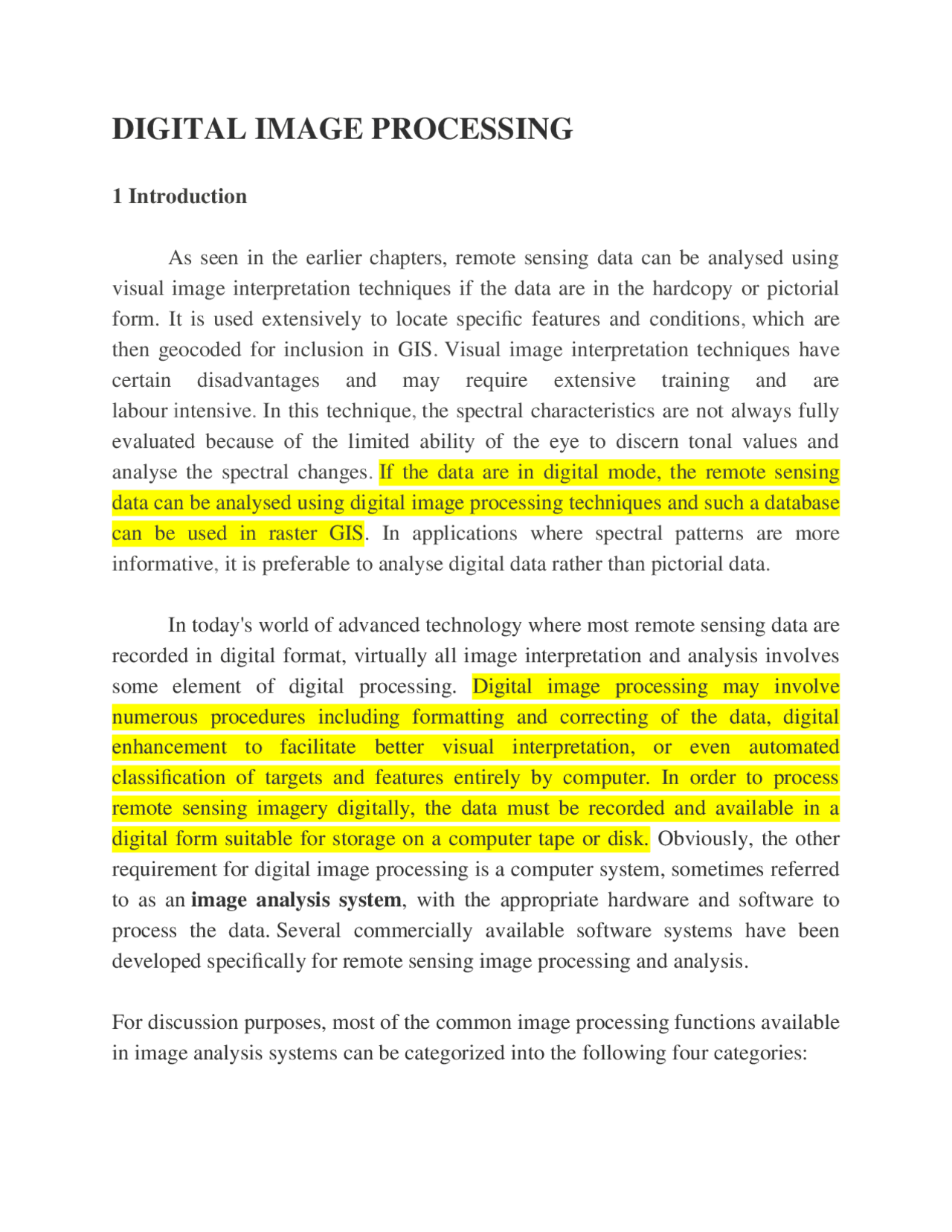

1 Introduction As seen in the earlier chapters, remote sensing data can be analysed using visual image interpretation techniques if the data are in the hardcopy or pictorial form. It is used extensively to locate specific features and conditions, which are then geocoded for inclusion in GIS. Visual image interpretation techniques have certain disadvantages and may require extensive training and are labour intensive. In this technique, the spectral characteristics are not always fully evaluated because of the limited ability of the eye to discern tonal values and analyse the spectral changes. If the data are in digital mode, the remote sensing data can be analysed using digital image processing techniques and such a database can be used in raster GIS. In applications where spectral patterns are more informative, it is preferable to analyse digital data rather than pictorial data. In today's world of advanced technology where most remote sensing data are recorded in digital format, virtually all image interpretation and analysis involves some element of digital processing. Digital image processing may involve numerous procedures including formatting and correcting of the data, digital enhancement to facilitate better visual interpretation, or even automated classification of targets and features entirely by computer. In order to process remote sensing imagery digitally, the data must be recorded and available in a digital form suitable for storage on a computer tape or disk. Obviously, the other requirement for digital image processing is a computer system, sometimes referred to as an image analysis system , with the appropriate hardware and software to process the data. Several commercially available software systems have been developed specifically for remote sensing image processing and analysis. For discussion purposes, most of the common image processing functions available in image analysis systems can be categorized into the following four categories:
Preprocessing Image Enhancement Image Transformation Image Classification and Analysis 2 PREPROCESSING Preprocessing functions involve those operations that are normally required prior tothe maindata analysis and extraction of information, and are generally grouped as radiometric orgeometric corrections. Radiometric corrections include correcting the data for sensorirregularities and unwanted sensor or atmospheric noise, and converting the data so they accurately represent the reflected or emitted radiation measured by the sensor. Geometric corrections include correcting for geometric distortions due to sensor-Earth geometry variations, and conversion of the data to real world coordinates (e.g. latitude and longitude) on the Earth's surface. The objective of the second group of image processing functions grouped under the term of image enhancement , is solely to improve the appearance of the imagery to assist in visual interpretation and analysis. Examples of enhancement functionsinclude contrast stretching to increase the tonal distinction between various features in a scene, and spatial filtering to enhance (or suppress) specific spatial patterns in an image. Image transformations are operations similar in concept to those for image enhancement.However, unlike image enhancement operations which are normally applied only to a single channel of data at a time, image transformations usually involve combined processing of data from multiple spectral bands. Arithmetic operations (i.e. subtraction, addition, multiplication, division) are performed to combine and transform the original bands into "new" images which better display or highlight certain features in the scene. We will look at some of
acquisition. Also, it may be desirable to convert and/or calibrate the data to known (absolute) radiation or reflectance units to facilitate comparison between data. 3 IMAGE ENHANCEMENT TECHNIQUES Low sensitivity of the detectors, weak signal of the objects present on the earth surface, similar reflectance of different objects and environmental conditions at the time of recording are the major causes of low contrast of the image. Another problem that complicates photographic display of digital image is that the human eye is poor at discriminating the slight radiometric or spectral differences that may characterize the features. The main aim of digital enhancement is to amplify these slight differences for better clarity of the image scene. This means digital enhancement increases the separability (contrast) between the interested classes or features. The digital image enhancement may be defined as some mathematical operations that are to be applied to digital remote sensing input data to improve the visual appearance of an image for better interpretability or subsequent digital analysis (Lillesand and Keifer, 1979). Since the image quality is a subjective measure varying from person to person , there is no simple rule which may produce a single best result. Normally, two or more operations on the input image may suffice to fulfil the desire of the analyst, although the enhanced product may have a fraction of the total information stored in the original image. This will be realized after seeing the different contrast enhancement techniques in this chapter. There are a number of general categories of enhancement techniques. As in many outer areas of knowledge, the distinction between one type of analysis andanother is a matter of personal taste and need of the interpreter. In remote sensing literature, many digital enhancement algorithms are available. They are contrast stretching enhancement, ratioing , linear combinations, principalcomponent analysis, and spatial filtering. Broadly, the enhancement techniques are categorised as point operations and local operations. Point operations modify the values of each pixel in an image data set independently, whereas local operations modify the values of each pixel in the
context of the pixel values surrounding it. Point operations include contrast enhancement and band combinations, but spatial filtering is an example of local operations. In this section, contrast enhancement, linear contrast stretch , histogram equalisation, logarithmic contrast enhancement, and exponential contrast enhancement are considered.
IMAGE CLASSIFICATION
Image classification is a procedure to automatically categorize all pixels in an image of a terrain into land cover classes. Normally, multispectral data are used to perform the classification of the spectral pattern present within the data for each pixel is used as the numerical basis for categorization. This concept is dealt under thebroad subject, namely, Pattern Recognition. Spectral pattern recognition refers to the family of classification procedures that utilizes this pixel-by-pixel spectral information as the basis for automated land cover classification. Spatial pattern recognition involves the categorization of image pixels on the basis of the spatial relationship with pixels surrounding them. Image classification techniques aregrouped into two types, namely supervised and unsupervised. The classification process may also include features, such as, land surface elevation and the soil type that are not derived from the image. A pattern is thus a set of measurements on the chosen features for the individual to be classified. The classification process may therefore be considered a form of pattern recognition, that is, the identification of the pattern associated with each pixel position in an image in terms of the characteristics of the objects or on the earth's surface.
training patterns are called supervised classification methods. The three basic steps (Fig. 6.23) involved in a typical supervised classification procedure are as follows: (i) Training stage: The analyst identifies representative training areas and develops numerical descriptions of the spectral signatures of each land cover type of interest in the scene. (ii) The classification stage: Each pixel in the image data set IS categorised intothe land cover class it most closely resembles. If the pixel is insufficientlysimilar to any training data set it is usually labeled 'Unknown'. (iii) The output stage: The results may be used in a number of different ways.Three typical forms of output products are thematic maps, tables and digitaldata files which become input data for GIS. The output of image classificationbecomes input for GIS for spatial analysis of the terrain. 2 UNSUPERVISED CLASSIFICATION
Unsupervised classification algorithms do not compare .points to be classified with training data. Rather, unsupervised algorithms examine a large number of unknown data vectors and divide them into classes based on properties inherent to the data themselves. The classes that result stem from differences observed in the data. In particular, use is made of the notion that data vectors within a class should be in some sense mutually close together in the measurement space, whereas data vectors in different classes should be comparatively well separated. If the components of the data vectors represent the responses in different spectral bands, the resulting classes might be referred to as spectral classes, as opposed to information classes, which represent the ground cover types of interest to the analyst. The two types of classes described above, information classes and spectral classes, may not exactly correspond to each other. For instance, two information classes, corn and soyabeans, may look alike spectrally. We would say that the two classes are not separable spectrally. At certain times of the growing season corn and soyabeans are not spectrally distinct while at other times they are. On the other hand a single information class may be composed of two spectral classes. Differences in planting dates or seed variety might result in the information class" corn" being reflectance differences of tasseled and untasseled corn. To be useful, a class must be of informational value and be separable from other classes in the data.
