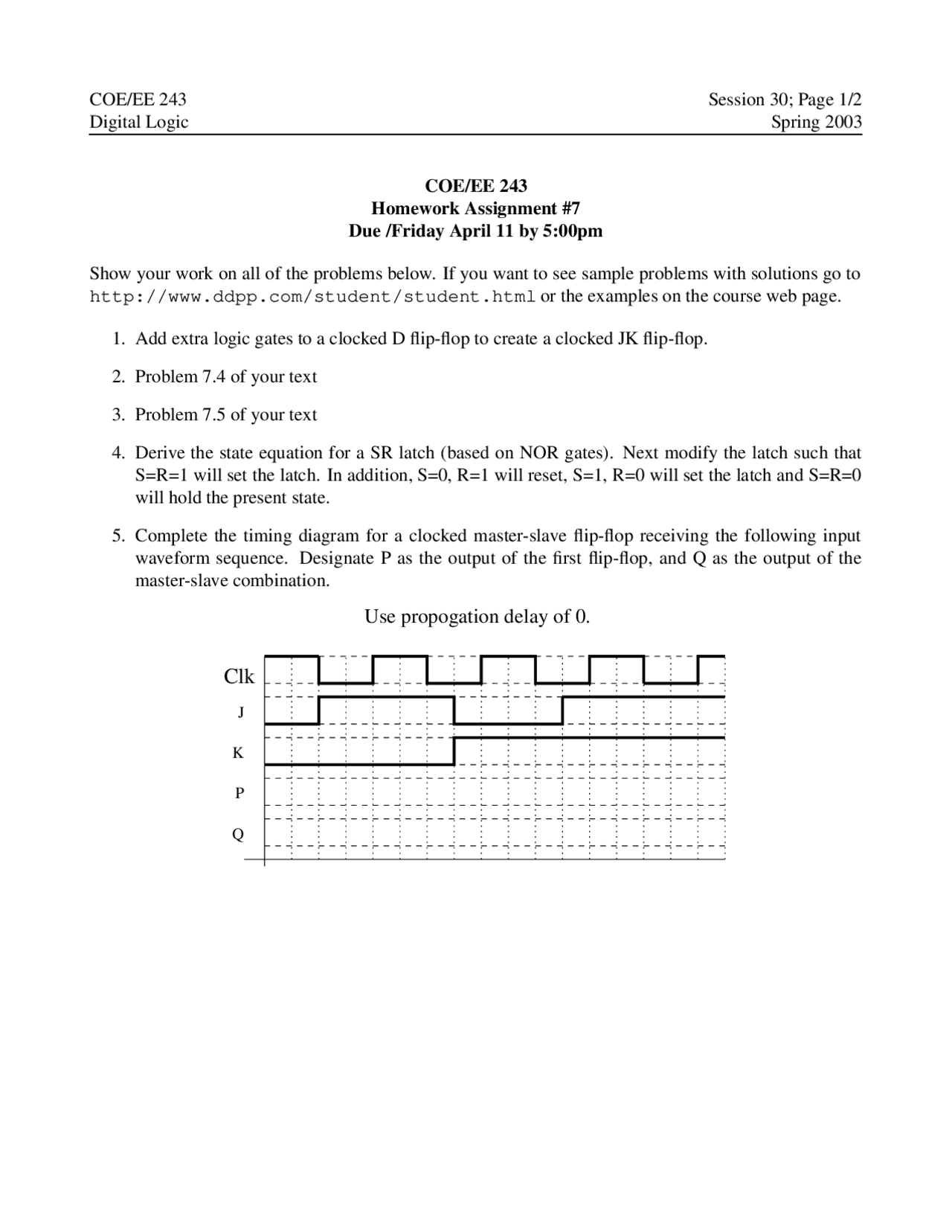

COE/EE 243
Digital Logic Session 30; Page 1/2
Spring 2003
COE/EE 243
Homework Assignment #7
Due /Friday April 11 by 5:00pm
Show your work on all of the problems below. If you want to see sample problems with solutions go to
http://www.ddpp.com/student/student.html or the examples on the course web page.
1. Add extra logic gates to a clocked D flip-flop to create a clocked JK flip-flop.
2. Problem 7.4 of your text
3. Problem 7.5 of your text
4. Derive the state equation for a SR latch (based on NOR gates). Next modify the latch such that
S=R=1 will set the latch. In addition, S=0, R=1 will reset, S=1, R=0 will set the latch and S=R=0
will hold the present state.
5. Complete the timing diagram for a clocked master-slave flip-flop receiving the following input
waveform sequence. Designate P as the output of the first flip-flop, and Q as the output of the
master-slave combination.
Use propogation delay of 0.
Clk
J
K
P
Q
pf2

Partial preview of the text

Download Digital Logic Homework Assignment for COE/EE 243, Spring 2003 and more Assignments Electrical and Electronics Engineering in PDF only on Docsity!

COE/EE 243

Digital Logic

Session 30; Page 1/ Spring 2003

COE/EE 243

Homework Assignment # Due /Friday April 11 by 5:00pm

Show your work on all of the problems below. If you want to see sample problems with solutions go to http://www.ddpp.com/student/student.html or the examples on the course web page.

  1. Add extra logic gates to a clocked D flip-flop to create a clocked JK flip-flop.
  2. Problem 7.4 of your text
  3. Problem 7.5 of your text
  4. Derive the state equation for a SR latch (based on NOR gates). Next modify the latch such that S=R=1 will set the latch. In addition, S=0, R=1 will reset, S=1, R=0 will set the latch and S=R= will hold the present state.
  5. Complete the timing diagram for a clocked master-slave flip-flop receiving the following input waveform sequence. Designate P as the output of the first flip-flop, and Q as the output of the master-slave combination.

Use propogation delay of 0.

Clk

J

K

P

Q

COE/EE 243

Digital Logic

Session 30; Page 2/ Spring 2003

  1. Complete the timing diagram for a clocked master-slave flip-flop receiving the following input waveform sequence. Designate P as the output of the first flip-flop, and Q as the output of the master-slave combination.

Use propogation delay of 0.

Clk

J

K

P

Q

  1. Problem 7.2 in your text
  2. Problem 7.3 of your text
  3. Repeat problem 7.2 in your text if the S input is now the D input to a D latch configured like the one in Figure 7-12 and the R input is the Control input.
