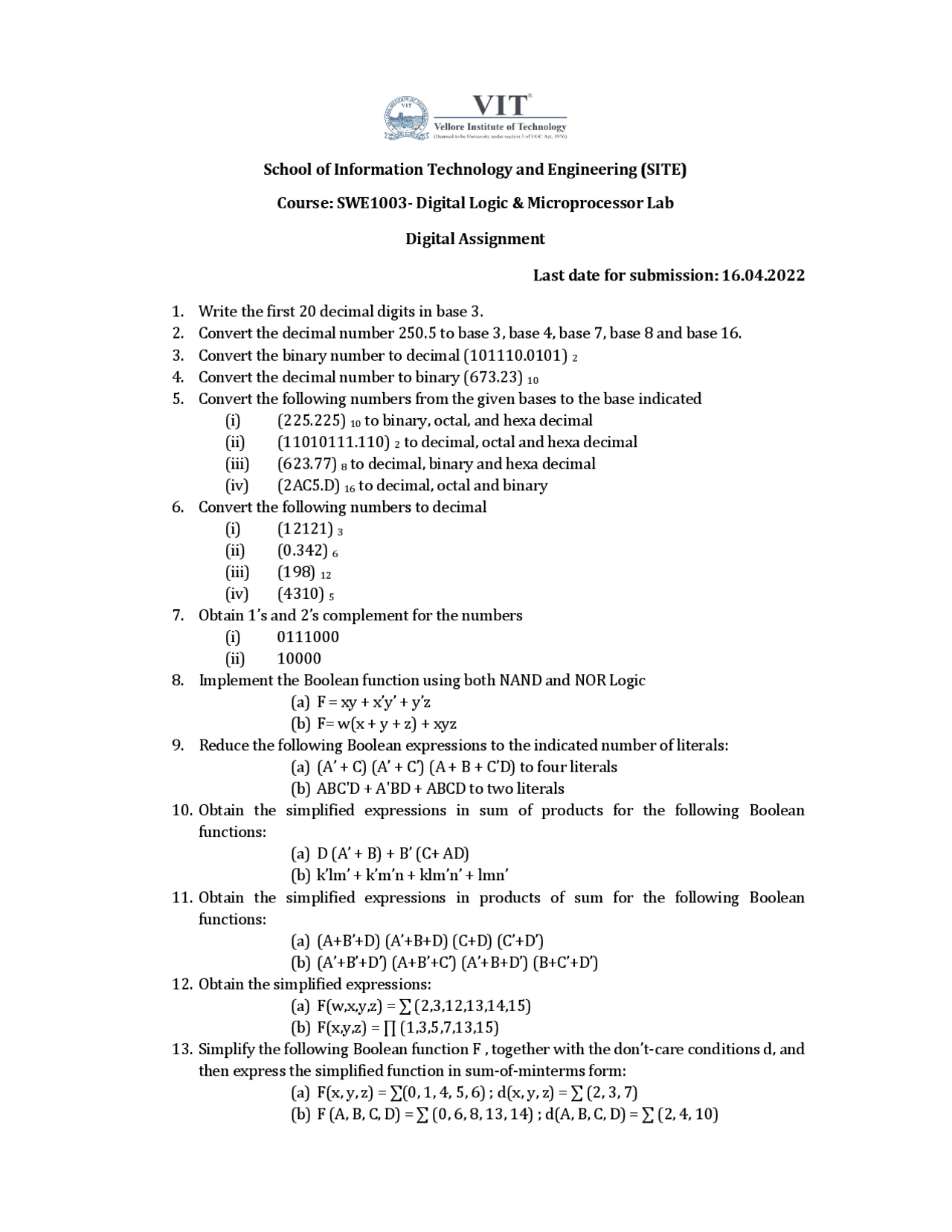

School of Information Technology and Engineering (SITE)
Course: SWE1003- Digital Logic & Microprocessor Lab
Digital Assignment
Last date for submission: 16.04.2022
1. Write the first 20 decimal digits in base 3.
2. Convert the decimal number 250.5 to base 3, base 4, base 7, base 8 and base 16.
3. Convert the binary number to decimal (101110.0101) 2
4. Convert the decimal number to binary (673.23) 10
5. Convert the following numbers from the given bases to the base indicated
(i) (225.225) 10 to binary, octal, and hexa decimal
(ii) (11010111.110) 2 to decimal, octal and hexa decimal
(iii) (623.77) 8 to decimal, binary and hexa decimal
(iv) (2AC5.D) 16 to decimal, octal and binary
6. Convert the following numbers to decimal
(i) (12121) 3
(ii) (0.342) 6
(iii) (198) 12
(iv) (4310) 5
7. Obtain 1’s and 2’s complement for the numbers
(i) 0111000
(ii) 10000
8. Implement the Boolean function using both NAND and NOR Logic
(a) F = xy + x’y’ + y’z
(b) F= w(x + y + z) + xyz
9. Reduce the following Boolean expressions to the indicated number of literals:
(a) (A’ + C) (A’ + C’) (A + B + C’D) to four literals
(b) ABC'D + A'BD + ABCD to two literals
10. Obtain the simplified expressions in sum of products for the following Boolean
functions:
(a) D (A’ + B) + B’ (C+ AD)
(b) k’lm’ + k’m’n + klm’n’ + lmn’
11. Obtain the simplified expressions in products of sum for the following Boolean
functions:
(a) (A+B’+D) (A’+B+D) (C+D) (C’+D’)
(b) (A’+B’+D’) (A+B’+C’) (A’+B+D’) (B+C’+D’)
12. Obtain the simplified expressions:
(a) F(w,x,y,z) = ∑ (2,3,12,13,14,15)
(b) F(x,y,z) = ∏ (1,3,5,7,13,15)
13. Simplify the following Boolean function F , together with the don’t-care conditions d, and
then express the simplified function in sum-of-minterms form:
(a) F(x, y, z) = ∑(0, 1, 4, 5, 6) ; d(x, y, z) = ∑ (2, 3, 7)
(b) F (A, B, C, D) = ∑ (0, 6, 8, 13, 14) ; d(A, B, C, D) = ∑ (2, 4, 10)
