Communication Networks Problem Set 3: Ethernet Timing, Access, Window Size, Token Ring | Assignments Organizational Communication

CS/ECE 438: Communication Networks for Computers Fall 2005

Problem Set 3 Due: start of class, Monday, October 3rd

Direct Link Networks (Part II)

Assigned reading: Peterson and Davie: Chapter 2.5 – 2.9. All problems carry equal weight. For full credit, show all

work.

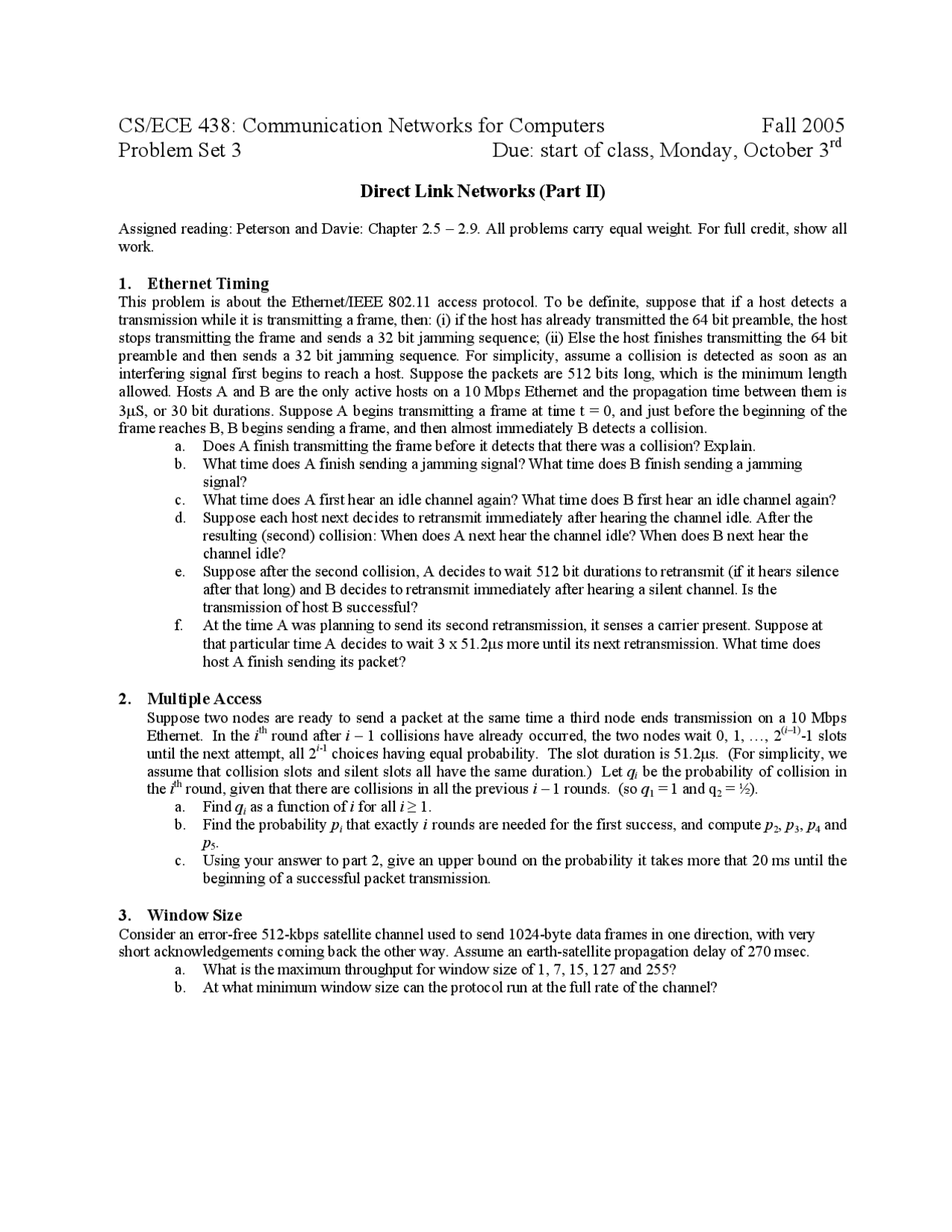

1. Ethernet Timing

This problem is about the Ethernet/IEEE 802.11 access protocol. To be definite, suppose that if a host detects a

transmission while it is transmitting a frame, then: (i) if the host has already transmitted the 64 bit preamble, the host

stops transmitting the frame and sends a 32 bit jamming sequence; (ii) Else the host finishes transmitting the 64 bit

preamble and then sends a 32 bit jamming sequence. For simplicity, assume a collision is detected as soon as an

interfering signal first begins to reach a host. Suppose the packets are 512 bits long, which is the minimum length

allowed. Hosts A and B are the only active hosts on a 10 Mbps Ethernet and the propagation time between them is

3µS, or 30 bit durations. Suppose A begins transmitting a frame at time t = 0, and just before the beginning of the

frame reaches B, B begins sending a frame, and then almost immediately B detects a collision.

a. Does A finish transmitting the frame before it detects that there was a collision? Explain.

b. What time does A finish sending a jamming signal? What time does B finish sending a jamming

signal?

c. What time does A first hear an idle channel again? What time does B first hear an idle channel again?

d. Suppose each host next decides to retransmit immediately after hearing the channel idle. After the

resulting (second) collision: When does A next hear the channel idle? When does B next hear the

channel idle?

e. Suppose after the second collision, A decides to wait 512 bit durations to retransmit (if it hears silence

after that long) and B decides to retransmit immediately after hearing a silent channel. Is the

transmission of host B successful?

f. At the time A was planning to send its second retransmission, it senses a carrier present. Suppose at

that particular time A decides to wait 3 x 51.2µs more until its next retransmission. What time does

host A finish sending its packet?

2. Multiple Access

Suppose two nodes are ready to send a packet at the same time a third node ends transmission on a 10 Mbps

Ethernet. In the ith round after i – 1 collisions have already occurred, the two nodes wait 0, 1, …, 2(i–1)-1 slots

until the next attempt, all 2i-1 choices having equal probability. The slot duration is 51.2µs. (For simplicity, we

assume that collision slots and silent slots all have the same duration.) Let qi be the probability of collision in

the ith round, given that there are collisions in all the previous i – 1 rounds. (so q1 = 1 and q2 = ½).

a. Find qi as a function of i for all i ≥ 1.

b. Find the probability pi that exactly i rounds are needed for the first success, and compute p2, p3, p4 and

p5.

c. Using your answer to part 2, give an upper bound on the probability it takes more that 20 ms until the

beginning of a successful packet transmission.

3. Window Size

Consider an error-free 512-kbps satellite channel used to send 1024-byte data frames in one direction, with very

short acknowledgements coming back the other way. Assume an earth-satellite propagation delay of 270 msec.

a. What is the maximum throughput for window size of 1, 7, 15, 127 and 255?

b. At what minimum window size can the protocol run at the full rate of the channel?
