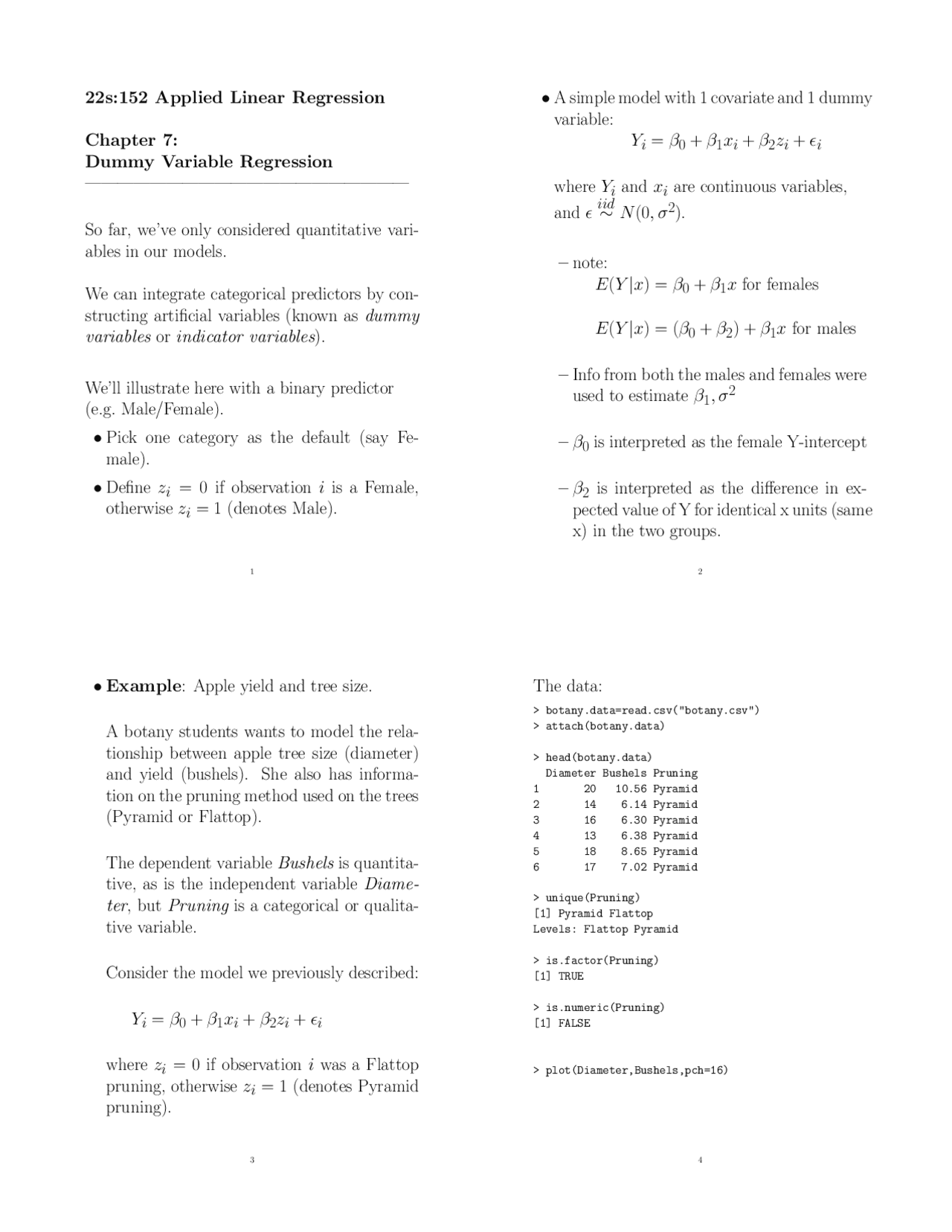

22s:152 Applied Linear Regression Chapter 7: Dummy Variable Regression ———————————————————— So far, we’ve only considered quantitative vari- ables in our models. We can integrate categorical predictors by con- structing artificial variables (known as dummy variables or indicator variables). We’ll illustrate here with a binary predictor (e.g. Male/Female).
- Pick one category as the default (say Fe- male).
- Define zi = 0 if observation i is a Female, otherwise zi = 1 (denotes Male). 1 - A simple model with 1 covariate and 1 dummy variable: Yi = β 0 + β 1 xi + β 2 zi + "i where Yi and xi are continuous variables, and " iid ∼ N (0, σ^2 ).
- note: E(Y |x) = β 0 + β 1 x for females E(Y |x) = (β 0 + β 2 ) + β 1 x for males
- Info from both the males and females were used to estimate β 1 , σ^2
- β 0 is interpreted as the female Y-intercept
- β 2 is interpreted as the difference in ex- pected value of Y for identical x units (same x) in the two groups. 2
- Example: Apple yield and tree size. A botany students wants to model the rela- tionship between apple tree size (diameter) and yield (bushels). She also has informa- tion on the pruning method used on the trees (Pyramid or Flattop). The dependent variable Bushels is quantita- tive, as is the independent variable Diame- ter, but Pruning is a categorical or qualita- tive variable. Consider the model we previously described: Yi = β 0 + β 1 xi + β 2 zi + "i where zi = 0 if observation i was a Flattop pruning, otherwise zi = 1 (denotes Pyramid pruning). The data: > botany.data=read.csv("botany.csv") > attach(botany.data) > head(botany.data) Diameter Bushels Pruning 1 20 10.56 Pyramid 2 14 6.14 Pyramid 3 16 6.30 Pyramid 4 13 6.38 Pyramid 5 18 8.65 Pyramid 6 17 7.02 Pyramid > unique(Pruning) [1] Pyramid Flattop Levels: Flattop Pyramid > is.factor(Pruning) [1] TRUE > is.numeric(Pruning) [1] FALSE > plot(Diameter,Bushels,pch=16)
! !!! ! ! ! ! !! ! ! ! ! ! ! ! ! ! ! 6 8 10 12 14 16 18 20 2 4 6 8 10 Diameter Bushels There does appear to be a linear relationship between tree diameter and yield in bushels. 5 The simple linear regression:
lm.out=lm(Bushels ~ Diameter) summary(lm.out) Coefficients: Estimate Std. Error t value Pr(>|t|) (Intercept) -2.18886 0.75898 -2.884 0.00988 ** Diameter 0.62361 0.05185 12.028 4.86e-10 ***
Signif. codes: 0 *** 0.001 ** 0.01 * 0.05. 0.1 1 Residual standard error: 1.133 on 18 degrees of freedom Multiple R-Squared: 0.8894,Adjusted R-squared: 0. F-statistic: 144.7 on 1 and 18 DF, p-value: 4.86e-
abline(lm.out) ! !!! ! ! ! ! !! ! ! ! ! ! ! !! ! ! 6 8 10 12 14 16 18 20
2 4 6 8 10 Diameter Bushels 6 Does Pruning Method also make a significant impact on yield? First, we’ll create the dummy variable:
Allocate space for the new vector:
pruning.dummy=rep(0,nrow(botany.data)) pruning.dummy [1] 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
If Pruning equals "Pyramid", code it as 1.
pruning.dummy[Pruning=="Pyramid"]= pruning.dummy [1] 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 data.frame(Pruning,pruning.dummy) Pruning pruning.dummy 1 Pyramid 1 2 Pyramid 1 3 Pyramid 1 4 Pyramid 1 5 Pyramid 1 6 Pyramid 1 7 Pyramid 1 8 Pyramid 1 9 Pyramid 1 10 Pyramid 1 11 Pyramid 1 12 Flattop 0 13 Flattop 0 14 Flattop 0 15 Flattop 0 16 Flattop 0 17 Flattop 0 18 Flattop 0 19 Flattop 0 20 Flattop 0 Fit a model with both Diameter and Pruning (as a dummy variable). lm.out.2=lm(Bushels ~ Diameter + pruning.dummy) summary(lm.out.2) Coefficients: Estimate Std. Error t value Pr(>|t|) (Intercept) -1.90616 0.75416 -2.528 0.0217 *
Diameter 0.63352 0.05038 12.574 4.91e-10 *** pruning.dummy -0.76259 0.49468 -1.542 0.
Signif. codes: 0 *** 0.001 ** 0.01 * 0.05. 0.1 1 Residual standard error: 1.092 on 17 degrees of freedom Multiple R-Squared: 0.9029,Adjusted R-squared: 0. F-statistic: 79.06 on 2 and 17 DF, p-value: 2.458e-
Inclusion of Interaction Returning to the earlier model with a male/female binary variable. A slightly more complicated model: Yi = β 0 + β 1 xi + β 2 zi + β 3 xizi + "i
- note: E(Y |x) = β 0 + β 1 x for females E(Y |x) = (β 0 +β 2 )+(β 1 +β 3 )x for males
- The xz interaction term allows for a different slope for each group
- xz may be called a slope dummy variable
- This model allows for two separate regression lines for each group 13 - What is the benefit to bringing the data for the two groups together? - If there is constant variance, we’ll have a better estimate for σ^2 by pooling the data (may not do it if you didn’t think they had a common σ^2 .) - We can run tests comparing the two groups. - More degrees of freedom. - To test if the lines are parallel, test if the in- teraction term is significant. H 0 : β 3 = 0. - If there’s no significant interaction, we can test if there’s two separate lines for the two groups, or if one is sufficient to describe the data. H 0 : β 2 = 0. - If there is significant interaction, the effect of covariate x on the response is different for different values of z. 14 Let’s fit the interaction model to the tree data.
lm.out.3=lm(Bushels ~ Diameter + pruning.dummy + Diameter*pruning.dummy) summary(lm.out.3) Coefficients: Estimate Std. Error t value Pr(>|t|) (Intercept) -2.00130 0.98989 -2.022 0. Diameter 0.64078 0.06988 9.170 9.05e-08 ***
pruning.dummy -0.53930 1.52761 -0.353 0. Diameter:pruning.dummy -0.01618 0.10434 -0.155 0.
Signif. codes: 0 *** 0.001 ** 0.01 * 0.05. 0.1 1 Residual standard error: 1.124 on 16 degrees of freedom Multiple R-Squared: 0.9031,Adjusted R-squared: 0. F-statistic: 49.69 on 3 and 16 DF, p-value: 2.487e-
lm.out.3$coefficients Diameter: (Intercept) Diameter pruning.dummy pruning.dummy -2.00129614 0.64077682 -0.53929972 -0. β 0 β 1 β 2 β 3
Model allows for different intercepts:
intercept.Flattop=lm.out.2$coefficients[1] intercept.Flattop (Intercept) -1. intercept.Pyramid=lm.out.2$coefficients[1] + lm.out.2$coefficients[3] intercept.Pyramid (Intercept) -2.
Model allows for different slopes:
slope.Flattop=lm.out.3$coefficients[2] slope.Flattop Diameter
slope.Pyramid=lm.out.3$coefficients[2] + lm.out.3$coefficients[4] slope.Pyramid Diameter
The separate fitted line for each group:
plot(Diameter,Bushels,type="n") ## Don’t plot the points points(Diameter[1:11],Bushels[1:11],pch=1,col=1) points(Diameter[12:20],Bushels[12:20],pch=9,col=4) legend(8,10,c("Pyramid","Flattop"),col=c(1,4),pch=c(1,9)) abline(intercept.Flattop,slope.Flattop,col=4) abline(intercept.Pyramid,slope.Pyramid,col=1) 6 8 10 12 14 16 18 20 2 4 6 8 10 Diameter Bushels ! !!! ! ! ! ! !! ! ! Pyramid Flattop You can’t see much difference, but the fitted line for Flattop has a slightly steeper slope. 17
- When interpreting models with dummy vari- ables, it’s important to keep in mind the cod- ing scheme that was used (which variable is associated with 1 and which with 0, for ex- ample).
- Numerous covariates can be used in conjunc- tion with dummy variables, though we only showed 1 covariate in this example.
- A model with no interaction terms is said to be additive.
- If an interaction term between two variables is included in the model, then the ‘main ef- fects’ for those variables should also be in- cluded. So, if xz is in the model, so should you include x and z. 18
- If there is significant interaction, we do not consider the tests for ‘main effects’. If there is NOT significant interaction, we can con- sider the tests for ‘main effects’. We look at the interaction significance first, and then proceed from there. Categorical Variables with Many Cat- egories Consider the categorical variable of Rank for a professor, which has the categories of Assistant, Associate, and Full. We can represent this categorical variable with 2 dummy variables: Category D 1 D 2 Assistant 1 0 Associate 0 1 Full 0 0 Suppose we wish to predict Salary based on Rank and the quantitative variable Grants, which tells how much grant money a professor has brought in.
