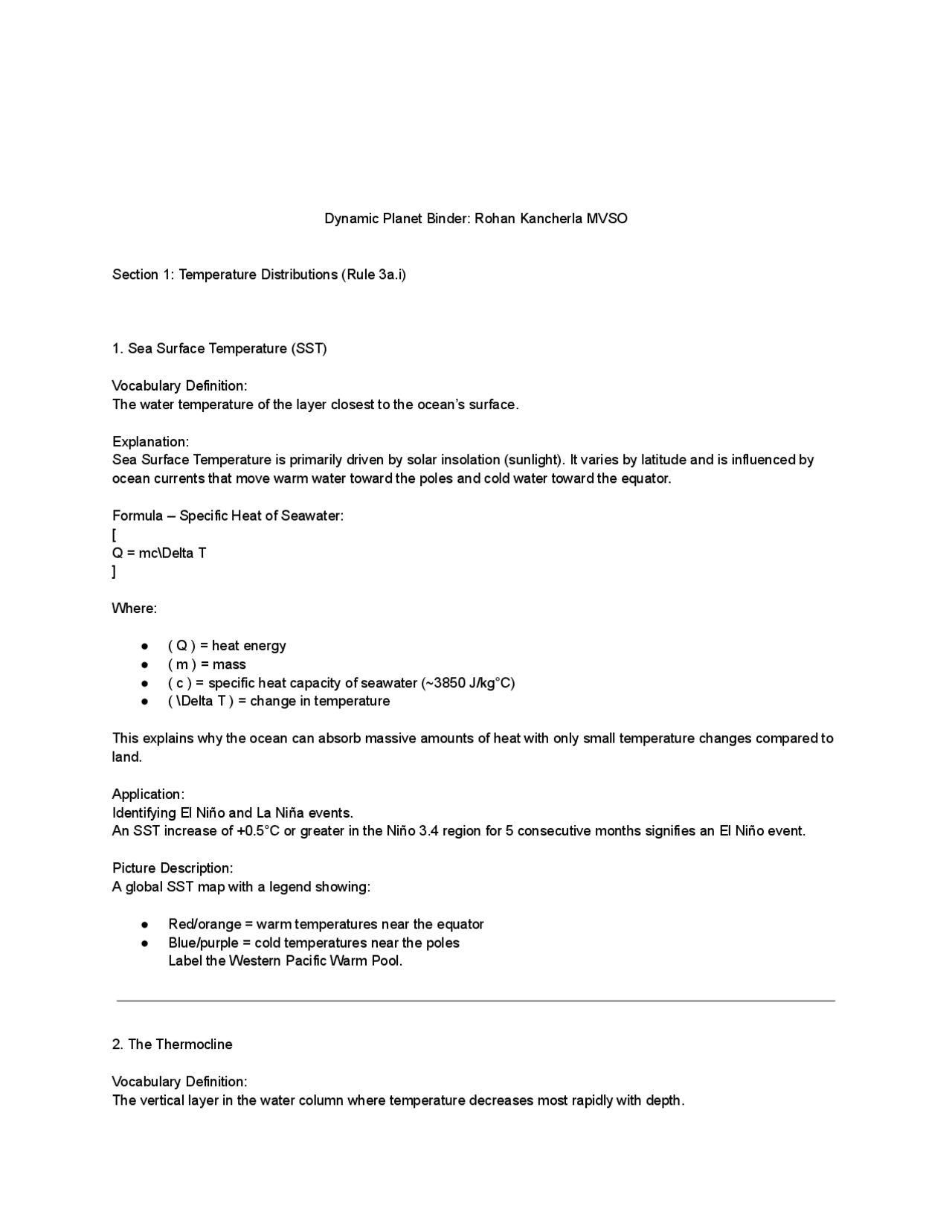

Dynamic Planet Binder: Rohan Kancherla MVSO
Section 1: Temperature Distributions (Rule 3a.i)
- Sea Surface Temperature (SST)
Vocabulary Definition: The water temperature of the layer closest to the ocean’s surface.
Explanation: Sea Surface Temperature is primarily driven by solar insolation (sunlight). It varies by latitude and is influenced by ocean currents that move warm water toward the poles and cold water toward the equator.
Formula – Specific Heat of Seawater: [ Q = mc\Delta T ]
Where:
● ( Q ) = heat energy ● ( m ) = mass ● ( c ) = specific heat capacity of seawater (~3850 J/kg°C) ● ( \Delta T ) = change in temperature
This explains why the ocean can absorb massive amounts of heat with only small temperature changes compared to land.
Application: Identifying El Niño and La Niña events. An SST increase of +0.5°C or greater in the Niño 3.4 region for 5 consecutive months signifies an El Niño event.
Picture Description: A global SST map with a legend showing:
● Red/orange = warm temperatures near the equator ● Blue/purple = cold temperatures near the poles Label the Western Pacific Warm Pool.
- The Thermocline
Vocabulary Definition: The vertical layer in the water column where temperature decreases most rapidly with depth.
Explanation: The thermocline separates the warm, sun-heated mixed layer from the cold deep ocean zone.
● Tropical regions: permanent thermocline ● Temperate regions: seasonal thermocline ● Polar regions: often absent
Formula – Vertical Temperature Gradient: [ \frac{\Delta T}{\Delta z} ]
Where:
● ( \Delta T ) = change in temperature ● ( \Delta z ) = change in depth
Application: Impacts sonar performance. Sound waves refract (bend) when passing through the thermocline, creating “shadow zones” where submarines can avoid detection.
Picture Description: A vertical temperature profile graph:
● Y-axis: Depth (0–1000 m) ● X-axis: Temperature (0°C–30°C) Draw an “S-shaped” curve showing: ● Mixed Layer (top) ● Thermocline (middle, steep drop) ● Deep Layer (bottom, cold and stable)
- The Mixed Layer (Isothermal Layer)
Vocabulary Definition: The upper ocean layer where wind and waves mix the water, keeping temperature and salinity uniform.
Explanation: This layer directly interacts with the atmosphere.
● Deeper in winter and storms (strong winds) ● Shallower in summer (weaker winds)
Formula – Heat Capacity of the Mixed Layer: [
Application: Explains why the ocean acts as the “Global Thermostat.” Ocean currents transport excess heat from the equator toward the poles.
Picture Description: A graph of Net Heat Gain vs. Latitude:
● Peak heat gain at 0° (equator) ● Drops below zero around 40°–60° North and South
- Thermal Expansion
Vocabulary Definition: The increase in the volume of seawater as its temperature rises.
Explanation: When water warms, molecules move faster and spread apart, increasing volume.
Formula – Change in Volume: Where:
● ( \beta ) = coefficient of thermal expansion ● ( V_0 ) = original volume ● ( \Delta T ) = temperature change
Application: Sea-level rise. Approximately half of current sea-level rise is caused by thermal expansion, not just melting ice.
Picture Description: A diagram of a vertical column of water expanding upward as heat is applied, showing increased height due to expansion.
Section 2: Salinity (Rule 3a.ii)
- Salinity (S)
Vocabulary Definition: The total amount of dissolved inorganic solids (salts) in one kilogram of seawater, typically measured in parts per thousand (‰ or ppt).
Explanation: The average salinity of the world ocean is 35‰ (35 ppt).
Seawater is primarily composed of six major ions:
● Chloride (Cl⁻)
● Sodium (Na⁺)
● Sulfate (SO₄²⁻)
● Magnesium (Mg²⁺)
● Calcium (Ca²⁺)
● Potassium (K⁺)
Formula – Knudsen’s Formula (Chlorinity):
S=1.80655×ClS = 1.80655 \times ClS=1.80655×Cl
Where:
● SSS = salinity (‰)
● ClClCl = chlorinity (‰)
Modern measurements use the Practical Salinity Scale (PSS-78), which is unitless but numerically close to ppt.
Application: Identifying water masses.
For example, Mediterranean Intermediate Water is recognized by its unusually high salinity (~38‰) as it flows into the Atlantic Ocean.
Picture Description: A pie chart of seawater composition:
● Largest slice: Chloride (~55%)
● Second largest: Sodium (~31%)
- Salt Sources & Sinks
Vocabulary Definition: Sources are processes that add salts to the ocean. Sinks are processes that remove salts from the ocean.
Explanation:
Primary Sources:
● Chemical weathering of rocks (carried by rivers)
● Hydrothermal vents (outgassing at mid-ocean ridges)
Primary Sinks:
● Sea spray
● Biological uptake (shell formation)
● Chemical reactions with seafloor sediments
Formula – Residence Time:
τ=Total amount of substance in oceanRate of removal\tau = \frac{\text{Total amount of substance in ocean}}{\text{Rate of removal}}τ=Rate of removalTotal amount of substance in ocean
Where:
● τ\tauτ = residence time
For major ions like chloride, residence time is millions of years.
Application: Explains why the ocean does not continuously become saltier. The ocean is in steady state, meaning sources equal sinks over long time periods.
Picture Description: A “Salt Budget” diagram showing:
● Arrows from Rivers and Hydrothermal Vents into the ocean
● Arrows labeled Sedimentation and Biological Uptake leaving the ocean
- The Halocline
Vocabulary Definition: A vertical zone in the ocean where salinity changes rapidly with depth.
Explanation:
● High latitudes (polar regions): Surface salinity is low (melting ice adds freshwater), so salinity increases with depth.
● Low latitudes (tropics): Surface salinity is high (strong evaporation), so salinity decreases with depth.
Formula – Salinity Gradient:
ΔSΔz\frac{\Delta S}{\Delta z}ΔzΔS
Where:
● ΔS\Delta SΔS = change in salinity
● Δz\Delta zΔz = change in depth
Application: Determines water column stability. A strong halocline prevents vertical mixing, which can trap nutrients in deep water.
Picture Description: A vertical salinity profile graph:
● Y-axis: Depth
● X-axis: Salinity
Draw:
● A line curving right with depth (High Latitude profile)
● A line curving left with depth (Low Latitude profile)
- Forchhammer’s Principle (Rule of Constant Proportions)
Formula – Hydrostatic Equation:
P=ρghP = \rho g hP=ρgh
Where:
● PPP = pressure
● ρ\rhoρ = density of seawater
● ggg = acceleration due to gravity (9.8 m/s²)
● hhh = depth
Application:
● Critical for deep-sea exploration (submersibles must withstand extremely high pressure measured in PSI).
● Affects gas solubility (Henry’s Law): higher pressure allows more oxygen (O₂) and carbon dioxide (CO₂) to dissolve in deep water.
Picture Description: A vertical chart showing Depth vs. Pressure:
● 0 m → 1 atm
● 10 m → 2 atm
● 1000 m → 101 atm
- Density (ρ)
Vocabulary Definition: The mass per unit volume of seawater, typically measured in kg/m³ or g/cm³.
Explanation: Ocean density is controlled by:
● Temperature (colder water = denser)
● Salinity (saltier water = denser)
● Pressure (higher pressure = slightly denser)
Temperature has the greatest overall effect on density in the open ocean.
Formula – Density Approximation:
ρ=mV\rho = \frac{m}{V}ρ=Vm
Average seawater density ≈ 1025 kg/m³ Pure water density ≈ 1000 kg/m³
Application: Drives thermohaline circulation.
Dense water formed at the poles:
● Antarctic Bottom Water (AABW)
● North Atlantic Deep Water (NADW)
These sink and flow along the ocean floor, acting as the “engine” of the global conveyor belt.
Picture Description: A T–S (Temperature–Salinity) Diagram showing curved lines called Isopycnals (lines of equal density). Label the bottom-right corner as “Densest Water.”
- The Three-Layer Model
Vocabulary Definition: A simplified structural model of the ocean consisting of the Mixed Layer, the Pycnocline, and the Deep Zone.
Explanation:
Mixed Layer (0–200 m): Surface water with uniform density due to wind and wave mixing.
Pycnocline (200–1000 m): The “barrier” layer where density increases rapidly with depth.
Deep Zone (Below 1000 m): Dense, cold, stable water making up about 80% of ocean volume.
Formula – Stability Index (Density Gradient):
● dρdz\frac{d\rho}{dz}dzdρ = vertical density gradient
Higher values indicate stronger stratification.
Application: Dead Zones (Hypoxia): Strong stratification in areas like the Gulf of Mexico prevents oxygen from mixing downward, leading to fish kills.
Picture Description: A diagram of Stable vs. Unstable Water Columns:
● Stable: light blocks on top of heavy blocks
● Unstable: heavy block on top with arrow showing sinking (overturning)
- Mixing (Vertical & Horizontal)
Vocabulary Definition: The process by which different water masses blend their properties (temperature, salinity, nutrients).
Explanation:
Vertical Mixing:
● Wind
● Cooling (convection)
● Tides
Horizontal Mixing:
● Ocean currents
● Eddies
Formula – Richardson Number (Ri):
Ri=g(dρdz)ρ(dudz)2Ri = \frac{g \left(\frac{d\rho}{dz}\right)}{\rho \left(\frac{du}{dz}\right)^2}Ri=ρ(dzdu)2g(dzdρ)
Where:
● dρdz\frac{d\rho}{dz}dzdρ = density gradient
● dudz\frac{du}{dz}dzdu = velocity shear
If Ri < 0.25, mixing occurs. If Ri > 0.25, stratification dominates and mixing is suppressed.
Application: Upwelling: Wind-driven mixing and offshore Ekman transport bring cold, nutrient-rich deep water to the surface, supporting major fisheries.
Picture Description: A coastal upwelling diagram showing:
● Wind blowing parallel to the coast
● Ekman transport moving surface water offshore
● Deep water rising upward to replace it
Section A-iv: Other Seawater Properties
- Nutrient Concentrations (NO₃⁻, PO₄³⁻, SiO₄⁴⁻)
Vocabulary Definition: Essential inorganic compounds (nitrates, phosphates, silicates) required by marine primary producers (phytoplankton) for growth. [2.3]
Explanation: Nutrients act as “fertilizers” for the ocean. They are:
● Depleted at the surface by phytoplankton during photosynthesis.
● Enriched at depth as organic matter sinks and decomposes (remineralization).
Formula – Redfield Ratio:
C:N:P=106:16:1C : N : P = 106 : 16 : 1C:N:P=106:16:
Picture Description: A chemical flowchart: CO₂ + H₂O → H₂CO₃ → H⁺ + HCO₃⁻ Label the increase in H⁺ as “Increases Acidity.”
- Chlorophyll (Chl-a)
Vocabulary Definition: The primary green pigment used by phytoplankton to capture sunlight for photosynthesis. [2.3]
Explanation: Chlorophyll concentration is a direct proxy for Primary Productivity (the fertility of the ocean).
High chlorophyll levels occur in:
● Cold, nutrient-rich upwelling zones
● Coastal regions
Low chlorophyll levels occur in:
● The centers of major subtropical gyres (“ocean deserts”).
Formula – Photosynthesis Equation:
6CO2+6H2O+sunlight→C6H12O6+6O26CO_2 + 6H_2O + sunlight \rightarrow C_6H_{12}O_6 + 6O_26CO2+6H2O+sunlight→C6H12O6+6O
Application: Remote sensing. Satellites measure “ocean color” (greenness) to map global food sources and monitor fisheries from space. [2.3]
Picture Description: A global chlorophyll map:
● Dark green = “Ocean Forests” (productive coastal zones)
● Dark blue = “Ocean Deserts” (centers of the 5 major gyres)
- Dissolved Oxygen (DO)
Vocabulary Definition: The amount of gaseous oxygen (O₂) dissolved in seawater, required for marine animal respiration. [2.3]
Explanation:
● Highest at the surface (air-sea exchange + photosynthesis)
● Lowest at mid-depths (200–1000 m) due to respiration → forms the Oxygen Minimum Zone (OMZ)
● Slight increase again in deep water due to cold temperatures and circulation
Formula – Oxygen Solubility (Henry’s Law Concept):
C=kPC = kPC=kP
Where:
● CCC = concentration of dissolved gas
● kkk = solubility constant
● PPP = pressure
Oxygen dissolves best in water that is:
● Cold
● Fresh
● Under high pressure
Application: Oxygen Minimum Zones (OMZs). These “dead zone” layers occur where oxygen is consumed faster than it is replaced, limiting where fish and other organisms can survive. [2.3]
Picture Description: An oxygen profile graph:
● High DO at surface
● Sharp dip at 200–1000 m (OMZ)
● Slight increase in deep ocean
● Yellow (~20 m)
● Blue (100+ m)
Section B: Surface Circulation (Rule 3b)
- Surface Ocean Currents
Vocabulary Definition: Continuous, directed movements of seawater generated by forces acting on the ocean’s surface, including wind, the Coriolis effect, breaking waves, and temperature/salinity gradients.
Explanation: Surface currents are driven primarily by global wind belts (Trade Winds and Westerlies).
They:
● Affect the top ~400 meters of the ocean
● Transport massive amounts of heat around the globe
● Help regulate global climate
Formula – Ekman Transport Direction:
● Northern Hemisphere: 90° to the right of the wind direction
● Southern Hemisphere: 90° to the left of the wind direction
This occurs due to the Coriolis effect.
Application:
● Predicting the movement of marine debris (e.g., Great Pacific Garbage Patch)
● Planning global shipping and navigation routes
Picture Description: A global map showing:
● Trade Winds (0–30°)
● Westerlies (30–60°) Aligned with the major surface currents they drive.
- Ocean Gyres
Vocabulary Definition: Large circular systems of surface currents formed by global wind patterns and the Coriolis effect.
Explanation: There are five major gyres:
● North Atlantic
● South Atlantic
● North Pacific
● South Pacific
● Indian Ocean
Rotation Direction:
● Clockwise in the Northern Hemisphere
● Counterclockwise in the Southern Hemisphere
Formula – Geostrophic Flow:
Pressure Gradient Force=Coriolis Force\text{Pressure Gradient Force} = \text{Coriolis Force}Pressure Gradient Force=Coriolis Force
When these forces balance, water flows parallel to isobars (geostrophic current).
Application: Gyres create low-nutrient “biological deserts” in their centers.
Example: The Sargasso Sea (center of the North Atlantic Gyre) where water converges and nutrients sink.
Picture Description: A world map with arrows showing the five major gyres and their rotation directions.
