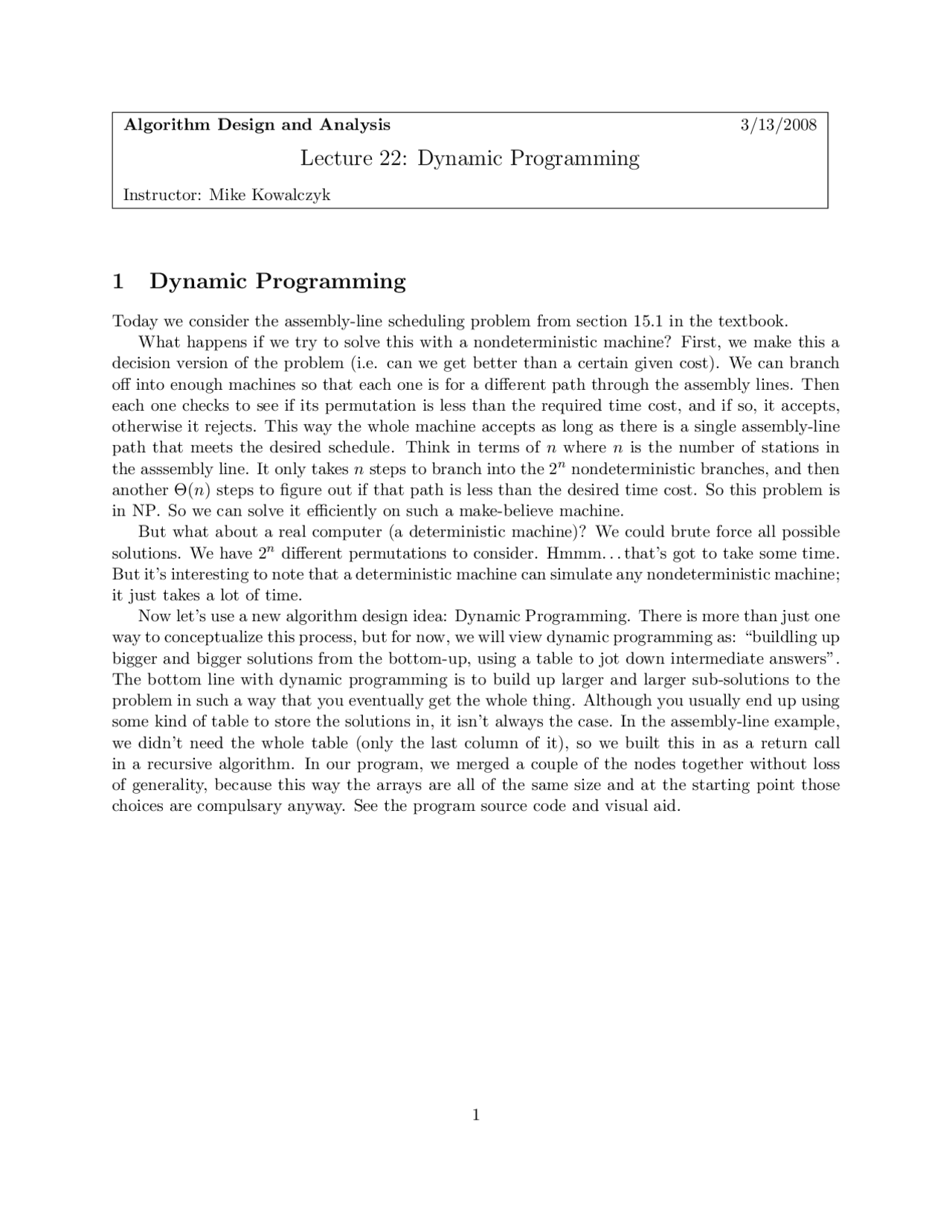

Algorithm Design and Analysis 3/13/2008
Lecture 22: Dynamic Programming
Instructor: Mike Kowalczyk
1 Dynamic Programming
Today we consider the assembly-line scheduling problem from section 15.1 in the textbook.
What happens if we try to solve this with a nondeterministic machine? First, we make this a
decision version of the problem (i.e. can we get better than a certain given cost). We can branch
off into enough machines so that each one is for a different path through the assembly lines. Then
each one checks to see if its permutation is less than the required time cost, and if so, it accepts,
otherwise it rejects. This way the whole machine accepts as long as there is a single assembly-line
path that meets the desired schedule. Think in terms of nwhere nis the number of stations in
the asssembly line. It only takes nsteps to branch into the 2nnondeterministic branches, and then
another Θ(n) steps to figure out if that path is less than the desired time cost. So this problem is
in NP. So we can solve it efficiently on such a make-believe machine.
But what about a real computer (a deterministic machine)? We could brute force all possible
solutions. We have 2ndifferent permutations to consider. Hmmm. . . that’s got to take some time.
But it’s interesting to note that a deterministic machine can simulate any nondeterministic machine;
it just takes a lot of time.
Now let’s use a new algorithm design idea: Dynamic Programming. There is more than just one
way to conceptualize this process, but for now, we will view dynamic programming as: “buildling up
bigger and bigger solutions from the bottom-up, using a table to jot down intermediate answers”.
The bottom line with dynamic programming is to build up larger and larger sub-solutions to the
problem in such a way that you eventually get the whole thing. Although you usually end up using
some kind of table to store the solutions in, it isn’t always the case. In the assembly-line example,
we didn’t need the whole table (only the last column of it), so we built this in as a return call
in a recursive algorithm. In our program, we merged a couple of the nodes together without loss
of generality, because this way the arrays are all of the same size and at the starting point those
choices are compulsary anyway. See the program source code and visual aid.
1
