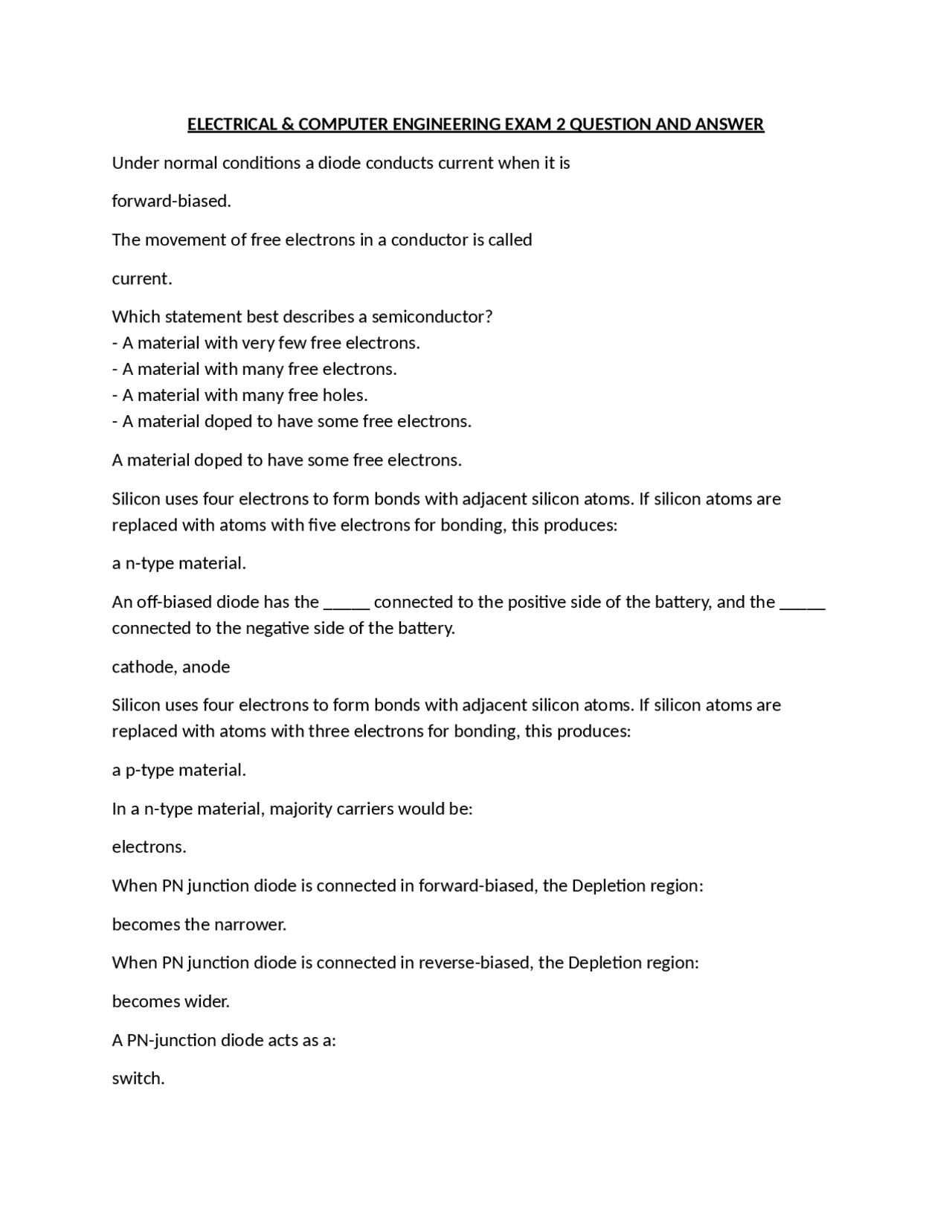

ELECTRICAL & COMPUTER ENGINEERING EXAM 2 QUESTION AND ANSWER
Under normal conditions a diode conducts current when it is
forward-biased.
The movement of free electrons in a conductor is called
current.
Which statement best describes a semiconductor?
- A material with very few free electrons.
- A material with many free electrons.
- A material with many free holes.
- A material doped to have some free electrons.
A material doped to have some free electrons.
Silicon uses four electrons to form bonds with adjacent silicon atoms. If silicon atoms are
replaced with atoms with five electrons for bonding, this produces:
a n-type material.
An off-biased diode has the _____ connected to the positive side of the battery, and the _____
connected to the negative side of the battery.
cathode, anode
Silicon uses four electrons to form bonds with adjacent silicon atoms. If silicon atoms are
replaced with atoms with three electrons for bonding, this produces:
a p-type material.
In a n-type material, majority carriers would be:
electrons.
When PN junction diode is connected in forward-biased, the Depletion region:
becomes the narrower.
When PN junction diode is connected in reverse-biased, the Depletion region:
becomes wider.
A PN-junction diode acts as a:
switch.
