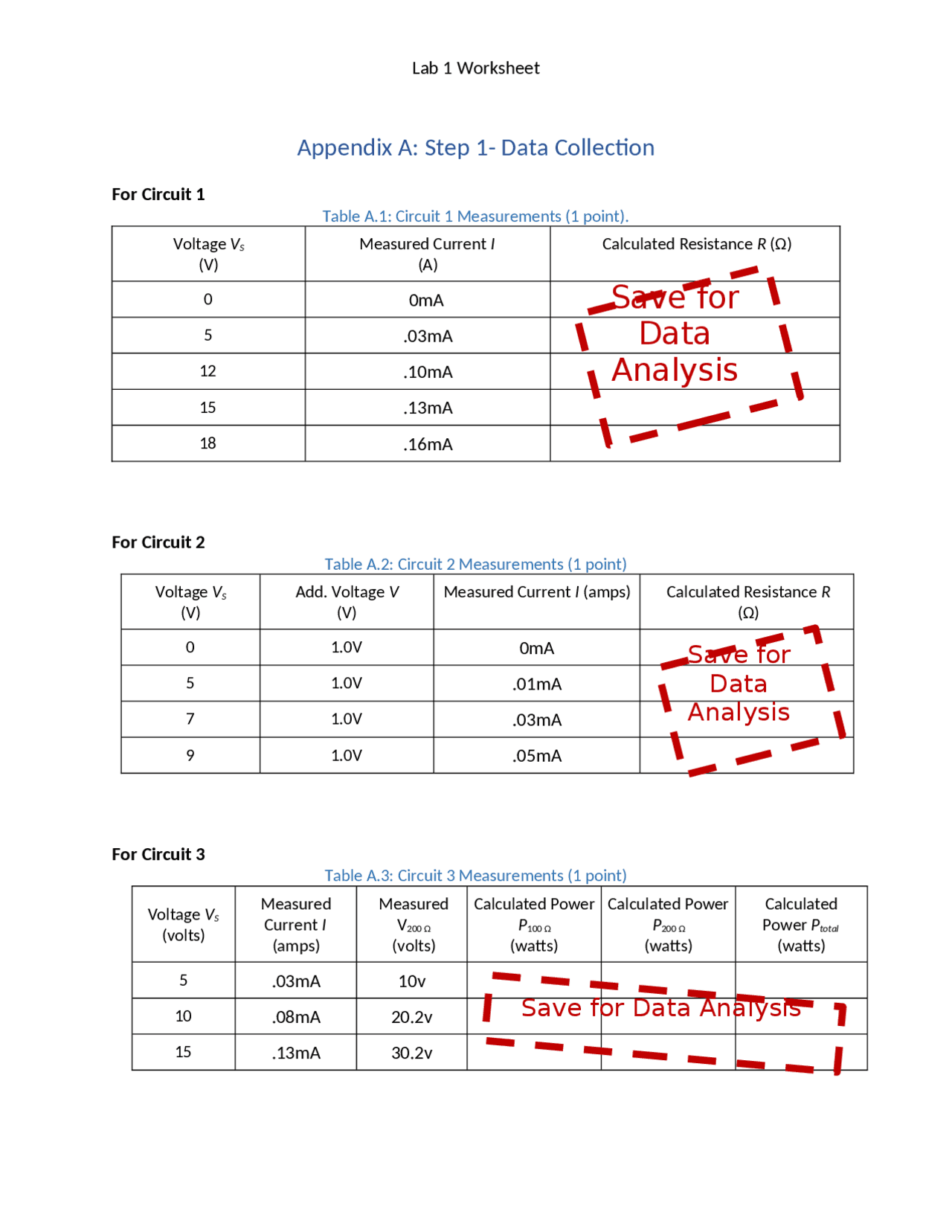

Lab 1 Worksheet
Appendix A: Step 1- Data Collection
For Circuit 1
Table A.1: Circuit 1 Measurements (1 point).
Voltage VS
(V)
Measured Current I
(A)
Calculated Resistance R (Ω)
00mA
5.03mA
12 .10mA
15 .13mA
18 .16mA
For Circuit 2
Table A.2: Circuit 2 Measurements (1 point)
Voltage VS
(V)
Add. Voltage V
(V)
Measured Current I (amps) Calculated Resistance R
(Ω)
0 1.0V 0mA
5 1.0V .01mA
7 1.0V .03mA
9 1.0V .05mA
For Circuit 3
Table A.3: Circuit 3 Measurements (1 point)
Voltage VS
(volts)
Measured
Current I
(amps)
Measured
V200 Ω
(volts)
Calculated Power
P100 Ω
(watts)
Calculated Power
P200 Ω
(watts)
Calculated
Power Ptotal
(watts)
5.03mA 10v
10 .08mA 20.2v
15 .13mA 30.2v
Save for
Data
Analysis
Save for
Data
Analysis
Save for Data Analysis
pf3
pf4
pf5

Partial preview of the text

Download Electrical Circuit Analysis Lab and more Study Guides, Projects, Research Chemistry in PDF only on Docsity!

Appendix A: Step 1- Data Collection

For Circuit 1 Table A.1: Circuit 1 Measurements (1 point). Voltage VS (V) Measured Current I (A) Calculated Resistance R (Ω) (^0) 0mA (^5) .03mA (^12) .10mA (^15) .13mA (^18) .16mA For Circuit 2 Table A.2: Circuit 2 Measurements (1 point) Voltage VS (V) Add. Voltage V (V) Measured Current I (amps) Calculated Resistance R (Ω) 0 1.0V (^) 0mA 5 1.0V .01mA 7 1.0V (^) .03mA 9 1.0V (^) .05mA For Circuit 3 Table A.3: Circuit 3 Measurements (1 point) Voltage VS (volts) Measured Current I (amps) Measured V 200 Ω (volts) Calculated Power P 100 Ω (watts) Calculated Power P 200 Ω (watts) Calculated Power Ptotal (watts) (^5) .03mA 10v 10 .08mA 20.2v (^15) .13mA 30.2v

Save for

Data

Analysis

Save for

Data

Analysis

Save for Data Analysis

Appendix B: Step 2 - Data Analysis

For Circuit 1

  1. Calculate the resistance R in the last column of Table 1 using Ohm’s Law – equation shown below. Pay close attention to UNITS! (Remember from class that volts/amps = ohms). Show your work by hand for these calculations and include them in your submission of this worksheet (1 point). R = V (^) s I
  2. Completely fill in Table 1 (1 point). Table B.1: Circuit 1 Data Set Voltage VS (V) Measured Current I (A) Calculated Resistance R (Ω) 0v (^) 0 A 0 Ω 5v (^) .00003 A 166666.67 Ω 12v (^) .00010 A 120000 Ω 15v (^) .00013 A 115384.62 Ω 18v (^) .00016 A 112500 Ω

(amps) 0 1.0V (^) 0 A 000.00 Ω 5 1.0V 0.00001 A (^600000) Ω 7 1.0V 0.00003 A (^) 266666.67 Ω 9 1.0V 0.00005 A (^200000) Ω

  1. Plot Vs as a function of I (Vs on the y-axis and I on the x-axis) in Excel_._ Find the linear ‘Line of Best Fit’ and display the equation on the plot. Include a screen shot of this plot below for full credit (1 point). For Circuit 3
  2. Use the equations below to calculate the power across each resistor and the total power in Table 3. Show your work by hand for these calculations and include them in your submission of this worksheet (1 point). P 100 Ω = I 2 ∗ R 100 Ω P 200 Ω = V (^) 200 Ω ∗ I Ptotal = P 100 Ω + P 200 Ω
  1. Completely fill in Table 3 (1 point). Table B.3: Circuit 3 Data Set Voltage VS (volts) Measured Current I (amps) Measured V 200 Ω (volts) Calculated Power P 100 Ω (watts) Calculated Power P 200 Ω (watts) Calculated Power Ptotal (watts) 5v (^) .03mA 10v .00015 W .0003 W .00045 W 10v (^) .08mA 20.2v .0008 W 0.00162 W .00242 W 15v (^) .13mA 30.2v 0.00195 W 0.00393 W .00588 W
  2. Then, choose one row from Table 3 and use the quadratic equation below to solve for the current (I) flowing through the circuit. Show your work by hand for these calculations and include them in your submission of this worksheet (1 point). I 2 R 100 Ω + V (^) 200 Ω I − Ptotal = 0 NOTE: Only plug in the variables ‘Ptotal’, ‘R100Ω’, and ‘V200Ω’ – not ‘I’. We did already measure I, but we are using our Power calculations to compare our measured current (I) to the value you calculate in this step. Row 1: 1.) I^2 (166666.67) +10I-. 2.) (166666.67) I^2 +10I=. 3.) x=.00003 or -.

Appendix C: Step 3 - Discussion of Data
