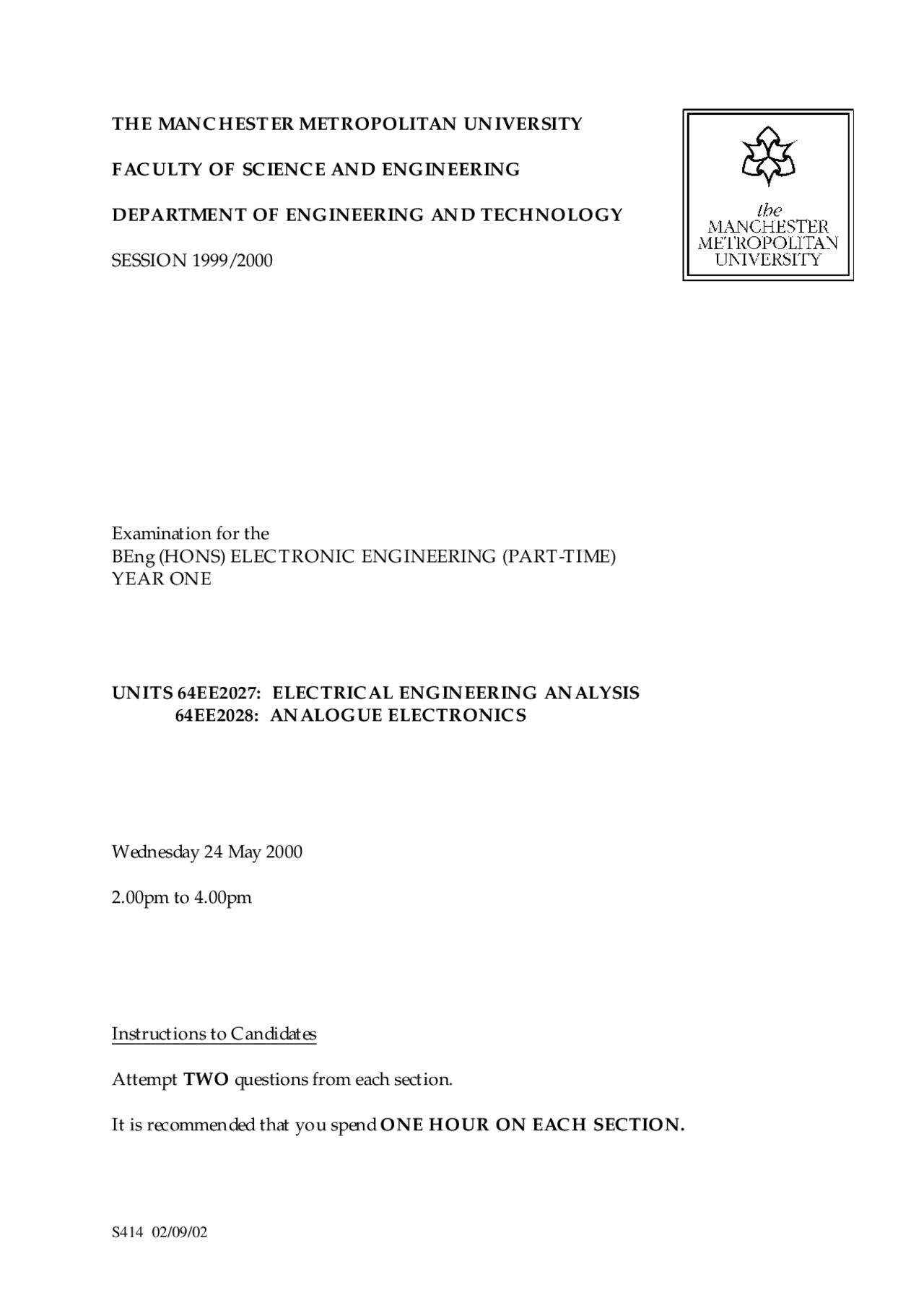

S414 02/09/02
THE MANCHESTER METROPOLITAN UNIVERSITY
FACULTY OF SCIENCE AND ENGINEERING
DEPARTMENT OF ENGINEERING AND TECHNOLOGY
SESSION 1999/2000
Examination for the
BEng (HONS) ELECTRONIC ENGINEERING (PART-TIME)
YEAR ONE
UNITS 64EE2027: ELECTRICAL ENGINEERING ANALYSIS
64EE2028: ANALOGUE ELECTRONICS
Wednesday 24 May 2000
2.00pm to 4.00pm
Instructions to Candidates
Attempt TWO questions from each section.
It is recommended that you spend ONE HOUR ON EACH SECTION.
pf3
pf4
pf5
pf8
pf9

Partial preview of the text

Download Electrical Engineering Analysis Analogue Electronics - 1999 2000 and more Exams Electrical Engineering in PDF only on Docsity!

S414 02/09/

TH E MANCH ESTER M ETR O PO LITAN UNIVER SITY

FACULTY O F SCIENCE AND ENGINEER ING

D EPA R TMENT O F ENGINEER ING AND TECH NO LO GY

SESSIO N 19 9 9 /

Exam ination for th e BEng (H O NS) ELECTR O NIC ENGINEER ING (PA R T-TIME) YEA R O NE

UNITS 64EE2027: ELECTR ICALENGINEER ING ANALYSIS

64EE2028: ANALO GUE ELECTR O NICS

W ednesday 24 May 2000

2.00pm to 4.00pm

Instructions to Candidates

A ttem pt TW O questions from each section.

It is recom m ended th at you spend O NE H O UR O N EACH SECTIO N.

SECTIO N A

  1. a) Briefly explain, w ith th e aid of a diagram , th e prob lem of crossover distortion experienced in Class B push -pullam plifiers. [4]

b ) Explain, w ith th e aid of a circuit diagram , h ow th e prob lem of crossover distortion can b e overcom e using a Class A B am plifier configuration. Is th e Class A B am plifier m ore or less efficient th an a Class B am plifier? Explain your answ er. [6]

c) State th e m axim um th eoreticalefficiency of a Class B am plifier and a Class A am plifier w ith a resistive load. [2]

d) For a particular Class B am plifier th e D C input pow er is 50 w atts and th e efficiency of th e am plifier is 60%. Th e m axim um junction tem perature of th e pow er transistors is 200 degrees Centigrade and θJC = 2 deg C/W. D e term ine th e m axim um th erm alresistance of a suitab le h eatsink , assum ing b oth output pow er transistors are m ounted on th e sam e h eatsink and th e m axim um am b ient tem perature is 30 degrees Centigrade. [8]

  1. a) D e sign a com m on em itter am plifier using th e b ase potentiom eter and em itter resistor b iasing m eth od. Th e em itter resistor is NO T to b e decoupled using a capacitor. Th e pow er supply is 30 volts and th e NPN transistor ch aracteristics are as follow s:

h FE(m in) = 200 h FE(m ax) = 400 VBE = 0.7 volts

Th e quiescent collector current sh ould b e approxim ately 1 m A.

Th e am plifier sh ould provide m axim um possib le undistorted collector voltage sw ing for a large signaloutput. A llresistors sh ould b e NPV (nearest preferred values) in th e E12 range. Sh ow allyour calculations and state any assum ptions you m ak e. [14]

b ) D e term ine th e approxim ate pow er dissipation of th e transistor in th e circuit. [4]

c) If, by m istak e, a collector load resistor of one-tenth th e value you originally calculated w as placed in th e circuit, h ow w ould th is affect th e collector voltage sw ing? [2]

  1. a) Prove from first principles th at th e gain of a b asic inverting am plifier configuration using a h igh -gain operationalam plifier is given by th e ratio of th e fe e d b ack resistor R F, to th e input resistor R I,. State any assum ptions you m ak e. [8]

b ) Th e idealoperationalam plifier in th e circuit of Figure 4 uses a + /- 15 volt pow er supply. D e term ine th e output voltage Vo and th e voltage VA at node A :

(i) w h en V 1 = 0 volts and V 2 = 1 volt; (ii) w h en V 1 = 1 volt and V 2 = 10 volts. [12]

Figure 4

100kΩ

10kΩ

A

50kΩ

VA 5kΩ

V 1 VO

V 2

  1. a) State th e A BCD param eters for:

(i) a series im pedance, Z ; (ii) a sh unt im pedance, Y; (iii) an Lnetw ork com prising a series im pedance, Z , follow ed by a sh unt im pedance, Y. [8]

b ) To determ ine th e A BCD param eters of a netw ork , open-circuit and sh ort- circuit tests are perform ed. Th e results are as follow s.

O pen-circuit test:

Input voltage: 10V, input current: 5A. O pen-circuit output voltage: 5-j5 V.

Sh ort-circuit test:

Input voltage: 10V, input current: 5-j5 A Sh ort-circuit output current: 5-j5 A.

D e term ine th e A BCD param eters of th e netw ork. [6]

c) H ence sh ow th at th e netw ork is passive, but not sym m etrical. [2]

d) Furth er sh ow th at th e netw ork com prises a series im pedance follow ed by a sh unt im pedance. [4]

  1. a) D raw a ph asor diagram sh ow ing h ow voltage standing w aves occur on a transm ission line, and state th e equation for VZ / VR +^ , w h ere VZ is th e voltage on th e line at distance, z from th e load, and VR +^ is th e reflected voltage at th e load. Using th e diagram sh ow h ow th e reflection coefficient and th e voltage on th e line ch ange w h en th e position on th e line m oves aw ay from th e load. [3]

b ) State th e form ula for th e reflection coefficient at a distance z from th e load in term s of ρ 0 , θ , βand z. [2]

c) Th e m axim um and m inim um voltages of th e standing w ave on an open- w ire, loss-free line w ith ch aracteristic im pedance of 50 Ω are 6.8 V and 4.3 V respectively. Th e tw o voltage m axim a nearest th e load term inating th e line occur at distances of 0.27 m and 2.45 m from th e load.

D e term ine:

(i) th e VSW R ; [2] (ii) th e w avelength of th e signal; [2] (iii) th e frequency of signal; [3] (iv) th e voltage reflection coefficient at th e load; [3] (v) load im pedance; [3] (vi) th e ph ase constant, β. [2]
