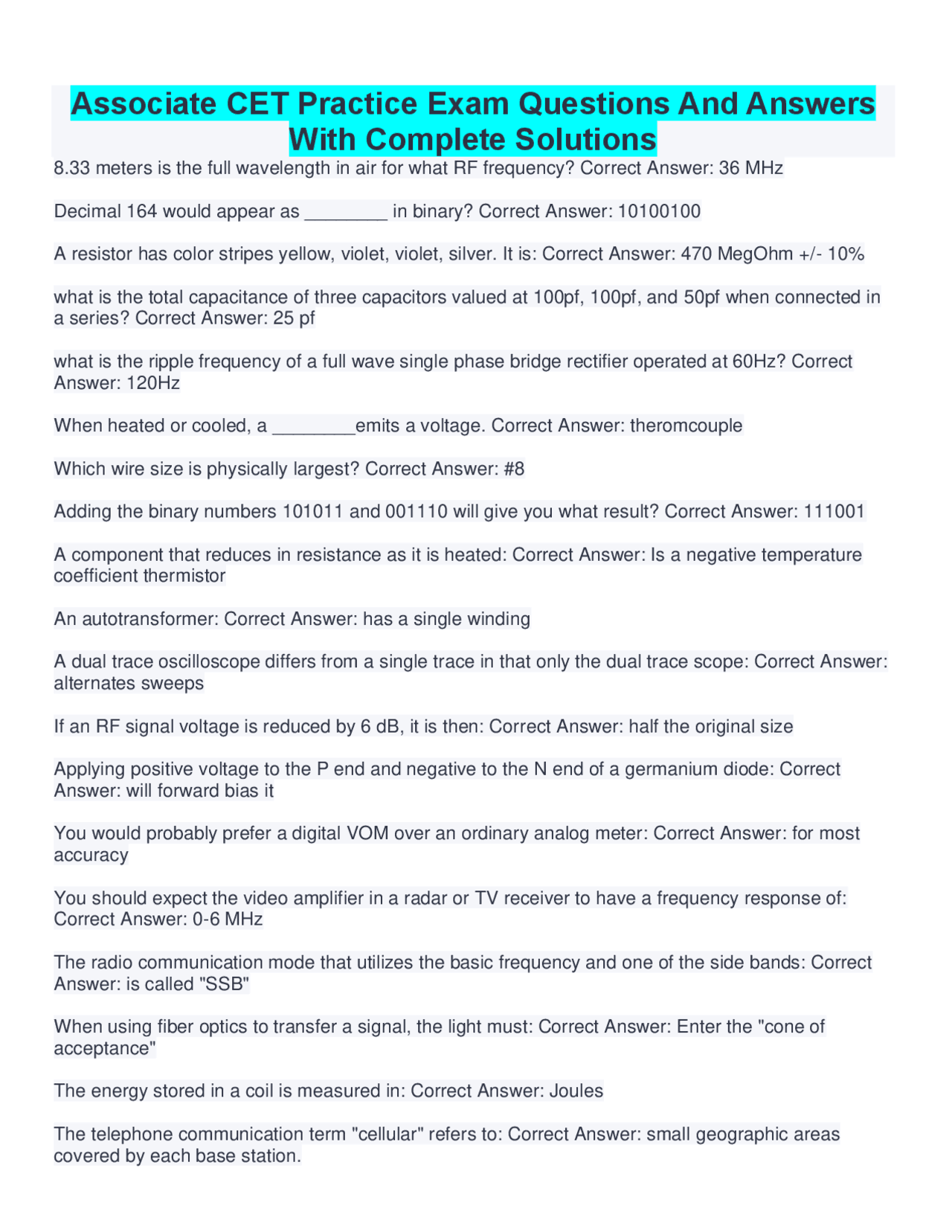

Associate CET Practice Exam Questions And Answers
With Complete Solutions
8.33 meters is the full wavelength in air for what RF frequency? Correct Answer: 36 MHz Decimal 164 would appear as ________ in binary? Correct Answer: 10100100 A resistor has color stripes yellow, violet, violet, silver. It is: Correct Answer: 470 MegOhm +/- 10% what is the total capacitance of three capacitors valued at 100pf, 100pf, and 50pf when connected in a series? Correct Answer: 25 pf what is the ripple frequency of a full wave single phase bridge rectifier operated at 60Hz? Correct Answer: 120Hz When heated or cooled, a ________emits a voltage. Correct Answer: theromcouple Which wire size is physically largest? Correct Answer: # Adding the binary numbers 101011 and 001110 will give you what result? Correct Answer: 111001 A component that reduces in resistance as it is heated: Correct Answer: Is a negative temperature coefficient thermistor An autotransformer: Correct Answer: has a single winding A dual trace oscilloscope differs from a single trace in that only the dual trace scope: Correct Answer: alternates sweeps If an RF signal voltage is reduced by 6 dB, it is then: Correct Answer: half the original size Applying positive voltage to the P end and negative to the N end of a germanium diode: Correct Answer: will forward bias it You would probably prefer a digital VOM over an ordinary analog meter: Correct Answer: for most accuracy You should expect the video amplifier in a radar or TV receiver to have a frequency response of: Correct Answer: 0-6 MHz The radio communication mode that utilizes the basic frequency and one of the side bands: Correct Answer: is called "SSB" When using fiber optics to transfer a signal, the light must: Correct Answer: Enter the "cone of acceptance" The energy stored in a coil is measured in: Correct Answer: Joules The telephone communication term "cellular" refers to: Correct Answer: small geographic areas covered by each base station.
Integrated Circuit failures often exhibit: Correct Answer: open or short conditions Which of these would you normally choose to cause an LED to light? Correct Answer: 3 V DC A capacitor (3/8" x 1/8" ceramic or mica) marked 47K is: Correct Answer: 47pf+/- 10% A digital storage oscilloscope: Correct Answer: uses micro processing and memory to allow close analysis of signals; is specially designed for analyzing digital signals; converts analog input signals to a digital display Carbon microphones are much like variable: Correct Answer: Resistors An antenna that is longer than another: Correct Answer: will have a lower resonant frequency An 8-bit binary code allows ______ logical combinations. Correct Answer: 256 An inductor in an electronic circuit: Correct Answer: resists AC current flow A printer directly connected to a personal computer would use a _______ connection. Correct Answer: USB or parallel Centronics The digital method of representing characters by using combinations of zeros and ones is called: Correct Answer: binary Fm utilizes ______ where AM utilizes signal level variations. Correct Answer: frequency variations What decimal number is represented by the binary number 01101010? Correct Answer: 106 Decimal 50 would appear as _____ in Hex. Correct Answer: 32 Of these choices, the display of a DMM would probably be: Correct Answer: LCD A disadvantage of LCD is: Correct Answer: environmental temperature sensitivity A series DC motor maintains a constant speed with changing loads? Correct Answer: may be damaged by excessive speed Which motor maintains constant speed with changing loads? Correct Answer: Shunt A small power drill or electrics mixer would probably be powered by a/an ______ motor. Correct Answer: series The rotor in an induction motor is not connected to AC or DC power. Correct Answer: True 0 dBm, when referring to audio signals means: Correct Answer: decibels referenced to 1 milliwatt If a class A differential amplifier is using only one of its two possible inputs, what will the output signal shape be? Correct Answer: exactly the same as the one input
The time required to dicharge a capacitor depends on the _____________ across its terminals. Correct Answer: the combination of LRC With a given filter type, pure filtering is easiest with: Correct Answer: high frequencies Using a resistor instead of an inductor in a power supply pi filter: Correct Answer: all of the above A power supply whose output voltage does not change whether the load is light or heavy, would have what percent of regulation? Correct Answer: 0 A power supply which measures 50 volts when under no load and 40 volts under a full load has what percent regulation using the % of regulation formula: (%=(EnL - EfL) / EfL x 100)? Correct Answer: 25 Correctly connecting a properly rated zener diode across a power supply load will: Correct Answer: limit the output DC A triac in a power control circuit: Correct Answer: acts as an on/off switch Which wire gauge has the largest diameter? Correct Answer: 20 What specification should NOT be of concern regarding wire conductors? Correct Answer: Length The normal open circuit voltage for each nickelcadmium cell is approximatley ________. Correct Answer: 1. Lead free type solder for electronics work is made from: Correct Answer: silver and tin Soldering stations used for electronics circuit board work have historically been Correct Answer: 30 watts Solder flux mainly: Correct Answer: removes oxides on metals to be soldered Laminations used for the core of a transformer: Correct Answer: must be insulated from each other. I=1 amp, R=10,000 ohms. What is the value of voltage? Correct Answer: 10,000 volts If R=200 ohms and I=.02 amps. What is the value of P (power). Correct Answer: .08 watts Which frequency will have a higher loss when using coaxial cable transmission line? Correct Answer: 1 GHz A __________ is a reference antenna that all other antennas with gain are compared to. Correct Answer: Dipole A high frequency antenna ________ than a low frequency one. Correct Answer: is shorter Standing waves on a transmission cable: Correct Answer: can be caused by poor termination Sideband frequencies are produced when a radio carrier frequency is: Correct Answer: modulated
Doubling the power in a transmitter output signal is ______ dB gain. Correct Answer: 3 0 dBm V is what levle of received TV signal? Correct Answer: 1000 microvolts A byte is: Correct Answer: 8 bits In a 3 input AND gate: Correct Answer: 3 input must be high for a high output An LCD operates by polarizing the light through filters. The fluid rotates ____________ degrees. Correct Answer: 90 To test an SCR with an ohmmeter: Correct Answer: With + to anode and - to cathode, short gate and anode together. Should go from near "open" to near "short." Using the R x 100 range and testing between the source and drain of an N channel JFET: Correct Answer: readings should be equal in both directions With + voltage to drain or source and a - voltage to the gate on an N channel JFET, internal resistance of the JEFT will be: Correct Answer: high Which is LEAST likey to cause ESD damage to a MOSFET? Correct Answer: flux A logic probe: Correct Answer: indicates high and low voltage conditions In a typical electrical generator, a small AC voltage applied to the field windings is able to control the output level of the generator. Correct Answer: false When working with and testing lead acid batteries: Correct Answer: always wear eye protection, never cause a spark and charge in a ventilated room Audio signals, such as the output from DVD players, satellite receivers and preamplifiers, usually are of what amplitude for input to a TV, modulator or other equipment? Correct Answer: 1 volt peak to peak Which of these signal parameters does a spectrum analyzer show? Correct Answer: Magnitude and frequency Permanent, non-volatile, non-removable data storage in a computer is: Correct Answer: ROM What should be used first to clean a corroded plated soldering iron tip? Correct Answer: Flux, cloth after heating When soldering high voltage connections: Correct Answer: leave the terminal with smooth and rounded covering of solder Class AB operation of an audio amplifier means that current flows through the active device(tube, transistor, FET, IC) for ________ degrees of the input signal wave. Correct Answer: more than 180 but less than 360 A track on a computer removable disk is: Correct Answer: divided into sectors
You are servicing a power supply and have disconnected power. It has several 250 uF capacitors connected in parallel. To avoid shock, these capacitors: Correct Answer: Should be discharged to chassis ground, through a suitable resistor. A schematic used in electronic servicing: Correct Answer: is much like a road map for following signals High voltage should be discharged before servicing a product. After disabling. After disabling AC input power, discharge an HV PS by: Correct Answer: draining through a large value resistor to chassis ground Which of these would be an important electrical consideration in the use of a transformer? Correct Answer: The operating frequency If a 12v product is dissipating 50w, how much load resistance does the device represent? Correct Answer: 2.9 ohms An "audio signal" is often defined as: Correct Answer: frequencies in the 20 Hz to 15,000 Hz range _____________ will cause a generator to produce DC voltage rather than AC. Correct Answer: The communtator You supect the unit has an internal short. To prevent further damage when you apply power, you should: Correct Answer: insert a low resistance high wattage (100 ohm, 10w) resistor in series with the power input A ripple counter: Correct Answer: is two or more logical flip-flops connected sequentially with the input pulses toggling the first When a voltage is applied to a capacitor: Correct Answer: current is maximum at first, then reduces as the capacitor becomes charged An electrolytic capacitor in series between the power transformer and the rectifiers in a power supply: Correct Answer: is part of a voltage doubler circuit Information travels through optic fiber via the flow of: Correct Answer: photons You would most likely prefer an analog VOM over a DMM for: Correct Answer: intermittent functuations Which of these circuits would most likely use a Zener diode? Correct Answer: a power regulator A block in a digital diagram is called a NOR. Which is true? Correct Answer: It is a NOT OR or inverted OR Which of these statements is most true relating to schematic diagrams of electronic devices? Correct Answer: They represent signal paths In personal computer technology, ROM indicates: Correct Answer: memory that may only be read from
A light emitting diode will light when: Correct Answer: it is forward biased A zener diode is rated 6.3 v. This tells you: Correct Answer: it conducts to limit voltage across it to 6. v A triac is frequently used: Correct Answer: to electronically turn equipment on and off A techician must be knowledgeable about "ESD": Correct Answer: because static discharge can destroy many components In a motor, the counter emf voltage induced in the armature ________ the source current. Correct Answer: causes a decrease in One significant difference between a TV antenna and a CB antenna would be: Correct Answer: TV is polarized horizontal while CB is veritcal Switching power supplies: Correct Answer: are sometimes called DC to DC converters Which of these would you likely find in a DC motor speed control circuit? Correct Answer: an op-amp A transformer on a schematic has two leads connected to the primary and three to the secondary, one on each end and one in the middle. This is a Correct Answer: center tapped secondary transformer The 9 pin DB9 connector serial port on a PC is commonly called the ______ standard. Correct Answer: RS Three capacitors, of 470 pf, 560 pf and .47 pf are in parallel with each other. The total is: Correct Answer: 1030.47 pf Ohm's law provides equations relating to: Correct Answer: volts, amps, and resistance A power source such as a generator to what component in a water supply system? Correct Answer: A pump Which of these is a good indication of the quality of an analog meter? Correct Answer: the ohms per volt rating The vertical axis of an oscilloscope display is also called the: Correct Answer: Y axis If you increase the value of an inductor, the the inductive reactance will: Correct Answer: increase Which would least likely be a high voltage (above 1,000v) capacitor? Correct Answer: Electrolytic The rechargeable cells currently used in many consumer portable products would be: Correct Answer: Lithium ion A solid stat regulator: Correct Answer: varies conduction to maintain a level output voltage
Three series inductors have values of 20 mH, 30 mH and 40 mH respectively. Total inductance is: Correct Answer: 90 mH Phototransistors: Correct Answer: can be sensitive to invisible light To simplify the following of an electrical signal path through circuity, you could: Correct Answer: use block diagram AC power outlet strips with surge suppressors will include at least one: Correct Answer: MOV Connecting 3 capacitors of: .05uF, 20uF, and 40uF in series results in a total capacitance of: Correct Answer: .0498uF You would use the formula (Lt=L1+L2+L3): Correct Answer: to find total inductance in a series circuit The fifth color band on a 5% resistor is yellow. This tells you: Correct Answer: Tolerance VHF or UHF antennas dont use waveguides as feed lines because: Correct Answer: the large dimersions at these wavelengths makes other transmissions lines more practical To trace a logic path, you might use: Correct Answer: A logic pulser Ordinary alpha/numeric information tansmitted by a computer is converted to binary using: Correct Answer: an encoder In electronic devices, what term refers to residual magnetism? Correct Answer: Hysteresis Some variable capacitors are made so that the plates interleave. The capacitance varies as the plates open and close. As they open: Correct Answer: the capacitance decreases In VOM's voltage multiplier resistors are important: Correct Answer: in the voltage scales In a series tuned circuit, to increase the resonant frequency, you need to: Correct Answer: decrease the inductance A MOSFET: Correct Answer: amplifies signal voltage variations Toroid cores are used in transformers for: Correct Answer: concentrating the magnetic flux A PLL, or phase locked loop circuit, contains a VCO, or voltage controlled oscillator. The output of the VCO is a _________. Correct Answer: AC variable frequency signal A variable capacitor depends on: Correct Answer: the plate separation being adjustable While anode and cathode voltages are maintained, the gate level on an SCR drops below the trigger point. What happens? Correct Answer: The SCR stays on The combination of resistance and reactance which restricts the flow of alternating current is called: Correct Answer: Impedance
The output of a thermocouple would most likely be measured in: Correct Answer: millivolts The Z axis on an oscilloscope is: Correct Answer: intensity When soldering transistor or IC chip legs, a _____________ should be used to prevent overheating of the small discrete components. Correct Answer: heat sink clip Which of the below would normally be used for the core of a transformer? Correct Answer: Ferrite The "1" in binary number 100000 carries a weight of: Correct Answer: 32 You would choose an LCD if you needed: Correct Answer: a low current digital display Germanium diodes: Correct Answer: normally drop about .3 V with forawrd current RF signal propagation what is normally considered "line of sight" would be: Correct Answer: UHF
