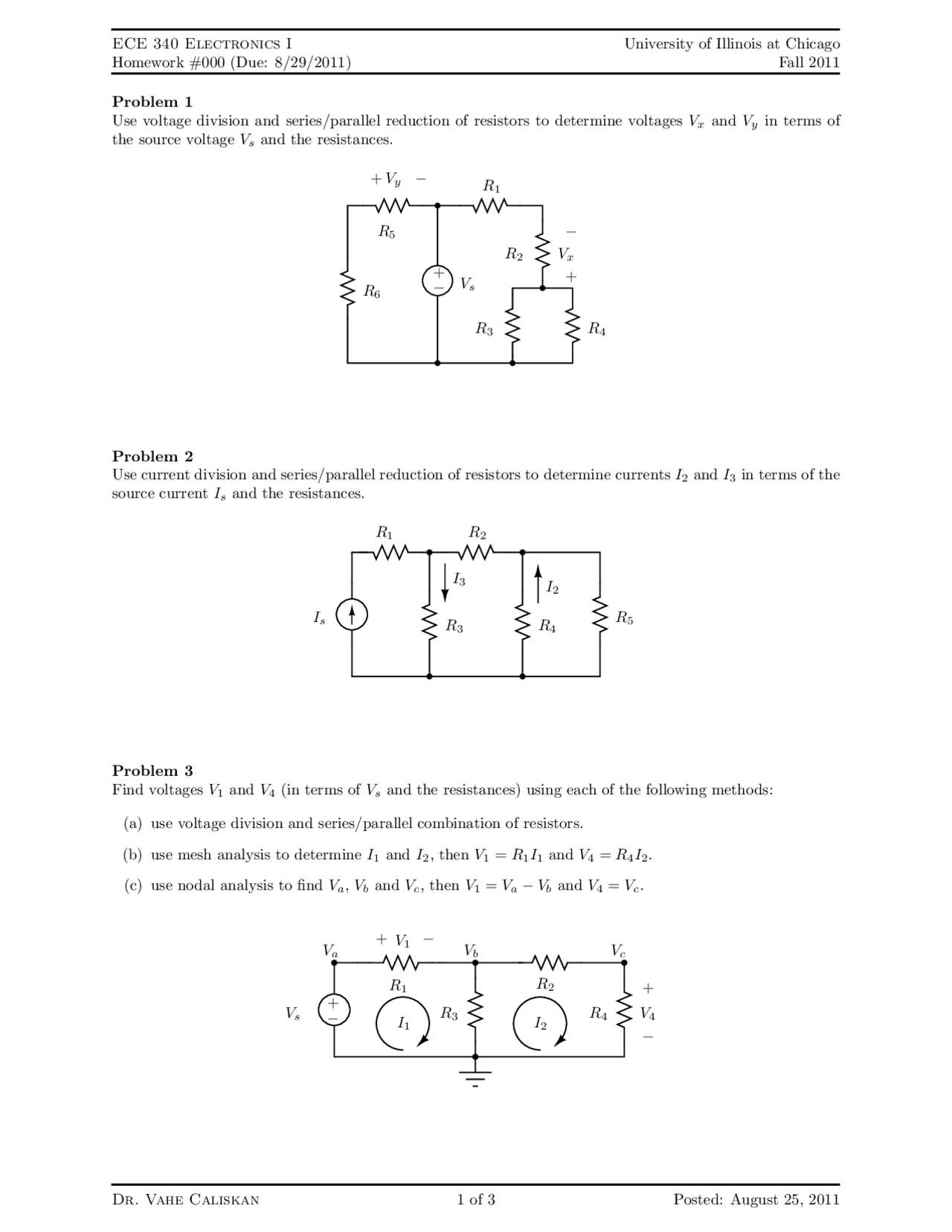

ECE 340 Electronics I
Homework #000 (Due: 8/29/2011)
University of Illinois at Chicago
Fall 2011
Problem 1
Use voltage division and series/parallel reduction of resistors to determine voltages Vxand Vyin terms of
the source voltage Vsand the resistances.
+
+
+
−
−
−
Vx
Vy
Vs
R1
R2
R3R4
R5
R6
Problem 2
Use current division and series/parallel reduction of resistors to determine currents I2and I3in terms of the
source current Isand the resistances.
I2
I3
Is
R1R2
R3R4R5
Problem 3
Find voltages V1and V4(in terms of Vsand the resistances) using each of the following methods:
(a) use voltage division and series/parallel combination of resistors.
(b) use mesh analysis to determine I1and I2, then V1=R1I1and V4=R4I2.
(c) use nodal analysis to find Va,Vband Vc, then V1=Va−Vband V4=Vc.
+
+
+
−
−
−I1I2
Vs
R1R2
R3R4
VaVbVc
V1
V4
Dr. Vahe Caliskan 1 of 3 Posted: August 25, 2011
