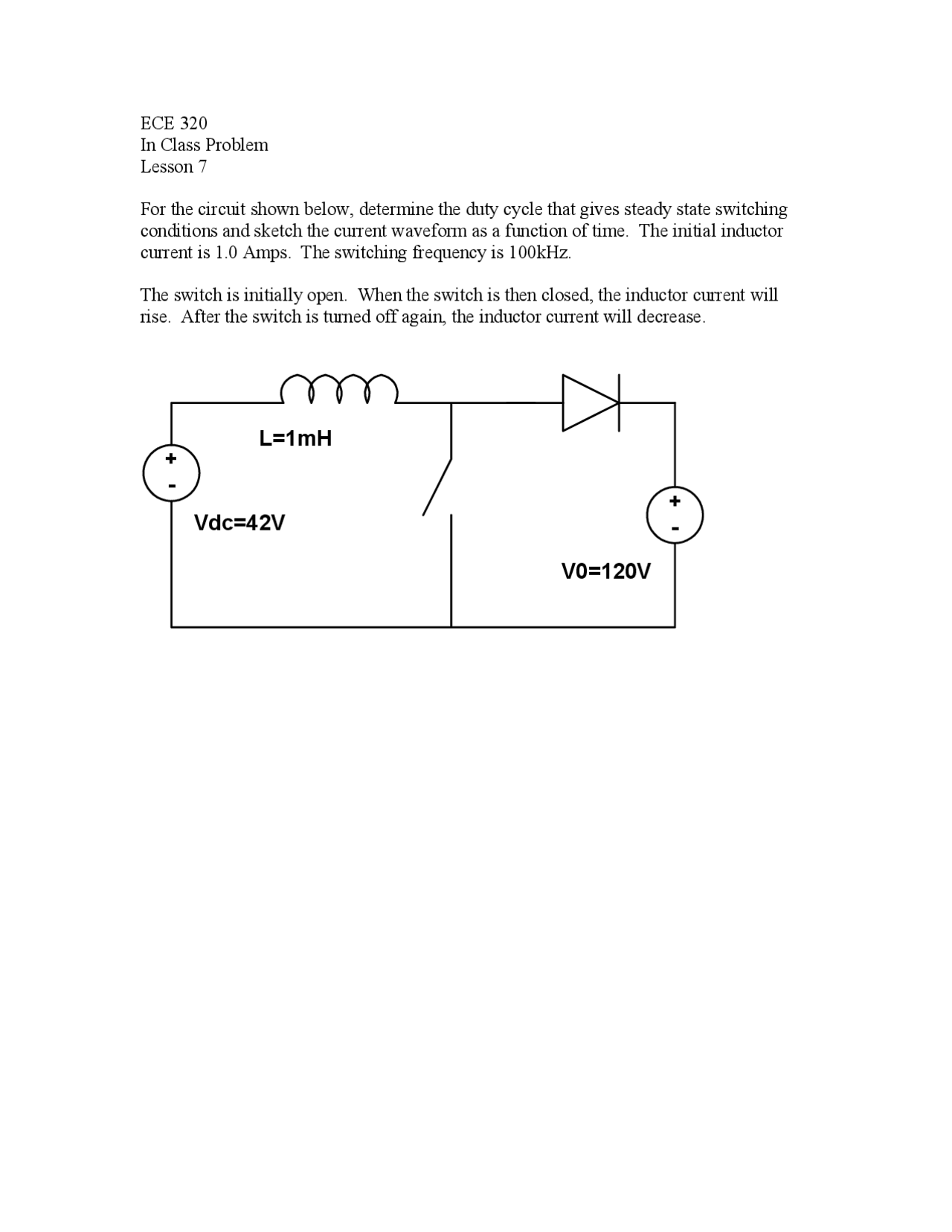

ECE 320
In Class Problem
Lesson 7
For the circuit shown below, determine the duty cycle that gives steady state switching
conditions and sketch the current waveform as a function of time. The initial inductor
current is 1.0 Amps. The switching frequency is 100kHz.
The switch is initially open. When the switch is then closed, the inductor current will
rise. After the switch is turned off again, the inductor current will decrease.
+
-+
-
L=1mH
Vdc=42V
V0=120V
