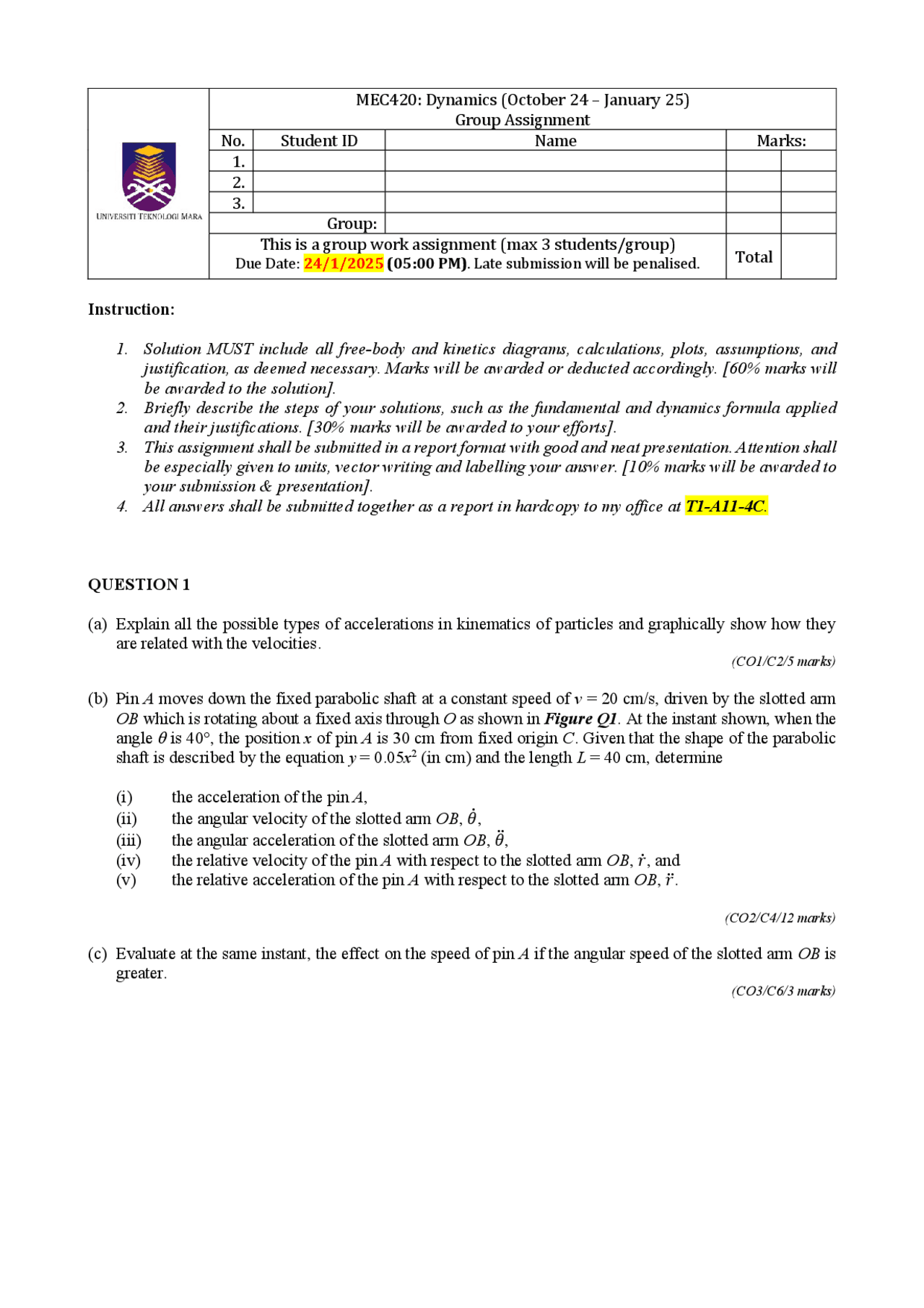

MEC420: Dynamics (October 24 January 25)
Group Assignment
No.
Student ID
Name
Marks:
1.
2.
3.
This is a group work assignment (max 3 students/group)
Due Date: 24/1/2025 (05:00 PM). Late submission will be penalised.
Total
Instruction:
1. Solution MUST include all free-body and kinetics diagrams, calculations, plots, assumptions, and
justification, as deemed necessary. Marks will be awarded or deducted accordingly. [60% marks will
be awarded to the solution].
2. Briefly describe the steps of your solutions, such as the fundamental and dynamics formula applied
and their justifications. [30% marks will be awarded to your efforts].
3. This assignment shall be submitted in a report format with good and neat presentation. Attention shall
be especially given to units, vector writing and labelling your answer. [10% marks will be awarded to
your submission & presentation].
4. All answers shall be submitted together as a report in hardcopy to my office at T1-A11-4C.
QUESTION 1
(a) Explain all the possible types of accelerations in kinematics of particles and graphically show how they
are related with the velocities.
(CO1/C2/5 marks)
(b) Pin A moves down the fixed parabolic shaft at a constant speed of v = 20 cm/s, driven by the slotted arm
OB which is rotating about a fixed axis through O as shown in Figure Q1. At the instant shown, when the
angle θ is 40°, the position x of pin A is 30 cm from fixed origin C. Given that the shape of the parabolic
shaft is described by the equation y = 0.05x2 (in cm) and the length L = 40 cm, determine
(i) the acceleration of the pin A,
(ii) the angular velocity of the slotted arm OB, 𝜃󰇗,
(iii) the angular acceleration of the slotted arm OB, 𝜃󰇘,
(iv) the relative velocity of the pin A with respect to the slotted arm OB, 𝑟󰇗, and
(v) the relative acceleration of the pin A with respect to the slotted arm OB, 𝑟󰇘.
(CO2/C4/12 marks)
(c) Evaluate at the same instant, the effect on the speed of pin A if the angular speed of the slotted arm OB is
greater.
(CO3/C6/3 marks)
