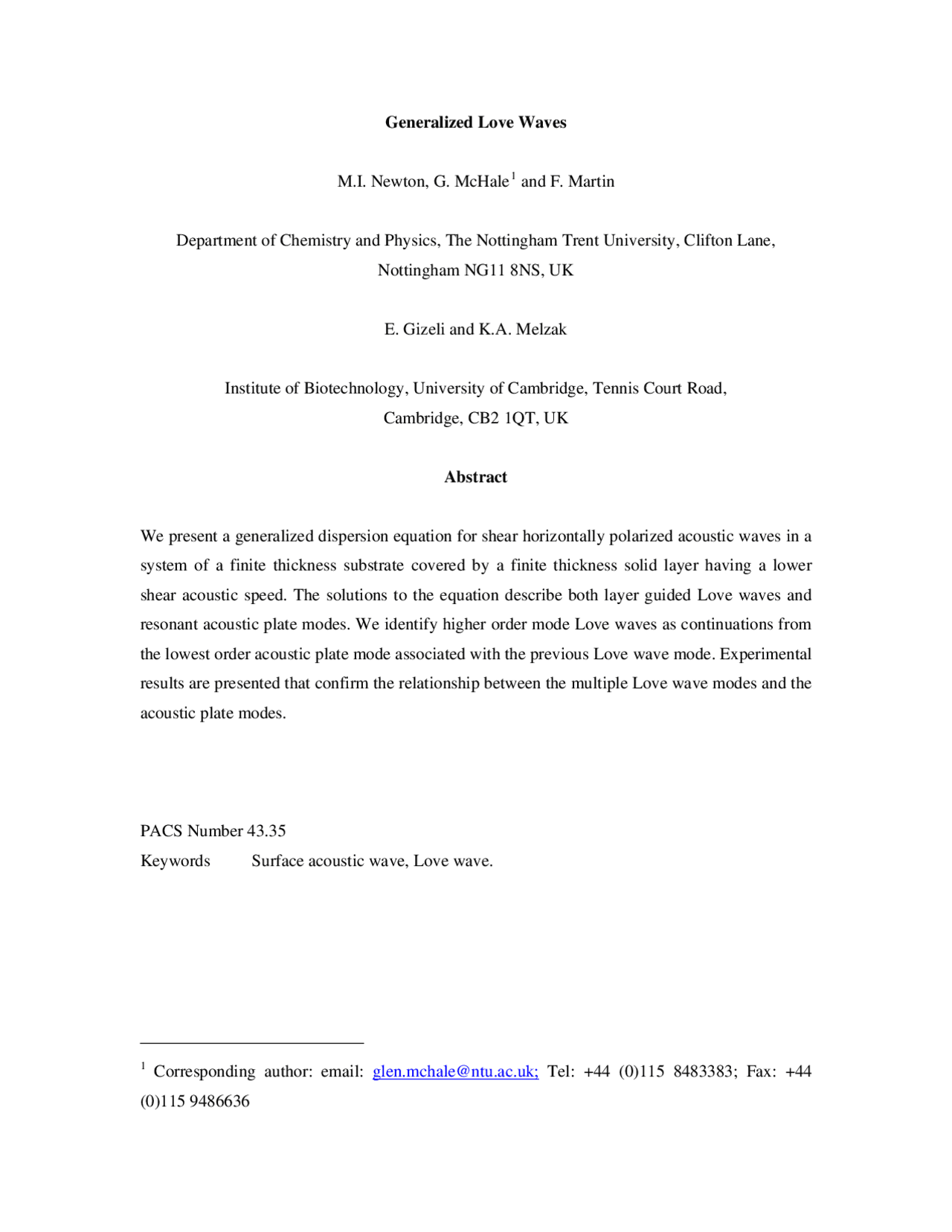

Generalized Love Waves
M.I. Newton, G. McHale^1 and F. Martin
Department of Chemistry and Physics, The Nottingham Trent University, Clifton Lane, Nottingham NG11 8NS, UK
E. Gizeli and K.A. Melzak
Institute of Biotechnology, University of Cambridge, Tennis Court Road, Cambridge, CB2 1QT, UK
Abstract
We present a generalized dispersion equation for shear horizontally polarized acoustic waves in a system of a finite thickness substrate covered by a finite thickness solid layer having a lower shear acoustic speed. The solutions to the equation describe both layer guided Love waves and resonant acoustic plate modes. We identify higher order mode Love waves as continuations from the lowest order acoustic plate mode associated with the previous Love wave mode. Experimental results are presented that confirm the relationship between the multiple Love wave modes and the acoustic plate modes.
PACS Number 43. Keywords Surface acoustic wave, Love wave.
(^1) Corresponding author: email: [email protected]; Tel: +44 (0)115 8483383; Fax: +
(0)115 9486636
Text of Manuscript
In the more than thirty years since it was suggested that surface acoustic waves (SAWs) could be excited by an interdigital transducer^1 their utility as a tool to investigate fundamental properties of materials has been established. The Rayleigh SAW, with a mechanical component of displacement perpendicular to the surface, has been used to investigate transport properties of one- and two-dimensional electron gas systems, the fractional quantum hall effect and acoustoelectric charge transport in semiconductor quantum wells 2-5^. Shear horizontal SAWs, with their mechanical displacement in the plane of the surface, have also been studied in supported thin films on GaAs wafers and in adsorbed Si-SiO 2 bilayers6,7. In recent years, the use of SAW’s has been significantly extended into chemical and biochemical applications. A fundamental requirement in these applications is for highly surface mass sensitive techniques capable of operating in an aqueous environment. To avoid the high damping that may be caused by the aqueous environment the acoustic waves must be either shear horizontally polarized or have a phase speed less than the speed of sound in the liquid. A wide range of surface acoustic wave types have been considered, including Love waves and shear horizontally polarized acoustic plate modes (SH-APM) 8. Love waves were first reported for use as a biosensor in 1992 by Gizeli et al^9 and offer one of the highest potential mass sensitivities, but they have generally been regarded as distinct from acoustic plate modes. Therefore, a physical understanding of the spectrum of shear horizontally polarized acoustic modes occurring in a Love wave configuration is of wide interest.
A Love wave is a shear horizontally polarized acoustic wave that is localized to the surface of a semi-infinite half space and guided by a layer which has a shear acoustic speed less than that of the half space material 10,11. The phase velocity of the Love wave is intermediate between that of the substrate and the layer and is determined by the layer thickness. An acoustic plate mode occurs when a finite thickness substrate is excited at a natural resonant frequency of the substrate 12,13^. The lowest order, n =0, APM mode corresponds to a plane wave whilst higher order APM modes correspond to resonances of the plate. In a Love wave the energy is localized near the surface of the substrate and the phase speed is less than that of the shear acoustic speed of the substrate. In contrast, in an APM the energy is distributed throughout the substrate and the phase speed is higher that of the shear acoustic speed of the substrate.
these correspond to Love waves. The second has T (^) s = jks with ks real and gives a series of modes with phase speeds higher than the shear acoustic speed of the substrate; these correspond to acoustic plate modes. The thickness of the substrate, w , determines the number of Love wave modes and the spacing of the associated acoustic plate modes. At the start of each successive Love wave mode the phase speed of the Love wave is v = vs and the speeds of the associated plate
modes are v m = vs /(1-( m π vs / w ω) 2 ) 1/2^. The thickness, d nm , at which a new mode appears is,
2 112 w
m
v
v
d n
s s
l l
nm λ λ
where n =0,1,2,3, …. labels the successive Love wave modes and m =1,2,3, … labels the acoustic plate modes associated with each Love wave mode. Traditional Love waves correspond to m = whilst acoustic plate modes correspond to m >0. The n =0 Love wave corresponds to a displacement with a single node located within the substrate and an antinode at the surface of the guiding layer. Each higher order Love wave introduces an additional node within the layered system. Increasing the thickness of the guiding layer by an amount insufficient to change modes causes a reduction in the phase speed of the mode. Although it is not possible to analytically solve the dispersion equation, we have obtained the fractional change in phase speed caused by
increasing the thickness of the guiding layer by an amount, Δ d , above the guiding layer thickness
resulting in the start of a mode. In the case of a Love wave Δ v / vs ∝ω^2 Δ d^2 , assuming the substrate
is sufficiently thick compared to the perturbation, whereas for the lower order associated acoustic
plate modes we find Δ v / vs ∝Δ d / w.
In fig. 1 we show the numerical results for the phase speed obtained from the dispersion
equation using parameters of w =100 μm f =100 MHz, vl =1100 ms-1^ , vs =5100 ms-1^ , ρ l =1000 kgm-
and ρ s =2655 kgm-3^. With the exception of the substrate thickness, these parameters describe high
frequency Love waves using a poly(methylmethacrylate) guiding layer on quartz. The substrate thickness in the calculation is thinner than typical substrates used in experiments, but this is solely to enable the acoustic plate modes to be resolved in fig. 1. The points shown in fig. 1 are the start of each mode calculated using the analytical results. Numerically, it is clear that each higher order Love wave mode, labelled by n = N , m =0, arises as a continuation of the m =1 acoustic plate mode, labelled by n = N -1, m =1, associated with the previous Love wave mode.
The experimental observation of the Love waves and associated acoustic plate modes used propagation orthogonal to the x -direction of an ST-cut quartz substrate which supports shear horizontally polarized acoustic waves. The acoustic waves were generated using two sets of interdigital transducers separated by 7 mm to create a delay line device. The transducers were located on the polished side of the 0.5 mm thick quartz substrate. Each transducer had 120 pairs of double fingers with an electrical period of 16 μm and an aperture of 180.5 wavelengths. This
arrangement gives a resonant frequency of 312 MHz with a bandwidth, Δ f/f o , of better than 1%
for the transducer. The expected frequency separation between the m th^ acoustic plate mode and
the Love wave of frequency fo is given by Δ f / fo =( n λ/2 w )^2 /2 where λ is the electrical period of the
transducer. The layered system was created by successively spin coating a polymer (S photoresist from Shipley) at 4000 rpm across the whole device and then softbaking the device at 120 o^ C for 90 s on a hotplate. After each step the frequency spectrum of the device was measured (Agilent 8712ET network analyzer) and the resonant frequency of each mode recorded.
The observed change in frequency with polymer guiding layer thickness is shown in fig.
- Even a thin guiding layer causes a much larger downward shift in the frequency of the Love wave compared to the acoustic plate mode. The guiding layer also initially enhances the transmission of the Love wave, but as the layer thickness increases the mode is increasingly attenuated by the polymer layer until it can no longer be separated from the baseline noise (Fig. 3). The plate mode is also periodically attenuated as the polymer layer thickness increases with the attenuation reaching the baseline just prior to the start of each new plate mode. Further increasing the polymer layer thickness eventually results in the appearance of the next Love wave mode with amplitude similar to that of the uncoated substrate. We have observed five Love wave modes with this type of device.
In conclusion, by developing a generalized dispersion equation for Love waves on a finite thickness substrate we have determined a spectrum that also includes shear horizontally polarized acoustic plate modes. We have demonstrated that a higher order mode of Love wave can be considered to arise from previously existing acoustic plate modes associated with the previous Love wave mode. We have shown experimentally, on a substrate without specific preparation of the back surface, that both multiple Love wave modes and the associated shear horizontally polarized acoustic plate modes can be excited.
Figure 1 – Draft version
0.2 0.4 0 .6 0 .8 1 1 .2 1.
1000
2000
3000
4000
5000
6000
7000
8000
Draft version of fig. 2. Circles are Love wave and diamonds are the plate mode.
302
304
306
308
310
312
314
316
318
320
(^0 1 2 3) Polymer Thickness/ (^4 5) μ (^) m 6 7 8
Frequency/MHz
9
Draft version of fig. 3. Circles are Love wave and diamonds are the plate mode.
-57.5 -
-52.5-
-47.5-
-42.5-
-37.5-
-32.5-
-27.5-
-22.5- -20 0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 5.5 6 6.5 7 7.5 8 8.5 9
Insertion Loss/dB
Polymer Thickness/ μ m
