Data Structures and Algorithms: Efficiency Analysis, Slides of Data Structures and Algorithms
A recap of the first lecture on data structures and algorithms (eso207), focusing on the efficiency of algorithms and data structures. It covers the current state-of-the-art computer architecture, including cpu speed, external memory (hard disk drive) size and speed, and internal memory (ram) size and speed. The document motivates the need for efficient algorithms and data structures, using examples like the subset sum problem and sorting. It also discusses how to analyze the efficiency of an algorithm using the word ram model of computation, considering factors like the number of instructions taken. The document concludes with a warm-up example to assess programming skills and introduces three algorithms, questioning which one is the best and how close the ram model is to reality. It also touches on the influence of other parameters like multitasking, architecture, and code optimization.
Typology: Slides
2024/2025
1 / 28
This page cannot be seen from the preview
Don't miss anything!
Related documents
Partial preview of the text
Download Data Structures and Algorithms: Efficiency Analysis and more Slides Data Structures and Algorithms in PDF only on Docsity!

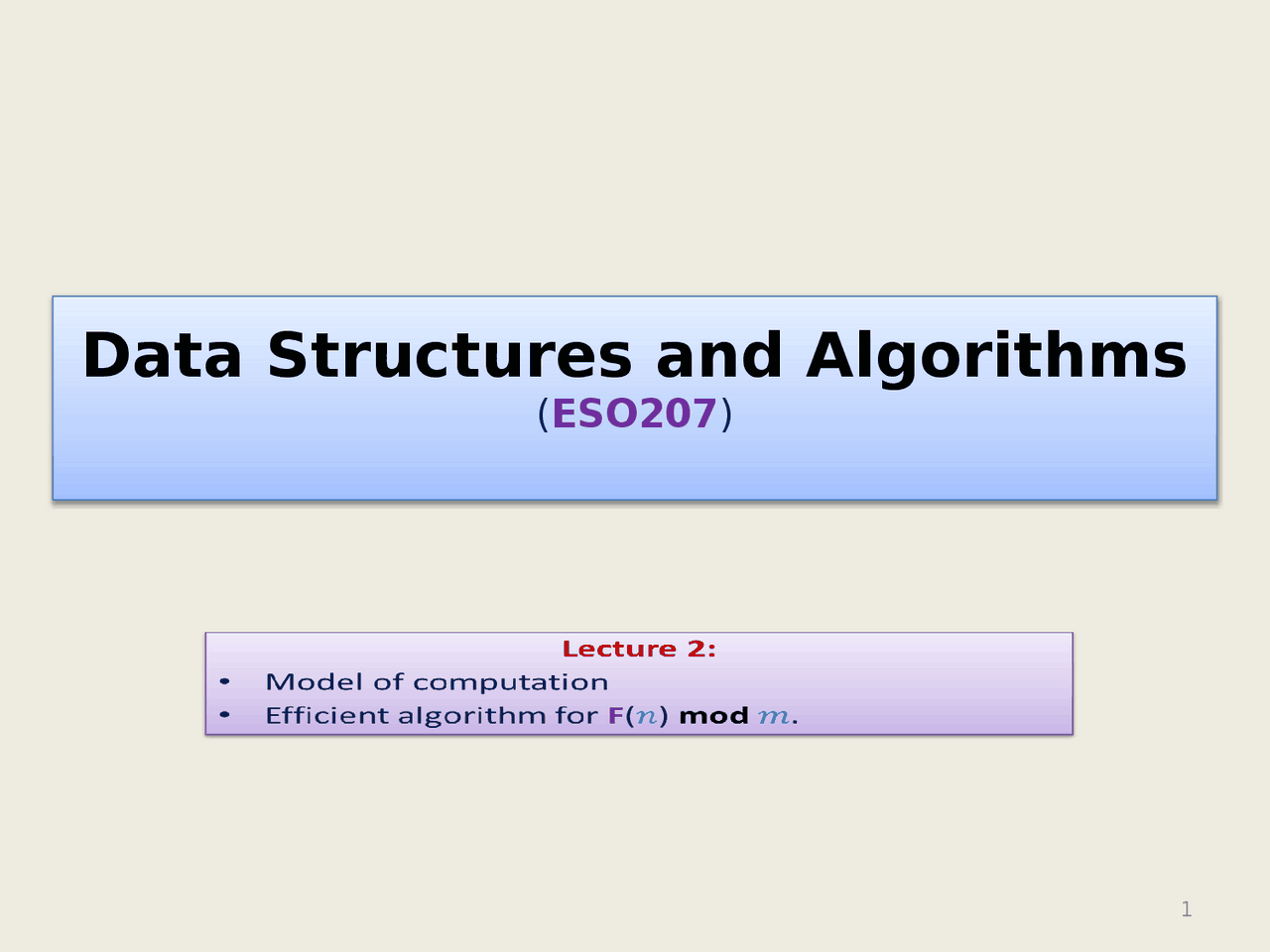

Data Structures and Algorithms
( ESO207 )
RECAP OF THE 1 ST LECTURE
Motivation
- (^) for Efficient algorithms
- (^) Subset sum problem
- (^) Sorting
- (^) for Efficient Data Structures
- (^) Telephone Directory
- (^) Range Minima
Homework 1
- Time Taken 1 minute 10 minutes 60 minutes Here are the values obtained by executing the program on a typical computer. 48 53 58 Processor: 2.7 GH
Current-state-of-the-art Computer A model of computation Simple Close to real world computer
word RAM : a model of computation
How is an instruction executed?
- Decoding instruction
- fetching the operands
- performing arithmetic/logical operation
- storing the result back into RAM Each instruction takes a few cycles (clock ticks) to get executed. (^10) RAM Processor
word RAM model of computation: Characteristics
- (^) Word (can be a number, name) is the basic storage unit of RAM. Word is a collection of few bytes.
- (^) Each word is stored in binary format.
- (^) RAM can be viewed as a huge array of words.
- (^) Any arbitrary location of RAM can be accessed in the same time irrespective of the location.
- (^) Data as well as Program reside fully in RAM.
- (^) Each arithmetic or logical operation (+,-,*,/,or, xor,…) involving a constant number of words takes a constant number of cycles (steps) by the CPU.
Homework 1 from
Lecture 1
- 4 instructions n-1 iterations 3 instructions per iteration the final instruction
… need some better insight …
- 4 instructions excluding the Recursive call
