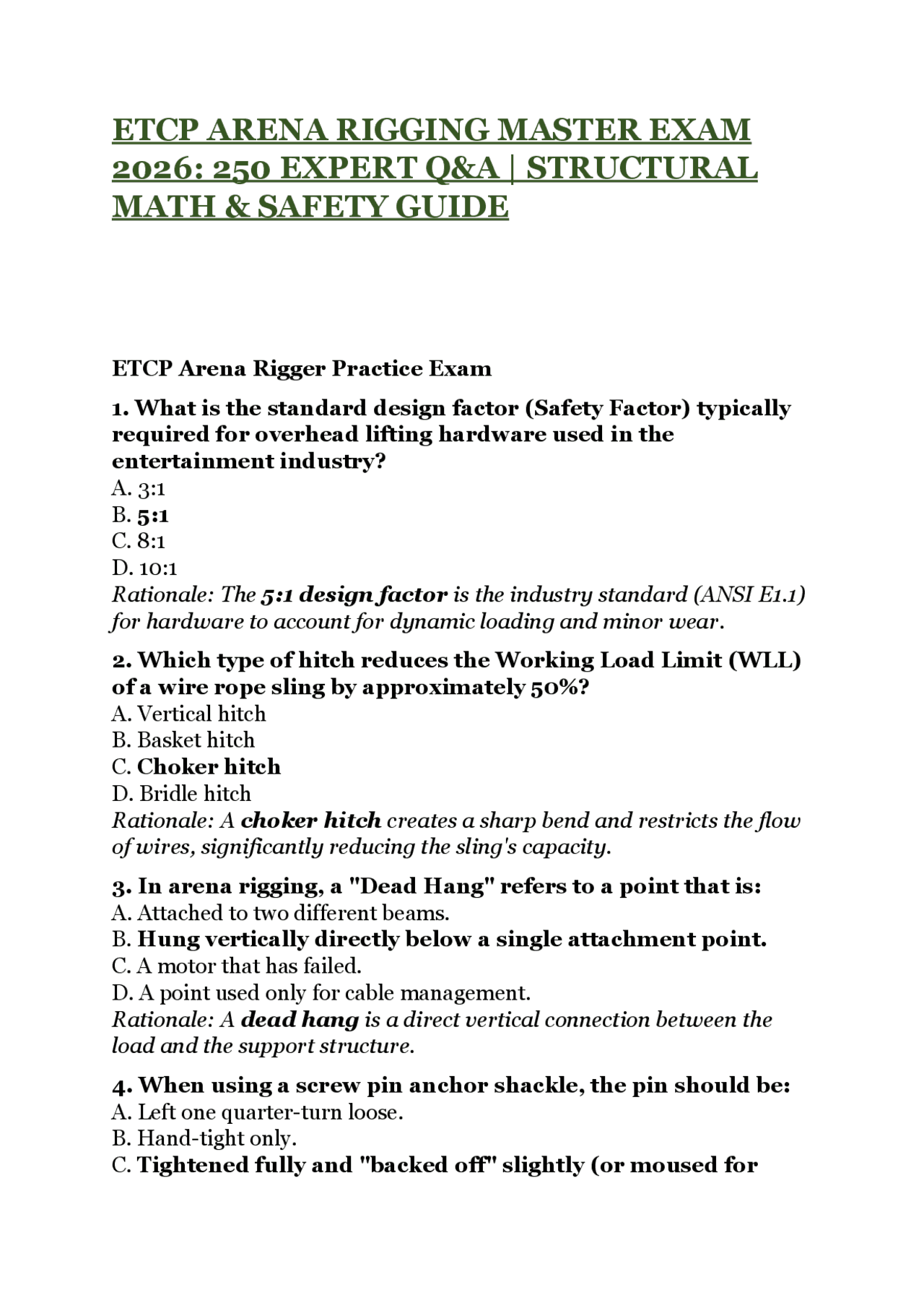

ETCP ARENA RIGGING MASTER EXAM
2026: 250 EXPERT Q&A | STRUCTURAL
MATH & SAFETY GUIDE
ETCP Arena Rigger Practice Exam
1. What is the standard design factor (Safety Factor) typically required for overhead lifting hardware used in the entertainment industry? A. 3: B. 5: C. 8: D. 10: Rationale: The 5:1 design factor is the industry standard (ANSI E1.1) for hardware to account for dynamic loading and minor wear. 2. Which type of hitch reduces the Working Load Limit (WLL) of a wire rope sling by approximately 50%? A. Vertical hitch B. Basket hitch C. Choker hitch D. Bridle hitch Rationale: A choker hitch creates a sharp bend and restricts the flow of wires, significantly reducing the sling's capacity. 3. In arena rigging, a "Dead Hang" refers to a point that is: A. Attached to two different beams. B. Hung vertically directly below a single attachment point. C. A motor that has failed. D. A point used only for cable management. Rationale: A dead hang is a direct vertical connection between the load and the support structure. 4. When using a screw pin anchor shackle, the pin should be: A. Left one quarter-turn loose. B. Hand-tight only. C. Tightened fully and "backed off" slightly (or moused for
long-term use). D. Tightened with a wrench until it cannot move. Rationale: Pins should be seated fully ; in permanent installs, they are "moused" with wire to prevent backing out due to vibration.
5. What is the effect of an interior angle (the angle between the sling legs) of 120 degrees on a two-leg bridle? A. Each leg carries 50% of the load. B. Each leg carries 75% of the load. C. Each leg carries 100% of the load. D. Each leg carries 200% of the load. Rationale: At 120 degrees , the tension in each sling leg is exactly equal to the total weight of the load. 6. Which grade of chain is the ONLY grade approved for overhead lifting? A. Grade 30 (Proof Coil) B. Grade 43 (High Test) C. Grade 70 (Transport) D. Grade 80 or 100 (Alloy) Rationale: Only Alloy Steel chain (Grade 80/100) is engineered with the elongation and strength properties required for overhead lifting. 7. A "Breast Line" is used in rigging to: A. Support the weight of the motor. B. Pull a hanging object laterally to a different position. C. Increase the safety factor of a point. D. Terminate a wire rope. Rationale: A breast line (or lateral) is used to shift a load's position without changing its vertical support. 8. When inspecting wire rope, "Birdcaging" is a term used to describe: A. Surface rust. B. A permanent deformation where the outer strands pull away from the core. C. A specific type of termination. D. Dust accumulation in the valley. Rationale: Birdcaging is a critical failure often caused by sudden release of tension or improper sheaves; it requires immediate removal from service.
Rationale: STAC chain is Grade 80 alloy chain with longer links to allow for the passage of shackle pins.
14. When using wire rope clips (Crosbys), the U-bolt must be placed on the: A. Live end of the rope. B. Dead (short) end of the rope. C. Both ends. D. It doesn't matter. Rationale: The phrase " Never saddle a dead horse " reminds riggers that the saddle goes on the live (load-bearing) end and the U-bolt on the dead end. 15. What is the most common rope used for "Pull Lines" (hand lines) in arena rigging? A. Steel wire rope B. Multifilament Polypropylene or Polyester (1/2" or 5/8") C. Manilla rope D. Bungee cord Rationale: Synthetic ropes are preferred for hand lines because they are easy on the hands and resistant to rot. 16. In a "Bridle," the horizontal distance between the two attachment points is called the: A. Leg B. Span C. Apex D. Rise Rationale: The span is the distance between the two beams where the bridle is attached. 17. "Fleeting" a motor means: A. Removing it from the truss. B. Moving a motor along a beam to change the point's location. C. Running the motor in reverse. D. Speeding up the motor. Rationale: Fleeting is the process of shifting a point laterally along its support structure. 18. Which of the following is a "Fall Arrest" device? A. A 5/8" shackle B. A full-body harness and lanyard. C. A spanset.
D. A chain hoist. Rationale: Riggers working at height must use Personal Fall Arrest Systems (PFAS) to prevent injury from falls.
19. A "GAC Flex" or "Steelflex" is a roundsling that contains: A. Only polyester fibers. B. Galvanized Aircraft Cable (GAC) cores. C. Burlap padding. D. Lead weights. Rationale: GAC Flex provides the flexibility of a spanset with the fire- resistance and durability of wire rope. 20. The "Breaking Strength" divided by the "Design Factor" equals the: A. Proof Load B. Working Load Limit (WLL) C. Actual Load D. Ultimate Strength Rationale: The WLL is the maximum weight that should ever be applied to a piece of hardware in normal use. 21. When rigging to an I-beam, a load should never be applied to: A. The web. B. The edge of the flange (unless using a beam clamp). C. The center of the beam. D. The top of the beam. Rationale: Applying loads to the flange edges can cause the beam to twist or fail; loads should be centered or properly clamped. 22. "Resultant Force" is the term for: A. The weight of the truss. B. The total force acting on a point where two or more vectors meet. C. The force of gravity. D. The friction in a pulley. Rationale: Riggers must calculate resultant forces to ensure the apex of a bridle or a sheave block doesn't exceed its rating. 23. Which motor is most commonly used for touring arena shows? A. 1/4 Ton manual chain fall B. 1 Ton Electric Chain Hoist (e.g., CM Lodestar).
D. 5:
Rationale: A moving block doubles the lifting capacity (minus friction) while requiring twice the amount of rope to be pulled.
31. "D/d Ratio" refers to the relationship between the diameter of the sheave/pin (D) and: A. The length of the rope. B. The diameter of the rope (d). C. The distance to the ground. D. The weight of the load. Rationale: A low D/d ratio (tight bend) significantly reduces the strength and life of a wire rope. 32. Which document lists the weights of all equipment to be hung in the arena? A. The lighting plot B. The Rigging Plot/Load Schedule. C. The set list. D. The insurance policy. Rationale: The Rigging Plot identifies every point's location and the specific weight assigned to it. 33. A "Chain Bag" is essential to: A. Keep the chain dry. B. Prevent the "tail" of the chain from falling and hitting people or equipment. C. Store the motor during transit. D. Lubricate the chain. Rationale: As the motor climbs, the chain bag collects the excess chain, maintaining safety below. 34. What color is the ground wire in a standard US 3-phase motor cable (Socapex/Twist)? A. Black B. White C. Green D. Red Rationale: Green is the universal color for ground in US electrical systems. 35. A "Point" in arena rigging is: A. The tip of a shackle. B. A single location in the roof where a motor or line is
attached. C. The end of a show. D. A specific light fixture. Rationale: Every motor or dead hang is referred to as a rigging point.
36. "High Steel" refers to: A. Grade 100 chain. B. The structural beams located at the highest level of the arena. C. A truss that is over 50 feet high. D. Heavy-duty steel plates. Rationale: High steel riggers work at the very top of the building to drop lines to the "low" riggers on the floor. 37. The "Apex" of a bridle is: A. The point where the legs meet the beams. B. The point where the two legs meet to support the load. C. The heaviest part of the truss. D. The motor's internal brake. Rationale: The apex is the "v" of the bridle where the shackle and motor are attached. 38. Which of the following increases the "dynamic load" on a rigging system? A. Turning on the lights. B. Stopping or starting a motor suddenly. C. Painting the truss. D. Using a longer chain. Rationale: Acceleration and deceleration create forces significantly higher than the static weight of the load. 39. A "Pick Point" is: A. A rigger's favorite tool. B. The specific location on a piece of scenery or truss where it is lifted. C. The highest point in the arena. D. A type of knot. Rationale: Pick points must be engineered to handle the stress of the lift. 40. "Side Loading" a shackle occurs when: A. The load is applied in the center of the pin.
surface in the ceiling. C. The electrical panel. D. A type of truss. Rationale: The grid provides the attachment points for almost all arena rigging.
46. "Up-Rigging" involves: A. Lowering the truss to the floor. B. Working in the steel to pull and secure the rigging points. C. Driving the motors from the ground. D. Packing the truck. Rationale: The up-rigger is the person in the air; the "down-rigger" is the person on the floor. 47. A "Master Link" is used to: A. Connect the motor to the power. B. Collect multiple sling legs into a single attachment point. C. Lock the chain bag. D. Secure a rigger's harness. Rationale: Master links are oversized rings designed to handle the combined loads of multiple bridle legs. 48. "Torque" in rigging motors can cause: A. The lights to flicker. B. The truss to "kick" or twist upon starting. C. The chain to rust. D. The rigger to fall. Rationale: High-torque motors can cause mechanical stress on the truss and rigging if not managed properly. 49. Which of the following should be inspected on a shackle before every use? A. The color of the paint. B. Bent pin, distorted body, or wear in the crown. C. The manufacturer's logo size. D. The weight of the shackle itself. Rationale: Physical deformation is an immediate cause for a shackle to be retired. 50. The "OSHA" requirement for riggers working in an arena mostly falls under: A. Maritime standards. B. General Industry (1910) or Construction (1926) standards.
C. Agricultural standards. D. Transportation standards. Rationale: Entertainment rigging is governed by General Industry and Construction safety regulations.
51. When calculating the tension in a bridle leg, the "Stress Factor" is found by dividing the length of the leg by the: A. Span B. Vertical Rise C. Weight of the load D. Diameter of the cable Rationale: The Stress Factor (L/V) is multiplied by the vertical load to determine the actual tension on the leg; as the angle gets shallower (lower rise), the stress factor increases significantly. 52. A "Klemheist" or "Prusik" knot is primarily used by riggers to: A. Tie a truss to a motor. B. Create a secure, slide-able loop on a vertical rope for climbing or hauling. C. Terminate a wire rope. D. Secure a shackle pin. Rationale: These friction hitches grab the rope when tension is applied but can be moved when the load is released. 53. Which of the following is the most dangerous condition for a chain hoist? A. A dirty chain. B. A "twisted" or "capsized" chain in a multi-reeved block. C. A missing chain bag. D. A scratched motor housing. Rationale: A capsized chain can cause the links to bind or the hoist to fail catastrophically under load. 54. In a "3-Phase" motor, reversing any two of the three power leads will: A. Short circuit the motor. B. Reverse the direction of the motor. C. Increase the lifting speed. D. Triple the lifting capacity. Rationale: Swapping any two hot leads changes the phase rotation , which reverses the magnetic field and the motor's direction.
Rationale: ASME B30.16 covers overhead hoists (underhung), which is the primary category for entertainment chain motors.
60. "Out-of-Service Criteria" for a synthetic roundsling (Spanset) includes: A. A missing manufacturer's tag. B. Holes or tears in the outer cover that reveal core fibers. C. Exposure to high heat or chemicals. D. All of the above. Rationale: Any damage that compromises the inner core fibers or the ability to verify the WLL (missing tag) requires the sling to be retired. 61. What is the purpose of "Phase Monitoring" in a motor controller? A. To check the time. B. To prevent the motors from running in the wrong direction if the power is mis-wired. C. To increase the motor's torque. D. To dim the lights on the truss. Rationale: Phase monitoring protects against "phase reversal," ensuring "Up" on the controller actually moves the motor up. 62. A "Basket Hitch" around a beam increases the capacity of a sling by up to: A. 50% B. 75% C. 100% (doubling it) D. 500% Rationale: Because the load is shared between two vertical legs of the same sling, the capacity is doubled , provided the D/d ratio is sufficient. 63. "Shock Load" on a motor can be calculated as: A. Weight × Velocity B. Weight × Acceleration Force C. Mass + Friction D. Tension / Rise Rationale: Acceleration (or sudden deceleration) acts as a multiplier on the static weight of the load. 64. When a rigger "marks the floor," they are: A. Cleaning the arena.
B. Using a laser or tape to indicate exactly where the rigging points should hang. C. Drawing a map of the backstage. D. Marking the path to the exit. Rationale: Floor marking is the first step in arena rigging to ensure the motor points align with the truss pick points.
65. A "Beam Clamp" is used to: A. Hold two beams together. B. Provide a temporary attachment point on the flange of an I- beam. C. Level the stage. D. Connect two pieces of truss. Rationale: Beam clamps eliminate the need for slings/wraps but must be rated for overhead lifting. 66. What is the "Design Factor" for a rope used for human suspension (performer flying)? A. 5: B. 8: C. 10: D. 20: Rationale: When human life is involved, the safety margin increases from the standard 5:1 to 10:. 67. A "Jury Rig" is a term for: A. A perfectly engineered system. B. A makeshift or temporary repair using whatever materials are at hand. C. A rig used in a courtroom. D. A motor used for high-speed lifting. Rationale: Jury rigging is generally discouraged in professional arena rigging unless it is a dire emergency and safely evaluated. 68. The "Sheave" is the: A. Part of the shackle that holds the pin. B. Grooved wheel in a pulley or block. C. Power connector for the motor. D. Safety latch on a hook. Rationale: The sheave guides the rope and reduces friction during the lift.
Rationale: Spreader bars ensure that the lift remains vertical above the pick points.
74. The "Load Brake" in a CM Lodestar is a: A. Manual handle. B. Mechanical friction brake that holds the load when the motor is stopped. C. Magnetic switch. D. Piece of rubber on the chain. Rationale: The mechanical load brake works in conjunction with the electric brake for double safety. 75. "OSHA 1910.184" specifically covers the use and inspection of: A. Hard hats. B. Slings. C. Ladders. D. Forklifts. Rationale: OSHA 1910.184 is the primary federal regulation for wire rope, chain, and synthetic slings. 76. "Deflection" in a beam refers to: A. The beam breaking. B. The temporary bending of a beam under the weight of a load. C. The beam reflecting light. D. The color of the beam. Rationale: Riggers must ensure that deflection stays within engineered limits to avoid structural damage. 77. A "Proof Test" is a load test performed at: A. 50% of the WLL. B. 100% of the WLL. C. 200% of the WLL (typically). D. 500% of the WLL. Rationale: Hardware is proof tested at the factory (usually at 2x the WLL) to ensure integrity before it is sold. 78. "Point Loading" a truss means: A. Loading the truss at the panel points (where diagonals meet the chords). B. Applying a heavy load to a single spot on a truss chord between panel points.
C. Hanging only one light on the truss. D. Connecting the truss to one motor. Rationale: Point loading between joints can cause the truss chord to bend or "crimped" failure.
79. The "Self-Weight" of a 1-ton CM Lodestar with 60 feet of chain is approximately: A. 50 lbs B. 120 lbs C. 250 lbs D. 500 lbs Rationale: Riggers must account for the weight of the hoist and chain as part of the total load on the roof. 80. A "Dynamic Block" or "Snatch Block" is a sheave that: A. Can only be used with chain. B. Can be opened on the side to insert a rope without threading the end. C. Is fixed to the beam. D. Moves at 100 feet per minute. Rationale: Snatch blocks allow for quick rigging of "change of direction" lines. 81. "Safety Factor" and "Design Factor" are terms that: A. Mean completely different things. B. Are often used interchangeably in general rigging conversation. C. Only apply to wire rope. D. Refer to the rigger's insurance. Rationale: While technically distinct in engineering (Safety Factor is actual, Design is theoretical), they are used synonymously by most riggers. 82. Which of the following is a "Material Handling" standard? A. ANSI E1. B. ASME B30.26 (Rigging Hardware). C. NFPA 70. D. IBC 2021. Rationale: ASME B30.26 provides the specific requirements for shackles, turnbuckles, and links. 83. "Creep" in a rigging system refers to: A. A rigger moving slowly.
C. 5 tons D. 10 tons Rationale: 3.25 tons (6,500 lbs) is the industry-standard rating for a 5/8" anchor shackle.
89. "Two-Blocking" occurs when: A. You use two motors on one truss. B. The hook or block is pulled into the tip of the hoist or sheave, causing extreme tension. C. Two riggers work on one point. D. You stack two trusses. Rationale: Two-blocking can snap a wire rope or break a hoist housing instantly. 90. Which of the following is a "Softener"? A. A type of detergent for slings. B. Cardboard, fire hose, or plastic corners used to protect slings from sharp edges. C. A rigger who is afraid of heights. D. A motor that moves slowly. Rationale: Softeners are critical to prevent the sharp edges of I-beams from cutting into rigging steel or spansets. 91. "Headroom" is the distance between: A. The rigger's head and the ceiling. B. The lowest point of the support structure and the highest point of the load. C. The floor and the stage. D. Two motors on a truss. Rationale: In arenas with low ceilings, headroom dictates how high a truss can be trimmed. 92. A "Dead-End" on a wire rope is: A. A point that goes nowhere. B. The short end of the rope after it has been terminated. C. A broken cable. D. A motor that has no power. Rationale: The dead-end is the tail that remains after a knot or clip is applied. 93. "Reeving" is the process of: A. Turning a motor on. B. Passing a rope or chain through a system of sheaves or
blocks. C. Tying a knot. D. Painting a truss. Rationale: Proper reeving is required to gain mechanical advantage or change direction.
94. A "Torque Wrench" is used to: A. Tighten a shackle pin. B. Apply a specific, measured amount of force to a bolt or nut. C. Measure the weight of the truss. D. Lift heavy equipment. Rationale: Torque wrenches are used for critical truss bolts or base plate attachments to ensure they are not over or under-tightened. 95. "Vector Analysis" is used to determine: A. The speed of the lift. B. The direction and magnitude of forces in a bridle system. C. The color of the motor cable. D. The number of lights on a truss. Rationale: Vectors allow riggers to see how horizontal and vertical forces combine at the apex. 96. A "Safety Nut" or "Nyloc" is used to: A. Make the bolt look better. B. Prevent a nut from vibrating loose due to its nylon insert. C. Increase the WLL of a bolt. D. Protect the bolt from rust. Rationale: Nylocs are standard for any rigging connection subject to movement or vibration. 97. "Pick-Up" is the moment when: A. The show starts. B. The tension of the motors takes the full weight of the load off the floor. C. The rigger finishes the rig. D. The truck arrives. Rationale: The pick-up is the most critical time for monitoring the truss for level and balance. 98. "Lateral Loading" on a truss chord is: A. Pushing the truss up. B. Applying a force from the side, which trusses are generally weak at resisting.
