Data Communication Networks Lab (EE-3402) 2

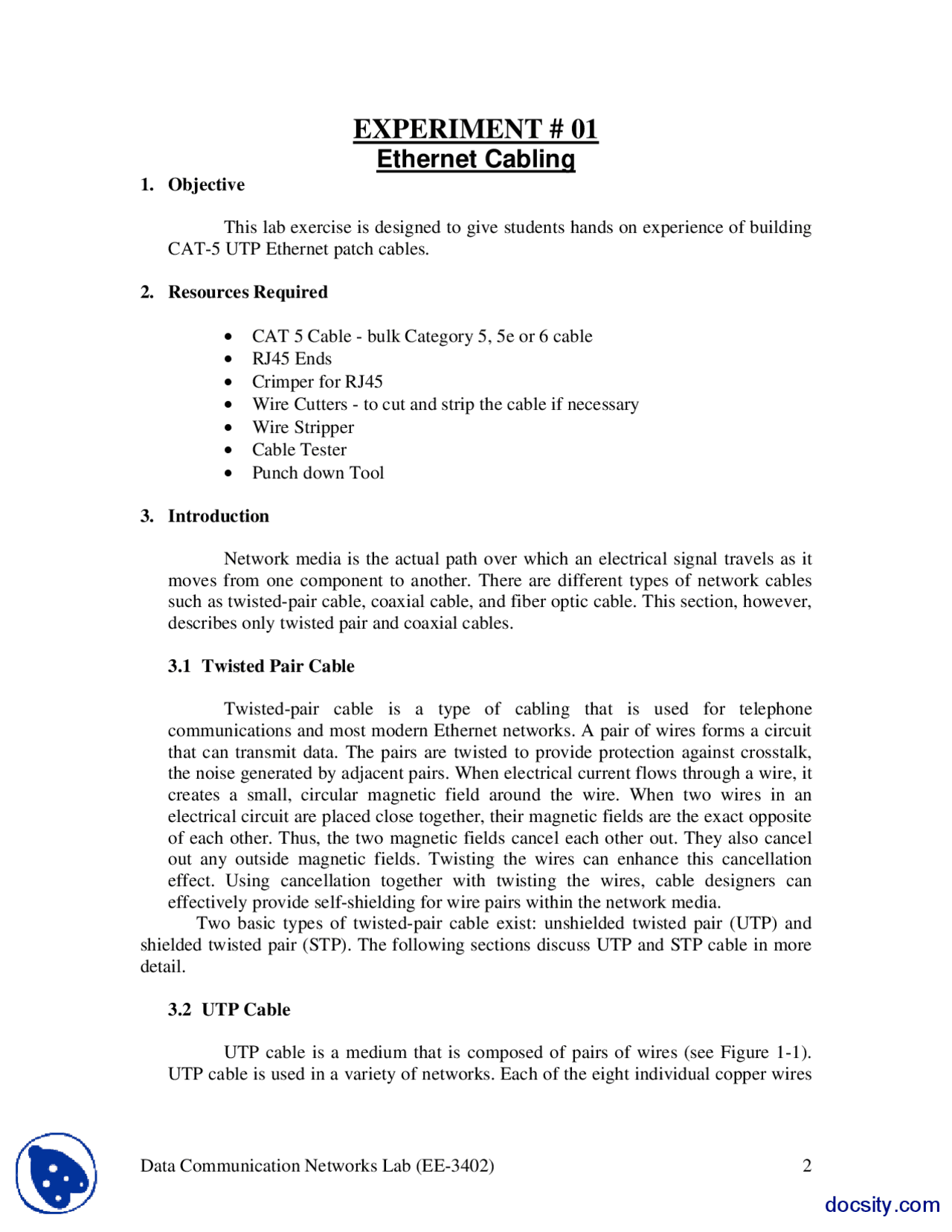

EXPERIMENT # 01
Ethernet Cabling
1. Objective
This lab exercise is designed to give students hands on experience of building CAT-5 UTP Ethernet patch cables.
2. Resources Required - CAT 5 Cable - bulk Category 5, 5e or 6 cable - RJ45 Ends - Crimper for RJ - Wire Cutters - to cut and strip the cable if necessary - Wire Stripper - Cable Tester - Punch down Tool 3. Introduction
Network media is the actual path over which an electrical signal travels as it moves from one component to another. There are different types of network cables such as twisted-pair cable, coaxial cable, and fiber optic cable. This section, however, describes only twisted pair and coaxial cables.
3.1 Twisted Pair Cable
Twisted-pair cable is a type of cabling that is used for telephone communications and most modern Ethernet networks. A pair of wires forms a circuit that can transmit data. The pairs are twisted to provide protection against crosstalk, the noise generated by adjacent pairs. When electrical current flows through a wire, it creates a small, circular magnetic field around the wire. When two wires in an electrical circuit are placed close together, their magnetic fields are the exact opposite of each other. Thus, the two magnetic fields cancel each other out. They also cancel out any outside magnetic fields. Twisting the wires can enhance this cancellation effect. Using cancellation together with twisting the wires, cable designers can effectively provide self-shielding for wire pairs within the network media. Two basic types of twisted-pair cable exist: unshielded twisted pair (UTP) and shielded twisted pair (STP). The following sections discuss UTP and STP cable in more detail.
3.2 UTP Cable
UTP cable is a medium that is composed of pairs of wires (see Figure 1-1). UTP cable is used in a variety of networks. Each of the eight individual copper wires
Data Communication Networks Lab (EE-3402) 3
in UTP cable is covered by an insulating material. In addition, the wires in each pair are twisted around each other.
Figure 1-1 Unshielded Twisted-Pair Cable
UTP cable relies solely on the cancellation effect produced by the twisted wire pairs to limit signal degradation caused by electromagnetic interference (EMI) and radio frequency interference (RFI). To further reduce crosstalk between the pairs in UTP cable, the number of twists in the wire pairs varies. UTP cable must follow precise specifications governing how many twists or braids are permitted per meter (3.28 feet) of cable. UTP cable often is installed using a Registered Jack 45 (RJ-45) connector (see Figure 1-2). The RJ-45 is an eight-wire connector used commonly to connect computers onto a local-area network (LAN), especially Ethernets.
Figure 1-2 RJ-45 Connectors
When used as a networking medium, UTP cable has four pairs of either 22- or 24- gauge copper wire. UTP used as a networking medium has an impedance of 100 ohms; this differentiates it from other types of twisted-pair wiring such as that used for telephone wiring, which has impedance of 600 ohms. UTP cable offers many advantages. Because UTP has an external diameter of approximately 0.43 cm (0.17 inches), its small size can be advantageous during installation. Because it has such a small external diameter, UTP does not fill up wiring ducts as rapidly as other types of cable. This can be an extremely important factor to consider, particularly when installing a network in an older building. UTP cable is easy to install and is less expensive than other types of networking media. In fact, UTP costs less per meter than any other type of LAN cabling. And because UTP can be used with most of the major networking architectures, it continues to grow in popularity. Disadvantages also are involved in using twisted-pair cabling, however. UTP cable is more prone to electrical noise and interference than other types of networking media, and the distance between signal boosts is shorter for UTP than it is for coaxial and fiber-optic cables. Although UTP was once considered to be slower at transmitting data than other types of cable, this is no longer true. In fact, UTP is considered the fastest copper-based medium today.
Data Communication Networks Lab (EE-3402) 5
- Media and connector size—Medium to large
- Maximum cable length—100 m (short) When comparing UTP and STP, keep the following points in mind:
- The speed of both types of cable is usually satisfactory for local-area distances.
- These are the least-expensive media for data communication. UTP is less expensive than STP.
- Because most buildings are already wired with UTP, many transmission standards are adapted to use it, to avoid costly rewiring with an alternative cable type.
3.4 Coaxial Cable Coaxial cable consists of a hollow outer cylindrical conductor that surrounds a single inner wire made of two conducting elements. One of these elements, located in the center of the cable, is a copper conductor. Surrounding the copper conductor is a layer of flexible insulation. Over this insulating material is a woven copper braid or metallic foil that acts both as the second wire in the circuit and as a shield for the inner conductor. This second layer, or shield, can help reduce the amount of outside interference. Covering this shield is the cable jacket.
Figure 1-4 Coaxial Cable
Coaxial cable supports 10 to 100 Mbps and is relatively inexpensive, although it is more costly than UTP on a per-unit length. However, coaxial cable can be cheaper for a physical bus topology because less cable will be needed. Coaxial cable can be cabled over longer distances than twisted-pair cable. For example, Ethernet can run approximately 100 meters (328 feet) using twisted-pair cabling. Using coaxial cable increases this distance to 500m (1640.4 feet). For LANs, coaxial cable offers several advantages. It can be run with fewer boosts from repeaters for longer distances between network nodes than either STP or UTP cable. Repeaters regenerate the signals in a network so that they can cover greater distances. Coaxial cable is less expensive than fiber-optic cable, and the technology is well known; it has been used for many years for all types of data communication. When working with cable, you need to consider its size. As the thickness, or diameter, of the cable increases, so does the difficulty in working with it. Many times cable must be pulled through existing conduits and troughs that are limited in size. Coaxial cable comes in a variety of sizes. The largest diameter (1 centimeter [cm]) was specified for use as Ethernet backbone cable because historically it had greater transmission length and noise-rejection characteristics. This type of coaxial cable is
Data Communication Networks Lab (EE-3402) 6
frequently referred to as Thicknet. As its nickname suggests, Thicknet cable can be too rigid to install easily in some situations because of its thickness. The general rule is that the more difficult the network medium is to install, the more expensive it is to install. Coaxial cable is more expensive to install than twisted-pair cable. Thicknet cable is almost never used except for special-purpose installations. A connection device known as a vampire tap was used to connect network devices to Thicknet. The vampire tap then was connected to the computers via a more flexible cable called the attachment unit interface (AUI). Although this 15-pin cable was still thick and tricky to terminate, it was much easier to work with than Thicknet. In the past, coaxial cable with an outside diameter of only 0.35 cm (sometimes referred to as Thinnet) was used in Ethernet networks. Thinnet was especially useful for cable installations that required the cable to make many twists and turns. Because it was easier to install, it was also cheaper to install. Thus, it was sometimes referred to as Cheapernet. However, because the outer copper or metallic braid in coaxial cable comprises half the electrical circuit, special care had to be taken to ensure that it was properly grounded. Grounding was done by ensuring that a solid electrical connection existed at both ends of the cable. Frequently, however, installers failed to properly ground the cable. As a result, poor shield connection was one of the biggest sources of connection problems in the installation of coaxial cable. Connection problems resulted in electrical noise, which interfered with signal transmittal on the networking medium. For this reason, despite its small diameter, Thinnet no longer is commonly used in Ethernet networks. The most common connectors used with Thinnet are BNC, short for British Naval Connector or Bayonet Neill Concelman, connectors (see Figure 1-5). The basic BNC connector is a male type mounted at each end of a cable. This connector has a center pin connected to the center cable conductor and a metal tube connected to the outer cable shield. A rotating ring outside the tube locks the cable to any female connector. BNC T- connectors are female devices for connecting two cables to a network interface card (NIC). A BNC barrel connector facilitates connecting two cables together.
Figure 1-5 Thinnet and BNC Connector
The following summarizes the features of coaxial cables:
- Speed and throughput—10 to 100 Mbps
- Average cost per node—Inexpensive
- Media and connector size—Medium
- Maximum cable length—500 m (medium)
Data Communication Networks Lab (EE-3402) 8
without a hub/switch. Some interfaces can cross and un-cross a cable automatically as needed, really quite nice.
Standard, Straight-Through Wiring (both ends are the same)
Straight-Through Cable Pinout for T568A
Straight-Through Cable Pinout for T568B
7. Procedure to make Ethernet Cables: 1. Strip off about 2 inches of the cable sheath. 2. Untwist the pairs - don't untwist them beyond what you have exposed, the more untwisted cable you have the worse the problems you can run into. 3. Align the colored wires according to the diagrams above. 4. Trim all the wires to the same length, about 1/2" to 3/4" left exposed from the sheath. 5. Insert the wires into the RJ45 end - make sure each wire is fully inserted to the front of the RJ45 end and in the correct order. The sheath of the cable
Data Communication Networks Lab (EE-3402) 9
should extend into the RJ45 end by about 1/2" and will be held in place by the crimp.
- Crimp the RJ45 end with the crimper tool
Crimper tool
- Verify the wires ended up the right order and that the wires extend to the front of the RJ45 end and make good contact with the metal contacts in the RJ45 end.
- Cut the cable to length - make sure it is more than long enough for your needs. Remember, an end to end connection should not extend more than 100m (~328ft). Try to keep cables short, the longer the cable becomes the more it may affect performance, usually noticeable as a gradual decrease in speed and increase in latency.
- Repeat the above steps for the second RJ45 end.
- If a cable tester is available, use it to verify the proper connectivity of the cable.
That should be it, if your cable doesn't turn out, look closely at each end and see if you can find the problem. Usually a wire ended up in the wrong place or more commonly, one of the wires didn't extend to the front of the RJ45 connector and is making no, or poor contact. If you see a mistake or problem, cut the end off and start again.
