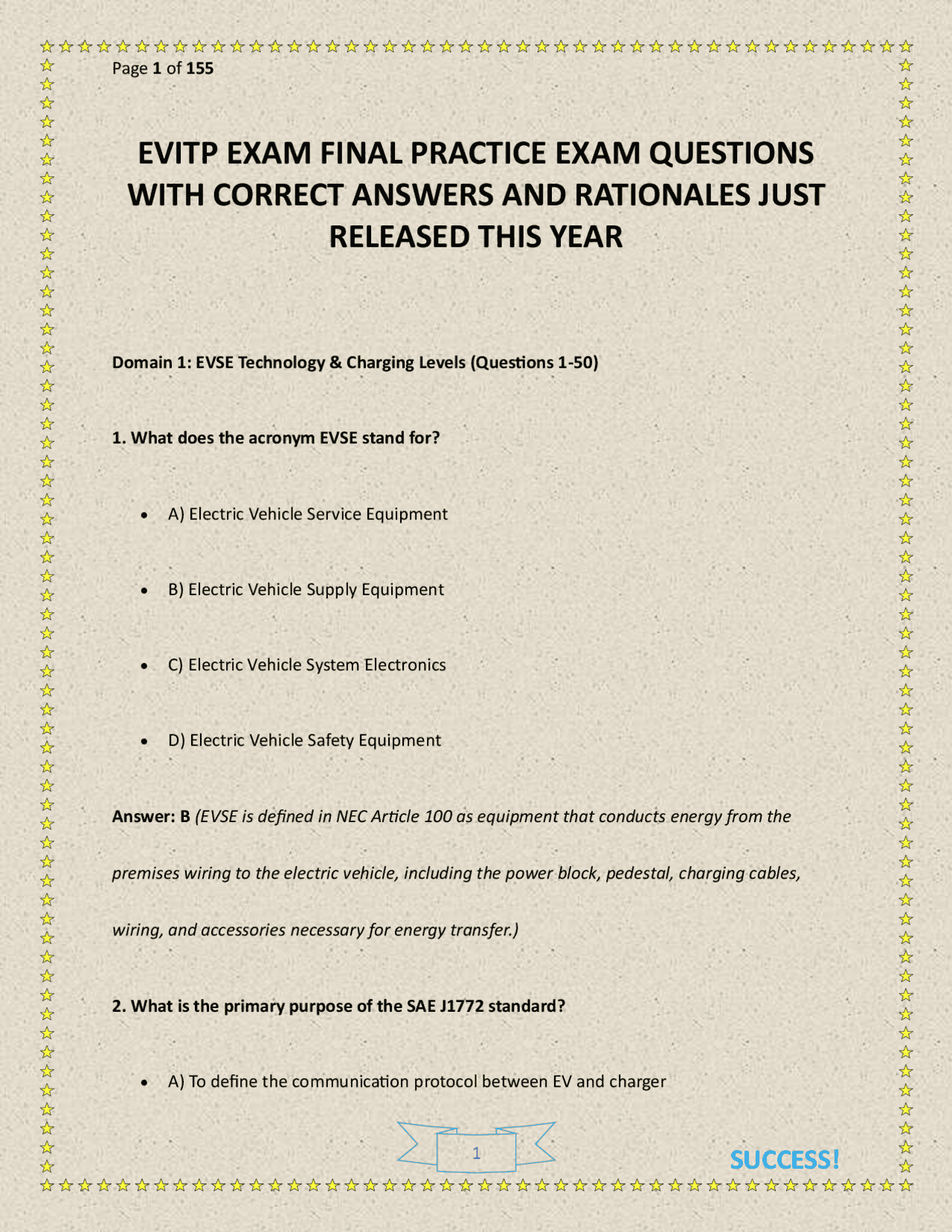

EVITP EXAM FINAL PRACTICE EXAM QUESTIONS
WITH CORRECT ANSWERS AND RATIONALES JUST
RELEASED THIS YEAR
Domain 1: EVSE Technology & Charging Levels (Questions 1-50)
1. What does the acronym EVSE stand for? - A) Electric Vehicle Service Equipment - B) Electric Vehicle Supply Equipment - C) Electric Vehicle System Electronics - D) Electric Vehicle Safety Equipment Answer: B (EVSE is defined in NEC Article 100 as equipment that conducts energy from the premises wiring to the electric vehicle, including the power block, pedestal, charging cables, wiring, and accessories necessary for energy transfer.) 2. What is the primary purpose of the SAE J1772 standard? - A) To define the communication protocol between EV and charger
- B) To standardize the physical connector and electrical interface for Level 1 and Level 2 AC charging
- C) To regulate DC fast charging stations
- D) To specify battery requirements for EVs Answer: B (SAE J1772 is the North American standard that defines the physical connector, electrical interface, and control signaling for conductive AC charging of electric vehicles at Levels 1 and 2.) 3. A Level 1 EV charger operates at what voltage?
- A) 120 VAC
- B) 208 VAC
- C) 240 VAC
- D) 480 VAC Answer: A (Level 1 charging uses a standard 120-volt AC household outlet (NEMA 5-15 or 5-20). It provides approximately 1.4 kW to 1.9 kW of power, adding about 3-5 miles of range per hour.) 4. A Level 2 EV charger typically operates at what voltage?
6. What does regenerative braking do in an electric vehicle? - A) Reduces brake pad wear only - B) Captures kinetic energy and converts it back into electrical energy to recharge the battery - C) Increases vehicle acceleration - D) Reduces tire wear Answer: B (Regenerative braking recovers energy normally lost as heat during braking, converting kinetic energy into electrical energy to recharge the vehicle's battery, extending driving range.) 7. Which component converts DC power from the battery to AC power for the electric motor? - A) Rectifier - B) Inverter - C) Converter - D) Transformer
Answer: B (The inverter converts DC power from the battery into AC power to drive the electric motor. It also converts AC from regenerative braking back to DC to recharge the battery.)
8. What is the state of charge (SOC)? - A) The voltage level of the battery - B) The available capacity of the battery, expressed as a percentage - C) The temperature of the battery - D) The number of charging cycles Answer: B (The state of charge is the available capacity of the battery, expressed as a percentage of its full capacity. It is analogous to a fuel gauge in a conventional vehicle.) 9. A partial zero emissions vehicle (PZEV) is defined as which of the following? - A) A gas-engine vehicle that has zero evaporative emissions from its fuel system - B) A plug-in electric vehicle - C) A vehicle with a hybrid gas-electric drivetrain - D) An all-electric vehicle
- D) Research and standards organizations
- E) All of the above Answer: E (The EV industry is comprised of auto manufacturers, EV charging equipment manufacturers, consumer advocacy groups, research and standards organizations, and utility companies.) 12. What is the primary function of the pilot signal in the SAE J1772 standard?
- A) To transmit data between the vehicle and the charger
- B) To communicate the maximum current available and the vehicle's charging requirements
- C) To provide backup power to the vehicle
- D) To control the charging time Answer: B (The pilot signal is a control signal used in the SAE J1772 standard to communicate between the EVSE and the vehicle. It indicates the maximum current available and the vehicle's charging requirements.) 13. A Level 1 EV charger typically uses which NEMA receptacle?
• A) NEMA 14- 50
• B) NEMA 6- 50
- C) NEMA 5-15 or 5- 20
- D) NEMA L6- 30 Answer: C (Level 1 charging uses a standard 120-volt household outlet, typically a NEMA 5- 15 (15-amp) or NEMA 5-20 (20-amp) receptacle.) 14. A Level 2 EV charger typically uses which NEMA receptacle for a 50-amp circuit?
- A) NEMA 5- 15
- B) NEMA 14- 50
- C) NEMA L6- 30
- D) NEMA 6- 20 Answer: B (A NEMA 14-50 receptacle is commonly used for Level 2 EV chargers on a 50-amp circuit, providing 240 volts at 40 amps (continuous load).) 15. The onboard charger in an electric vehicle converts:
17. What is the typical charging efficiency of a Level 2 EV charger? - A) 50-60% - B) 70-80% - C) 85-95% - D) 99-100% Answer: C (Level 2 EV chargers typically operate at 85-95% efficiency, meaning 85-95% of the electrical energy from the grid is delivered to the vehicle's battery. The remaining energy is lost as heat.) 18. What is the primary purpose of the proximity detection circuit in the SAE J connector? - A) To verify the connector is fully inserted before power is applied - B) To measure the temperature of the connector - C) To detect the presence of the vehicle - D) To lock the connector in place
Answer: A (The proximity detection circuit ensures the connector is fully inserted into the vehicle's charge port before power is applied, preventing arcing and ensuring safety.)
19. Which of the following is a characteristic of a Level 1 EV charger? - A) Requires a dedicated circuit - B) Can plug into a standard household outlet - C) Provides 50-100 miles of range per hour - D) Requires a 240-volt circuit Answer: B (Level 1 chargers plug into standard 120-volt household outlets (NEMA 5-15 or 5-20) and do not typically require a dedicated circuit, although a dedicated circuit is recommended.) 20. Which of the following is a characteristic of a Level 2 EV charger? - A) Plugs into a standard household outlet - B) Requires a 120-volt circuit - C) Requires a dedicated 208- 240 - volt circuit - D) Provides 2-5 miles of range per hour
Answer: B (GFCI protection detects ground faults (leakage current) and quickly interrupts the circuit to protect against electrical shock. GFCI is required for EVSE in many jurisdictions.)
23. What is the purpose of a charge cord management system? - A) To prevent theft of the charging cable - B) To organize and protect the charging cable - C) To communicate with the vehicle - D) To monitor energy usage Answer: B (Charge cord management systems organize and protect the charging cable, preventing damage and creating a safe, tidy installation.) 24. The "state of health" (SOH) of an EV battery refers to: - A) The current charge level - B) The battery's condition relative to its original capacity - C) The temperature of the battery - D) The number of charging cycles
Answer: B (State of health is a measure of the battery's condition compared to its original capacity. It degrades over time due to factors such as temperature, charge/discharge cycles, and age.)
25. What is the primary advantage of a plug-in hybrid electric vehicle (PHEV) over a battery electric vehicle (BEV)? - A) Lower initial cost - B) Extended range with a gasoline engine - C) Faster charging time - D) Lower maintenance Answer: B (PHEVs have both an electric motor and a gasoline engine, providing extended range beyond the battery's electric-only range. This eliminates range anxiety for long trips.) 26. A battery electric vehicle (BEV) relies solely on: - A) A gasoline engine - B) A diesel engine - C) An electric motor and battery
- C) 200-800 volts
- D) 1000-1500 volts Answer: C (EV battery packs typically operate at 200-800 volts, with higher-voltage systems (800V) enabling faster charging and improved efficiency.) 29. What is regenerative braking's primary effect on the vehicle's battery?
- A) It discharges the battery
- B) It charges the battery
- C) It has no effect on the battery
- D) It overheats the battery Answer: B (Regenerative braking captures kinetic energy and converts it to electrical energy, which is used to recharge the vehicle's battery.) 30. The energy efficiency of an electric motor is typically:
- A) 50-60%
- B) 70-80%
• C) 85-95%
• D) 99-100%
Answer: C (Electric motors are highly efficient, typically converting 85-95% of electrical energy into mechanical energy. This is significantly more efficient than internal combustion engines (20- 30%).)
31. What is the typical range of a battery electric vehicle (BEV) on a full charge? - A) 20-50 miles - B) 100-300 miles - C) 400-600 miles - D) 800-1000 miles Answer: B (Most modern BEVs have a range of 100-300 miles on a full charge, though some models exceed 400 miles. Range varies based on battery size, driving conditions, and temperature.) 32. Which component regulates the voltage from the battery to the vehicle's low-voltage systems?
34. The SAE J1772 connector is used for what type of charging? - A) Level 1 and Level 2 AC charging only - B) DC Fast Charging only - C) Both AC and DC charging - D) Wireless charging Answer: A (The SAE J1772 connector is used for Level 1 and Level 2 AC charging in North America. DC Fast Charging uses a different connector (CCS or CHAdeMO).) 35. A CCS (Combined Charging System) connector combines: - A) Level 1 and Level 2 AC charging - B) Level 1 AC and DC Fast Charging - C) Level 2 AC and DC Fast Charging - D) Wireless and wired charging Answer: C (CCS combines the SAE J1772 connector for Level 2 AC charging with two additional DC pins for fast charging, allowing both AC and DC charging through a single port.)
36. What is the primary purpose of a charging station's network connectivity? - A) To allow remote monitoring and management - B) To provide internet access to the vehicle - C) To update the vehicle's software - D) To charge the vehicle faster Answer: A (Network connectivity allows EVSE operators to remotely monitor charging sessions, manage access control, process payments, and perform firmware updates.) 37. What is the typical lifespan of an EV battery? - A) 1-2 years - B) 3-5 years - C) 8-15 years - D) 20-30 years Answer: C (Most EV batteries are designed to last 8-15 years or 100,000-200,000 miles. Many manufacturers offer warranties of 8 years/100,000 miles on their battery packs.)
