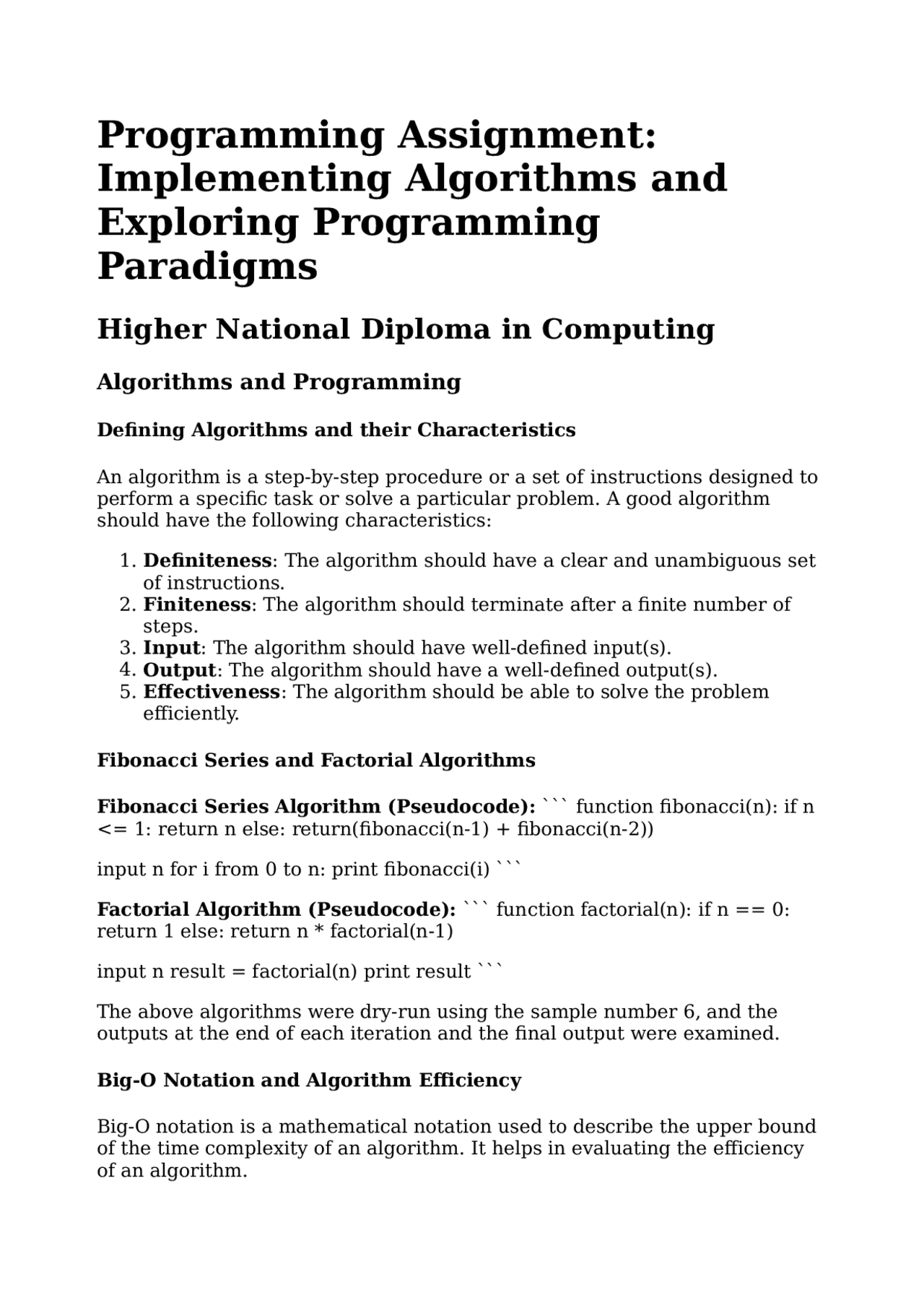

Programming Assignment:
Implementing Algorithms and
Exploring Programming
Paradigms
Higher National Diploma in Computing
Algorithms and Programming
Defining Algorithms and their Characteristics
An algorithm is a step-by-step procedure or a set of instructions designed to perform a specific task or solve a particular problem. A good algorithm should have the following characteristics:
Definiteness : The algorithm should have a clear and unambiguous set of instructions. Finiteness : The algorithm should terminate after a finite number of steps. Input : The algorithm should have well-defined input(s). Output : The algorithm should have a well-defined output(s). Effectiveness : The algorithm should be able to solve the problem efficiently.
Fibonacci Series and Factorial Algorithms
Fibonacci Series Algorithm (Pseudocode): ``` function fibonacci(n): if n <= 1: return n else: return(fibonacci(n-1) + fibonacci(n-2))
input n for i from 0 to n: print fibonacci(i) ```
Factorial Algorithm (Pseudocode): ``` function factorial(n): if n == 0: return 1 else: return n * factorial(n-1)
input n result = factorial(n) print result ```
The above algorithms were dry-run using the sample number 6, and the outputs at the end of each iteration and the final output were examined.
Big-O Notation and Algorithm Efficiency
Big-O notation is a mathematical notation used to describe the upper bound of the time complexity of an algorithm. It helps in evaluating the efficiency of an algorithm.
The time complexity of the Fibonacci series algorithm is O(2^n), which is exponential. This means that as the input size (n) increases, the time required to execute the algorithm increases exponentially.
The time complexity of the factorial algorithm is O(n), which is linear. This means that as the input size (n) increases, the time required to execute the algorithm increases linearly.
The Python code for the Fibonacci series and factorial algorithms, along with their Big-O analysis, is provided below:
## Fibonacci Series def fibonacci(n): if n <= 1: return n else: return(fibonacci(n-1) + fibonacci(n-2)) n = 6 for i in range(n+1): print(fibonacci(i)) ## Factorial def factorial(n): if n == 0: return 1 else: return n * factorial(n-1) n = 6 result = factorial(n) print(result) ``` The Fibonacci series algorithm has an exponential time complexity of O(2^n), while the factorial algorithm has a linear time complexity of O(n). ## Programming Paradigms A programming paradigm is a fundamental style of computer programming, which determines how a programmer thinks about the structure and execution of a program. **Procedural Programming** Procedural programming is a programming paradigm that uses a linear, top- down approach to program execution. It focuses on breaking down a program into a series of procedures or functions, which are executed in a specific order. Example (Python): ```python def calculate_area(length, width): area = length * width return area length = 5 width = 3 result = calculate_area(length, width) print(result) ``` **Definiteness** : Every step and the sequence in which those actions must be performed must be specified in an algorithm. The algorithm should be explicit, clear, and quantifiable, not qualitative. **Finiteness** : An algorithm must be able to complete all of its essential stages and reach its desired result. It should not include any extraneous or redundant steps, and it must stop after a predetermined number of steps. **Generality** : An algorithm should be designed to be independent of any programming language, so that it can be implemented using various programming languages. ## Fibonacci Series The Fibonacci sequence is a series of numbers where each number is the sum of the two preceding ones, starting from 0 and 1. The sequence is as follows: 0, 1, 1, 2, 3, 5, 8, 13, 21, 34, ... ## Pseudo-code for Fibonacci Series Step 1: Start Step 2: Declare variables c, d, e, f Step 3: Initialize c = 0, d = 1, f = 2 Step 4: Read n from the user Step 5: Print c and d Step 6: Repeat until f <= n: Step 6.1: e = c + d Step 6.2: Print e Step 6.3: c = d, d = e Step 6.4: f = f + 1 Step 7: Stop ## Factorial Value The factorial of a non-negative integer n is the product of all positive integers less than or equal to n. It is denoted by n!. For example, 5! = 1 × 2 × 3 × 4 × 5 = 120. ## Pseudo-code for Factorial Value Step 1: Start Step 2: Declare variables N, fact, d Step 3: Initialize fact = 1 Step 4: Read number N from the user Step 5: Repeat until d <= N: Step 5.1: fact = fact * d Step 5.2: d = d + 1 Step 6: Print fact Step 7: Stop ## Integrated Development Environment (IDE) An Integrated Development Environment (IDE) is a software application that provides a comprehensive set of tools and features for writing, testing, and debugging computer programs. IDEs typically include a code editor, a compiler or interpreter, a debugger, and various other tools to streamline the software development process. ## Benefits of Using an IDE **Code Editor** : IDEs provide a powerful code editor with features like syntax highlighting, code completion, and code folding, which improve code readability and productivity. **Debugging Tools** : IDEs offer advanced debugging tools that allow developers to step through their code, set breakpoints, and inspect variables, making it easier to identify and fix bugs. **Build Automation** : IDEs often include build automation tools that simplify the process of compiling, packaging, and deploying applications. **Version Control Integration** : Many IDEs integrate with popular version control systems, such as Git, making it easier to manage code changes and collaborate with other developers. **Project Management** : IDEs typically provide project management features, such as project templates, project organization, and project- level settings, which help developers manage their codebase more effectively. ## Comparison of Using an IDE vs. Not Using an IDE Using an IDE can significantly improve the development process compared to not using an IDE. IDEs provide a more integrated and streamlined development environment, which can lead to increased productivity, better code quality, and more efficient debugging and testing. Without an IDE, developers may need to rely on a more fragmented set of tools, which can be less efficient and more time-consuming. ## Coding Standards Coding standards are a set of guidelines and best practices that developers follow when writing code. Coding standards help ensure consistency, readability, and maintainability of the codebase, which is particularly important in team-based software development projects. ## Importance of Coding Standards **Consistency** : Coding standards ensure that the codebase follows a consistent style, making it easier for developers to understand and navigate the code. **Readability** : Well-defined coding standards improve the readability of the code, making it easier for developers to understand and collaborate on the project. **Maintainability** : Coding standards help maintain the codebase by making it easier to identify and fix issues, as well as to make changes and additions to the code. ## Planning the Solution Two popular methods of problem-solving planning are the creation of a flowchart and the writing of pseudocode. A flowchart is a visual depiction of the problem-solving process in steps, using boxes and symbols to indicate activities and arrows to show the program's direction. It serves as a road map for what and how the program will accomplish its goals. The American National Standards Institute (ANSI) has created a common set of flowchart symbols that can be used. Pseudocode, on the other hand, is a non-standard language that resembles English and allows for a more accurate expression of the solution than plain English, but with less precision than a formal programming language. Pseudocode enables the programmer to focus on the logic of the program without worrying about the specific syntax of a particular programming language. ## Coding the Program The next step is to write the program, which involves expressing the solution in a programming language. Programming languages are collections of rules that provide the computer with a method to be told what actions to do. Examples of programming languages include BASIC, COBOL, Pascal, FORTRAN, and C. These languages are more precise than English, with their own syntax that must be strictly adhered to for the program to function correctly. Once the program is coded, it must be entered into a terminal or personal computer in a way that the machine can understand. ## Testing the Program While some experts claim that well-designed software can be written correctly the first time, most programmers expect their newly built programs to have some defects, as the world is not perfect. There are many possibilities for introducing errors into programs, and programmers will likely find plenty of them, just like those who came before them. **The Big-O Notation** The Big-O notation may be useful for determining the quality of a formula or algorithm. It indicates the relationship between the algorithm's input and the steps required to run it. The notation uses 'n' inside parentheses to display this relationship. ## Linear Complexity (O(n)) If the number of steps needed to complete the execution of an algorithm increases or decreases linearly with the number of inputs, the complexity of the algorithm is said to be linear. The symbol for linear complexity is O(n). ## Constant Complexity (O(c)) If the steps necessary to finish the execution of an algorithm stay constant regardless of the quantity of inputs, the complexity of the algorithm is said to be constant. The symbol for constant complexity is O(c), where c can be any constant number. ## Quadratic Complexity (O(n^2)) When the steps needed to run an algorithm are a quadratic function of the quantity of input, the algorithm is said to be quadratic in complexity. The symbol for quadratic complexity is O(n^2). **Algorithms with Big-O Notation** The Big-O notation is an indicator of an algorithm's complexity, as it indicates the relationship between the input to the algorithm and the steps required to execute it. Using 'n' in the parenthesis, the relationship between the input and the algorithm's stages is displayed. For instance, the Big-O notation will be utilized if the input and the step the algorithm takes to complete its execution are both linear (n). Likewise, the Big-O notation for quadratic functions is O(n^2). **Programming Paradigm** ## Procedural Programming Procedural programming is an evolution of structured programming, where the idea of invoking procedures serves as the foundation. Procedures are a collection of instructions that must be followed, often referred to as routines, subroutines, or functions. Any procedure in a program can be invoked by another procedure or by itself at any point during its execution. ## Characteristics of Procedural Programming **Local Variable** : A local variable is defined in the method's primary structure and has a local scope. It cannot be used outside the method it is declared in. **Global Variable** : Global variables are declared outside of any function and are accessible to all other functions within the program. They can affect various aspects of the program or the environment in which it runs. **Parameter Passing** : Parameter passing is a method for supplying parameters to functions, subroutines, and procedures. There are several ways to pass parameters, including 'pass by value,' 'pass by reference,' 'pass by result,' 'pass by value-result,' and 'pass by name.' **Predefined Functions** : Predefined functions are instructions with names that come from a library or registry rather than a program. Higher-level programming languages typically include these functions. **Polymorphism** Polymorphism is the ability of an operation to act differently depending on the type of data used in the operation. It allows an object to take on multiple forms or identities. ## Advantages of Object-Oriented Programming "Write once and use it multiple times" can be achieved by using classes. Flexibility through polymorphism. Effective problem resolution. Only relevant data is presented via data hiding and abstraction, ensuring data security. OOP systems can be easily scaled from small to large systems. ## Disadvantages of Object-Oriented Programming The creation of Object-Oriented Programs requires a significant amount of effort. Object-Oriented Programs need a lot of work to develop. **Event-Driven Programming** Event-driven programming is a programming paradigm in which events, such as user actions (e.g., a mouse click or key press) or messages from the software or another program, govern the flow of program execution. An event-driven application recognizes events as they occur and responds with the appropriate event-handling technique. ## Characteristics of Event-Driven Programming Service-oriented: Event-driven programming is used to create programs for services, which typically run in the background of the operating system and do not cause the computer to slow down. Time-driven: The paradigm of time-driven programming involves timing the execution of code, such as performing a predefined operation at a predetermined interval. Event handlers: Event handlers are functions or methods that perform a specific action when a particular event is triggered. Trigger functions: Trigger functions decide what code is run when a specific event occurs, and they are used to choose when event handlers are run for the event that occurs. Simplicity of programming and ease of development: Event-driven programming can be simpler to program and develop compared to other paradigms. Although event-driven programs can be written in any programming language, some languages, such as those with an integrated development environment (IDE) that partially automates the assembly of code and offers a wide range of integral objects and controls, are specifically designed to support event-driven programming. **Programming** ## Events Mouse, keyboard, and user interface events must be triggered in the program for them to occur, which means the user must interact with an item in the program, such as clicking a button with a mouse, selecting a button with the keyboard, and so on. ## Simplicity of programming and ease of development Event-driven programming is simpler and easier to develop than other styles of programming since it is so visibly evident. For instance, adding a button is as simple as choosing it, adding it to a form, and adding code to it. ## Procedural programming and Object-oriented ## programming **Procedural programming** The program is broken down into little chunks called functions. There is no access specifier. It's not straightforward to add new data and functions. Lacks a good method for concealing data, making it insecure. Overloading is not feasible. **Object-oriented programming** Access specifiers such as private, public, and protected are used. It's simple to add additional data and functions. Data is hidden, making it safer. Overloading is possible. ## Object-Oriented Programming and Event-driven ## Programming Object-oriented programming focuses on executing actions and manipulating data enclosed in objects in a sequential sequence of steps, whereas event-driven programming is more dynamic and relies on event triggering and event handling to define program sequencing. Threads in event-driven programming can conduct activities based on triggers/events in the program. **Long Tour** **Day Tour** **Customer** ## Debugging Process The process of finding and correcting existing and potential bugs in software code that can make it behave strangely or crash is known as debugging. To debug a software, the user must first identify the problem, isolate the source code, and then correct it. Debugging tools (sometimes known as debuggers) are used to detect coding mistakes at various stages of development. **Steps of Debugging Process** Identify the error See the error Reproduce the error **Debugging and Coding Standards** ## Understanding the Expected Behavior In complex applications, it can be challenging to determine the expected behavior of an error. To address this, it is necessary to communicate with the product owner and review the documentation to gather the required information. ## Validating the Identification Confirm with the responsible party of the application that the identified issue is indeed an error and that the expected behavior is correct. This validation process may also reveal situations where fixing the error is not necessary or worthwhile. ## Finding the Error Once the error has been correctly identified, the next step is to locate the exact spot in the code where the error is present. This is not about understanding the big picture of the error, but rather focusing on finding the specific location. Several techniques can be employed to find the error: Logging: Logging the error to the console, a file, or other output can help trace the error in the code. Debugging: Using a debugger to step through the code and examine its execution can provide valuable insights. Removing Code: This approach involves systematically removing sections of the code to isolate the problematic area. It can be particularly useful for complex or intermittent errors. ## Analyzing the Error After finding the error, it is crucial to take a bottom-up approach and analyze the code surrounding the error. This analysis serves two main purposes: Checking for the presence of any other errors (the "iceberg" metaphor). Assessing the potential risks of introducing collateral damage during the fix. ## Proving the Analysis This step involves writing automated tests for the areas identified during the analysis. Using a test framework, such as those from the xUnit family, can help ensure the correctness of the analysis. ## Covering Lateral Damage Before implementing the fix, it is essential to create or gather all the unit tests for the code surrounding the area where the changes will be made. This step ensures that the fix does not inadvertently break anything else. ## Fixing the Error Finally, the error can be fixed, having completed the necessary preparatory steps. ## Available Features in Visual Studio IDE for Debugging ## Code Starting a Debugging Session Setting Breakpoints Navigating Code in the Debugger Using Step Commands Stepping Over Code to Skip Functions Stepping Into a Property Running to a Point in the Code Quickly Using the Mouse Advancing the Debugger Out of the Current Function Running to the Cursor ## Debugging Tools Debugging tools designed specifically for embedded applications have evolved significantly over the past 30 years. These tools are typically highly configurable and versatile, often including scripting capabilities, to handle the diverse needs of embedded systems.
