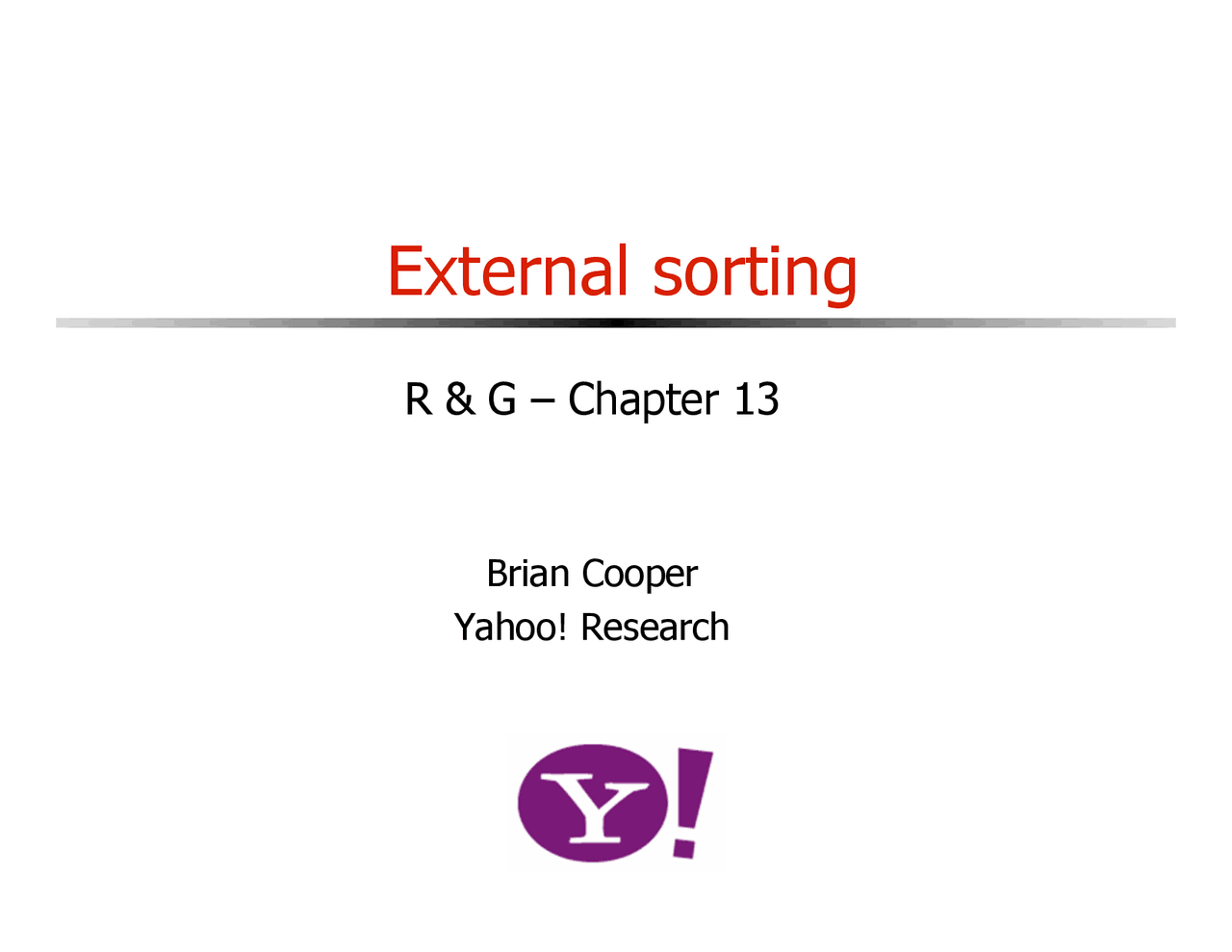

External sorting

R & G – Chapter 13

Brian Cooper

Yahoo! Research

A little bit about Y!

 Yahoo! is the most visited website in the

world

 Sorry Google

 500 million unique visitors per month

 74 percent of U.S. users use Y! (per month)

 13 percent of U.S. users’ online time is on Y!

Why sort?

 Users usually want data sorted

 Sorting is first step in bulk-loading a B+ tree

 Sorting useful for eliminating duplicates

 Sort-merge join algorithm involves sorting

Blueberry Strawberry Kiwi Mango Orange Apple Grapefruit Banana Blueberry Strawberry Orange Mango Kiwi Grapefruit Banana Apple

Key problem in database sorting

4 GB: $

480 GB: $

 How to sort data that does not fit in memory?

Example: merge sort

Apple Banana Blueberry Grapefruit Kiwi Mango Orange Strawberry Apple Banana Blueberry Grapefruit Kiwi Mango Orange Strawberry Apple Banana Grapefruit Orange Blueberry Kiwi Mango Strawberry Apple Banana Grapefruit Orange Blueberry Kiwi Mango Strawberry

Isn’t that good enough?

 Consider a file with N records

 Merge sort is O(N lg N) comparisons

 We want to minimize disk I/Os

 Don’t want to go to disk O(N lg N) times!

 Key insight: sort based on pages, not records

 Read whole pages into RAM, not individual records

 Do some in-memory processing

 Write processed blocks out to disk

 Repeat

 Pass 0: sort each page  Pass 1: merge two pages into one run  Pass 2: merge two runs into one run  …  Sorted!

2-way sort

Unsorted Sorted RAM Sorted Sorted RAM Sorted Sorted Sorted RAM Sorted

What did that cost us?

 Why is this better than plain old merge sort?

 N >> P

 So O(N lg N) >> O(P lg P)

 Example:

 1,000,000 record file  8 KB pages  100 byte records  = 80 records per page  = 12,500 pages  Plain merge sort: 41,863,137 disk I/O’s  2-way external merge sort: 365,241 disk I/O’s  4.8 days versus 1 hour

Can we do better?

 2-way merge sort only uses 3 memory buffers

 Two buffers to hold input records  One buffer to hold output records  When that buffer fills up, flush to disk

 Usually we have a lot more memory than that

 Set aside 100 MB for sort scratch space = 12,800 buffer pages

 Idea: read as much data into memory as possible

each pass

 Thus reducing the number of passes  Recall total cost: 2P * Passes

Example

Input Output

Example

Input Output

Example

Input Output

Example

Input Output
