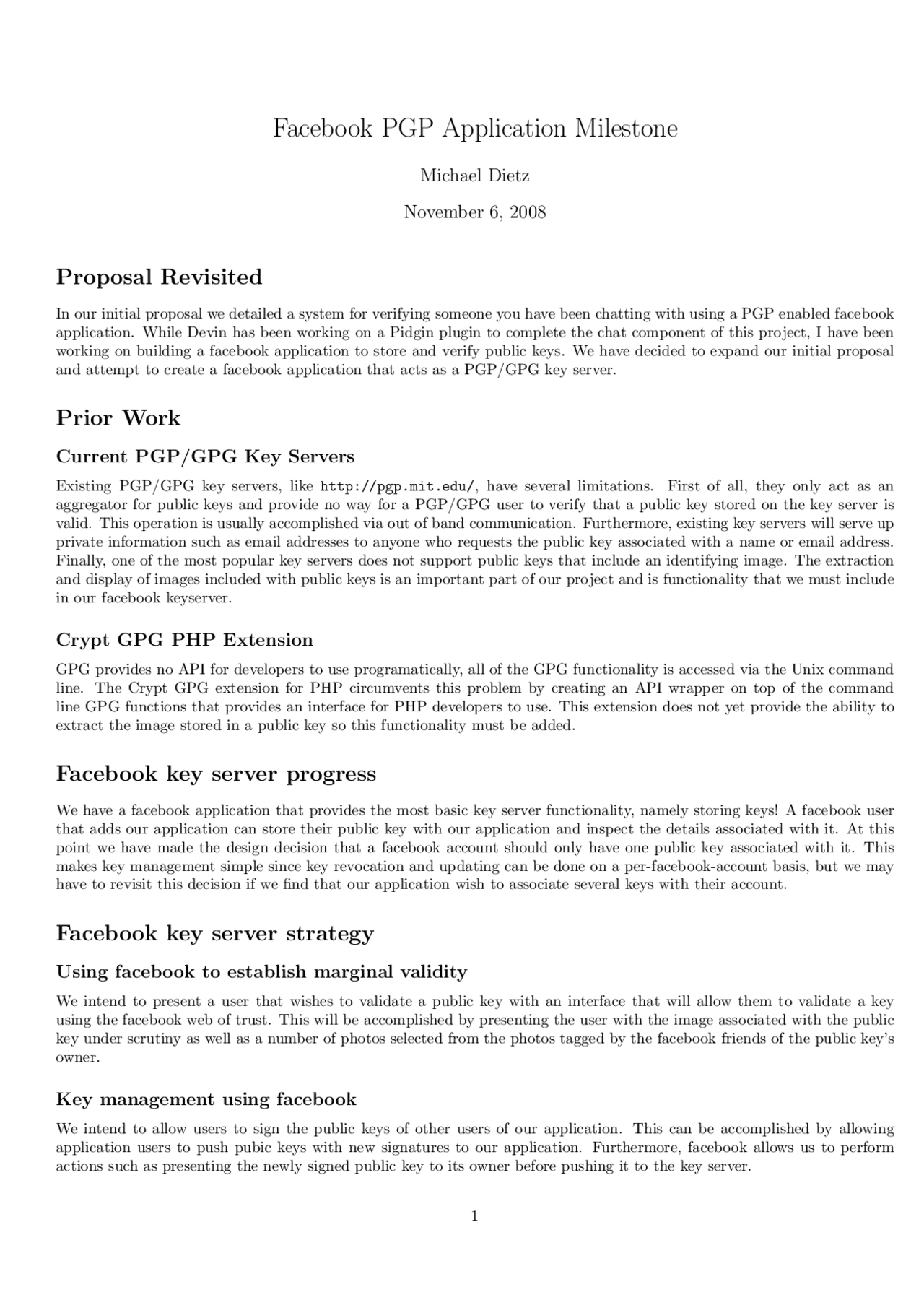

Facebook PGP Application Milestone
Michael Dietz
November 6, 2008
Proposal Revisited
In our initial proposal we detailed a system for verifying someone you have been chatting with using a PGP enabled facebook
application. While Devin has been working on a Pidgin plugin to complete the chat component of this project, I have been
working on building a facebook application to store and verify public keys. We have decided to expand our initial proposal
and attempt to create a facebook application that acts as a PGP/GPG key server.
Prior Work
Current PGP/GPG Key Servers
Existing PGP/GPG key servers, like http://pgp.mit.edu/, have several limitations. First of all, they only act as an
aggregator for public keys and provide no way for a PGP/GPG user to verify that a public key stored on the key server is
valid. This operation is usually accomplished via out of band communication. Furthermore, existing key servers will serve up
private information such as email addresses to anyone who requests the public key associated with a name or email address.
Finally, one of the most popular key servers does not support public keys that include an identifying image. The extraction
and display of images included with public keys is an important part of our project and is functionality that we must include
in our facebook keyserver.
Crypt GPG PHP Extension
GPG provides no API for developers to use programatically, all of the GPG functionality is accessed via the Unix command
line. The Crypt GPG extension for PHP circumvents this problem by creating an API wrapper on top of the command
line GPG functions that provides an interface for PHP developers to use. This extension does not yet provide the ability to
extract the image stored in a public key so this functionality must be added.
Facebook key server progress
We have a facebook application that provides the most basic key server functionality, namely storing keys! A facebook user
that adds our application can store their public key with our application and inspect the details associated with it. At this
point we have made the design decision that a facebook account should only have one public key associated with it. This
makes key management simple since key revocation and updating can be done on a per-facebook-account basis, but we may
have to revisit this decision if we find that our application wish to associate several keys with their account.
Facebook key server strategy
Using facebook to establish marginal validity
We intend to present a user that wishes to validate a public key with an interface that will allow them to validate a key
using the facebook web of trust. This will be accomplished by presenting the user with the image associated with the public
key under scrutiny as well as a number of photos selected from the photos tagged by the facebook friends of the public key’s
owner.
Key management using facebook
We intend to allow users to sign the public keys of other users of our application. This can be accomplished by allowing
application users to push pubic keys with new signatures to our application. Furthermore, facebook allows us to perform
actions such as presenting the newly signed public key to its owner before pushing it to the key server.
1
