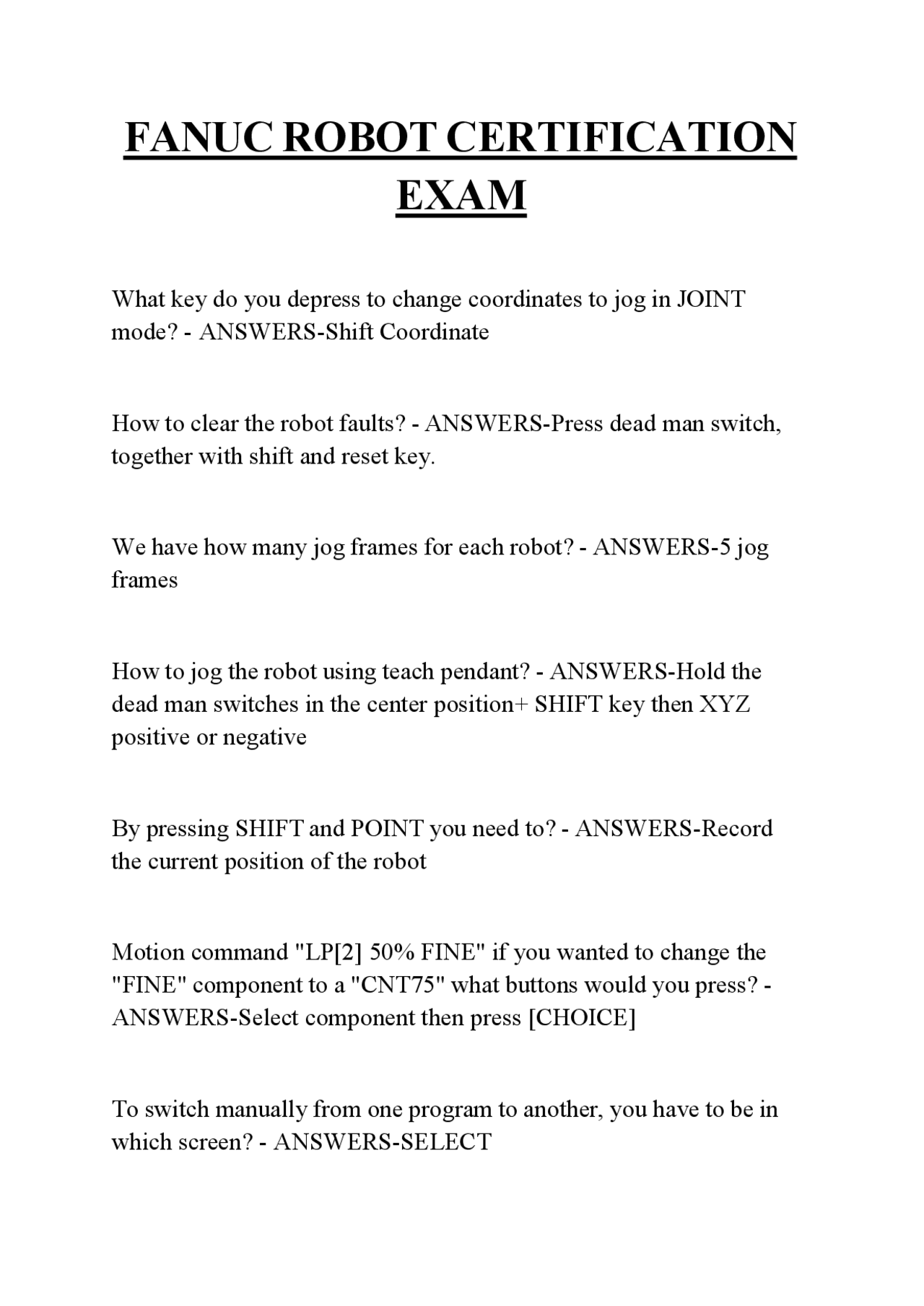

FANUC ROBOT CERTIFICATION
EXAM
What key do you depress to change coordinates to jog in JOINT
mode? - ANSWERS-Shift Coordinate
How to clear the robot faults? - ANSWERS-Press dead man switch,
together with shift and reset key.
We have how many jog frames for each robot? - ANSWERS-5 jog
frames
How to jog the robot using teach pendant? - ANSWERS-Hold the
dead man switches in the center position+ SHIFT key then XYZ
positive or negative
By pressing SHIFT and POINT you need to? - ANSWERS-Record
the current position of the robot
Motion command "LP[2] 50% FINE" if you wanted to change the
"FINE" component to a "CNT75" what buttons would you press? -
ANSWERS-Select component then press [CHOICE]
To switch manually from one program to another, you have to be in
which screen? - ANSWERS-SELECT
pf3
pf4

Partial preview of the text

Download FANUC ROBOT CERTIFICATION EXAM and more Exams Mechanical Engineering in PDF only on Docsity!

FANUC ROBOT CERTIFICATION

EXAM

What key do you depress to change coordinates to jog in JOINT mode? - ANSWERS-Shift Coordinate How to clear the robot faults? - ANSWERS-Press dead man switch, together with shift and reset key. We have how many jog frames for each robot? - ANSWERS- 5 jog frames How to jog the robot using teach pendant? - ANSWERS-Hold the dead man switches in the center position+ SHIFT key then XYZ positive or negative By pressing SHIFT and POINT you need to? - ANSWERS-Record the current position of the robot Motion command "LP[2] 50% FINE" if you wanted to change the "FINE" component to a "CNT75" what buttons would you press? - ANSWERS-Select component then press [CHOICE] To switch manually from one program to another, you have to be in which screen? - ANSWERS-SELECT

What hard key are you going to press to switch the program? - ANSWERS-Select key How many Robot I/O points are standard on a controller? - ANSWERS-16 points Which hard key are you going to press when creating a program? - ANSWERS-Select key The robot system consist of the following? - ANSWERS-A controller, teach pendant and a mechanical robot The recommended motion type to move the robot to a home position?

  • ANSWERS-Joint What soft key permits you to enter extra program instructions into an I-pendent program? - ANSWERS-(INST) Name a few type of I/O signals - ANSWERS-Digital I/O, Robot I/O, Analog I/O What hardwired safety signal allows the operator to enter the workcell while in teach mode and allow motion to the robot? - ANSWERS- Safety fence circuit

To define a remote tool center point (RTCP)? - ANSWERS-You use 3 point, 4 point and direct entry What direction does the robot move in the WORLD Y+ if the robot is mounted on the floor? - ANSWERS-To your left What are the two (2) ways to control the robots motion limits and boundaries? - ANSWERS-Dual Check Safety & Axis Limits To clear DCS fault you need to press? - ANSWERS-SHIFT + RESET To correct Singularity you need to move the robot? - ANSWERS- Joint 5(+-) 5 degrees What are the individual types of jog speed? - ANSWERS-50%, 75%, 100%, FINE, VFINE You need to depress the position screen to access? - ANSWERS- POSN
