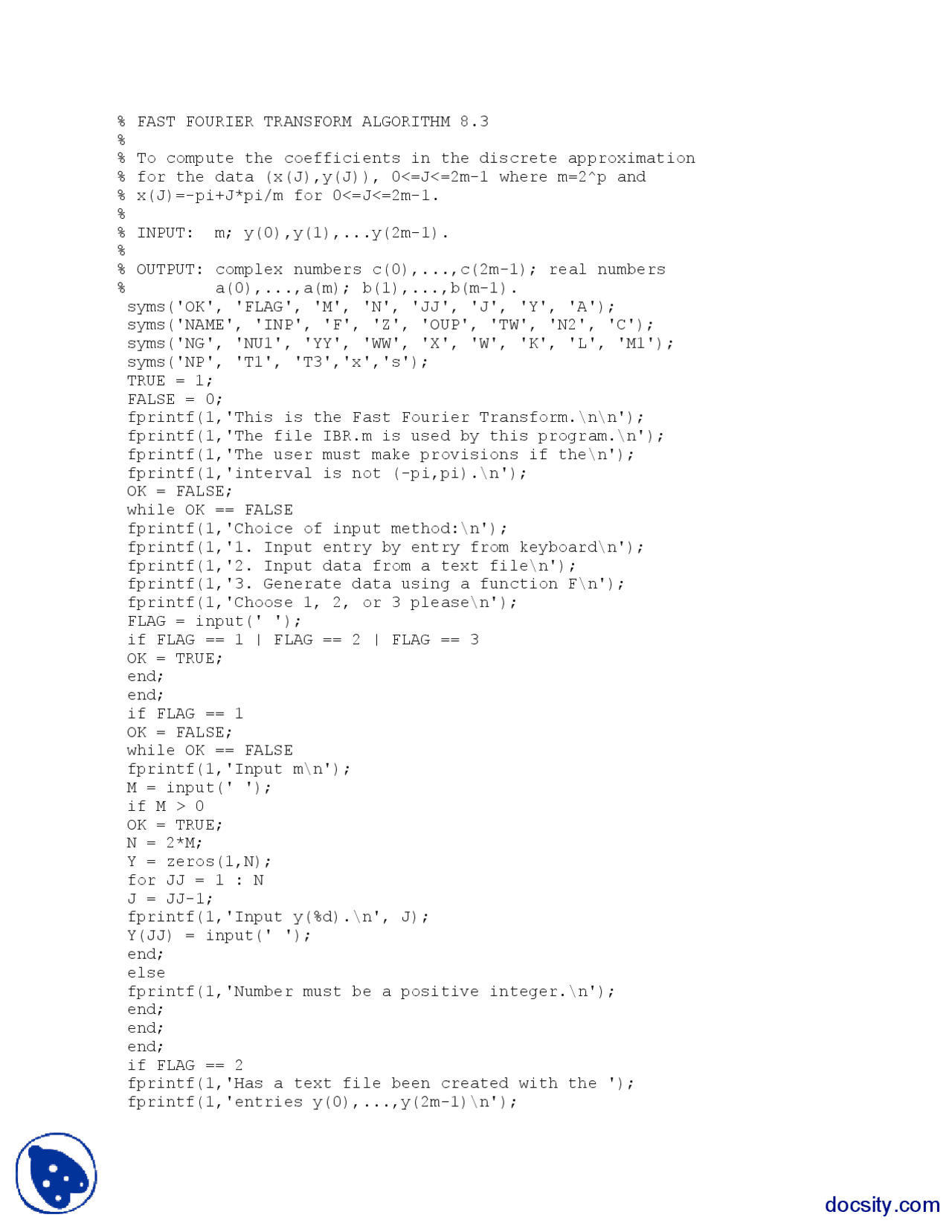

% FAST FOURIER TRANSFORM ALGORITHM 8.3
%
% To compute the coefficients in the discrete approximation
% for the data (x(J),y(J)), 0<=J<=2m-1 where m=2^p and
% x(J)=-pi+J*pi/m for 0<=J<=2m-1.
%
% INPUT: m; y(0),y(1),...y(2m-1).
%
% OUTPUT: complex numbers c(0),...,c(2m-1); real numbers
% a(0),...,a(m); b(1),...,b(m-1).
syms('OK', 'FLAG', 'M', 'N', 'JJ', 'J', 'Y', 'A');
syms('NAME', 'INP', 'F', 'Z', 'OUP', 'TW', 'N2', 'C');
syms('NG', 'NU1', 'YY', 'WW', 'X', 'W', 'K', 'L', 'M1');
syms('NP', 'T1', 'T3','x','s');
TRUE = 1;
FALSE = 0;
fprintf(1,'This is the Fast Fourier Transform.\n\n');
fprintf(1,'The file IBR.m is used by this program.\n');
fprintf(1,'The user must make provisions if the\n');
fprintf(1,'interval is not (-pi,pi).\n');
OK = FALSE;
while OK == FALSE
fprintf(1,'Choice of input method:\n');
fprintf(1,'1. Input entry by entry from keyboard\n');
fprintf(1,'2. Input data from a text file\n');
fprintf(1,'3. Generate data using a function F\n');
fprintf(1,'Choose 1, 2, or 3 please\n');
FLAG = input(' ');
if FLAG == 1 | FLAG == 2 | FLAG == 3
OK = TRUE;
end;
end;
if FLAG == 1
OK = FALSE;
while OK == FALSE
fprintf(1,'Input m\n');
M = input(' ');
if M > 0
OK = TRUE;
N = 2*M;
Y = zeros(1,N);
for JJ = 1 : N
J = JJ-1;
fprintf(1,'Input y(%d).\n', J);
Y(JJ) = input(' ');
end;
else
fprintf(1,'Number must be a positive integer.\n');
end;
end;
end;
if FLAG == 2
fprintf(1,'Has a text file been created with the ');
fprintf(1,'entries y(0),...,y(2m-1)\n');
docsity.com
pf3
pf4
pf5

Partial preview of the text

Download Fast Fourier Trasform Discrete Approximation-Numerical Analysis-MATLAB Code and more Exercises Mathematical Methods for Numerical Analysis and Optimization in PDF only on Docsity!

% FAST FOURIER TRANSFORM ALGORITHM 8.

% To compute the coefficients in the discrete approximation % for the data (x(J),y(J)), 0<=J<=2m-1 where m=2^p and % x(J)=-pi+Jpi/m for 0<=J<=2m-1. % % INPUT: m; y(0),y(1),...y(2m-1). % % OUTPUT: complex numbers c(0),...,c(2m-1); real numbers % a(0),...,a(m); b(1),...,b(m-1). syms('OK', 'FLAG', 'M', 'N', 'JJ', 'J', 'Y', 'A'); syms('NAME', 'INP', 'F', 'Z', 'OUP', 'TW', 'N2', 'C'); syms('NG', 'NU1', 'YY', 'WW', 'X', 'W', 'K', 'L', 'M1'); syms('NP', 'T1', 'T3','x','s'); TRUE = 1; FALSE = 0; fprintf(1,'This is the Fast Fourier Transform.\n\n'); fprintf(1,'The file IBR.m is used by this program.\n'); fprintf(1,'The user must make provisions if the\n'); fprintf(1,'interval is not (-pi,pi).\n'); OK = FALSE; while OK == FALSE fprintf(1,'Choice of input method:\n'); fprintf(1,'1. Input entry by entry from keyboard\n'); fprintf(1,'2. Input data from a text file\n'); fprintf(1,'3. Generate data using a function F\n'); fprintf(1,'Choose 1, 2, or 3 please\n'); FLAG = input(' '); if FLAG == 1 | FLAG == 2 | FLAG == 3 OK = TRUE; end; end; if FLAG == 1 OK = FALSE; while OK == FALSE fprintf(1,'Input m\n'); M = input(' '); if M > 0 OK = TRUE; N = 2M; Y = zeros(1,N); for JJ = 1 : N J = JJ-1; fprintf(1,'Input y(%d).\n', J); Y(JJ) = input(' '); end; else fprintf(1,'Number must be a positive integer.\n'); end; end; end; if FLAG == 2 fprintf(1,'Has a text file been created with the '); fprintf(1,'entries y(0),...,y(2m-1)\n');

fprintf(1,'separated by a blank?\n'); fprintf(1,'Enter Y or N\n'); A = input(' ','s'); if A == 'Y' | A == 'y' fprintf(1,'Input the file name in the form - '); fprintf(1,'drive:\name.ext\n'); fprintf(1,'for example: A:\DATA.DTA\n'); NAME = input(' ','s'); INP = fopen(NAME,'rt'); OK = FALSE; while OK == FALSE fprintf(1,'Input number m.\n'); M = input(' '); N = 2M; Y = zeros(1,N); if N > 0 for JJ = 1 : N Y(JJ) = fscanf(INP, '%f',1); end; fclose(INP); OK = TRUE; else fprintf(1,'Number must be a positive integer.\n'); end; end; else fprintf(1,'The program will end so the input file can '); fprintf(1,'be created.\n'); OK = FALSE; end; end; if FLAG == 3 fprintf(1,'Input the function F(x) in terms of x\n'); fprintf(1,'for example: cos(x)\n'); s = input(' ','s'); F = inline(s,'x'); OK = FALSE; while OK == FALSE fprintf(1,'Input the number m.\n'); M = input(' '); N = 2M; Y = zeros(1,N); if N > 0 for JJ = 1 : N Z = -pi+(JJ-1)*pi/M; Y(JJ) = F(Z); end; OK = TRUE; else fprintf(1,'Number must be a postive integer.\n'); end; end; end; if OK == TRUE fprintf(1,'Choice of output method:\n'); fprintf(1,'1. Output to screen\n');

% STEP 9

if NP ~= 0 X = T1; T1 = XW(NP); end; C(K+N2+1) = C(K+1)-T1; C(K+1) = C(K+1)+T1; % STEP 10 K = K+1; end; % STEP 11 K = K+N2; end; % STEP 12 K = 0; N2 = floor(N2/2); NU1 = NU1-1; end; % STEP 13 while K < N- % STEP 14 JJ = IBR(K,NG); % STEP 15 if JJ > K T3 = C(K+1); C(K+1) = C(JJ+1); C(JJ+1) = T3; end; % STEP 16 K = K+1; end; % STEPS 17 and 18 fprintf(OUP, 'Coefficients c(0), ... , c(2m-1)\n\n'); for JJ = 1 : N YY = -(JJ-1)pisqrt(-1); X = exp(YY); YY = XC(JJ); C(JJ) = YY/(0.5*N); K = JJ-1; fprintf(OUP, '%3d %.8f %.8f \n', K, real(C(JJ)),imag(C(JJ))); end; fprintf(OUP, '\nCoefficients a(0), ..., a(m)\n\n'); for JJ = 1 : M+ fprintf(OUP, '%.8f\n', real(C(JJ))); end; fprintf(OUP, '\nCoefficients b(1), ..., b(m-1)\n\n'); for JJ = 2 : M fprintf(OUP, '%.8f\n', imag(C(JJ))); end; if OUP ~= 1 fclose(OUP); fprintf(1,'Output file %s created successfully \n',NAME); end; end;
