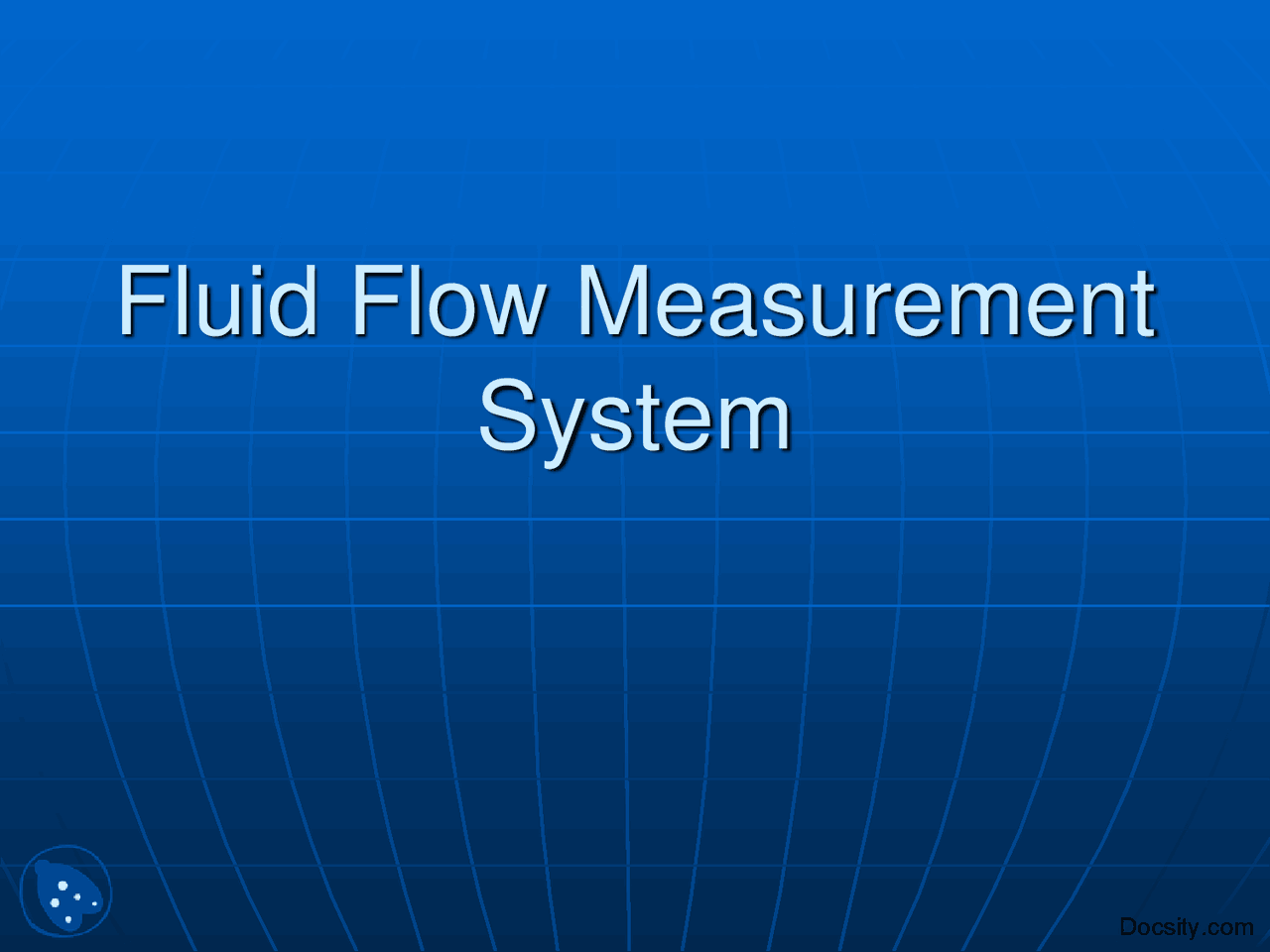

Fluid Flow Measurement
System
Docsity.com
pf3
pf4
pf5
pf8
pf9
pfa
pfd
pfe
pff

Partial preview of the text

Download Fluid Flow Measurement System-Microcontroller and Assembly Language-Project Presentation and more Slides Microcontrollers in PDF only on Docsity!

Fluid Flow Measurement

System

Main Task

 To design and build a flow measurement system using the 8051 microcontroller as a semester project.

 To count the number of pulses received after using the IR transmitter/receiver through the 8051 microcontroller.

 To make communication with the serial port possible.

Flow Meter

 A flow meter is an instrument used to measure linear, nonlinear, mass or volumetric flow rate of a liquid or a gas.

 The sensing mechanism is used to detect the rise and fall of the flow rates, and gives its output accordingly.

Constraints on the choice of

sensors

 Extremely high price of the pressure and the electromagnetic sensors

 The lack of availability of these sensors in the local market

 The relatively long delivery time of such sensing devices

Our Sensor Board

 Based on the principle of infrared transmission/ reception

 A small disk/wheel is used to model the obstruction to fluid flow.

 The number of pulses generated is directly proportional to the rate of fluid flow.

Problems Encountered

 The sensing mechanism mentioned above suffered from the problem of noise.

 The additive noise corrupted the counting operation, because a pulse is counted several times before the next transition.

Use of Schmitt Trigger

 In this case a noisy input is less likely to cause multiple triggering.

 We set the threshold values of our Schmitt trigger to be equal to + volts and +5 volts.

 The IC used for the Schmitt trigger is 74LS14.

Results:

 Achieved the objectives to a certain extent

 Designed a basic layout structure of a flow meter, and were able to count the number of pulses analogous to the fluid flow effectively

 Serial communication was successfully done

Recommendations for future

work

 The availability of better sensing mechanism can help improve the project.

 Viscous fluids other than water can be taken into account

 The mechanical design of the basic model can be made.
