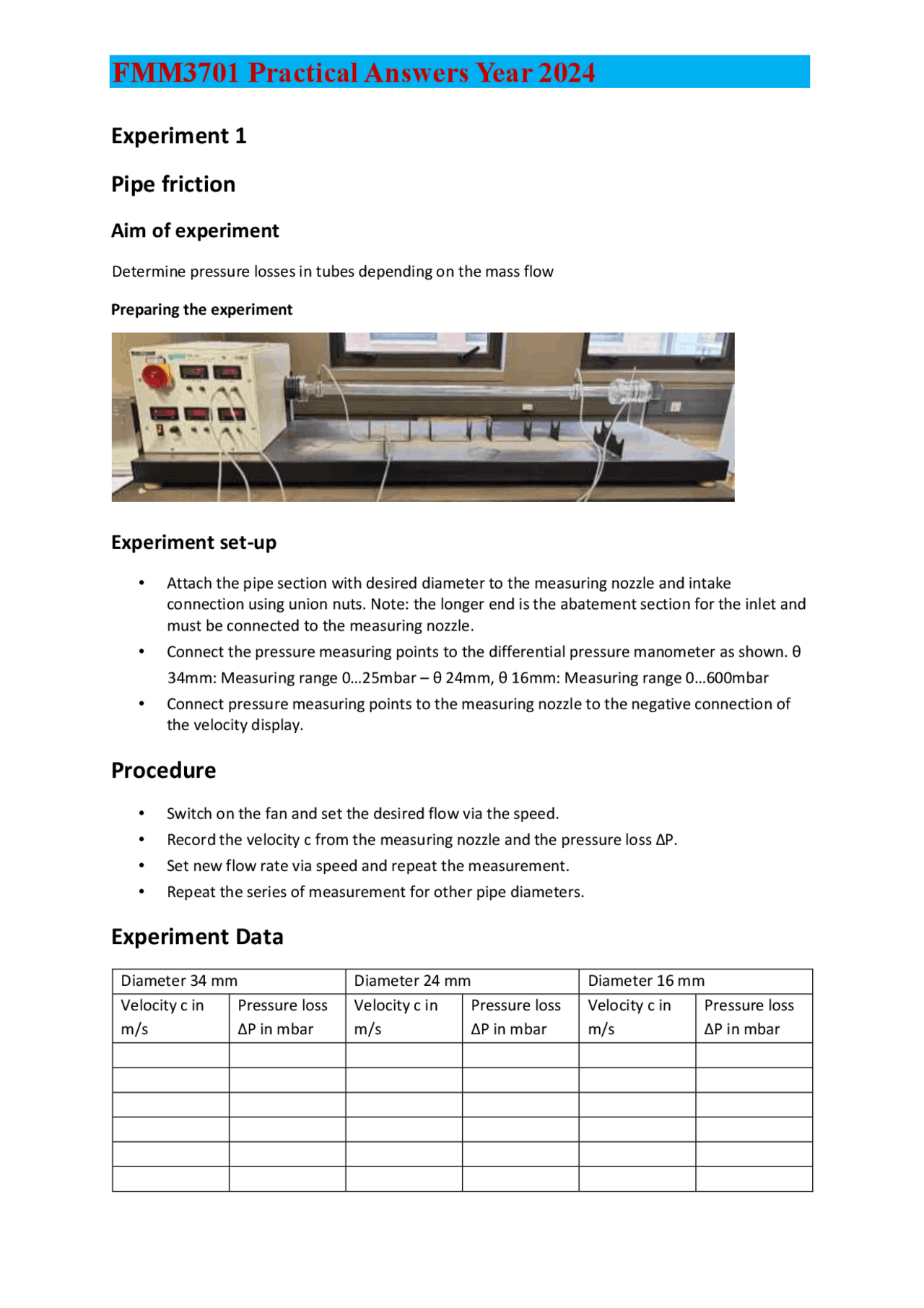

Experiment 1
Pipe friction
Aim of experiment
Determine pressure losses in tubes depending on the mass flow
Preparing the experiment
Experiment set-up
- Attach the pipe section with desired diameter to the measuring nozzle and intake connection using union nuts. Note: the longer end is the abatement section for the inlet and must be connected to the measuring nozzle.
- Connect the pressure measuring points to the differential pressure manometer as shown. θ 34mm: Measuring range 0…25mbar – θ 24mm, θ 16mm: Measuring range 0…600mbar
- Connect pressure measuring points to the measuring nozzle to the negative connection of the velocity display.
Procedure
- Switch on the fan and set the desired flow via the speed.
- Record the velocity c from the measuring nozzle and the pressure loss ∆P.
- Set new flow rate via speed and repeat the measurement.
- Repeat the series of measurement for other pipe diameters.
Experiment Data
Diameter 34 mm Diameter 24 mm Diameter 16 mm Velocity c in m/s
Pressure loss ∆P in mbar
Velocity c in m/s
Pressure loss ∆P in mbar
Velocity c in m/s
Pressure loss ∆P in mbar
Experiment Results
Diameter 34 mm Diameter 24 mm Diameter 16 mm Mass flow m in kg/s
Pressure loss ∆P in mbar
Mass flow m in kg/s
Pressure loss ∆P in mbar
Mass flow m in kg/s
Pressure loss ∆P in mbar
Calculations
- Calculate mass flow rate
- Draw graph of mass flow rate vs ∆P for all three diameters
Conclusion
- Evaluate the experiment and draw your conclusions
Additional information
The pipe friction factor can be determined using the following equation: ג
= (p 1 – p 2 ) *
Tm = average temperature
Data
Head Ps in mbar Velocity c in m/s
Results
Head Ps in mbar Velocity c in m/s Mass flow m in kg/s Hydraulic output Phyd in W
Calculations
- Mass flow
- Hydraulic Power output
- Plot graph of mass flow vs Head Ps
Conclusion
- Evaluate the experiment and draw your conclusions
Experiment 3
Flow Rate Measurement with Orifice
Aim of the Experiment
Creating a calibration curve for an orifice. The measuring nozzle is used as a reference.
Preparing the Experiment
Equip orifice holder with desired orifice disk
- Disassemble the orifice holder by loosening the four screws in the center.
- Place the orifice disk with the desired diameter in the center of the recess.
- Reassemble the holder. Ensure that the orifice disk is centered, and the sealing rings
are seated properly in the grooves.
Calculate
- Flow rate and Differential pressure in Pa
- Flow rate orifice and Pressure ratio
- Expansion factor
- Draw graph (Orifice calibration curve) for Measured value of orifice vs Volume flow Q
(measuring nozzle)
Conclusion
- Evaluate the experiment and draw your conclusions
