foundation and project design, Cheat Sheet of Soil Mechanics and Foundations

Mindanao State University (MSU)Soil Mechanics and Foundations

Foundation engineering is a branch of geotechnical engineering which applies soil mechanics, structural engineering, and project serviceability requirements for design and construction of foundations for onshore, offshore, and in-land structures. Foundation engineering can be realized as an “artistic” approach rather than a routine procedure because well-designed and constructed foundations continue to perform efficiently during the lifetime of a project.

Typology: Cheat Sheet

2022/2023

Uploaded on 03/11/2023

joby-jobs
joby-jobs 🇵🇭

4

(1)

4 documents

1 / 28

Toggle sidebar

This page cannot be seen from the preview

Don't miss anything!

bg1
pf3
pf4
pf5
pf8
pf9
pfa
pfd
pfe
pff
pf12
pf13
pf14
pf15
pf16
pf17
pf18
pf19
pf1a
pf1b
pf1c

Partial preview of the text

Download foundation and project design and more Cheat Sheet Soil Mechanics and Foundations in PDF only on Docsity!

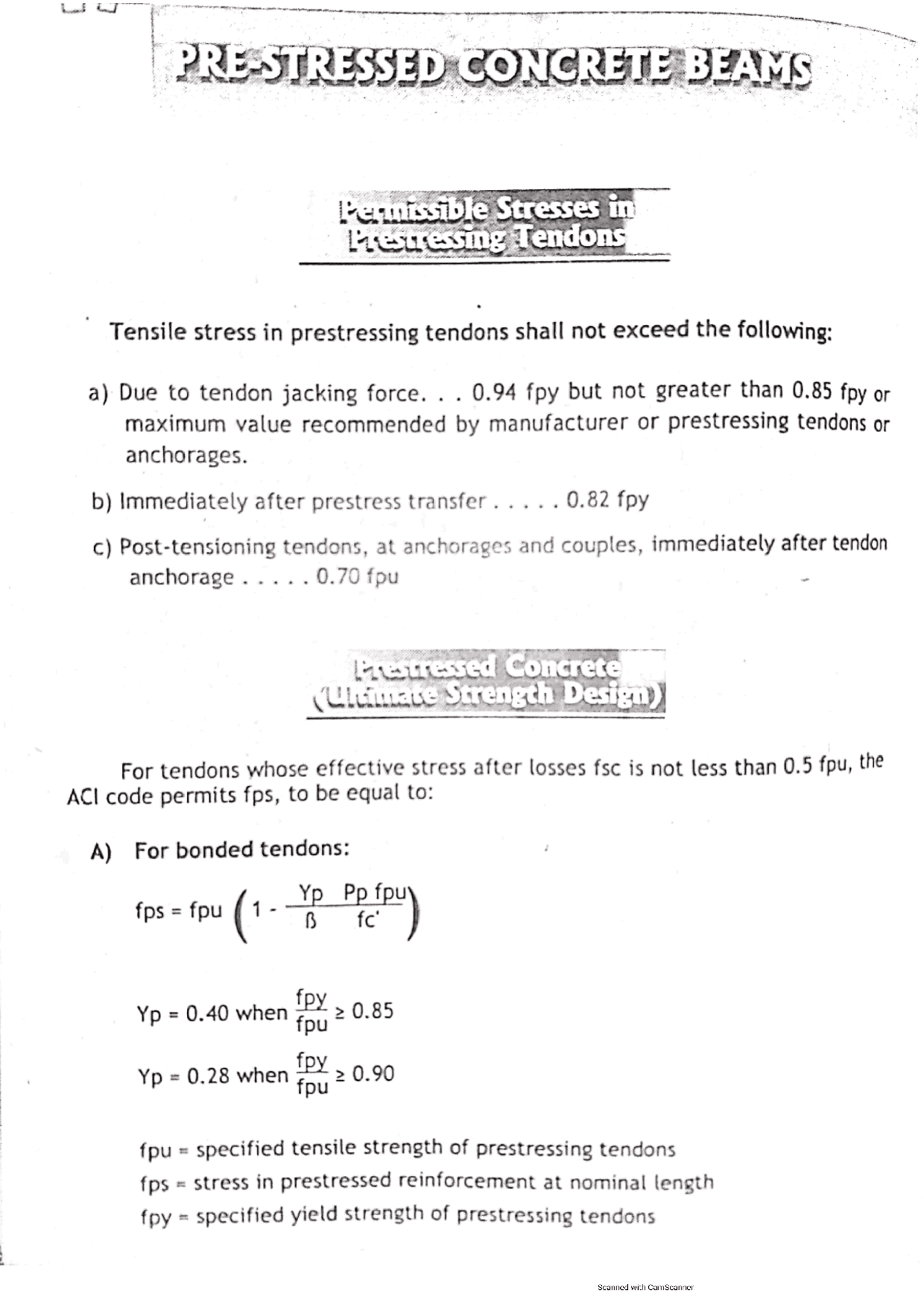

1 a PRESTRESSEDCONCRELEBEAMS Er } i Tensile stress in prestressing tendons shall not exceed the following: a) Due to tendon jacking force. . . 0.94 fpy but not greater than 0.85 fpy or maximum value recommended by manufacturer or prestressing tendons or anchorages. b) Immediately after prestress transfer... .. 0.82 fpy c) Post-tensioning tendons, at anchorages and couples, immediately after tendon anchorage ..... 0.70 fpu - aes (Ula For tendons whose effective stress after losses fsc is not less than 0.5 fpu, the ACI code permits fps, to be equal to: A) For bonded tendons: fps = fpu (: Ee") Yp = 0.40 when {py 2 0.85 Yp = 0.28 when at > 0.90 {pu = specified tensile strength of prestressing tendons fps = stress in prestressed reinforcement at nominal length fpy = specified yield strength of prestressing tendons
