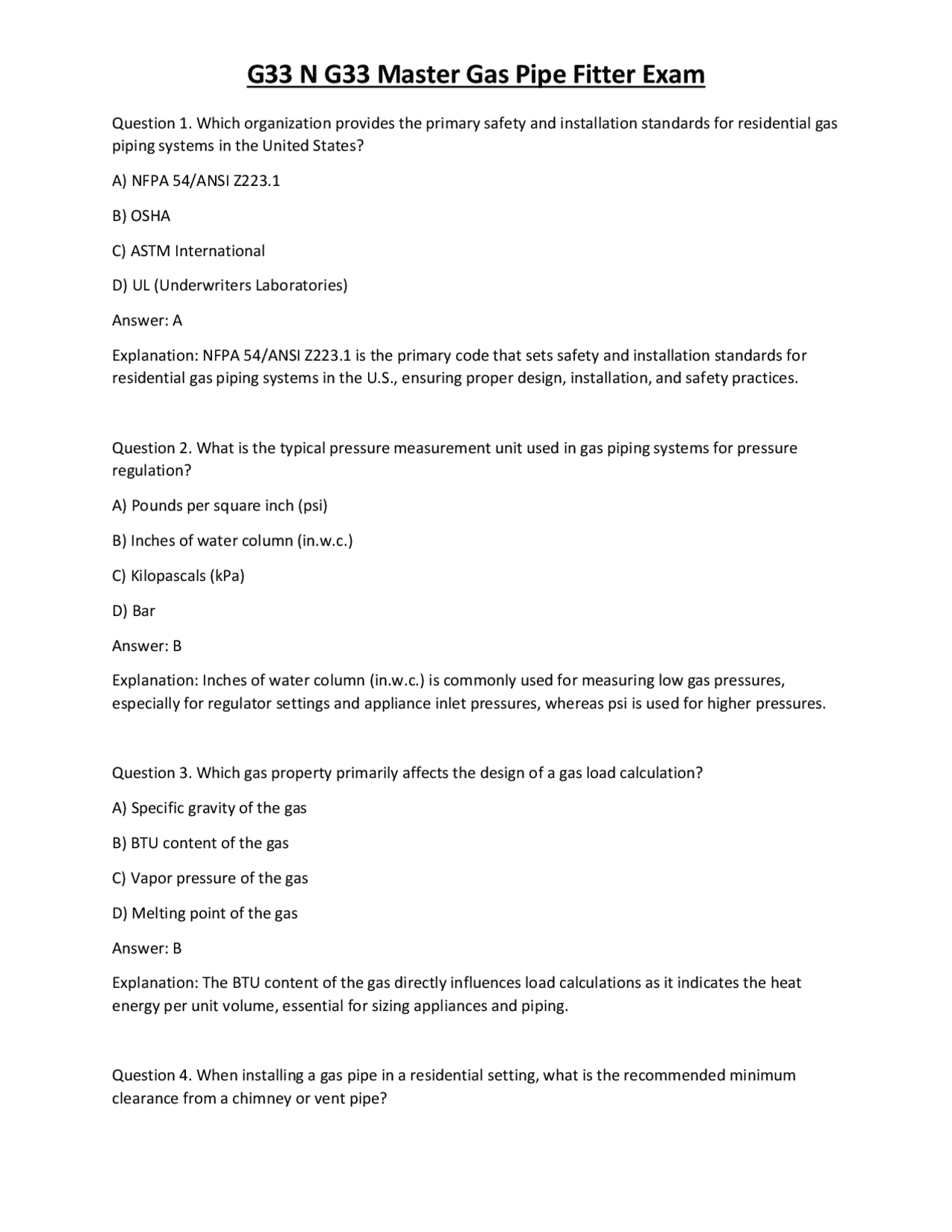

Question 1. Which organization provides the primary safety and installation standards for residential gas piping systems in the United States? A) NFPA 54/ANSI Z223. B) OSHA C) ASTM International D) UL (Underwriters Laboratories) Answer: A Explanation: NFPA 54/ANSI Z223.1 is the primary code that sets safety and installation standards for residential gas piping systems in the U.S., ensuring proper design, installation, and safety practices. Question 2. What is the typical pressure measurement unit used in gas piping systems for pressure regulation? A) Pounds per square inch (psi) B) Inches of water column (in.w.c.) C) Kilopascals (kPa) D) Bar Answer: B Explanation: Inches of water column (in.w.c.) is commonly used for measuring low gas pressures, especially for regulator settings and appliance inlet pressures, whereas psi is used for higher pressures. Question 3. Which gas property primarily affects the design of a gas load calculation? A) Specific gravity of the gas B) BTU content of the gas C) Vapor pressure of the gas D) Melting point of the gas Answer: B Explanation: The BTU content of the gas directly influences load calculations as it indicates the heat energy per unit volume, essential for sizing appliances and piping. Question 4. When installing a gas pipe in a residential setting, what is the recommended minimum clearance from a chimney or vent pipe?
A) 1 inch B) 6 inches C) 12 inches D) 24 inches Answer: C Explanation: A minimum clearance of 12 inches is typically recommended to prevent heat transfer and ensure safety from heat or combustion products. Question 5. Which material is generally approved for underground gas piping in residential systems? A) Galvanized steel pipe B) Copper tubing (Type K) C) Black iron pipe D) Corrugated stainless steel tubing (CSST) Answer: C Explanation: Black iron pipe is traditionally approved for underground gas piping due to its strength and durability, although local codes may restrict certain materials. Question 6. Which tool is used to remove burrs from the inside of a pipe after cutting? A) Pipe reamer B) Pipe wrench C) Flaring tool D) Thread cutting die Answer: A Explanation: A pipe reamer is used to smooth and remove burrs from inside the pipe after cutting, preventing damage to fittings and ensuring proper sealing. Question 7. What is the primary purpose of a drip leg (sediment trap) in a gas piping system? A) To regulate pressure B) To catch debris and moisture C) To serve as a shut-off valve
Explanation: Proper soldering with suitable filler metals (e.g., silver-bearing flux and appropriate solder) is critical for creating leak-proof joints in copper gas piping systems. Question 11. Which safety equipment is essential when performing gas pipe threading or soldering? A) Hearing protection only B) Eye protection and gloves C) Respirator mask only D) Steel-toed boots only Answer: B Explanation: Eye protection and gloves are essential to protect against hot metal shavings, solder splashes, and debris during threading or soldering tasks. Question 12. Which regulation specifies the maximum allowable leak rate for a new gas line during testing? A) NFPA 54/ANSI Z223. B) OSHA standards C) ASME B31. D) Local building codes only Answer: A Explanation: NFPA 54/ANSI Z223.1 provides guidelines on acceptable leak rates during pressure testing of gas piping systems, typically requiring no detectable leaks. Question 13. What is the purpose of a pressure regulator in a gas system? A) To increase gas pressure for appliances B) To reduce and maintain a safe inlet pressure for appliances C) To measure gas flow rate D) To shut off gas supply during leaks Answer: B Explanation: The pressure regulator reduces high incoming gas pressure to a safe, consistent pressure suitable for appliances, ensuring safe operation.
Question 14. Which gas property is responsible for its flammability limits? A) Specific gravity B) Vapor pressure C) Combustion characteristics D) BTU content Answer: C Explanation: The combustion characteristics of a gas, including its flammability limits, depend on its chemical properties that define the concentration range in which it can ignite. Question 15. Which type of pipe is most suitable for high-pressure outdoor gas service applications? A) Galvanized pipe B) Copper tubing (Type L) C) Black iron pipe D) CSST Answer: C Explanation: Black iron pipe is well-suited for high-pressure outdoor gas service due to its strength and durability in harsh environments. Question 16. What is the main reason for using PTFE tape on threaded gas pipe fittings? A) To lubricate the threads for easier assembly B) To prevent corrosion C) To ensure a gas-tight seal by sealing the threads D) To mark the threads for identification Answer: C Explanation: PTFE tape (Teflon tape) is applied to threads to seal microscopic gaps and prevent gas leaks, ensuring a tight, leak-free connection. Question 17. Which type of joint is most appropriate for making a permanent, leak-proof connection in copper tubing?
D) Up to 5% pressure loss over an hour Answer: A Explanation: The acceptable leak rate during testing is no detectable leak, meaning the system must hold pressure without any visible or audible leaks for safety. Question 21. Which safety device prevents gas flow if a leak is detected in the system? A) Thermocouple B) Gas shut-off valve with leak detection capability C) Pressure regulator D) Flame safeguard device Answer: B Explanation: Gas shut-off valves with leak detection capabilities automatically shut off flow if a leak is detected, preventing potential hazards. Question 22. Which material is most resistant to corrosion when used in outdoor gas piping? A) Galvanized steel B) Copper Type K C) Black iron D) CSST Answer: D Explanation: Corrugated Stainless Steel Tubing (CSST) is highly resistant to corrosion and flexible for outdoor applications, but proper installation is critical. Question 23. What is the purpose of bonding and grounding in a gas system? A) To prevent electrical shocks and static buildup B) To improve gas flow efficiency C) To prevent pipe corrosion D) To increase system pressure Answer: A
Explanation: Bonding and grounding help prevent electrical shocks and static buildup, especially important in metal gas piping and appliances. Question 24. Which device is used to detect gas leaks electronically? A) Manometer B) Combustion analyzer C) Electronic leak detector D) Pressure gauge Answer: C Explanation: An electronic leak detector is used to locate gas leaks precisely by sensing the presence of combustible gases. Question 25. When installing a new gas line, which of the following is an essential step before commissioning? A) Painting the pipe B) Conducting a pressure test to check for leaks C) Filling the pipe with water D) Removing all fittings temporarily Answer: B Explanation: Conducting a pressure test ensures the integrity of the system and confirms there are no leaks before placing the system into service. Question 26. Which of the following best describes the primary function of an appliance shut-off valve? A) To regulate pressure B) To shut off gas supply to the appliance for maintenance or emergencies C) To measure gas flow D) To connect different piping materials Answer: B Explanation: An appliance shut-off valve allows for quick isolation of the gas supply to a specific appliance for maintenance or in case of leaks.
B) Heavy weight and low vapor pressure C) High specific gravity D) Low flammability limits Answer: A Explanation: Natural gas has a high BTU content and burns cleanly, making it efficient and suitable for residential heating systems. Question 31. Which type of pipe fitting is used to connect two pipes end-to-end with a threaded connection? A) Coupling B) Union C) Elbow D) Flare Answer: A Explanation: A coupling is used to connect two threaded pipes end-to-end, providing a secure and leak- proof joint. Question 32. Which test method involves pressurizing the gas piping system with low-pressure air to check for leaks? A) Hydrostatic test B) Pneumatic test C) Vacuum test D) Dye test Answer: B Explanation: The pneumatic test involves pressurizing the system with low-pressure air or inert gas to detect leaks before gas is introduced. Question 33. Which of the following is a common cause of gas leaks at threaded joints? A) Proper application of PTFE tape B) Over-tightening or under-tightening threads
C) Using the correct pipe dope D) Using compatible fittings Answer: B Explanation: Over-tightening can damage threads, and under-tightening can cause leaks; proper torque and application of sealants are essential. Question 34. Which material is most suited for flexible gas connections? A) Copper tubing B) CSST C) Black iron pipe D) Galvanized steel Answer: B Explanation: Corrugated Stainless Steel Tubing (CSST) is designed for flexible, quick, and secure gas connections in various applications. Question 35. What is the typical maximum operating pressure for residential low-pressure gas piping systems? A) 5 psi B) 2 psi C) 0.5 psi D) 10 psi Answer: C Explanation: Residential low-pressure gas systems typically operate at pressures up to 0.5 psi, ensuring safety and proper appliance operation. Question 36. When performing pressure testing, what is the main reason for using soap solution or leak detectors? A) To measure pressure B) To visually identify leaks C) To clean the pipe surface
Explanation: Copper tubing, especially Type L, is suitable for high-temperature and corrosive environments due to its resistance to corrosion and thermal stability. Question 40. In a gas piping system, what is the purpose of a pressure relief valve? A) To prevent overpressure and protect the system from damage B) To regulate normal operating pressure C) To shut off the gas in case of leak detection D) To serve as a shut-off valve Answer: A Explanation: A pressure relief valve is designed to open and release excess pressure, preventing system damage or failure from overpressure conditions. Question 41. When connecting a gas appliance to a piping system, which fitting is most appropriate for a permanent connection? A) Compression fitting B) Flared fitting C) Threaded union D) Soldered or brazed joint Answer: D Explanation: Soldered or brazed joints provide a permanent, leak-proof connection suitable for gas appliances in residential systems. Question 42. Which factor is most critical when selecting pipe size for a given gas load? A) Pipe material B) Gas temperature C) BTU demand and length of run D) Color of the pipe Answer: C Explanation: The BTU demand and length of the pipe run directly influence the required pipe size to ensure adequate flow and pressure at the appliance.
Question 43. What is the main purpose of a venting system for gas appliances? A) To increase appliance efficiency B) To remove combustion gases and prevent buildup of dangerous gases C) To supply fresh air to the appliance D) To regulate pressure within the appliance Answer: B Explanation: Proper venting removes combustion gases like carbon monoxide, ensuring safe operation and indoor air quality. Question 44. Which of the following is a common method for testing the tightness of a new gas line? A) Hydrostatic water test B) Pressure decay test using low-pressure air C) Visual inspection only D) Magnet testing Answer: B Explanation: The pressure decay test with low-pressure air is commonly used to verify the integrity of a gas line by checking for pressure drops indicating leaks. Question 45. Why is it important to support gas piping at regular intervals? A) To prevent sagging and movement that may cause leaks or damage B) To improve gas flow velocity C) To make future modifications easier D) To reduce pipe weight Answer: A Explanation: Supporting gas piping properly prevents sagging or movement, which can lead to joint stress, leaks, or damage. Question 46. What is the primary reason for using a union fitting in a gas piping system? A) To allow for easy disconnection and maintenance
D) The gas is flowing properly Answer: B Explanation: A significant pressure drop indicates a leak or joint failure that needs to be repaired before system approval. Question 50. Which type of pipe connection is most appropriate for underground gas piping in accordance with typical codes? A) Threaded joints with pipe dope B) Welded joints C) Mechanical compression fittings D) Flared fittings Answer: B Explanation: Welded joints provide a permanent, leak-proof connection suitable for underground piping, although local codes may specify approved methods. Question 51. Which material is most suitable for flexible gas connections in tight spaces? A) Copper tubing B) CSST (Corrugated Stainless Steel Tubing) C) Black iron pipe D) Galvanized steel pipe Answer: B Explanation: CSST provides flexible, quick, and secure connections in tight spaces, making it ideal for fast installations and adjustments in gas systems. Question 52. When installing a gas regulator, what is an essential consideration? A) Positioning it downstream of the appliance B) Ensuring it is installed in a well-ventilated area and accessible for adjustments C) Mounting it directly on the appliance D) Connecting it with PVC fittings Answer: B
Explanation: A gas regulator should be installed in a well-ventilated, accessible location to allow for proper operation, maintenance, and adjustments. Question 53. What is the primary function of a venting system in gas appliances? A) To humidify the indoor air B) To exhaust combustion gases safely outside C) To increase appliance efficiency D) To supply combustion air to the appliance Answer: B Explanation: Vents safely remove combustion gases, such as carbon monoxide, preventing indoor buildup and ensuring safe operation. Question 54. Which type of pipe fitting is used to connect two sections of pipe with a threaded connection that can be easily disconnected? A) Union B) Flare fitting C) Elbow D) Coupling Answer: A Explanation: A union allows for easy disconnection and reconnection of piping sections, facilitating maintenance and repairs. Question 55. What is the typical maximum allowable pressure in a residential low-pressure gas system? A) 0.5 psi B) 5 psi C) 10 psi D) 25 psi Answer: A Explanation: Residential low-pressure systems operate at a maximum of roughly 0.5 psi, ensuring safety and proper appliance function.
A) Its molecular weight B) Its specific gravity less than 1 C) Its density at room temperature D) Its vapor pressure Answer: B Explanation: Natural gas has a specific gravity less than 1, making it lighter than air, which influences its dispersion and venting requirements. Question 60. Why is proper pipe support important in gas piping installation? A) To prevent sagging, movement, and joint stress B) To improve gas flow velocity C) To facilitate future modifications D) To reduce pipe weight Answer: A Explanation: Proper support prevents sagging and movement that could cause joint failure or leaks, ensuring system integrity. Question 61. Which material is most suitable for underground gas piping in residential systems? A) Galvanized pipe B) Black iron pipe C) Copper tubing (Type K) D) CSST Answer: B Explanation: Black iron pipe is commonly used for underground gas piping due to its strength and durability, provided local codes permit. Question 62. What is the purpose of a pressure relief valve in a gas system? A) To prevent overpressure and protect the system from damage B) To increase system pressure when needed C) To serve as a shut-off device during emergencies
D) To regulate the flow of gas at the appliance inlet Answer: A Explanation: A pressure relief valve releases excess pressure, preventing damage or failure from overpressure conditions. Question 63. When installing a gas pipe in a confined space, what safety consideration is most critical? A) Ensuring proper ventilation and avoiding accumulation of gas B) Using only galvanized pipe C) Increasing pressure to test the pipe D) Sealing all joints tightly to prevent leaks Answer: A Explanation: Proper ventilation is essential to prevent gas buildup, which can lead to fire or asphyxiation hazards in confined spaces. Question 64. Which fitting is used to connect a gas line to an appliance's inlet valve? A) Flare fitting B) Union C) Coupling D) Adapter fitting Answer: D Explanation: An adapter fitting connects the piping to the appliance's inlet valve, ensuring a secure and proper connection. Question 65. Which statement best describes the purpose of a gas system bonding and grounding? A) To prevent electrical shocks and static buildup B) To improve gas flow efficiency C) To prevent pipe corrosion D) To increase system pressure Answer: A
