Gas Pipe Fitter Ultimate Exam

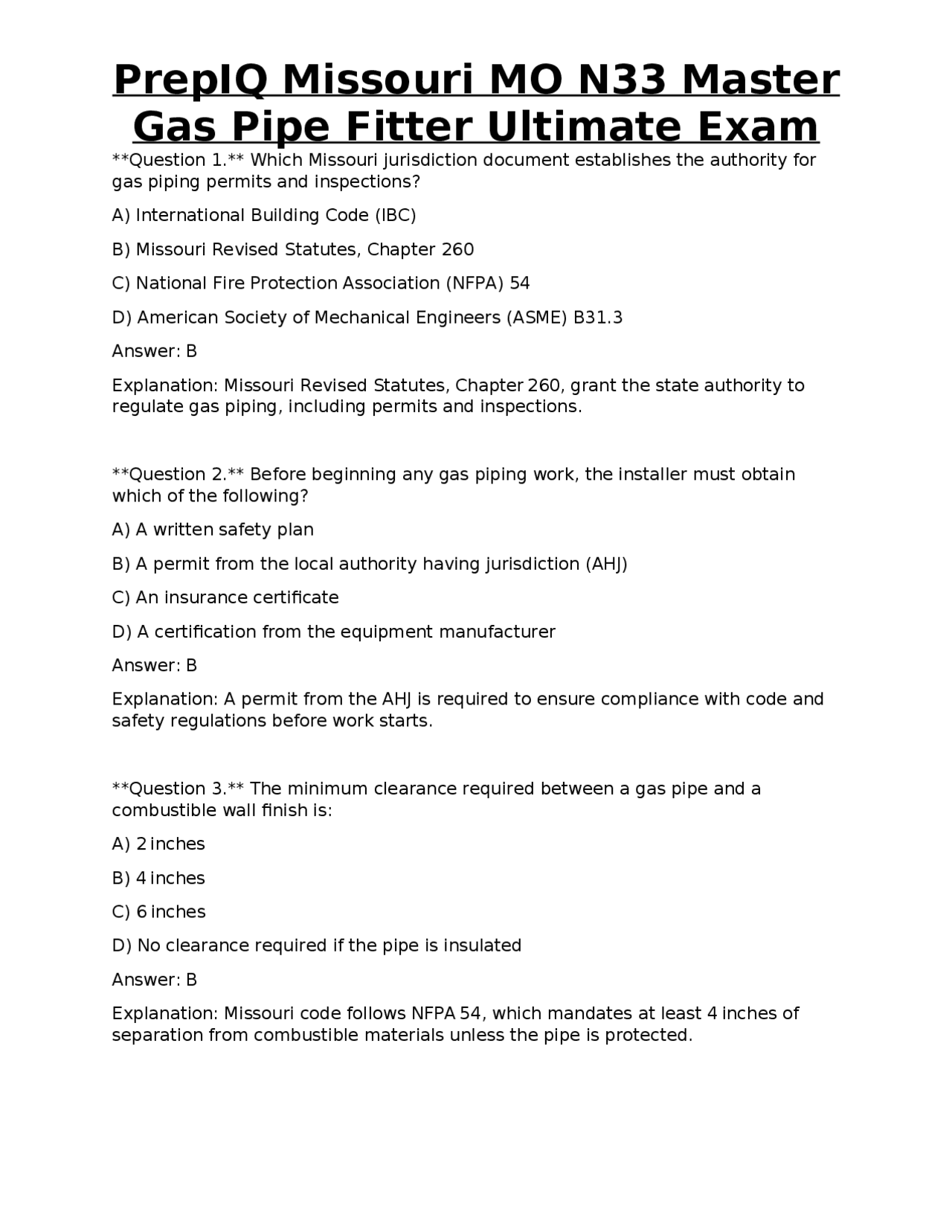

Question 1. Which Missouri jurisdiction document establishes the authority for gas piping permits and inspections? A) International Building Code (IBC) B) Missouri Revised Statutes, Chapter 260 C) National Fire Protection Association (NFPA) 54 D) American Society of Mechanical Engineers (ASME) B31. Answer: B Explanation: Missouri Revised Statutes, Chapter 260, grant the state authority to regulate gas piping, including permits and inspections. Question 2. Before beginning any gas piping work, the installer must obtain which of the following? A) A written safety plan B) A permit from the local authority having jurisdiction (AHJ) C) An insurance certificate D) A certification from the equipment manufacturer Answer: B Explanation: A permit from the AHJ is required to ensure compliance with code and safety regulations before work starts. Question 3. The minimum clearance required between a gas pipe and a combustible wall finish is: A) 2 inches B) 4 inches C) 6 inches D) No clearance required if the pipe is insulated Answer: B Explanation: Missouri code follows NFPA 54, which mandates at least 4 inches of separation from combustible materials unless the pipe is protected.
Gas Pipe Fitter Ultimate Exam
Question 4. Which of the following is the primary purpose of an emergency shut-off valve for a gas piping system? A) To regulate pressure during normal operation B) To isolate the entire system quickly in case of a leak or fire C) To allow for pressure testing D) To reduce noise from gas flow Answer: B Explanation: Emergency shut-off valves provide rapid isolation of the gas supply to protect life and property during emergencies. Question 5. When performing a pressure test on a newly installed gas pipe, the test pressure must be at least: A) 1.5 times the design pressure, not less than 100 psi B) 1.0 times the design pressure C) 1.25 times the design pressure, not less than 75 psi D) 2.0 times the design pressure, not less than 150 psi Answer: C Explanation: NFPA 54 requires a hydrostatic or pneumatic test at 1.25 × design pressure, with a minimum of 75 psi for most systems. Question 6. Which leak detection method is acceptable for a pressure-tested gas piping system? A) Visual inspection only B) Soap-solution bubble test C) Infrared thermography D) Acoustic emission monitoring Answer: B Explanation: The soap-solution bubble test is a simple, code-approved method for detecting leaks after pressure testing.
Gas Pipe Fitter Ultimate Exam
Question 10. For a gas-fired furnace, the minimum distance from the appliance to the nearest combustible material must be: A) 3 inches B) 6 inches C) 9 inches D) 12 inches Answer: C Explanation: A 9-inch clearance is required to protect surrounding combustible materials from the furnace’s heat. Question 11. Which of the following is the correct method for connecting a flexible gas connector to a gas appliance? A) Threaded connection with pipe joint compound only B) Use of a union with a metal-to-metal clamp, no sealant C) Threaded connection with approved pipe thread sealant or PTFE tape, and a shut-off valve at the appliance D) Welding the flexible connector directly to the appliance inlet Answer: C Explanation: Flexible connectors must be threaded, sealed with approved material, and include a shut-off valve at the appliance. Question 12. When installing a gas-fired commercial kitchen range, the clearance to the ceiling must be at least: A) 12 inches B) 18 inches C) 24 inches D) 30 inches Answer: B Explanation: Commercial ranges require a minimum 18-inch clearance to the ceiling to allow for proper ventilation and heat dissipation.
Gas Pipe Fitter Ultimate Exam
Question 13. Which labeling indicates that a gas appliance meets national safety standards? A) CE mark B) CSA certification stamp C) FCC logo D) ISO 9001 badge Answer: B Explanation: CSA (or UL) certification marks confirm compliance with North American safety standards for gas appliances. Question 14. To determine pipe diameter using the gas-demand method, which factor is NOT considered? A) Total BTU/hr of connected appliances B. Length of pipe run including equivalent lengths of fittings C. Desired temperature rise of the gas in the pipe D. Allowable pressure drop (typically 0.5 in. wg) Answer: C Explanation: Pipe sizing calculations focus on BTU demand, pipe length, fittings, and pressure drop; temperature rise is not a design factor. Question 15. The equivalent length of a 90-degree threaded elbow is: A) 1 ft B) 2 ft C) 3 ft D) 4 ft Answer: B Explanation: Code tables assign an equivalent length of 2 ft for a standard 90 - degree threaded elbow in gas pipe sizing. Question 16. Which gas piping material is permitted for use in underground residential gas service lines in Missouri?
Gas Pipe Fitter Ultimate Exam
B) 8 ft above the finished floor C) 10 ft above the finished floor D) 12 ft above the finished floor Answer: B Explanation: NFPA 54 limits meter installation height to 8 ft to allow safe access for inspection and maintenance. Question 20. The purpose of a drip leg in a gas piping system is to: A) Reduce pressure drop across the line B) Capture condensate and debris before they reach downstream appliances C) Provide a location for pressure testing D) Increase flow velocity to prevent turbulence Answer: B Explanation: Drip legs collect moisture and particulates, protecting appliances from damage. Question 21. Which of the following is the correct minimum slope for a horizontal gas pipe that includes a drip leg? A) 0.5 % (1/8 in. per foot) B) 1 % (1/12 in. per foot) C) 2 % (1/6 in. per foot) D) No slope required if a drip leg is present Answer: A Explanation: A 0.5 % slope ensures condensate drains toward the drip leg without causing flow issues. Question 22. For indoor combustion air, a space is considered “unconfined” if the volume of the space is at least: A) 25 % of the total building volume B) 50 % of the total building volume
Gas Pipe Fitter Ultimate Exam
C) Equal to the appliance’s required air volume D) Twice the appliance’s required air volume Answer: C Explanation: An unconfined space must have a volume equal to or greater than the total required combustion air for the appliance. Question 23. The required outdoor combustion-air opening area for a single-family home with a 60,000 BTU/hr furnace is: A) 1 sq in. per 1,000 BTU/hr B) 2 sq in. per 1,000 BTU/hr C) 3 sq in. per 1,000 BTU/hr D) 4 sq in. per 1,000 BTU/hr Answer: B Explanation: NFPA 54 specifies 2 sq in. of opening per 1,000 BTU/hr for outdoor combustion air for residential furnaces. Question 24. Which of the following is NOT an acceptable method for supplying outdoor combustion air to a dwelling? A) Openable window with a minimum opening size B) Directly vented louvered wall opening C) Ducted air from a conditioned space without interlock D) Mechanical blower system with interlock to the gas valve Answer: C Explanation: Supplying combustion air from a conditioned space without an interlock can lead to insufficient air and is not permitted. Question 25. An engineered combustion-air system must include an interlock that: A) Closes the gas valve when the blower fails B) Opens a window automatically when the gas valve opens C) Activates a fire alarm when the gas valve opens
Gas Pipe Fitter Ultimate Exam
Answer: B Explanation: The vent must accommodate the total combined exhaust flow of both appliances. Question 29. Condensing high-efficiency furnaces produce condensate that must be: A) Discharged directly into a floor drain without a trap B) Collected and drained to a neutralizer kit before disposal C) Evaporated by a vent fan D) Re-used as potable water after filtration Answer: B Explanation: Condensate from condensing appliances is acidic and must pass through a neutralizer before entering the drain system. Question 30. Which of the following statements about hydrogen gas piping is correct? A) Hydrogen can be transported in the same steel pipe as natural gas without modification B) All fittings must be listed for hydrogen service due to its low molecular size and embrittlement risk C) Hydrogen systems do not require pressure testing because hydrogen is non-flammable D) Hydrogen piping can be installed without a leak-detection system if the pipe is stainless steel Answer: B Explanation: Hydrogen’s small molecule size causes embrittlement; all components must be specifically listed for hydrogen service. Question 31. In a propane (LPG) system, the regulator must reduce the tank pressure from approximately 250 psi to a downstream pressure of: A) 5 psi B) 10 psi
Gas Pipe Fitter Ultimate Exam
C) 11 in. wg (≈ 7.5 psi) for residential appliances D) 14.7 psi (atmospheric) Answer: C Explanation: Residential propane systems typically use a regulator that reduces pressure to about 11 in. wg (≈ 7.5 psi) for appliance operation. Question 32. The minimum required separation between a propane storage tank and a property line is: A) 5 ft B) 10 ft C) 15 ft D) 25 ft Answer: D Explanation: NFPA 58 requires a minimum 25 ft separation from a property line for above-ground propane tanks of 500 gal or larger. Question 33. High-pressure gas systems (above 5 psi) must employ which type of fittings? A) Threaded brass fittings B) Pressure-rated steel or stainless steel fittings with a pressure rating above the system’s maximum C) Plastic compression fittings D) Any fittings listed for low-pressure service Answer: B Explanation: High-pressure systems require fittings specifically rated for the operating pressure to maintain safety and integrity. Question 34. The maximum allowable pressure drop across a residential gas distribution system is: A) 0.2 in. wg B) 0.5 in. wg
Gas Pipe Fitter Ultimate Exam
D) Only at pipe ends; no intermediate supports required Answer: B Explanation: Supports must be spaced not more than 6 ft apart and must not deform the pipe, preserving its structural integrity. Question 38. Which of the following is the correct torque range for a standard ½-inch NPT gas pipe fitting? A) 5–10 lb-ft B) 8–12 lb-ft C) 12–15 lb-ft D) 15–20 lb-ft Answer: C Explanation: The typical torque for a ½-inch NPT gas fitting is 12– 15 lb-ft to achieve a leak-tight seal without over-tightening. Question 39. For a gas-fired appliance that requires a vent termination on a sloped roof, the vent termination must be located at least how many feet above the roof surface? A) 2 ft B) 3 ft C) 4 ft D) 6 ft Answer: D Explanation: A minimum 6-ft vertical clearance above the roof surface prevents rain and snow from entering the vent. Question 40. Which of the following is true regarding the use of flexible gas connectors inside a building? A) They may be installed behind walls without protection B) They must be protected from physical damage and not be concealed in inaccessible spaces
Gas Pipe Fitter Ultimate Exam
C) They can be run parallel to electrical wiring without separation D) They are permitted for permanent connections in high-temperature zones Answer: B Explanation: Flexible connectors must be protected from damage and cannot be concealed where inspection or repair would be impossible. Question 41. When installing a gas-fired boiler, the minimum distance between the boiler and any opening into a living space is: A) 12 inches B) 18 inches C) 24 inches D) 36 inches Answer: C Explanation: Boiler installations require at least 24 inches clearance from openings into occupied spaces to limit heat transfer. Question 42. The purpose of a gas-meter vent is to: A) Provide fresh air for combustion B) Allow excess gas to escape in case of over-pressure C) Remove heat generated by the meter D) Prevent moisture accumulation inside the meter housing Answer: B Explanation: Meter vents protect the meter from over-pressure by allowing excess gas to vent safely. Question 43. Which of the following statements about CSST installation in residential interiors is correct? A) CSST may be installed without any protection in a finished wall cavity B) CSST must be protected with a metal or plastic conduit when run through masonry or concrete C) CSST can be installed directly on the exterior of a building without support
Gas Pipe Fitter Ultimate Exam
Answer: A Explanation: Condensing furnace vents must have a rain cap to prevent water intrusion, as they often operate at lower temperatures. Question 47. The maximum allowable length of a gas-pipe run without a pressure regulator is: A) 100 ft B) 150 ft C) 200 ft D) 300 ft Answer: C Explanation: NFPA 54 limits the length of a gas-pipe run without a regulator to 200 ft to maintain pressure control. Question 48. When installing a gas-fired dryer in a manufactured home, the clearance to the nearest combustible material must be: A) 6 inches B) 12 inches C) 18 inches D) 24 inches Answer: B Explanation: Manufactured homes follow a 12-inch clearance requirement for gas-fired dryers to protect combustible surfaces. Question 49. Which of the following is the correct procedure for sealing a gas pipe thread before assembly? A) Apply petroleum jelly to the threads B) Use PTFE tape wrapped clockwise, covering the thread peaks only C) Apply pipe joint compound only to the male threads D) Use a combination of PTFE tape and pipe joint compound on both male and female threads
Gas Pipe Fitter Ultimate Exam
Answer: D Explanation: The most reliable seal is achieved by applying both PTFE tape and a compatible joint compound to the male threads, then assembling. Question 50. In a residential gas system, the minimum pipe size for a branch serving a single 40,000 BTU/hr furnace, assuming 100 ft total equivalent length, is: A) ½ inch B) ¾ inch C) 1 inch D) 1 ¼ inch Answer: B Explanation: Using the gas-demand method and a 0.5 in. wg pressure drop, a ¾-inch pipe is the smallest size that meets the flow requirement for 40,000 BTU/hr over 100 ft. Question 51. Which of the following is NOT a permissible method for detecting a gas leak in a newly installed pipe system? A) Electronic gas detector calibrated to 0.5 % LEL B) Soap-solution bubble test at test pressure C) Visual inspection of joints after pressurizing the system D) Using a flame to test for leaks Answer: D Explanation: Using an open flame is hazardous and not an approved leak-detection method. Question 52. The required spacing between a gas pipe and a water pipe in the same trench is: A) 2 inches B) 4 inches C) 6 inches D) No spacing required if both are metallic
Gas Pipe Fitter Ultimate Exam
C) Use a vent cap with a minimum 3-inch diameter opening and a 45-degree elbow away from the building D) No vent is required for wall-mounted meters Answer: C Explanation: Wall-mounted meters must have a vent cap with at least a 3-inch opening and a 45-degree elbow to direct exhaust away. Question 56. A gas-fired appliance that uses a “direct-vent” system requires which of the following? A) Separate intake and exhaust ducts that are sealed from the interior space B) A single vent that serves both intake and exhaust functions C) No venting because the combustion occurs outdoors D) A vent that terminates within the building’s attic space Answer: A Explanation: Direct-vent appliances have sealed, dedicated intake and exhaust ducts that draw and expel air directly to the outdoors. Question 57. In a high-rise building, the maximum allowable length of a vertical gas riser without a pressure regulator is: A) 80 ft B) 100 ft C) 120 ft D) 150 ft Answer: B Explanation: NFPA 54 limits vertical riser length to 100 ft without a regulator to maintain adequate pressure control. Question 58. Which of the following best describes the purpose of a “pressure regulator” in a gas distribution system? A) To increase the pressure for downstream appliances B) To reduce the high incoming service pressure to a usable downstream pressure
Gas Pipe Fitter Ultimate Exam
C) To filter contaminants from the gas stream D) To provide a visual indication of gas flow Answer: B Explanation: A regulator’s function is to step down the high service pressure to a level suitable for appliances. Question 59. The correct procedure for protecting a gas pipe that penetrates a concrete slab is: A) No protection needed if the pipe is steel B) Install a PVC sleeve with a minimum 1-inch clearance around the pipe C) Use a listed conduit or encasement that meets corrosion-resistance requirements D) Drill a larger hole and fill with sand around the pipe Answer: C Explanation: Penetrations through concrete must be protected with a listed conduit or encasement to prevent damage and corrosion. Question 60. Which of the following is the minimum required clearance between a gas shut-off valve and a heat source (e.g., water heater) that may exceed 250 °F? A) 1 inch B) 3 inches C) 6 inches D) 12 inches Answer: C Explanation: NFPA 54 requires a minimum 6-inch clearance from a shut-off valve to any heat source exceeding 250 °F. Question 61. When installing a gas line for a residential range, the maximum allowable length of a ¾-inch pipe without a regulator, serving a 120,000 BTU/hr appliance, is: A) 30 ft B) 45 ft
