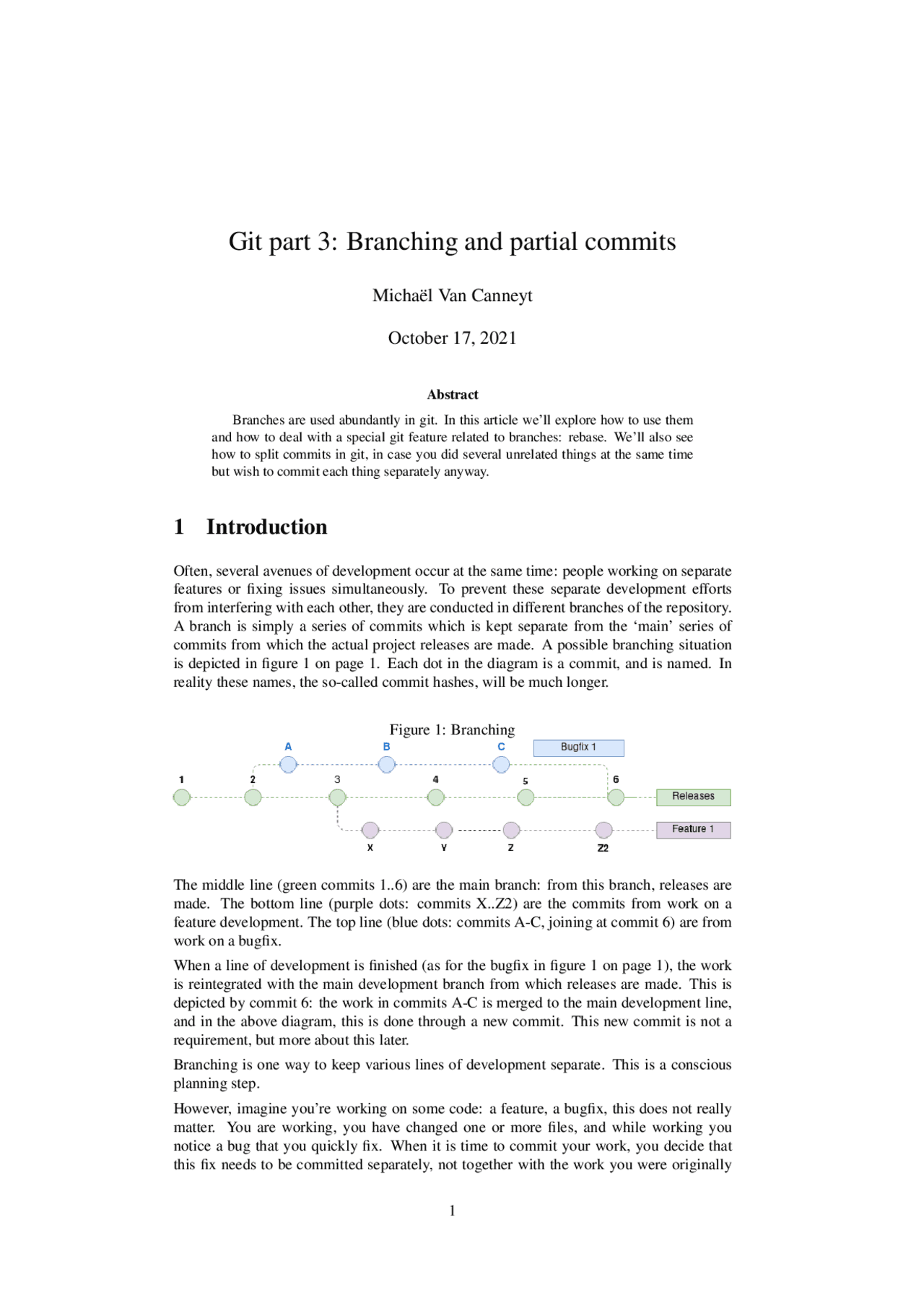

Git part 3: Branching and partial commits
Michaël Van Canneyt
October 17, 2021
Abstract Branches are used abundantly in git. In this article we’ll explore how to use them and how to deal with a special git feature related to branches: rebase. We’ll also see how to split commits in git, in case you did several unrelated things at the same time but wish to commit each thing separately anyway.
1 Introduction
Often, several avenues of development occur at the same time: people working on separate features or fixing issues simultaneously. To prevent these separate development efforts from interfering with each other, they are conducted in different branches of the repository. A branch is simply a series of commits which is kept separate from the ‘main’ series of commits from which the actual project releases are made. A possible branching situation is depicted in figure 1 on page 1. Each dot in the diagram is a commit, and is named. In reality these names, the so-called commit hashes, will be much longer.
Figure 1: Branching
The middle line (green commits 1..6) are the main branch: from this branch, releases are made. The bottom line (purple dots: commits X..Z2) are the commits from work on a feature development. The top line (blue dots: commits A-C, joining at commit 6) are from work on a bugfix.
When a line of development is finished (as for the bugfix in figure 1 on page 1), the work is reintegrated with the main development branch from which releases are made. This is depicted by commit 6: the work in commits A-C is merged to the main development line, and in the above diagram, this is done through a new commit. This new commit is not a requirement, but more about this later.
Branching is one way to keep various lines of development separate. This is a conscious planning step.
However, imagine you’re working on some code: a feature, a bugfix, this does not really matter. You are working, you have changed one or more files, and while working you notice a bug that you quickly fix. When it is time to commit your work, you decide that this fix needs to be committed separately, not together with the work you were originally
intending to do. How to separate this fix from the other changes? This is where a partial commit comes in. This is a simple case, which we’ll treat first.
2 Partial commit
Imagine you need to change the following unit, you need to add a second hash function to it:
unit myunit; {$mode objfpc} interface
Function MyHash(aString : String) : Longint;
implementation
Function MyHash(aString : String) : Longint;
begin Result:=Length(aString) div 2; end;
end.
You start working on it and at some point you notice that you should have divided by 3 in MyHash, so you change it. After you finish the MyBetterHash function, the end result of your work is:
unit myunit; {$mode objfpc} interface
Function MyHash(aString : String) : Longint; Function MyBetterHash(aString : String) : Longint;
implementation
Function MyHash(aString : String) : Longint;
begin Result:=Length(aString) div 2; Result:=Length(aString) div 3; end;
Function MyBetterHash(aString : String) : Longint;
Var C : Char;
begin Result:=0; For C in aString do Result:=Result xor Ord(C);
y Add this hunk to the next commit.
n Do not add this hunk to the next commit.
q quit; Do not add this hunk or any of the remaining hunks.
a Add this hunk and all later hunks in the file.
d Drop this hunk and all the later hunks in the file.
g Go to a particular hunk.
/ Search for a hunk: this command must be followed by a regular expression.
j Jump over this hunk (leaves it undecided) and show the next undecided hunk.
J Jump over this hunk (leaves it undecided) and show the next hunk.
k Leave this hunk undecided, show the previous undecided hunk.
K Leave this hunk undecided, and show the previous hunk.
s Split the current hunk into smaller hunks, and repeat the process.
e Edit the current hunk: you can replace +/- by # to skip parts of the hunk.
? Show a help message.
After choosing ’s’, Git will respond with:
Split into 3 hunks. @@ -3,9 +3,10 @@ interface
Function MyHash(aString : String) : Longint; +Function MyBetterHash(aString : String) : Longint;
implementation
Function MyHash(aString : String) : Longint;
begin (1/3) Stage this hunk [y,n,q,a,d,j,J,g,/,e,?]?
You can see that this is the first change in the file. Also note that git now offers more possible answers than the first time it asked the question.
Depending on what you want: first commit the feature, then the fix or vice versa, you can now answer ’y’ or ’n’, respectively. We’ll first commit the fix, so we answer ’n’ because we don’t need the new function declaration.
Git responds with:
@@ -6,9 +7,9 @@
implementation
Function MyHash(aString : String) : Longint;
begin
- Result:=Length(aString) div 2;
- Result:=Length(aString) div 3; end;
(2/3) Stage this hunk [y,n,q,a,d,K,j,J,g,/,e,?]?
This is the part we want because it contains the fix we wish to commit first, so we answer ’y’. Git will then ask us what we want to do with the last part:
@@ -13,3 +14,15 @@ end;
-end. \ No newline at end of file +Function MyBetterHash(aString : String) : Longint;
+Var
+begin
- Result:=0;
- For C in aString do
- Result:=Result xor Ord(C); +end;
+end.
(3/3) Stage this hunk [y,n,q,a,d,K,g,/,e,?]?
Here we answer with ’n’, because this is not part of the fix we want to commit.
After this, git is finished. When we ask for the status, we get the following:
git status On branch main Your branch is up-to-date with ’origin/main’.
Changes to be committed: (use "git restore --staged ..." to unstage) modified: myunit.pp
Changes not staged for commit: (use "git add ..." to update what will be committed) (use "git restore ..." to discard changes in working directory) modified: myunit.pp
As you can see, the myunit.pp file is listed twice:
- once as modified and ready to be committed.
- once as modified, but not yet staged for commit.
If we ask to see the changes in our file using the diff command, Git will respond with the following:
begin
- Result:=Length(aString) div 2;
- Result:=Length(aString) div 3; end;
end.
The sequence 5b10ccbˆ..5b10ccb in this command-line tells git to show the differ- ence between the commit previous to commit 5b10ccb (denoted by 5b10ccbˆ) and commit 5b10ccb.
As you can see, only our bugfix was committed. Now, the new feature can be committed directly:
git commit -m ’* Add MyBetterHash function’ myunit.pp [main 324ccf6] (^) * Add MyBetterHash function 1 file changed, 14 insertions(+), 1 deletion(-)
If you want to split the changes in multiple commits, the above interactive add command must be repeated for every partial commit you wish to make.
The same operation can be done in TortoiseGit, but it is implemented in a somewhat round- about manner – presumably this is a heritage of the TortoiseSVN origins, because in Sub- version, no native partial commit functionality is available.
- In the commit dialog of ToirtoiseGit, there is a context menu item called Restore after commit (see figure 2 on page 8). What this does is to create a backup of the file as it is, which will be restored after the commit has happened.
- Now you can open, from within the same commit dialog, the file with the diff & merge tool of TortoiseGit (see the Compare with base menu item in figure 2 on page 8).
- In this tool you can then indicate what changes you want to see included in the commit using the Mark this block menu item in TortoiseGit (see figure 3 on page 8).
- When you have marked all changed, you can discard all other changes with the Leave only marked blocks menu item (see again figure 3 on page 8).
- Now, after you save the file in the diff tool, you can commit the resulting file: see figure 4 on page 9, and note the counts of added and removed lines.
- After the commit, TortoiseGit will then restore the backup it made and as a result, all the remaining changes will again be present in your working copy.
- The file will still be marked changed in the explorer, and the remaining changes can also be committed. See figure 5 on page 10, and again note the counts for added and removed lines.
If you want to split the changes in multiple commits, the above procedure must be repeated for every partial commit you wish to make.
Figure 2: The ‘restore after commit’ menu item in the commit dialog
Figure 3: The ‘mark this block’ menu item in TortoiseDiff
3 Branches
A better way to split fixes and features is to use branches. As explained in the introduction, branches are lines of development that do not interfere: a series of commits that you will only see when you are working in the correct branch.
Branches need to be planned: in difference with the above case where you decide to split a commit to clearly separate a fix from a feature at commit time, the decision to use a branch should be made before changing files (although you can work around this).
So, when to branch? Clearly, when parallel development of 2 features are planned that you expect will take a long time, developing them in separate branches makes sense.
But for a small bugfix (a typo or so), it’s a matter of taste whether or not to create a branch for this. One could argue that this is a matter of being consequent: do every new develop- ment in a branch, and merge it to the main development line when it is ready.
Creating a branch is easy and can be done in 2 ways:
Figure 5: Committing the second part
Now, every change you make and commit will be part of the branch ‘myfeature’.
The second way to create a branch uses a variation of the switch command:
git switch -c myfeature
The -c switch instructs Git to create the branch and immediatly makes it the active branch.
If we now commit something in the branch, then git will show us that the branch was updated:
git commit -m ’* Added text 1’ README.md [myfeature 5836f28] (^) * Added text 1 1 file changed, 1 insertion(+)
We can add a second commit:
git commit -m ’* Added text 2’ README.md [myfeature 57a7dbb] (^) * Added text 2 1 file changed, 2 insertions(+)
To create a branch in TortoiseGit happens using the context menu, shown in figure 6 on page 11. In the dialog that appears then (see figure 7 on page 11), you can enter the details for the new branch:
- The name of the new branch.
- ‘Base on’ here you indicate what commit the branch should start: the default is HEAD on the current branch, which the name Git uses for the current commit. But you can also specify the tip of an existing branch, a tag (which is just a symbolic name for a specific commit), or a specific commit.
Figure 6: Tortoisegit ‘Create branch’ menu
- Whether Git should immediatly switch to the new branch.
Figure 7: Tortoisegit ‘Create branch’ dialog
Assuming you did not switch to the newly created branch yet, you can still do so after the branch was created. The Switch/Checkout context menu item can be used for this, and it will show the switch dialog as in figure 8 on page 12
4 Merging branches
Once you are done with the new feature or bugfix on your branch, it is time to merge your changes back into the main development line.
This is done with the Git merge command. This command will take all changes in a
history will look like figure 10 on page 13:
Figure 10: Fast-forward merged situation
The same is true if you do a git pull: If your local repository does not have any commits that a remote repository has, then git will perform a fast-forward: a pull operation is simply fetching all commits from a remote branch, and then merging them into the locally checked-out branch.
To perform a merge in TortoiseGit, the ‘Merge...’ menu item must be chosen from the TortoiseGit popup menu (figure 11 on page 13). When chosen, the Merge dialog appears
Figure 11: Tortoisegit merge menu
(figure 12 on page 14), which offers you a choice which branch to merge, plus some options to observe when merging.
Squash When you check this, all commits will be squashed into 1 big commit: if you’re not interested in the commit history of the branch, but just the result, you can select this. On the command-line you can use -squash.
Messages the number of messages to include in a merge commit. On the command-line you can use -log=N.
No Fast Forward will force a merge commit, even if the merge can be performed with a fast-forward. On the command-line you can use -no-ff
Fast Forward Only only do the merge if the merge can be performed as a Fast-Forward -ff-only
The command-line has more options than shown here, but it would lead too far to discuss them all.
If you do not specify any options, Git will attempt a fast-forward, but if it fails, it will create a merge commit to perform the merge. TortoiseGit will show the result of the operation in the merge result dialog, depicted in figure 13 on page 15. Note that this dialog offers to delete the merged branch: if the branch is no longer needed, it’s a good idea to remove it.
5 Rebase
There are developers that do not like the large trees of branches. The situation in figure 1 on page 1 is actually quite simple, but over time, having many people working on a project simultaneously can create a tangle of branches and commits, for an example see figure 14 on page 16.
Figure 12: Tortoisegit merge dialog
(image taken from https://blog.carbonfive.com/always-squash-and-rebase-your-git-commits
By contrast, a situation like figure 10 on page 13 where a merge can be done without merge commits is more simple, it looks like a linear history, although in reality the commit history is not linear.
In fact, such a situation can be achieved with a git command: Git stores commits as diffs. When merging the diffs from a branch are replayed on the branch you’re merging into.
The use of diffs suggests a mechanism to work towards a ‘fast-forward’ scenario in the commit history: This mechanism is implemented using the rebase command. What does it do?
The rebase command must be executed in the branch you want to merge, for example in the Bugfix 1 branch as shown in figure 15 on page 17: this depicts the same repository as figure 1 on page 1, but without the merge commit 6. You must tell the rebase command what branch you want to rebase on (Releases in the case of the figure).
When the rebase command is executed, it will restore the situation of commit 2 , apply all the commits in the Releases branch, and rewrite the commits in the BugFix 1 branch A-C in such a way that they appear to have been applied after commit 5 in the Releases branch.
What the Git rebase command does, looks like this (the releases branch is called ‘main’ in the example):
git switch Bugfix_
Figure 14: Git tangled branches
result in conflicts can be removed in this way.
The ‘Start rebase’ button can be used to start the rebasing process (remember, it can fail): The log of what git is doing will then be shown in the bottom half of the dialog. When all has completed successfully, the result will look for example like in figure 19 on page 18.
As noted earlier, branches in a remote repository are branches like any other, and doing a ‘git pull’ is like doing a merge from a remote branch: the story of entangled branches and a lineair history as explained here with purely local branches, also applies across repositories.
In order to get a lineair commit history, we must enable Git to always do a merge from the remote repository using a fast-forward. To ensure this, you can tell Git to rebase your local changes on top of the upstream branch when doing a git pull. The option to do this is called -rebase, so the command becomes:
git pull --rebase
In TortoiseGit, there is an option in the ‘git push/pull’ dialog to achieve the same effect.
6 Conclusion
In this and the two previous articles, we’ve explained the basic operation of git: basic operation of git is not very different from Subversion, but Git provides more possibilities,
Figure 15: Git rebase effect
Figure 16: Git merge after rebase
more than we’ve treated in this article. The Internet is however full of resources that treat git in any desired level of depth.
