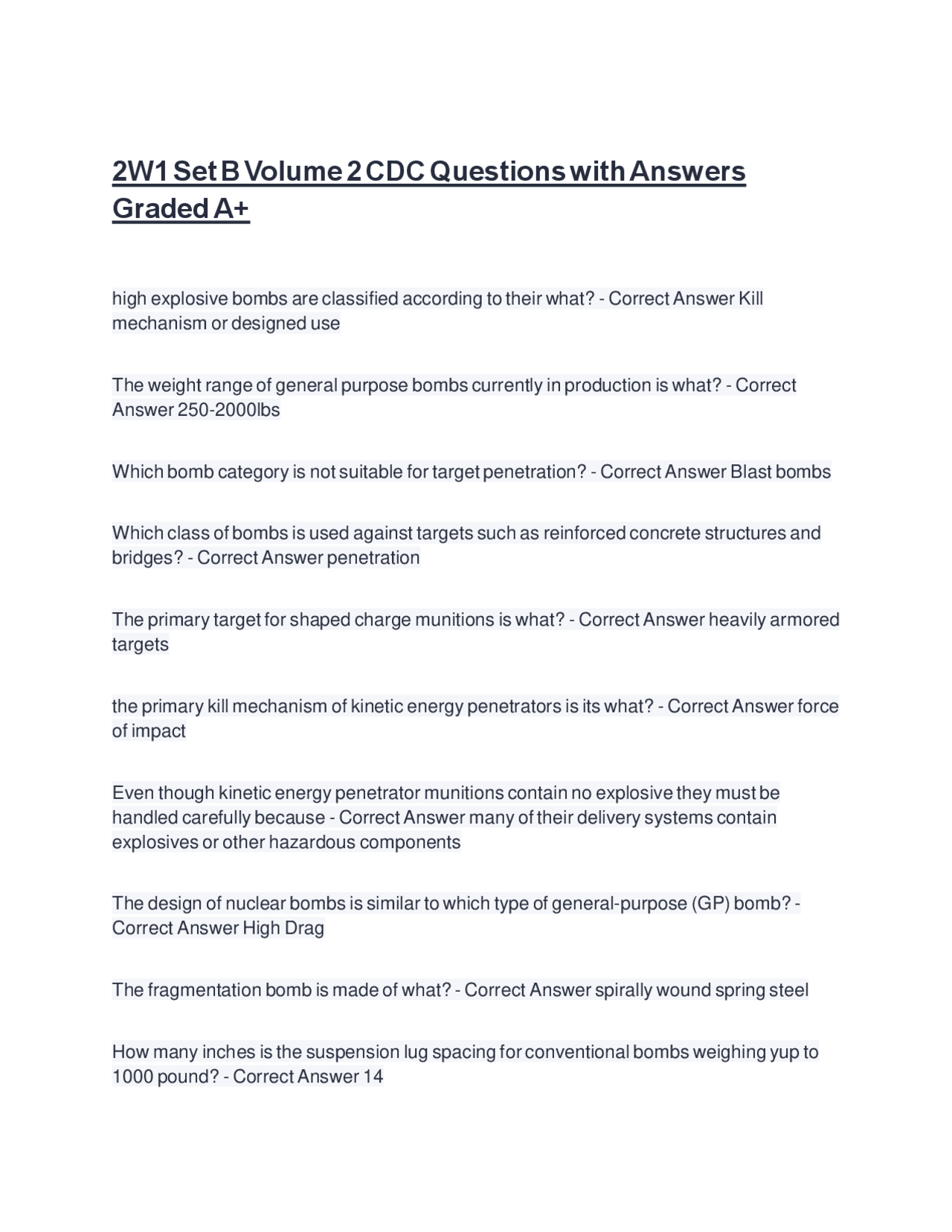

2W1 Set B Volume 2 CDC Questions with Answers
Graded A+
high explosive bombs are classified according to their what? - Correct Answer Kill
mechanism or designed use
The weight range of general purpose bombs currently in production is what? - Correct
Answer 250-2000lbs
Which bomb category is not suitable for target penetration? - Correct Answer Blast bombs
Which class of bombs is used against targets such as reinforced concrete structures and
bridges? - Correct Answer penetration
The primary target for shaped charge munitions is what? - Correct Answer heavily armored
targets
the primary kill mechanism of kinetic energy penetrators is its what? - Correct Answer force
of impact
Even though kinetic energy penetrator munitions contain no explosive they must be
handled carefully because - Correct Answer many of their delivery systems contain
explosives or other hazardous components
The design of nuclear bombs is similar to which type of general-purpose (GP) bomb? -
Correct Answer High Drag
The fragmentation bomb is made of what? - Correct Answer spirally wound spring steel
How many inches is the suspension lug spacing for conventional bombs weighing yup to
1000 pound? - Correct Answer 14
pf3
pf4
pf5
pf8
pf9

Partial preview of the text

Download Guided Munitions and Explosive Devices and more Exams Nursing in PDF only on Docsity!

2W1 Set B Volume 2 CDC Questions with Answers

Graded A+

high explosive bombs are classified according to their what? - Correct Answer Kill mechanism or designed use The weight range of general purpose bombs currently in production is what? - Correct Answer 250 - 2000lbs Which bomb category is not suitable for target penetration? - Correct Answer Blast bombs Which class of bombs is used against targets such as reinforced concrete structures and bridges? - Correct Answer penetration The primary target for shaped charge munitions is what? - Correct Answer heavily armored targets the primary kill mechanism of kinetic energy penetrators is its what? - Correct Answer force of impact Even though kinetic energy penetrator munitions contain no explosive they must be handled carefully because - Correct Answer many of their delivery systems contain explosives or other hazardous components The design of nuclear bombs is similar to which type of general-purpose (GP) bomb? - Correct Answer High Drag The fragmentation bomb is made of what? - Correct Answer spirally wound spring steel How many inches is the suspension lug spacing for conventional bombs weighing yup to 1000 pound? - Correct Answer 14

What is the purpose of the bomb arming wire assembly? - Correct Answer Keep the fuze from arming until the bomb is released In case of a malfunction which bomb marking might require documentation on the AF Form 2434? - Correct Answer Lot number and serial number Which color band is painted around high explosive (HE) munitions? - Correct Answer Yellow Smoke munitions have which color band painted around them? - Correct Answer Light Green What secures the aft cover to the stabilizer housing of the BSU- 49 AIR bomb? - Correct Answer Two spring loaded latch assemblies The air inflatable retarder (AIR) is inflated by what? - Correct Answer Ram air entering through four inlets in the retarded itself The BLU-109/B is what type of bomb? - Correct Answer penetration Which of these bombs is designed with only a tail fuze well? - Correct Answer BLU-109/B The BLU-113A/B penetrator bomb weighs how much? - Correct Answer 4500 pounds The BLU-113A/B serves as the warhead for the what? - Correct Answer GBU-28A/B and B/B Standard laser guided bombs have their pulse code set by load crews or aircrew members

  • Correct Answer using dials located on the under side of the seeker head The enhanced guided bomb unit (EGBU) is a hybrid system using both a - Correct Answer Laser and global positioning system and inertial navigation guidance system

Which cluster bomb unit contains kinetic energy penetrators arranged into packs of varying sizes? - Correct Answer CBU- 107 Which of these is a 500 pound practice bomb? - Correct Answer BDU- 50 You can reinstall the safety clip in which BDU-33B/B configuration? - Correct Answer those equipped with a CXU-2/B spotting charge The B61 suspension lug spacing is how many inches? - Correct Answer 30 The strike enabling plug is on which subassembly of the B61 bomb? - Correct Answer Preflight When the B61 nuclear bomb is released the actuator lug located on the tail assembly is pulled up, - Correct Answer Firing the bomb's spin rocket the time to arm and time to burst settings on the B83 are behind the - Correct Answer access door on the aft assembly How are bomb fuzes classified? - Correct Answer Position and method of arming A typical operating range for time fuzes is how many seconds? - Correct Answer 5 - 92 seconds proximity fuzes will produce air bursts at heights between how many feet above the ground? - Correct Answer 20 - 125 The M904 mechanical nose fuzes firing delay time begins after - Correct Answer the bomb has impacted what must you do when changing the arming time settings on the M905 tail fuze? - Correct Answer Depress the timing lock Which of these is the only safety device on the FMU-124A/B fuze? - Correct Answer Pin

What supplies electrical power to operate the FMU-139A/B fuze? - Correct Answer FZU- 48/B Initiator The FZU-39/B proximity sensor has how many selectable height range functions - Correct Answer 10 Which of these bombs may use the FMU-143/B, A/B fuze? - Correct Answer BLU- 109 and GBU- 24 Which initiator provides electrical power to the FMU- 152 tail fuze? - Correct Answer FZU- 55/B Which component inside the guidance window of the AGM- 65 must be checked before loading? - Correct Answer Humidity indicator After loading and during flight the AGM- 65 missile is held on the LAU- 88 launcher by the - Correct Answer Shear pin The AGM- 65 can be configured with two warheads, a 125 pound shaped charge or a - Correct Answer 300 pound blast/fragmentation warhead Which component protects the pins of the umbilical connector on the AGM- 65 until just before loading? - Correct Answer Shielding cap which aircraft carries the AGM- 88 high speed anti radiation missile (HARM) - Correct Answer F- 16 The AGM- 158 uses what class of warhead? - Correct Answer 1000 pound Which AGM- 86 components are the attach points to mate it to its ejector rack? - Correct Answer Forward and aft Clevises The AGM- 86 warhead's arming device can be safed - Correct Answer Either electrically or mechanically

When can you remove the shielding tape from a rocket motor? - Correct Answer Immediately before loading Which ammunition round component expands in and seals the barrels chamber to keep gas from escaping to the rear when the cartridge is fired? - Correct Answer Cartridge case Which ammunition component actually starts the chain reaction to fire the round? - Correct Answer primer What does the term Pyrophoric mean? - Correct Answer Small particles may self ignite when exposed to the friction and heat of a munitions strike Which precautions must you take to prevent exposure to harmful radiation when working around unfired munitions containing depleted uranium? - Correct Answer There are no additional protective measures required beyond those standards for all munitions A normal round with the primer and propellant charge removed is called a what? - Correct Answer Dummy round What distinguishes 20mm high explosive incendiary with tracer rounds from high explosive incendiary rounds? - Correct Answer Ring of red T's stenciled around the projectile Which type of projectile has a hollow body? - Correct Answer Target Practice You must be extremely carful when handling linked ammo to keep from what? - Correct Answer getting cut or pinched Ammunition should never be needlessly subjected to sunlight because - Correct Answer prolonged exposure to heat will affect its ballistics What are the two basic types of impulse cartridges? - Correct Answer Explosive and nonexplosive

Which of these impulse cartridges is not case grounded? - Correct Answer BBU-63/B Which impulse cartridge component normally provides a ground for the electrical firing circuit? - Correct Answer Case What do you use to place scribe marking on the closure disc of an impulse cartridge? - Correct Answer Indelible ink marker How many insertion marking constitute the end of service life for impulse cartridges that are used in breeches with spring loaded firing pins? - Correct Answer no limit Which action do you take if the timer knob of a LUU-2/B flare is accidentally pulled during ground handling and the timer cycle starts? - Correct Answer Forcibly hold the time and release mechanism on the flare housing to prevent ejection of the timer and release mechanism; then tape the mechanism on the flare housing and mark it for disposal once the timer completes its cycle. On the LUU-2A/B flare what limits timer travel between safe and 500 feet? - Correct Answer Two pegs A F- 15 and F- 16 aircraft uses which type of flare magazines? - Correct Answer MJU- 12 What aircraft uses the MJU- 17 flare magazines? - Correct Answer F- 15 How many flare magazines can be loaded on the F-22? - Correct Answer 6 The F- 22 countermeasure stations are located just - Correct Answer aft of the left and right side weapons bays How many RR196/AL chaff bundles may be loaded in the ALE- 52 magazines used in the F-22? - Correct Answer 18 AN/ALE- 50 decoys can be deployed by the - Correct Answer F- 16 and the B- 1
