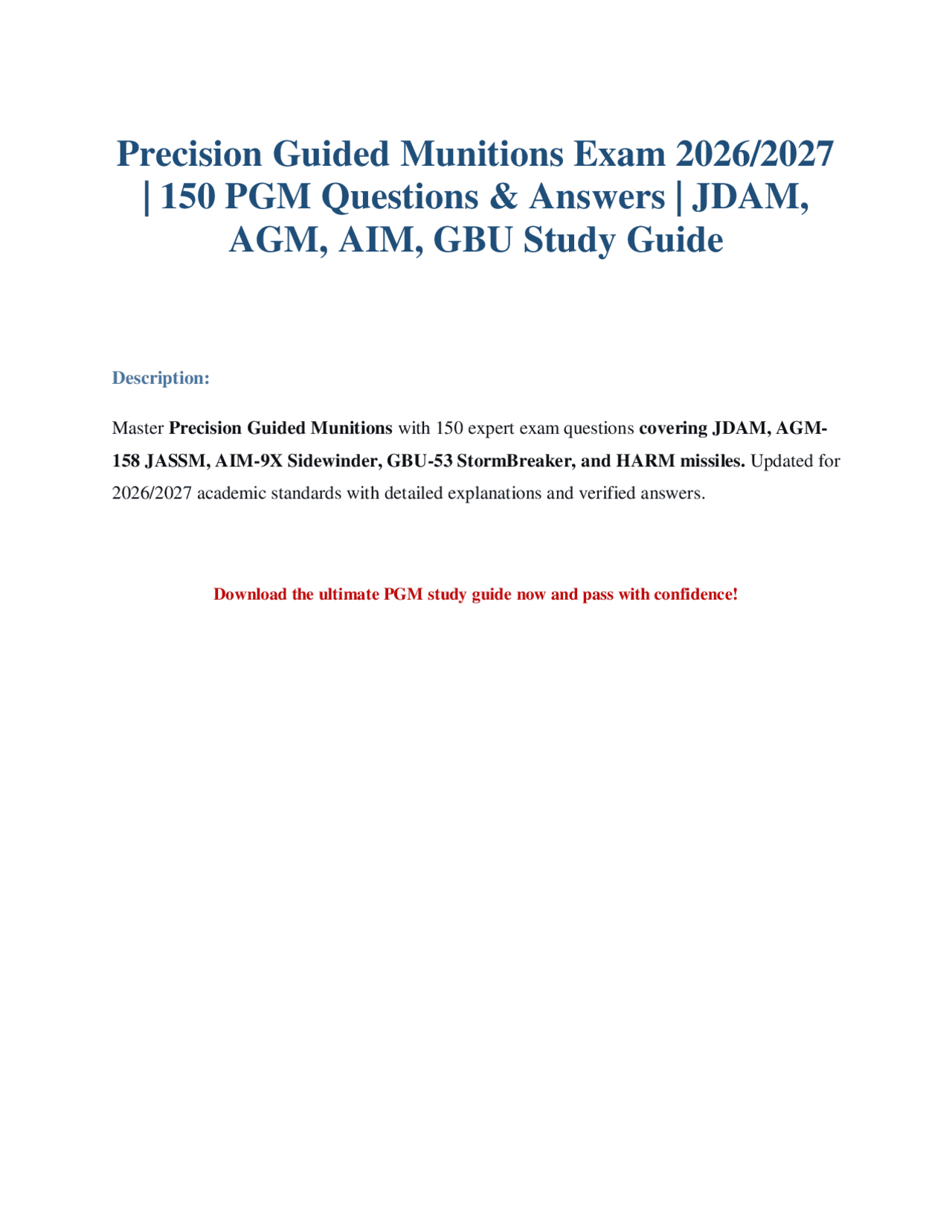

Description: Master Precision Guided Munitions with 150 expert exam questions covering JDAM, AGM- 158 JASSM, AIM-9X Sidewinder, GBU-53 StormBreaker, and HARM missiles. Updated for 2026/2027 academic standards with detailed explanations and verified answers. Download the ultimate PGM study guide now and pass with confidence!
This section covers fundamental principles of guidance, tracking, and control mechanisms used in modern precision munitions. Question 1 Which guidance system component is specifically designed to determine the direction to a target and select an appropriate interception flight path? A. Propulsion System B. Armament System C. Guidance System D. Control System Answer: C. Guidance System Explanation: The guidance system is the primary component responsible for determining target direction and computing the optimal interception path. It processes sensor data to calculate flight corrections necessary to guide the munition to its intended target. Unlike the propulsion system, which provides thrust, or the armament system, which deals with target destruction, the guidance system focuses exclusively on navigation and targeting computations. Question 2 Which type of tracking energy encompasses both laser and infrared radiation sources? A. Kinetic Energy B. Potential Energy C. Light Energy D. Thermal Energy Answer: C. Light Energy
self-contained approach allows the weapon to operate independently once launched, as all necessary tracking equipment is carried onboard. The reflected energy provides range, velocity, and positional data for guidance computations. Question 5 In which tracking configuration does the target itself produce the tracking energy utilized by the weapon? A. Active Tracking B. Passive Tracking C. Semi-Active Tracking D. Command Tracking Answer: B. Passive Tracking Explanation: Passive tracking systems rely entirely on energy naturally emitted or reflected by the target. This includes heat signatures from engines (infrared), radar emissions from enemy systems, or visual contrast from the target's appearance. The weapon carries sensors that detect this inherent energy without emitting any signals itself, making passive tracking systems particularly difficult for enemy countermeasures to detect or jam. Question 6 What distinguishes semi-active tracking from other tracking methodologies? A. The target produces its own tracking energy B. The weapon produces its own tracking energy C. An external source provides tracking energy D. Tracking is accomplished through inertial navigation Answer: C. An external source provides tracking energy Explanation: Semi-active tracking systems utilize energy from an external source, typically from the launching aircraft or a ground-based designator. The weapon's seeker detects the energy reflected off the target from this external source. This approach allows for smaller, simpler
seekers on the weapon, as it doesn't need to generate its own tracking energy or carry complex active sensors. Question 7 What is the primary function of the Control System in a Precision Guided Munition? A. To provide thrust for flight B. To execute the actual steering maneuvers C. To detect the target's position D. To initiate warhead detonation Answer: B. To execute the actual steering maneuvers Explanation: The control system is responsible for implementing the steering commands generated by the guidance system. It physically moves control surfaces, redirects thrust, or employs other mechanisms to alter the weapon's flight path. The control system acts as the effector component of the guidance loop, translating electronic commands into aerodynamic or propulsive changes that direct the munition toward its target. Question 8 How does an open-loop control system differ from a closed-loop control system? A. Open-loop uses fluid power, closed-loop uses electrical power B. Open-loop expels fluid/gas after moving surfaces, closed-loop retains it C. Open-loop is more accurate, closed-loop is more reliable D. Open-loop is used for air-to-air missiles, closed-loop for air-to-ground Answer: B. Open-loop expels fluid/gas after moving surfaces, closed-loop retains it Explanation: In open-loop control systems, the actuating fluid or gas is expelled after moving the control surfaces to their commanded positions. Closed-loop systems, conversely, retain the actuating medium, allowing for potential reuse or maintaining position without continuous energy expenditure. This distinction affects system weight, complexity, and response characteristics, with closed-loop systems generally providing more precise and efficient control authority.
maneuver as required, and achieve the necessary range and speed parameters for mission success while coordinating with guidance and control systems. Question 11 What function does the igniter serve in a rocket motor system? A. To extinguish the rocket motor B. To initiate the burning of the rocket propellant C. To mix fuel and oxidizer D. To regulate thrust output Answer: B. To initiate the burning of the rocket propellant Explanation: The igniter is the critical component that initiates combustion within the rocket motor. It provides the initial heat energy required to raise the propellant to its ignition temperature. Modern igniters use pyrotechnic compounds or electrical heating elements to reliably start the combustion process, ensuring the motor achieves proper burn characteristics and thrust profiles. Question 12 What terminology is used for Precision Guided Munitions that incorporate propulsion systems? A. Rockets B. Projectiles C. Missiles D. Bombs Answer: C. Missiles Explanation: The term "missile" is specifically applied to precision guided munitions that have onboard propulsion systems. Unlike bombs, which rely on gravity and initial aircraft velocity for trajectory, missiles carry their own propulsion means. This distinction is critical in ordnance classification, as missiles can actively maneuver, change velocity, and maintain powered flight to engage targets beyond the capabilities of unpowered munitions.
Question 13 What characteristic defines medium-thrust propellant burning action? A. Increasing thrust throughout the burn B. Decreasing thrust throughout the burn C. Constant thrust throughout the burn D. Pulsing thrust at regular intervals Answer: C. Constant thrust throughout the burn Explanation: Medium-thrust, or neutral-burning, propellant grains are designed to provide a relatively constant thrust output throughout the motor's burn duration. This is achieved through carefully designed grain geometry where the burning surface area remains consistent as propellant is consumed. This characteristic is valuable for missions requiring sustained, predictable acceleration and velocity profiles. Question 14 What are the two distinct phases of thrust in a dual-thrust rocket motor? A. Ignition and sustain phases B. Boost and sustain phases C. Boost and cruise phases D. Cruise and terminal phases Answer: B. Boost and sustain phases Explanation: Dual-thrust rocket motors provide two distinct thrust levels: a high-thrust boost phase followed by a lower-thrust sustain phase. The boost phase provides rapid initial acceleration to achieve desired velocity quickly, while the sustain phase maintains this velocity more economically for extended range. This combination optimizes performance by achieving high energy quickly while preserving propellant for longer flight duration.
the same guidance section to be fitted to different bomb bodies, providing operational flexibility and logistics efficiency. Question 17 Which guidance section is specifically designed for use with the GBU-24 laser-guided bomb? A. MAU- 169 B. WGU- 39 C. KMU- 556 D. KMU- 557 Answer: B. WGU- 39 Explanation: The WGU-39 guidance section is specifically developed for the GBU-24 laser- guided bomb. This guidance unit offers improved performance over earlier designs, including enhanced seeker sensitivity and expanded engagement capabilities. The WGU-39 is optimized for the GBU-24's increased delivery accuracy and compatibility with various warhead configurations. Question 18 What is the correct combination of warhead and airfoil group for the GBU-12? A. MK84 with MXU- 651 B. MK82 with MXU- 650 C. BLU-109 with BSU- 84 D. MK83 with KMU- 559 Answer: B. MK82 with MXU- 650 Explanation: The GBU-12 uses the MK82 general-purpose bomb body combined with the MXU-650 airfoil group. The MK82 provides a 500-pound class warhead while the MXU- 650 airfoil group provides the aerodynamic surfaces necessary for controlled flight. This combination creates a versatile, medium-sized laser-guided bomb suitable for a wide range of target types.
Question 19 What airfoil group is associated with the GBU-10 laser-guided bomb? A. MXU- 650 B. MXU- 651 C. BSU- 84 D. SUU- 64 Answer: B. MXU- 651 Explanation: The GBU-10 incorporates the MXU-651 airfoil group, which provides the aerodynamic control surfaces for this 2,000-pound class weapon. The MXU-651 is similar to the MXU-650 but is scaled and configured for the larger MK84 warhead. This airfoil group provides the lift and stability characteristics necessary for the GBU-10's extended flight envelope. Question 20 What is the complete description of the GBU- 24 configuration? A. MK82 with MXU- 650 B. MK84 with MXU- 651 C. MK84 or BLU-109 with BSU- 84 D. MK83 with KMU- 559 Answer: C. MK84 or BLU-109 with BSU- 84 Explanation: The GBU-24 can be configured with either the MK84 general-purpose warhead or the BLU-109 penetrator warhead. In either configuration, it uses the BSU-84 airfoil group. This flexibility allows the GBU-24 to be optimized for either general purpose blast-fragmentation effects or hard-target penetration, while maintaining the enhanced guidance and control characteristics of this advanced laser-guided weapon.
Question 23 What is the role of the forward adapter in a laser-guided bomb assembly? A. To secure the tail fins B. To mount the guidance section to the warhead nose C. To house the rocket motor D. To contain the control electronics Answer: B. To mount the guidance section to the warhead nose Explanation: The forward adapter serves as the structural connection between the guidance section and the warhead nose. It provides the mechanical interface that securely attaches the guidance section while maintaining proper alignment for the seeker. This component is critical for maintaining the structural integrity of the weapon and ensuring the guidance section remains properly oriented for target acquisition and tracking. Question 24 What hardware component secures the forward adapter to the nose of the warhead? A. BSU- 84 B. MXU- 650 C. Spanner Bolt D. Umbilical Connector Answer: C. Spanner Bolt Explanation: The spanner bolt is the specific hardware element used to secure the forward adapter to the warhead nose. This specialized fastening device provides the necessary clamping force while allowing for proper torque application during assembly. The spanner bolt is designed to withstand the high-G loads experienced during delivery while maintaining the structural interface between components.
Question 25 What is the primary function of the TTU-595E test set? A. To launch laser-guided bombs B. To field test the guidance section of laser-guided bombs C. To transport laser-guided bombs D. To wirelessly communicate with aircraft Answer: B. To field test the guidance section of laser-guided bombs Explanation: The TTU-595E is specifically designed for field-level testing of laser-guided bomb guidance sections. This test equipment verifies proper function of the guidance electronics, seeker operation, and control system response. The TTU-595E allows maintenance personnel to certify that guidance sections are mission-ready before loading onto aircraft or to diagnose problems with suspect units. Question 26 What components are included in the laser optic test head used with guidance test sets? A. 3 laser optics providing simulated targets B. 5 laser optics providing simulated targets C. 7 laser optics providing simulated targets D. 10 laser optics providing simulated targets Answer: B. 5 laser optics providing simulated targets Explanation: The laser optic test head incorporates five laser optics that provide simulated targets for testing laser-guided munition seekers. These optics generate multiple laser pulses that simulate the reflected energy patterns the seeker would encounter in actual flight. The test head allows comprehensive verification of seeker performance across different target geometries and engagement scenarios.
components in the tail assembly, the system achieves modularity while protecting sensitive electronics within the weapon's structure. Question 29 What is the function of the Guidance Control Unit (GCU) in a JDAM? A. To provide lift during flight B. To contain the mission computer, GPS, and control functions C. To mount the weapon to the aircraft D. To protect the warhead during storage Answer: B. To contain the mission computer, GPS, and control functions Explanation: The GCU serves as the central processing unit for JDAM operations, containing the mission computer that executes guidance algorithms, the GPS receiver for position determination, and all control functions that direct the bomb's flight. This unit processes navigation data, compares actual position to target coordinates, and generates steering commands to guide the bomb to its designated impact point. Question 30 What is the complete designation of the Tail Actuated System (TAS) in a JDAM? A. Contains 4 fins, 2 that move, with GPS antenna B. Contains 4 fins, 3 that move, including GPS antenna aft C. Contains 4 fins, all moving, with GPS antenna forward D. Contains 6 fins, 4 that move, with GPS antenna Answer: B. Contains 4 fins, 3 that move, including GPS antenna aft Explanation: The Tail Actuated System features four fins with three movable surfaces for flight control. The GPS antenna is located on the aft section of the assembly. This configuration provides the aerodynamic control authority required for guided flight while accommodating the GPS antenna positioning that allows for optimal satellite signal reception during the weapon's trajectory.
Question 31 What is the function of the umbilical connector in a JDAM system? A. To secure the forward adapter to the warhead B. To provide the electrical connection between JDAM and aircraft C. To connect the guidance section to the control surfaces D. To interface with the test equipment Answer: B. To provide the electrical connection between JDAM and aircraft Explanation: The umbilical connector establishes the electrical interface between the JDAM and the launching aircraft. Through this connection, the aircraft provides power to the JDAM, transfers target data and GPS initialization information, and monitors weapon status. The umbilical connection is essential for pre-launch operations, including alignment and mission data loading. Question 32 What are the aerosurfaces (strakes) in a JDAM system designed to provide? A. Power generation for electronics B. Lift and maneuverability during flight C. Mounting points for the warhead D. Protection during storage Answer: B. Lift and maneuverability during flight Explanation: The aerosurfaces, also known as strakes, provide the aerodynamic surfaces necessary for lift generation and maneuverability during JDAM flight. These fixed surfaces generate aerodynamic forces that enable the bomb to glide to its target from significant standoff distances. The strakes are carefully designed to provide optimal lift-to-drag characteristics while maintaining stability throughout the flight envelope.
Answer: B. GBU-31 V Explanation: The GBU-31 Variant 3 uses the BLU-109 penetrating warhead with the KMU- 557 JDAM tail kit. The KMU-557 tail kit is specifically designed with the reinforced "hardback" assembly required for the BLU-109's hardened case. This configuration provides precision penetration capability against hardened and buried targets. Question 36 Which tail kit provides the hardback assembly configuration for JDAM? A. KMU- 556 B. KMU- 557 C. KMU- 559 D. KMU- 572 Answer: B. KMU- 557 Explanation: The KMU-557 tail kit is provided with the hardback assembly necessary to accommodate the BLU-109 warhead's hardened casing. This tail kit incorporates structural reinforcement and a modified interface to handle the different physical characteristics of the BLU-109 penetrator. The hardback assembly ensures proper mating between the warhead and tail kit while maintaining the structural integrity required for penetration missions. Question 37 What is the correct configuration for the GBU-32 JDAM? A. MK84 with KMU- 556 B. BLU-109 with KMU- 557 C. MK83 with KMU- 559 D. MK82 with KMU- 572 Answer: C. MK83 with KMU- 559
Explanation: The GBU-32 combines the MK83 1,000-pound general-purpose warhead with the KMU-559 JDAM tail kit. This configuration provides intermediate blast-fragmentation effects with JDAM precision guidance. The MK83's 1,000-pound class warhead offers a balance between explosive effect and the number of weapons that can be carried by an aircraft. Question 38 Which JDAM configuration uses the MK82 warhead and KMU-572 tail kit? A. GBU-31 V B. GBU- 31 V C. GBU- 32 D. GBU- 38 Answer: D. GBU- 38 Explanation: The GBU-38 uses the MK82 500-pound general-purpose warhead with the KMU- 572 JDAM tail kit. This smaller configuration allows for increased weapon carriage capacity on compatible aircraft. The GBU-38 is particularly well-suited for precision attacks against smaller or softer targets where a 500-pound warhead provides adequate effects while minimizing collateral damage concerns. Question 39 What is the GBU-54 configuration and its distinguishing feature? A. MK84 with KMU-556, GPS/INS guidance only B. MK82 with KMU-572, includes DSU-38 laser sensor C. MK83 with KMU-559, includes infrared seeker D. BLU-109 with KMU-557, laser guidance added Answer: B. MK82 with KMU-572, includes DSU-38 laser sensor Explanation: The GBU-54 combines the MK82 warhead with KMU-572 tail kit and adds the DSU-38 laser sensor for dual-mode guidance capability. This configuration provides both GPS/INS and laser guidance modes, allowing the weapon to be employed against moving or
