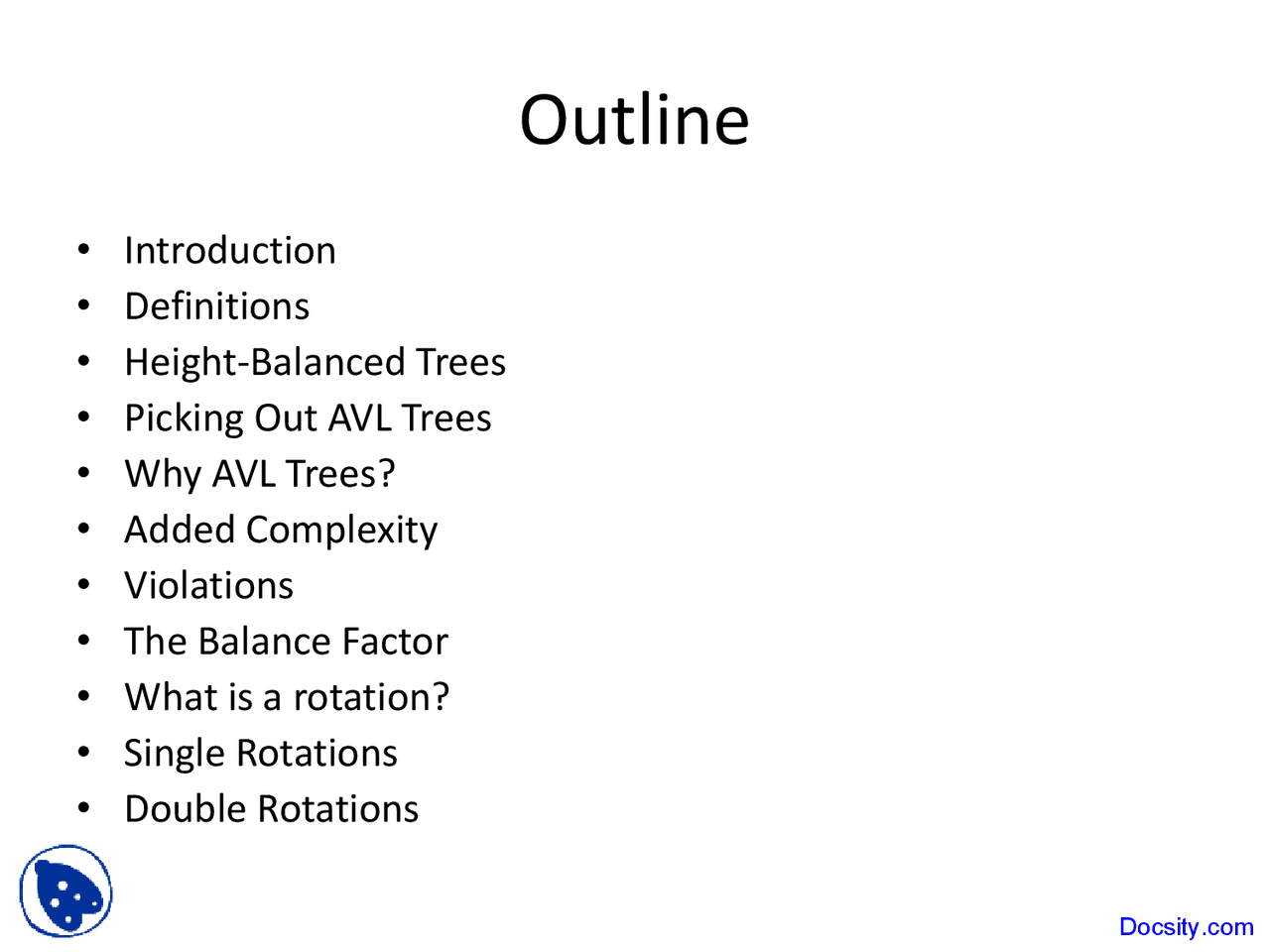

Outline
- Introduction
- Definitions
- Height-Balanced Trees
- Picking Out AVL Trees
- Why AVL Trees?
- Added Complexity
- Violations
- The Balance Factor
- What is a rotation?
- Single Rotations
- Double Rotations
Introduction
• AVL tree is the first balanced binary search
tree (name after its discovers, Adelson-Velskii
and Landis).
• The AVL tree is a balanced search tree that has
an additional balance condition.
• The balance condition must be easy to
maintain and ensures that the depth of the
tree is O(logN)
Height-Balanced Trees
- Height of a tree is the length of the longest path from a root to a leaf.
- A binary search tree T is a height-balanced k-tree or HB[k]- tree, if each node in the tree has the HB[k] property.
- A node has the HB[k] property if the height of the left and right sub-trees of the node differ in height by at most k.
- A HB[1] tree is called an AVL tree.
Picking Out AVL Trees
- Notation: NODE = Left-Ht, Right-Ht
Yes! 5 = 2, 1 4 = 1, 0 3 = 0, 0 7 = 0, 0
No! 10 = 3, 1
Why AVL Trees?
- The worst case for Binary Search Trees:
Insert: O(n).
Delete: O(n).
Search :O(n).
The worst case for AVL trees:
Insert: O(log n).
Delete: O(log n).
Search:O(log n).
Recall when comparing the time complexity
O(log n) < O(n)
Why AVL Trees? (Cont’d)
• AVL trees allow for logarithmic Inserts and
Deletes, and they allow for easy traversals,
such as the “In-order” traversal if we want to
sort our elements.
Violations
No!
No! 5 = 3, 4 = 2,
Notation: NODE = Left-Ht, Right-Ht
The Balance Factor
• In order to detect when a “violation” of a AVL
tree occurs, we need to have each node keep
track of the difference in height between its
right and left sub-trees.
• Notation for the balance factor:
bf (node) = Left-Ht – Right- Ht
To be a valid AVL Tree, -1 <= bf(x) <= 1 for all
nodes.
The Balance Factor (Cont’d)
Notation for the balance factor:
bf (node) = Left-Ht – Right- Ht
bf(8) = 2 – 0 = 2
bf(4) = 1 – 0 = 1
Bf(3) = 0 – 0 = 0
Invalid Tree!!
What is a rotation?
• A rotation is an operation to rearrange nodes
to maintain balance of an AVL tree after
adding and removing a node
• There are two case to perform the rotation
1) Single Rotation
2) Double Rotation
When to perform rotations?
we need to perform a rotation anytime a node’s
balance factor is 2 or -
Single Rotations
After inserting (a) 60; (b) 50; (c) 20 into an
initially empty binary search tree, the tree is
not balanced; d) a corresponding AVL tree
rotates its nodes to restore balance.
Single Rotations (Cont’d)
- Algorithm for left rotation
Algorithm rotateLeft(nodeN) nodeC = right child of nodeN Set nodeN ’s right child to nodeC ’s left child Set nodeC ’s left child to nodeN
