F = 3.0 kN
do di
Di Do
Do = 45 mm do = 8 mm No = 5
Di = 25 mm di = 5 mm Ni = 10

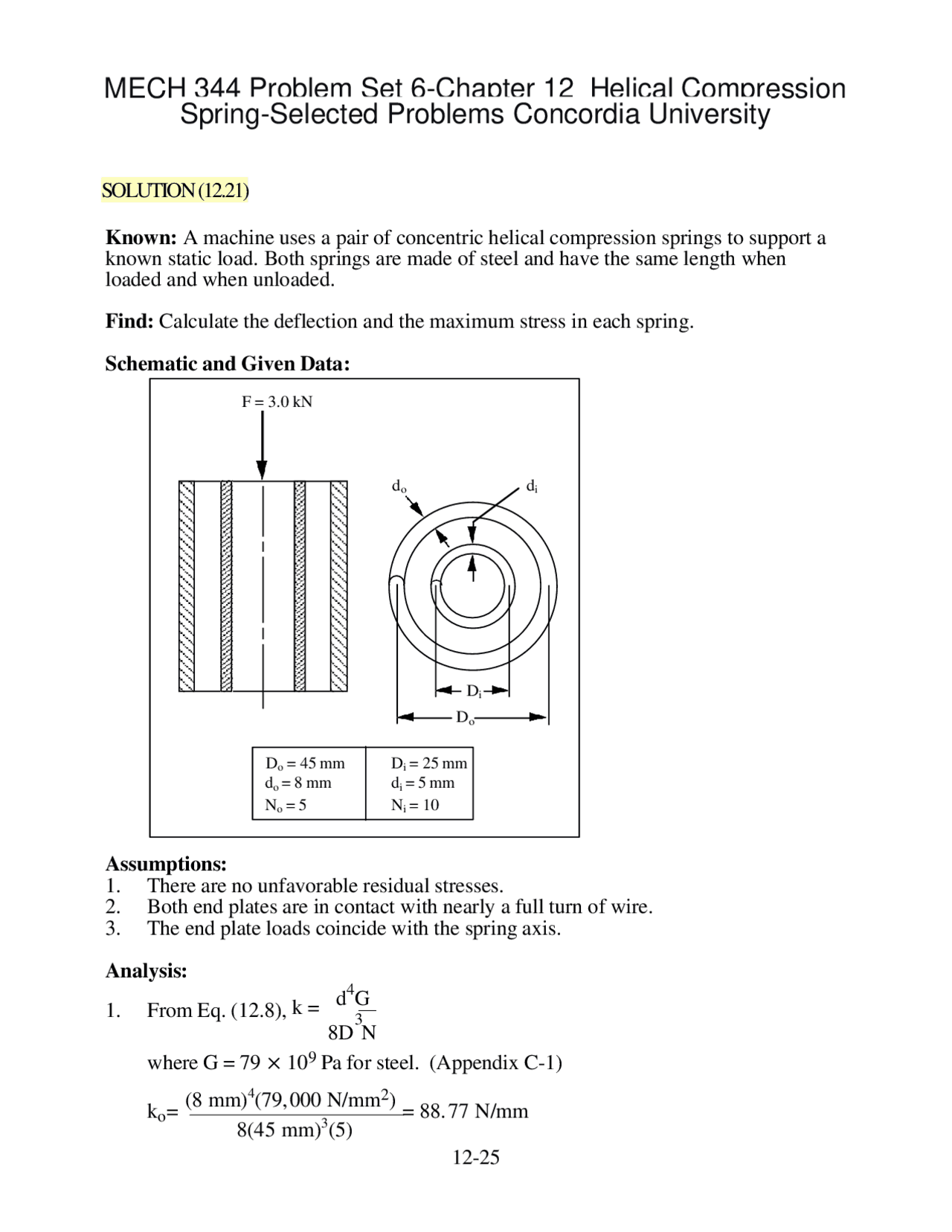

MECH 344 Problem Set 6-Chapter 12_Helical Compression
Spring-Selected Problems Concordia University
SOLUTION (12.21)
Known: A machine uses a pair of concentric helical compression springs to support a known static load. Both springs are made of steel and have the same length when loaded and when unloaded.
Find: Calculate the deflection and the maximum stress in each spring.
Schematic and Given Data:
Assumptions:
- There are no unfavorable residual stresses.
- Both end plates are in contact with nearly a full turn of wire.
- The end plate loads coincide with the spring axis.
Analysis:
- From Eq. (12.8), k =^
d^4 G 3 8D N where G = 79 ✕ 109 Pa for steel. (Appendix C-1)
k = (8 mm)^4 (79, 000 N/mm^2 ) o = 88. 77 N/mm 8(45 mm)^3 (5)
k = (5 mm)^4 (79, 000 N/mm^2 ) i = 39. 50 N/mm 8(25 mm)^3 (10)
Assumptions:
- There are no unfavorable residual stresses.
- Both end plates are in contact with nearly a full turn of wire.
- The end plate loads coincide with the spring axis.
Analysis:
- From Eq. (12.8), k =^ d 4 G 3 8D N where G = 79 ✕ 109 Pa for steel. (Appendix C-1)
k = (9 mm)^4 (79, 000 N/mm^2 ) o = 103. 66 N/mm 8(50 mm)^3 (5)
k = (5 mm)^4 (79, 000 N/mm^2 ) i = 22. 86 N/mm 8(30 mm)^3 (10)
- From Eq. (12.8), k = F or = F
k
=
= 23. 71 mm (22. 86 + 103. 66) (^) ■
- Using F = k, we can calculate the force on each spring. Fo = ko = (103.66 N/mm)(23.71 mm) = 2458.0 N Fi = ki = (22.86 N/mm)(23.71 mm) = 542 N
- Using Fig. 12.4, we can find Ks values for each spring. For outer spring, C = 50/9 = 5. Ks = 1. For inner spring, C = 30/5 = 6 Ks = 1.
- From Eq. (12.6), = 8FD Ks d
o =
(1. 09) = 467. 94 MPa (^) ■ (9)
i =
(1. 08) = 357. 75 MPa (^) ■ (5) SOLUTION (12.23) Known: A helical coil spring with given D and d is wound with a known pitch value. The material is ASTM B197 beryllium copper spring wire.
Find: If the spring is compressed solid, would you expect it to return to its original free-length when the force is removed?
ASTM B Beryllium copper spring wire
p = 14 mm
d = 10 mm D = 50 mm
Schematic and Given Data:
Assumptions:
- There are no unfavorable residual stresses.
- Both end plates are in contact with nearly a full turn of wire.
- The end plate loads coincide with the spring axis.
Analysis:
- Force to compress spring solid can be calculated by using Eq. (12.7).
F = d
4 G
8D^3 N
where /N = p - d = 14 - 10 = 4 mm G = 50 ✕ 109 Pa (Appendix C-1)
(10 ^10
- ) 4 (50 ^10 9 )(4 ^10 - ) F = 8(50 ^10
) 3
= 2000 N
- The corresponding stress can be calculated by using Eq. (12.6).
= 8FD Ks d^3 for C = D/d = 50/10 = 5 Ks = 1.1 (Fig. 12.4) 8(2000)(50 ^10 -3) (^) = (10 10 -3)^3
(1.1) = 280. 1 MPa
- For beryllium copper spring wire without presetting, s ≤ 0.35 Su. Also, for beryllium copper spring wire without presetting, Su = 750 MPa and 0.35 Su = 262.5 MPa
- Since 280.1 MPa > 262.5 MPa, set should occur; therefore, spring would not return to original length. ■
Comment: By considering the curvature (stress concentration) factor of the inner surface by using Kw = 1.3, the inner surface stress is (1.3)(280.1) = 364.1 MPa which is clearly even larger than 262.5 MPa.
k =
= 3. 22 N/mm 8(17)^3 (10) ■
- The amount of deflection when Fmax = 122 N is applied to the spring is
s = Fmax/k =^122 = 37. 89 mm
- 22 From Fig. 12.8(d), Ls = Ntd Ls = (N + 2)d = (10 + 2)2 = 24 mm Therefore, Lf = Ls + s Lf = 24 + 37.89 = 61.89 mm ■
- Lf/D = 61.89/17 = 3. s/Lf = 37.89/61.89 = 0. From Fig. 12.10, for the case B, no buckling should occur. ■
500 N 1000 N (^) F s
60 mm Lf
Music wire with d = 5 mm
Clash allowance
SOLUTION (12.27)
Known: A helical compression spring with squared and ground ends is to be designed with given force and deflection requirement. Presetting is to be used. The loading is static.
Find: Determine appropriate values for D, N, and Lf. Check for possible buckling.
Schematic and Given Data:
Assumptions:
- Both end plates are in contact with nearly a full turn of wire.
- The end plate loads coincide with the spring axis.
- The clash allowance is 10% of the maximum deflection.
Analysis:
- From Eq. (12.8), k =
F
k = F^ 1000 - 500 = 8. 33 N/mm 60
- Since class allowance is 10% of maximum deflection, Fs = 110% of 1000 N = 1100 N
- From Eq.(12.9), s = 0.65 Su
- From Fig. 12.7, Su 1650 MPa for music wire with d = 5 mm.
- Thus, s = 0.65(1650) = 1073 MPa.
- From Eq. (12.6), ^ = 8F CK^ or CK (^) = d^2
CKs
d^2
(1073)()(5)^2
s (^) 8F
Therefore, C = 9.0 (Fig. 12.4) and D = Cd = 9.0(5) = 45.0 mm ■
- From Eq. (12.8), N = dG
8kC 3 where G = 79 GPa (Appendix C-1)
s
40 lb 90 lb (^) F s
1.5 in. Lf
Su = 200 ksi^ Clash^ allowance C = 8
SOLUTION (12.28)
Known: A helical compression spring with squared and ground ends is to be made of steel, and presetting is to be used. The loading is static.
Find: Determine D, d, N, and Lf.
Schematic and Given Data:
Assumptions:
- Both end plates are in contact with nearly a full turn of wire.
- The end plate loads coincide with the spring axis.
- The clash allowance is 10% of the maximum deflection.
Analysis:
- From Eq. (12.9), s = 0.65 Su = 0.65(200) = 130 ksi.
- With 10% clash allowance, Fs = 1.10(90) = 99 lb.
- k =^
F = 50
= 33. 3 lb/in. 1.^5
- From Eq. (12.6), s = 8F CKs where Ks = 1.06 (Fig. 12.4) d^2
d = 8Fs CK 1/ s s
d =
1/ = 0. 128 in. (^) ■
- D = Cd = 8(0.128) = 1.02 in. ■
- From Eq. (12.8), N = d
4 G
8D^3 k (0. 128)^4 (11. 5 106 )
where G = 11.5 ✕ 106 psi (Appendix C-1)
N =
8(1. 02)^3 (33. 3)
k
- From Fig. 12.8, for squared and ground ends,
Ls = Ntd or Ls = (N + 2)d
Ls = (10.92 + 2)(0.128) = 1.65 in.
Lf = Ls + s = Ls +
Fs
Lf = 1.65 +
= 4.62 in. ■
Comment:
Lf/D =
s/Lf =
From Fig. 12.10, we can see that the end plates should be constrained parallel to avoid buckling.
F
F
D = 3 in. F = 500 lb = 80 ksi k = 200 lb/in.
Thus, F =
((0. 1)^3
= 56. 4 lb ■
- Ls = (N + 2)d = (10)(0.1) = 1.0 in. Lf = Ls + Fs/k = 1.0 + 56.4/73.6 = 1.77 in.
SOLUTION (12.30)
Known: A particular machine requires a helical compression spring, having ends squared and ground, to support a known essentially static load. The spring constant, the stress at the design load, and D are known. The clash allowance is to be 0.10 in.
Find: Determine N, d, and Lf.
Schematic and Given Data:
Assumptions:
- Both end plates are in contact with nearly a full turn of wire.
- The end plate loads coincide with the spring axis.
Analysis:
- From Eq. (12.6), = 8FD Ks assume Ks = 1.06, check later d^3
80, 000 =
d^3
d^3 = 0.
d = 0.370 in.
- C = D/d = 3/0.370 = 8.
From Fig. 12.4, Ks = 1.
Therefore, d = 0.370 in. ■
- From Eq. (12.8), k = d
4 G
or N = 8D^3 N
d^4 G 8kD^3
where G = 11.5 ✕ 106 psi (Appendix C-1)
(0. 370)^4 (11. 5 106 )
N =
8(200)(3)^3
- Ls = (N + 2)d = (5.0 + 2)(0.370) = 2.59 in.
Expansion from solid = 0.1 + 500/200 = 2.6 in.
Lf = 2.59 + 2.6 = 5.19 in. ■
(^3 )
solid
(^3 )
d = 0.164 in.
- C = D/d = 12.19, Kw 1.
From Eq. (12.5), d = 0.164 in. ■ 4
- From Eq. (12.8), k = d G
8D N
4 or N = d G 8D k where G = 11.5 ✕ 106 psi (Appendix C-1) (0. 164)^4 (11. 5 106 ) N = 8(2)^3 (90)
- Clash allowance = 10%
= (1.^ 1) 90 lb 90 lb/in.
= 1. 1 in.
Solid height = (N + 2)d = (1.44 + 2)(0.164) = 0.565 in. Lf = 0.565+ 1.1 = 1.665 in. ■
Analysis--Case B--without shot peening:
- See Fig. 12.16: For max/min = 2, max = 640 MPa = 93 ksi
- k = F/ = 45/0.5 = 90 lb/in.
- From Eq. (12.5), max =
8FmaxD Kw d^3 Assume Kw = 1.
93, 000 =
d^3 d = 0.181 in.
- D/d = 2/0.181 = 11. Kw = 1.13 (Fig. 12.4)
- Assume Kw = 1.
93, 000 =
d^3 d = 0.177 in.
- D/d = 11.3, Kw 1.
Thus, d = 0.177 in. ■ 4
- From Eq. (12.8), k =
d G
8D N
4 or N = d G 8D k where G = 11.5 ✕ 106 psi (Appendix C-1) (0. 177)^4 (11. 5 106 ) N = 8(2)^3 (90)
- Clash allowance = 10 %
solid
F = 100 to 250 N F = 100 to 250 N
F F Original spring failed in service after about 10 5 cycles
Replacement spring stretched to the same length as the original spring
(^) max^ Design points^ overload Without residual stress Residual stress
(^0) min
= (1. 1) 90 lb 90 lb/in.
= 1. 1 in.
Solid height = (N + 2)d = (1.96 + 2)(0.186) = 0.737 in. Lf = 0.737 + 1.1 = 1.837 in.
SOLUTION (12.40) Known: A helical compression spring is subjected to a load fluctuating between 100 and 250. Fatigue properties of the spring wire correspond to the curve for shot-peened wire given in Fig. 12.16. The spring failed in service after about 10^5 cycles. A replacement spring was found which was identical in all respect except that its free- length was slightly shorter. To correct for this, the spring was stretched slightly to increase its free-length to exactly that of the original spring.
Find: Show by means of a max - min plot, whether you would expect the life of the replacement spring to be the same as, less than, or greater than that of the original.
Schematic and Given Data:
Analysis:
max
3 3
- See Fig. 12.
- From above graph, max = 133 ksi
For SF = 1.3, use = (^133) = 102 ksi
- 3
- From Eq. (12.5), max = 8Fmax CKw d^2 102, 000 =
CKw (0. 192)^2 CKw = 7.
- From Fig. 12.4, C = 6. D = Cd = (6.0)(0.192) = 1.15 in. ■
- k =
F = 25 lb (^) = 250 lb/in. 0.^ 1 in.
From Eq. (12.8), k =^ dG
8C N
or N =^ dG
8C k where G = 11.5 ✕ 106 ksi (Appendix C-1)
(0. 192)(11. 5 106 ) N = 8(6. 0)^3 (250)
Assuming squared and ground ends, Ls = (N + 2)d = (7.1)(0.192) = 1.36 in. ■
Lf = Ls + clash allowance +
Fmax
k
= 1. 36 + 0. 05 +^195 = 2. 19 in. (^) ■ 250
150 life, shot peened
max = 133
100 max (^) = 1. min
50
0 (^0 50 100 ) min (ksi)
max
(ksi)
52 mm
4.45 kN 9
