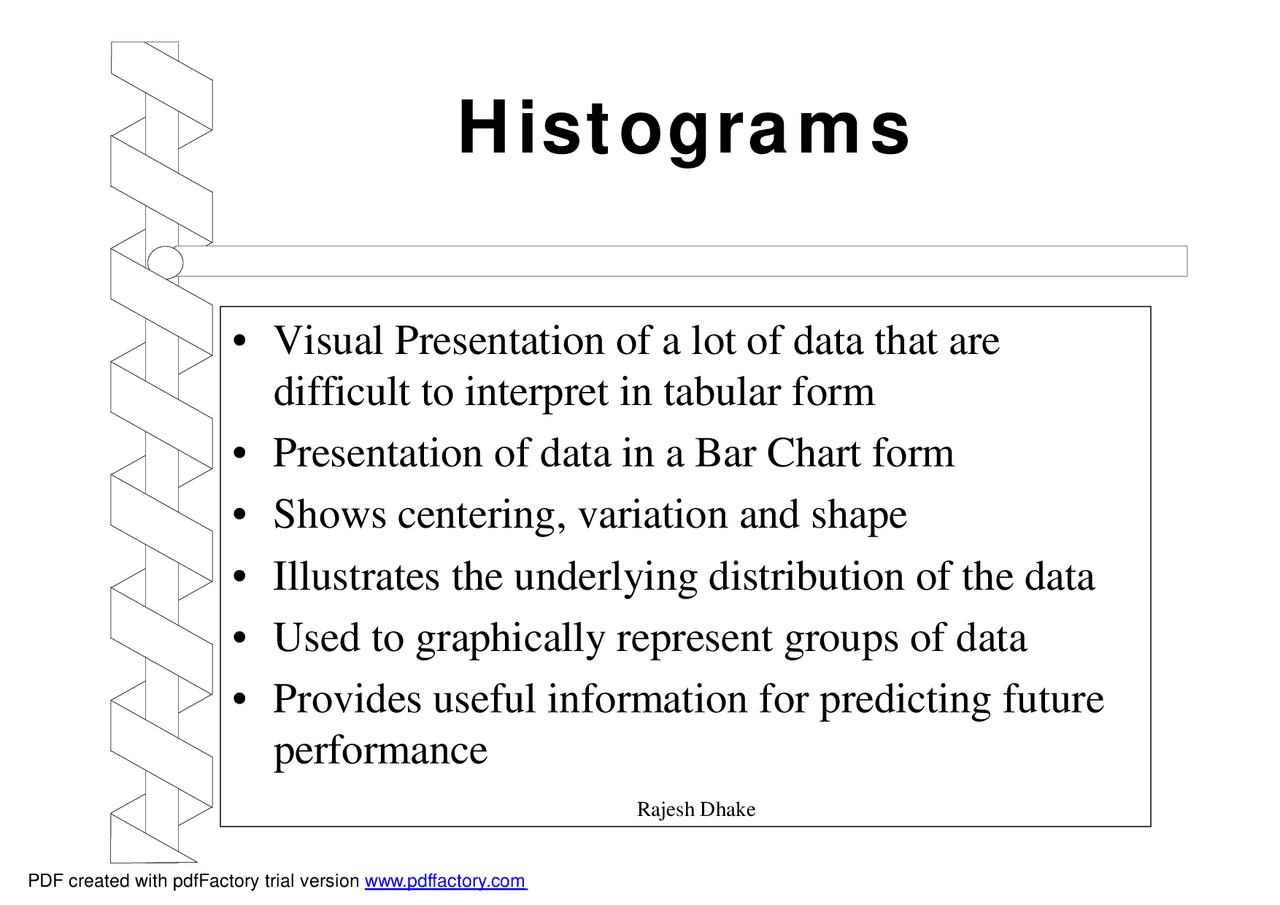

Rajesh Dhake
Histograms
•Visual Presentation of a lot of data that are
difficult to interpret in tabular form
•Presentation of data in a Bar Chart form
•Shows centering, variation and shape
•Illustrates the underlying distribution of the data
•Used to graphically represent groups of data
•Provides useful information for predicting future
performance
PDF created with pdfFactory trial version www.pdffactory.com
pf3
pf4
pf5
pf8
pf9

Partial preview of the text

Download Histogram - Lecture - Production Management and more Lecture notes Production Planning and Control in PDF only on Docsity!

Rajesh Dhake

Histograms

  • Visual Presentation of a lot of data that are

difficult to interpret in tabular form

  • Presentation of data in a Bar Chart form
  • Shows centering, variation and shape
  • Illustrates the underlying distribution of the data
  • Used to graphically represent groups of data
  • Provides useful information for predicting future

performance

Rajesh Dhake

Step 1. Collect data and place it in a “Table”

Example1 : Pizza Shop

  • Let’s say the owner of pizza shop wants a distribution of Thursday Night’s Pizza Sales Data Set from last Thursday (Slices)

0 2 1 2 2 4 1 3 1 2 1 2 2 4 3 4 1 4 3 2 2 3 2 1 2 2 1 2 2 1 4 2 2 1 2 1 2 2 1 2 1 2 1 2 1 2 1 2 1 2 2 2 1 2 1 2 1 1 2 2 2 3 1 4 2 2 3 2 2 2 1 2 3 2 2 4 2 2 4 4 1 2 2 2 3 2 2 1 2 2 4 2 1 2 4 2 1 7 2 1 2 2 3 1 2 1 1 2 1 2 2 2 1 2 2 1 2 1 2 2 2 4 2 4

Rajesh Dhake

Example 1: Pizza Shop

Step 4. Calculate number of “Intervals” or “Cells”

into which data can be split

Use of Standard Table of Numbers N (# of Data Points) < 30 30- 50- 100-

(# of Intervals) Try Scatter Diagram 6- 8- 11-

As per table value, # of intervals should be between 11 & However, the range is 7 Hence, # of intervals is taken as 7 (least of the two)

In our example: No. of data points: 124

Rajesh Dhake

Use following formula:

where, n: number of data values (number of observations) k: number of classes/intervals

Step 4. Alternative Rule to calculate no. of “Intervals”

or “Cells” into which data can be split

2 k^ >= n

k >= log n / log 2

No. of Observations No. of Classes/Intervals 9 to 16 4 17 to 32 5 33 to 64 6 65 to 128 7 129 to 256 8

Rajesh Dhake

33

65

8 12 0 0 1 0

10

20

30

40

50

60

70

1 2 3 4 5 6 7

Slices of Pizza (Frequency)

Times Ordered (Interval)

Step 7. Draw the “Histogram”

Example 1: Pizza Shop

Rajesh Dhake

How is this helpful to Pizza Shop?

  • 2 slices of pizza most common order placed
  • Distribution of sales useful for forecasting next

Thursday’s late night demand

Example 1: Pizza Shop
