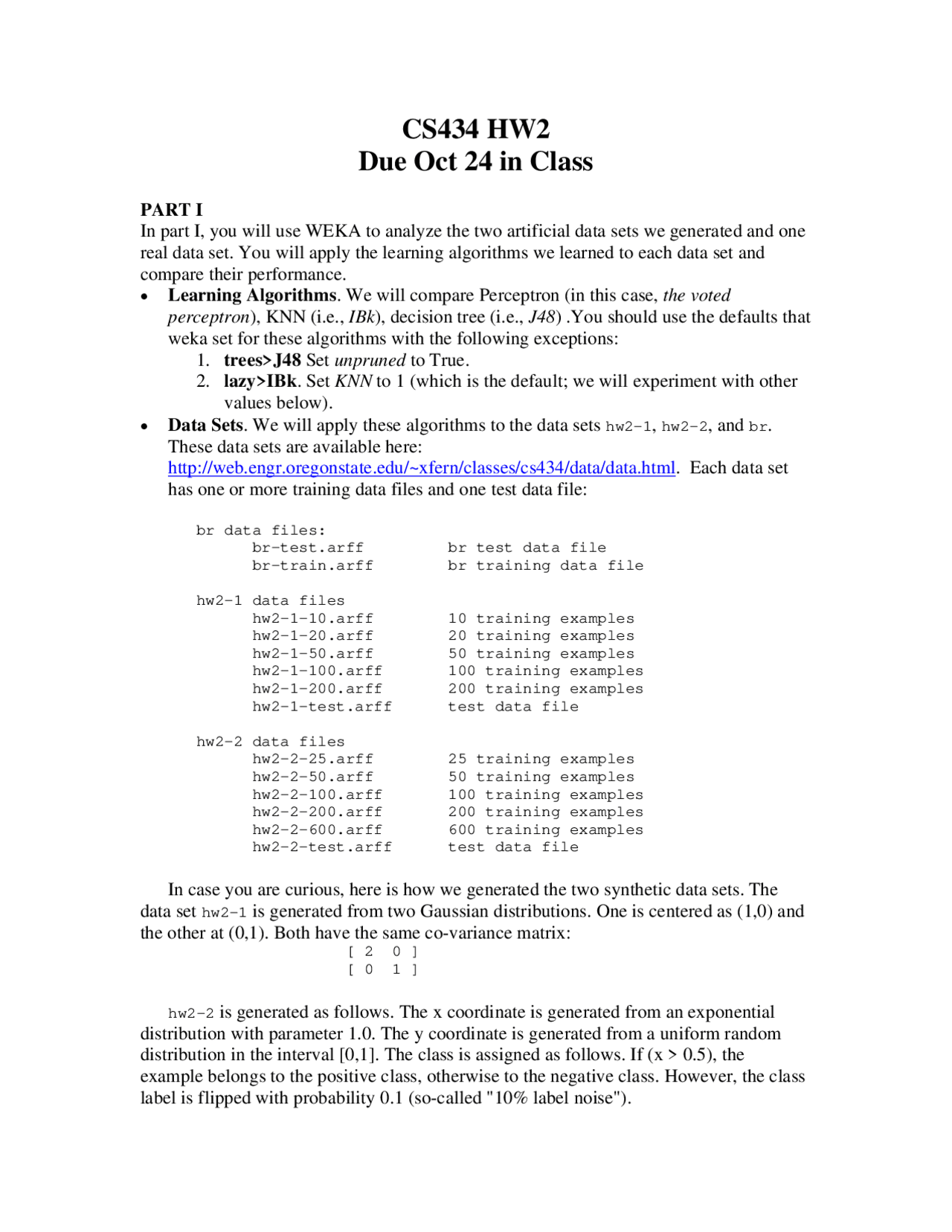

CS434 HW2
Due Oct 24 in Class
PART I
In part I, you will use WEKA to analyze the two artificial data sets we generated and one
real data set. You will apply the learning algorithms we learned to each data set and
compare their performance.
• Learning Algorithms. We will compare Perceptron (in this case, the voted
perceptron), KNN (i.e., IBk), decision tree (i.e., J48) .You should use the defaults that
weka set for these algorithms with the following exceptions:
1. trees>J48 Set unpruned to True.
2. lazy>IBk. Set KNN to 1 (which is the default; we will experiment with other
values below).
• Data Sets. We will apply these algorithms to the data sets hw2-1, hw2-2, and br.
These data sets are available here:
http://web.engr.oregonstate.edu/~xfern/classes/cs434/data/data.html. Each data set
has one or more training data files and one test data file:
br data files:
br-test.arff br test data file
br-train.arff br training data file
hw2-1 data files
hw2-1-10.arff 10 training examples
hw2-1-20.arff 20 training examples
hw2-1-50.arff 50 training examples
hw2-1-100.arff 100 training examples
hw2-1-200.arff 200 training examples
hw2-1-test.arff test data file
hw2-2 data files
hw2-2-25.arff 25 training examples
hw2-2-50.arff 50 training examples
hw2-2-100.arff 100 training examples
hw2-2-200.arff 200 training examples
hw2-2-600.arff 600 training examples
hw2-2-test.arff test data file
In case you are curious, here is how we generated the two synthetic data sets. The
data set hw2-1 is generated from two Gaussian distributions. One is centered as (1,0) and
the other at (0,1). Both have the same co-variance matrix:
[ 2 0 ]
[ 0 1 ]
hw2-2 is generated as follows. The x coordinate is generated from an exponential
distribution with parameter 1.0. The y coordinate is generated from a uniform random
distribution in the interval [0,1]. The class is assigned as follows. If (x > 0.5), the
example belongs to the positive class, otherwise to the negative class. However, the class
label is flipped with probability 0.1 (so-called "10% label noise").
pf3
pf4
pf5

Partial preview of the text

Download Homework 2 - Machine Learning and Data Mining | CS 434 and more Assignments Computer Science in PDF only on Docsity!

CS434 HW

Due Oct 24 in Class

PART I

In part I, you will use WEKA to analyze the two artificial data sets we generated and one real data set. You will apply the learning algorithms we learned to each data set and compare their performance.

  • Learning Algorithms. We will compare Perceptron (in this case, the voted perceptron ), KNN (i.e., IBk ), decision tree (i.e., J48 ) .You should use the defaults that weka set for these algorithms with the following exceptions: 1. trees>J48 Set unpruned to True. 2. lazy>IBk. Set KNN to 1 (which is the default; we will experiment with other values below).
  • Data Sets. We will apply these algorithms to the data sets hw2-1, hw2-2, and br. These data sets are available here: http://web.engr.oregonstate.edu/~xfern/classes/cs434/data/data.html. Each data set has one or more training data files and one test data file:

br data files: br-test.arff br test data file br-train.arff br training data file

hw2-1 data files hw2-1-10.arff 10 training examples hw2-1-20.arff 20 training examples hw2-1-50.arff 50 training examples hw2-1-100.arff 100 training examples hw2-1-200.arff 200 training examples hw2-1-test.arff test data file

hw2-2 data files hw2-2-25.arff 25 training examples hw2-2-50.arff 50 training examples hw2-2-100.arff 100 training examples hw2-2-200.arff 200 training examples hw2-2-600.arff 600 training examples hw2-2-test.arff test data file

In case you are curious, here is how we generated the two synthetic data sets. The data set hw2-1 is generated from two Gaussian distributions. One is centered as (1,0) and the other at (0,1). Both have the same co-variance matrix: [ 2 0 ] [ 0 1 ]

hw2-2 is generated as follows. The x coordinate is generated from an exponential distribution with parameter 1.0. The y coordinate is generated from a uniform random distribution in the interval [0,1]. The class is assigned as follows. If (x > 0.5), the example belongs to the positive class, otherwise to the negative class. However, the class label is flipped with probability 0.1 (so-called "10% label noise").

br is a hand written letter data set that contains letter b and r. Each example is described by 16 attributes corresponding to 16 pixels of a 4 by 4 image.

You will run the learning algorithms on each training data file and evaluate the results on the corresponding test data files.

  • Results. You should turn the following. Please provide print out of the results.
    1. A table in the following format:

N Method1 Method2 Method

hw2-1: 10 xxx yyy zzz 20 xxx yyy zzz 50 xxx yyy zzz 100 xxx yyy zzz 200 xxx yyy zzz

hw2-2: 25 xxx yyy zzz 50 xxx yyy zzz 100 xxx yyy zzz 200 xxx yyy zzz 600 xxx yyy zzz

br: 614 xxx yyy zzz

Where xxx, yyy, zzz give the error rates of each method on the test data. (Use “Supplied test set” for “Test Option” in the classify tab)

  1. Graphs of the results for hw2-1 and hw2-2 plotting the performance of each algorithm as a function of the size of the training data set (known as a "learning curve"). I recommend using Matlab, Gnuplot or Excel for constructing the graphs. WEKA does not provide an easy way to do this.
  2. Plot of the data points for hw2-1-200 and hw2-2-200 with lines showing the decision boundaries learned by Decision tree (J48). This will require that you read the decision tree and understand the decision boundary. J48 displayes the tree in the following format:

x1 <= 1.0: positive (75.0/17.0) x1 > 1. | x2 <= 5.0: negative (42.0/12.0) | x2 > 5.0: positive (33.0/10.0)

The first line indicates a split on feature x1 with threshold 1.0. The first branch leads to a leaf labeled "positive". The numbers in parentheses indicate that this

Once we have chosen an algorithm, it will be listed next to the “choose” button with its default parameter choices. To change these choices, click on it, you will be given an interface to modify parameters. Click the “More” button to get more information about the parameters. After setting parameters, click ok. Now we are ready to run the algorithm. Make sure you have the right test option and then click on the "Start" button, and the Classifier Output window will show the output from the classifier. This output consists of several sections:

  • Run Information: Details of the data set
  • Classifier model: The learned model. This part will be different for different algorithms. For example for Decision tree, it will display the learned decision tree.
  • Evaluation on test set: This gives various statistics. The key item is the second one: Incorrectly Classified Instances will be expressed as a count and a percentage. You should report the percentages in your answer. One other item of interest comes at the very end: The Confusion Matrix. This shows how many false positive and false negative errors were made.

PART II

Probability

1. (10pts) We have two identical bags. Bag A contains 4 red marbles and 6 black marbles and bag B contains 5 red marbles and 5 black marbles. Now we random chose a bag and drew a marble from the chosen bag and it turns out to be black. What is the probability that the chosen bag is bag A?

  1. (6pts) Suppose we have class variable Y and three attributes X 1, X 2, X 3 and we wish to calculate P ( Y | X 1 ;X 2 ;X 3 ), and we have no conditional independence information. (a) Which of the following sets of probabilities are sufficient for calculation? i. P ( Y ) ; P ( X 1 | Y ) ; P ( X 2 |Y ) ; P ( X 3 |Y ) ii. P ( X 1 ;X 2 ;X 3 ) ; P ( Y ) ; P ( X 1 ;X 2 ;X 3 |Y ) iii. P ( X 1 ;X 2 ;X 3 ) ; P ( Y |X 1 ) ; P ( Y |X 2 ) ; P ( Y |X 3 ) (b) Now suppose we know that the variables X 1, X 2 , X 3 are conditionally independent given the class variable Y. Which of the above 3 sets are sufficient now?

Decision tree

  1. (20 pts) Given the following data set:

The task is to build a decision tree for classifying Y. (a) Compute the information gain of attributes X, V and W respectively. (b) Use information gain for selecting test and produce the full decision tree generated by the top-down greedy algorithm described in class. (Stopping criterion: stop if all the instances belong to the same class.) (c) Considering the following two strategies for avoid over-fitting. i. The first strategy stops growing the tree when the information gain of the best test is less than a given threshold ε. ii. The second strategy grows the full tree first and then prunes the tree bottom- up: start from the lowest level of the tree and prune a sub-tree if the information gain of the test is less than a given threshold ε. (Note that you should stop checking level t if none of sub-trees at level t+1 satisfies the pruning criterion. Let ε be 0.001 for both cases, write down the resulting tree for each strategy and compare their training errors. (d) Discuss the advantages and disadvantages of each of these two strategies.
