The solutions to problem 1 and 2 from homework 7. Problem 1 involves determining the clb configuration for a verilog counter code, including mapping signals to the clb, and setting mux select lines for load and count operations. Problem 2 requires creating a rom based on a given truth table.
Typology: Assignments
1 / 2
This page cannot be seen from the preview
Don't miss anything!

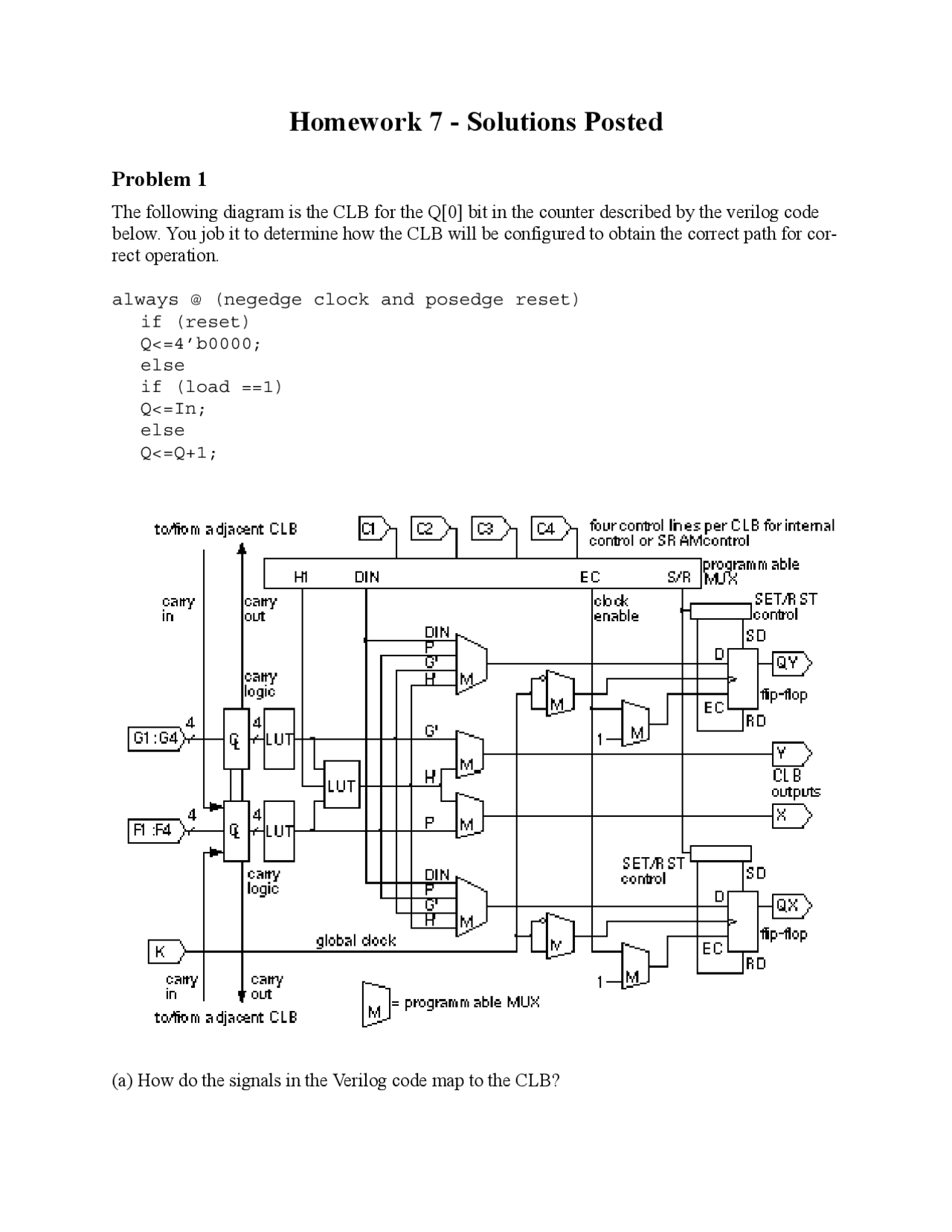

The following diagram is the CLB for the Q[0] bit in the counter described by the verilog code below. You job it to determine how the CLB will be configured to obtain the correct path for cor- rect operation.
always @ (negedge clock and posedge reset) if (reset) Q<=4’b0000; else if (load ==1) Q<=In; else Q<=Q+1;
(a) How do the signals in the Verilog code map to the CLB?
(b) If the CLB is set to perform a load, what will the mux select lines be set to? Assume the top input to the muxes is the “0” input and the bottom input is the “1” or “11” input for the 2 or 4 input mux respectively
(c) If the CLB is set to count, what will the mux select lines be set to?
Create a ROM for the following truth table.
Table 1:
Address Bit1 Bit
0 0 0 1 0
0 0 1 0 1
0 1 0 1 1
0 1 1 1 1
1 0 0 0 0
1 0 1 0 0
1 1 0 1 0
1 1 1 0 1
