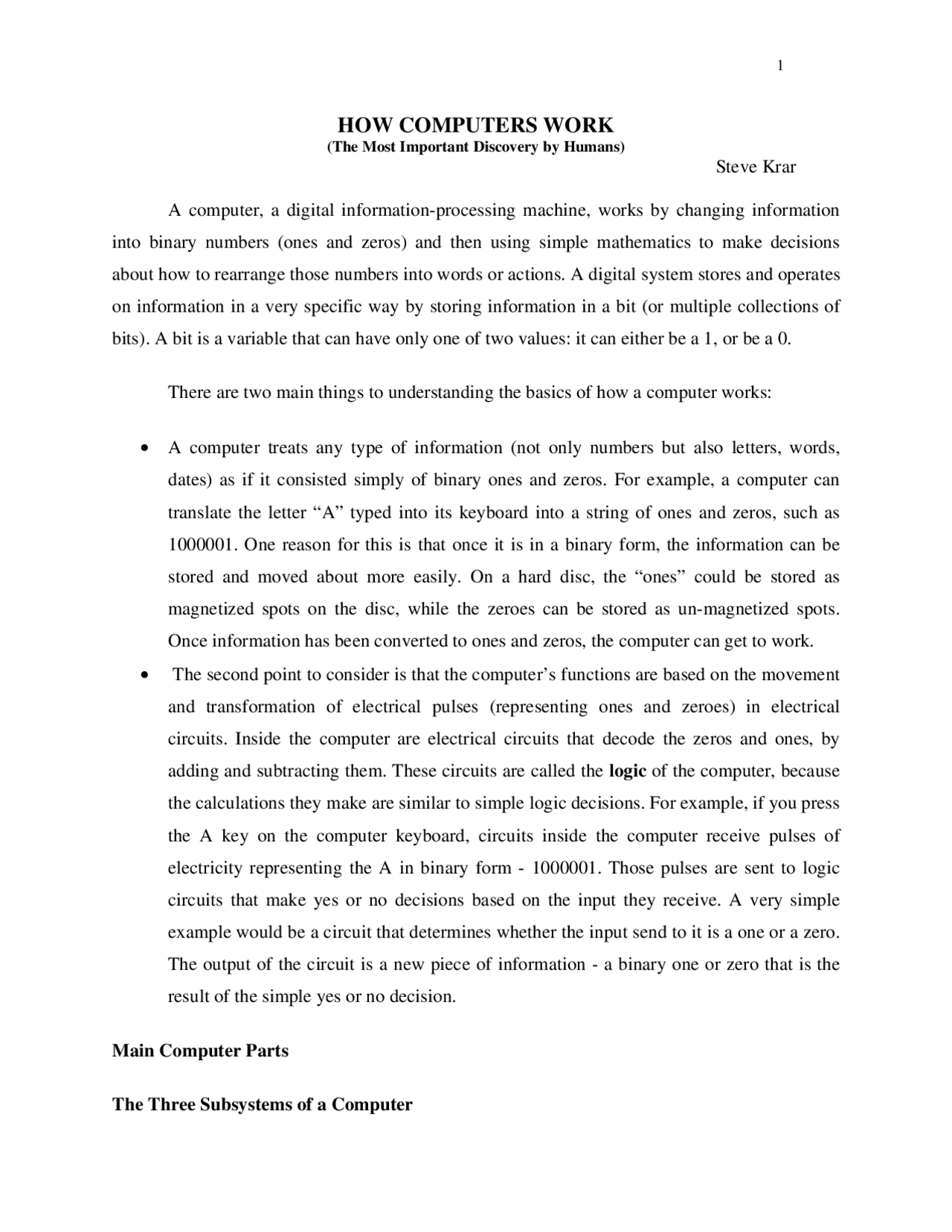

HOW COMPUTERS WORK
(The Most Important Discovery by Humans)
Steve Krar
A computer, a digital information-processing machine, works by changing information
into binary numbers (ones and zeros) and then using simple mathematics to make decisions
about how to rearrange those numbers into words or actions. A digital system stores and operates
on information in a very specific way by storing information in a bit (or multiple collections of
bits). A bit is a variable that can have only one of two values: it can either be a 1, or be a 0.
There are two main things to understanding the basics of how a computer works:
A computer treats any type of information (not only numbers but also letters, words,
dates) as if it consisted simply of binary ones and zeros. For example, a computer can
translate the letter “A” typed into its keyboard into a string of ones and zeros, such as
1000001. One reason for this is that once it is in a binary form, the information can be
stored and moved about more easily. On a hard disc, the “ones” could be stored as
magnetized spots on the disc, while the zeroes can be stored as un-magnetized spots.
Once information has been converted to ones and zeros, the computer can get to work.
The second point to consider is that the computer’s functions are based on the movement
and transformation of electrical pulses (representing ones and zeroes) in electrical
circuits. Inside the computer are electrical circuits that decode the zeros and ones, by
adding and subtracting them. These circuits are called the logic of the computer, because
the calculations they make are similar to simple logic decisions. For example, if you press
the A key on the computer keyboard, circuits inside the computer receive pulses of
electricity representing the A in binary form - 1000001. Those pulses are sent to logic
circuits that make yes or no decisions based on the input they receive. A very simple
example would be a circuit that determines whether the input send to it is a one or a zero.
The output of the circuit is a new piece of information - a binary one or zero that is the
result of the simple yes or no decision.
Main Computer Parts
The Three Subsystems of a Computer
pf3

Partial preview of the text

Download HOW COMPUTERS WORK and more Schemes and Mind Maps Mathematics in PDF only on Docsity!

HOW COMPUTERS WORK

(The Most Important Discovery by Humans) Steve Krar A computer, a digital information-processing machine, works by changing information into binary numbers (ones and zeros) and then using simple mathematics to make decisions about how to rearrange those numbers into words or actions. A digital system stores and operates on information in a very specific way by storing information in a bit (or multiple collections of bits). A bit is a variable that can have only one of two values: it can either be a 1, or be a 0.

There are two main things to understanding the basics of how a computer works:

  • A computer treats any type of information (not only numbers but also letters, words, dates) as if it consisted simply of binary ones and zeros. For example, a computer can translate the letter “A” typed into its keyboard into a string of ones and zeros, such as
    1. One reason for this is that once it is in a binary form, the information can be stored and moved about more easily. On a hard disc, the “ones” could be stored as magnetized spots on the disc, while the zeroes can be stored as un-magnetized spots. Once information has been converted to ones and zeros, the computer can get to work.
  • The second point to consider is that the computer’s functions are based on the movement and transformation of electrical pulses (representing ones and zeroes) in electrical circuits. Inside the computer are electrical circuits that decode the zeros and ones, by adding and subtracting them. These circuits are called the logic of the computer, because the calculations they make are similar to simple logic decisions. For example, if you press the A key on the computer keyboard, circuits inside the computer receive pulses of electricity representing the A in binary form - 1000001. Those pulses are sent to logic circuits that make yes or no decisions based on the input they receive. A very simple example would be a circuit that determines whether the input send to it is a one or a zero. The output of the circuit is a new piece of information - a binary one or zero that is the result of the simple yes or no decision.

Main Computer Parts

The Three Subsystems of a Computer

  1. CPU or Central Processing Unit’s main component is its microprocessor or heart of the computer. Microprocessors take in groups of bits that are called instructions. These instructions tell the microprocessor what and how it should handle the information.
  2. Memory does exactly what its name implies - it remembers the values of bits. It can either store bits sent to it by the CPU or return the values of those bits back to the CPU.

ƒ Random Access Memory (RAM) - is named the way it is because it is supposed to signify that you can "randomly access" any bit in the memory at any time. For this reason, when you turn a computer off, all data stored in the RAM is lost; it just leaks away. ƒ Disk Drives - there are several different types of disk drives: a) Hard Disk - uses a spinning magnetic platter(s), bits are stored in the magnetic field of this platter. Hard disks can store enormous amounts of data (40 gigabytes or more), but it is slower to access them than it is to access RAM. They don't lose their value when the power is turned off. b) Floppy Disk - similar to a hard disk, just a lot less dense; they usually only store about 1.4 megabytes. Floppy disks get their name because their platter isn't made out of a hard material, but rather out of the same material that tapes are made out of. c) CD-ROM - Reads bits stored on a compact disk, usually about 650 or 700 megabytes per disk. Bits are stored as grooves in the disk surface, and an optical laser is used to read the bits.

The Motherboard

All computers have a motherboard that is a circuit board to connect all of the various parts of a computer together. Its main purpose is to hold the CPU and the connections between the CPU and all the other subsystems. The RAM of the computer is found on the motherboard. Most motherboards have places where other types of devices such as graphics accelerator cards and network cards, can be inserted to extend or enhance the capabilities of the computer.
