Image Enhancement - Computer Graphics and Image Processing - Lecture Slides, Slides of Computer Graphics

Aligarh Muslim UniversityComputer Graphics

Main points of this lecture are: Image Enhancement, Kinds of Image Enhancement, Histogram Processing, Point Processing, Neighbourhood Operations, Spatial Domain, Enhancement Techniques, Frequency Domains, Contrast Stretching, Equalisation Transformation

Typology: Slides

2012/2013

Uploaded on 04/23/2013

ashavari
ashavari 🇮🇳

4.3

(15)

132 documents

1 / 13

Toggle sidebar

This page cannot be seen from the preview

Don't miss anything!

bg1
Contents
Over the next few lectures we will look at image
enhancement techniques working in the spatial
domain:
–What is image enhancement?
–Different kinds of image enhancement
–Histogram processing
–Point processing
–Neighbourhood operations
Docsity.com
pf3
pf4
pf5
pf8
pf9
pfa
pfd

Partial preview of the text

Download Image Enhancement - Computer Graphics and Image Processing - Lecture Slides and more Slides Computer Graphics in PDF only on Docsity!

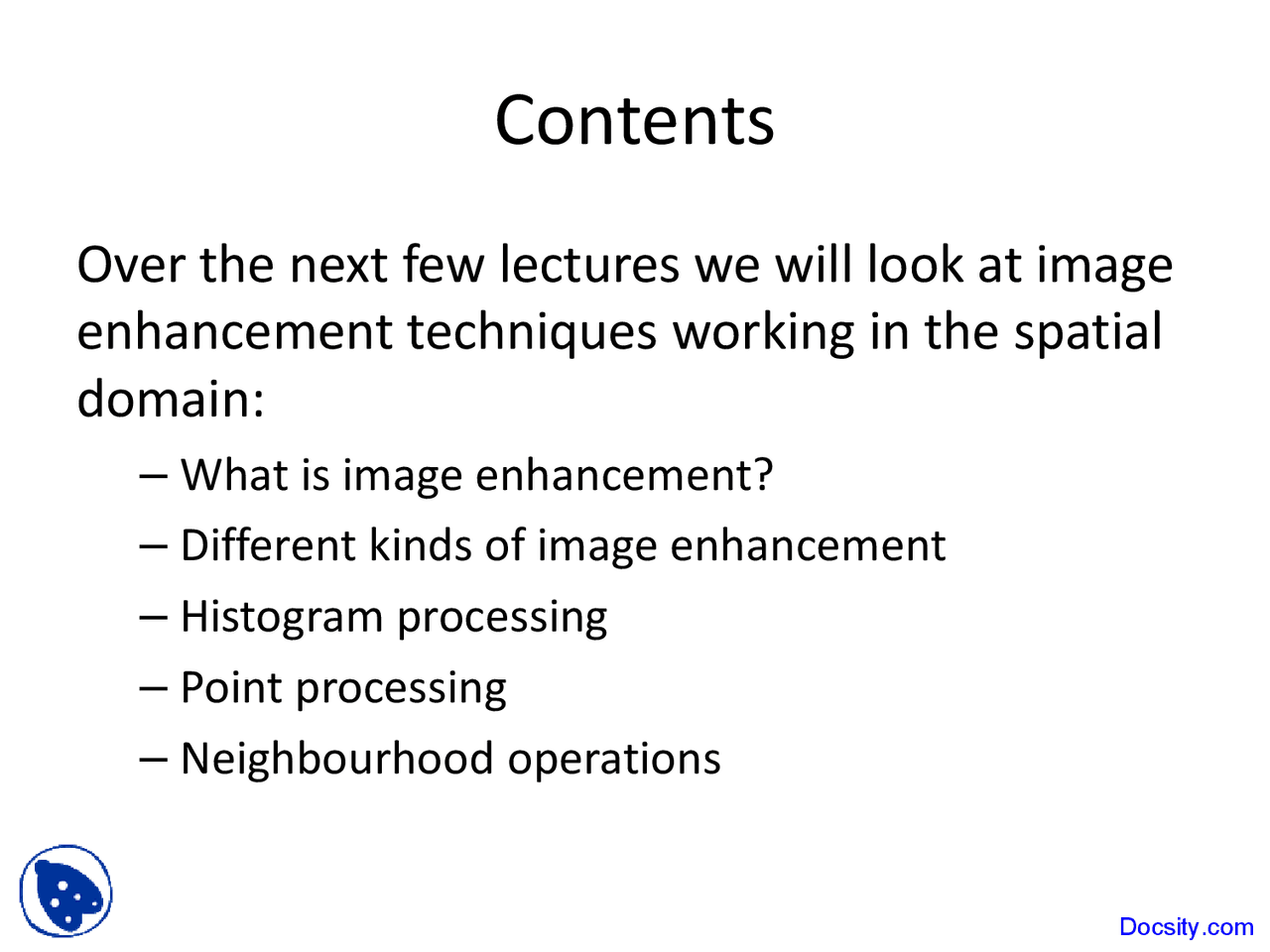

Contents
