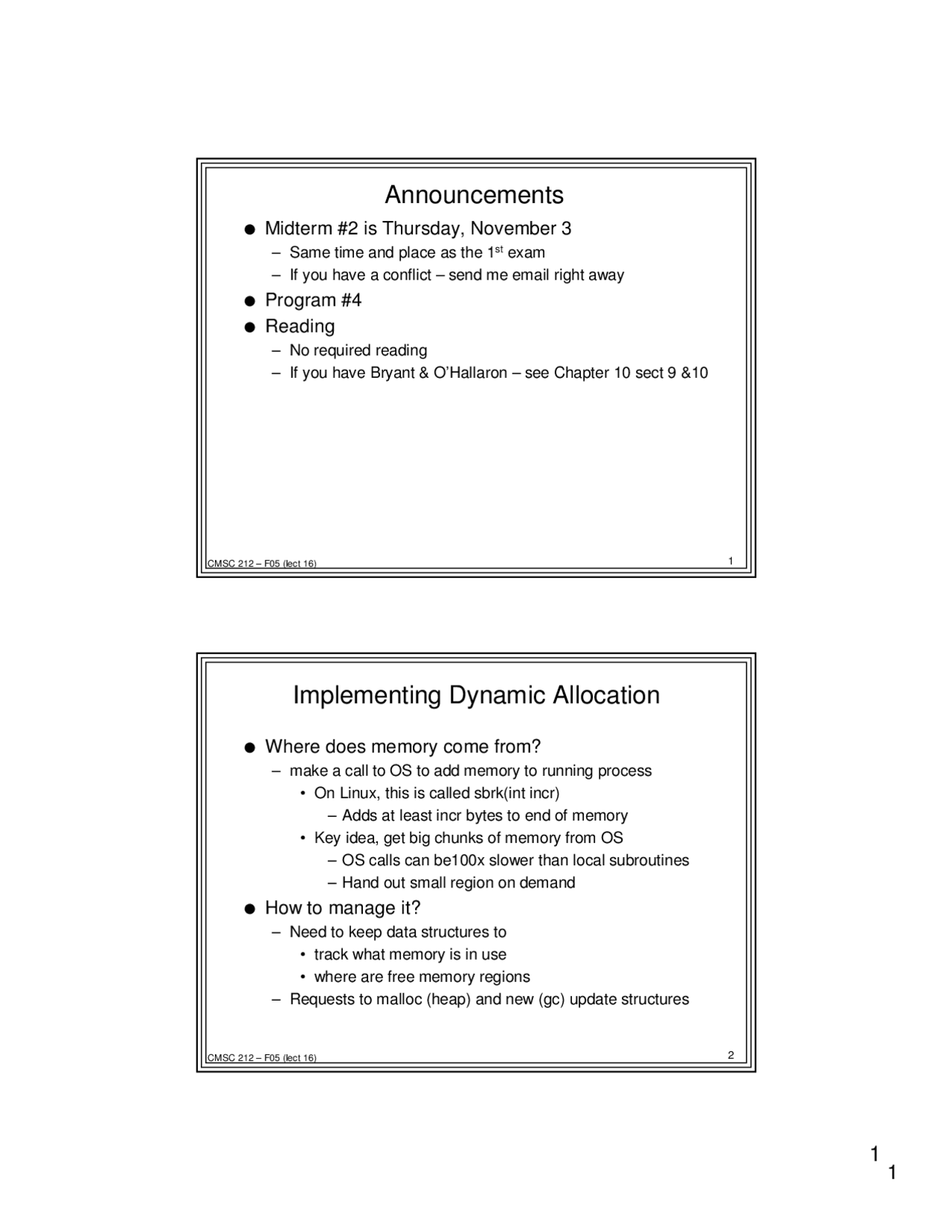

CMSC 212 – F05 (lect 16)^1
Announcements
l Midterm #2 is Thursday, November 3
- Same time and place as the 1st^ exam
- If you have a conflict – send me email right away
l Program
l Reading
- No required reading
- If you have Bryant & O’Hallaron – see Chapter 10 sect 9 &
CMSC 212 – F05 (lect 16)^2
Implementing Dynamic Allocation
l Where does memory come from?
- make a call to OS to add memory to running process
- On Linux, this is called sbrk(int incr)
- Adds at least incr bytes to end of memory
- Key idea, get big chunks of memory from OS
- OS calls can be100x slower than local subroutines
- Hand out small region on demand
l How to manage it?
- Need to keep data structures to
- track what memory is in use
- where are free memory regions
- Requests to malloc (heap) and new (gc) update structures
CMSC 212 – F05 (lect 16)^3
Heap Manager Requirements
l Handle arbitrary sequence of requests to allocate and
deallocate
- other than a free of an address can't occur before the corresponding malloc.
l Must respond immediately
- can't wait for other requests (can’t buffer the requests)
l All data it uses must be stored in the heap itself
l Must be aligned so as to hold any data
- roundup the the next natural alignment if needed
l Can't modify allocated blocks by changing size etc.
- pointers exist in the program
- must only modify free blocks of memory
CMSC 212 – F05 (lect 16)^4
Heap Manager Goals
l Maximize Throughput
- need each request to be fast
- often ok if average is fast (some calls might be slow)
l Minimize Wasted Space
- What is the peak utilization of memory?
- How much space is wasted at the peak?
– Avoid Fragmentation
- wastes space
- Internal - allocated space larger than malloc request because of need to cut on “natural boundaries”
- External - insufficient free space due to many small free blocks as in a series of free and malloc that left the available blocks in a unusable configuration
CMSC 212 – F05 (lect 16)^7
Coalescing Free Blocks
l After free, may have up to three free units in a row
- one before and one after and the newly freed block
l Merge a sequence of free blocks into a larger one
l Might causing repeated split/merging
- consider {malloc(n),free(n)}*
- if the first malloc involves a split, rest will too
l Coalescing Implementation
- Update first header block to be size of full free space
- How to find the previous header?
- search from start of list
- include footer at end of block (also with size)
- include explicit back pointer
- store address of previous header in header
CMSC 212 – F05 (lect 16)^8
A Heap Implementation
#include <stdio.h> #include <unistd.h>
typedef struct _header { unsigned int size:29; unsigned int unusedBits:2; unsigned int allocated:1; struct _header *prev; } header;
#define HEAP_INCR (1024 * 1024) static header *heap;
void mm_init() { header *end; heap = (header ) sbrk(HEAP_INCR ); heap->size = (HEAP_INCR- (2sizeof(header)))>>3; heap->allocated = 0; heap->prev = NULL;
end = heap + heap->size - 1; end->allocated = 0; end->size = 0; end->prev = heap;
CMSC 212 – F05 (lect 16)^9
void *mm_alloc(unsigned int size) { header *curr, *temp, next; if (!heap) mm_init(); for (curr=heap;; curr = curr + curr->size + 1) { if (curr->size >= size && !curr->allocated) { temp = curr + ((size + 7) >> 3) + 1; next = curr + curr->size + 1; if (temp < (next - 1)) { / split current node */ temp->size = next - temp - 1; temp->allocated = 0; temp->prev = curr; next->prev = temp; curr->size = temp - curr - 1; curr->allocated = 1; } return ((void *)(curr + 1));
CMSC 212 – F05 (lect 16)^10
mm_allocate (cont)
} else if (!curr->size) { /* no room in the heap, grow heap */ temp = (header ) sbrk(HEAP_INCR); if (!temp) return NULL; curr->size = (HEAP_INCR- sizeof(header))>>3; curr->allocated = 0; / update new end */ } } }
CMSC 212 – F05 (lect 16)^13
How to make heaps safer
l aux tag storage
- create additional (redundant) info elsewhere in heap
l preamble/trailer with known patterns
- allocate 2 * Y bytes extra
- fill out first and last Y bytes with a known pattern (non-zero)
- return ptr Y bytes into region
- on free (or when user requests)
- verify y bytes at start and end haven't changed
l mcheck_pedantic(NULL);
CMSC 212 – F05 (lect 16)^14
Garbage Collection
l What is Garbage?
- memory the program can't get to anymore
- Example:
- ptr = malloc(40);
- ptr = NULL;
l How to detect Garbage?
- Need to know what is a pointer
- know what everything is (Java)
- guess anything that looks like a pointer is one (C)
- any 32-bit quantity in globals or on stack is assumed to be a pointer
- anything in a memory region pointed to
- Compute reachability graph
CMSC 212 – F05 (lect 16)^15
Reachability Graph
Not-reachable (garbage) Reachable^ variables (Inside the program)
CMSC 212 – F05 (lect 16)^16
Mark and Sweep Garbage Collection
l Mark Function
- each allocated block has a "marked" field
- isPtr returns header for ptr (if in heap) or null
void mark(ptr p) { ptr b; b = isPtr(p); if (!b) return; if (b->marked) return; b->marked = 1; for (i=0; i < b->size; i++) { mark(b + i + 1); } }
