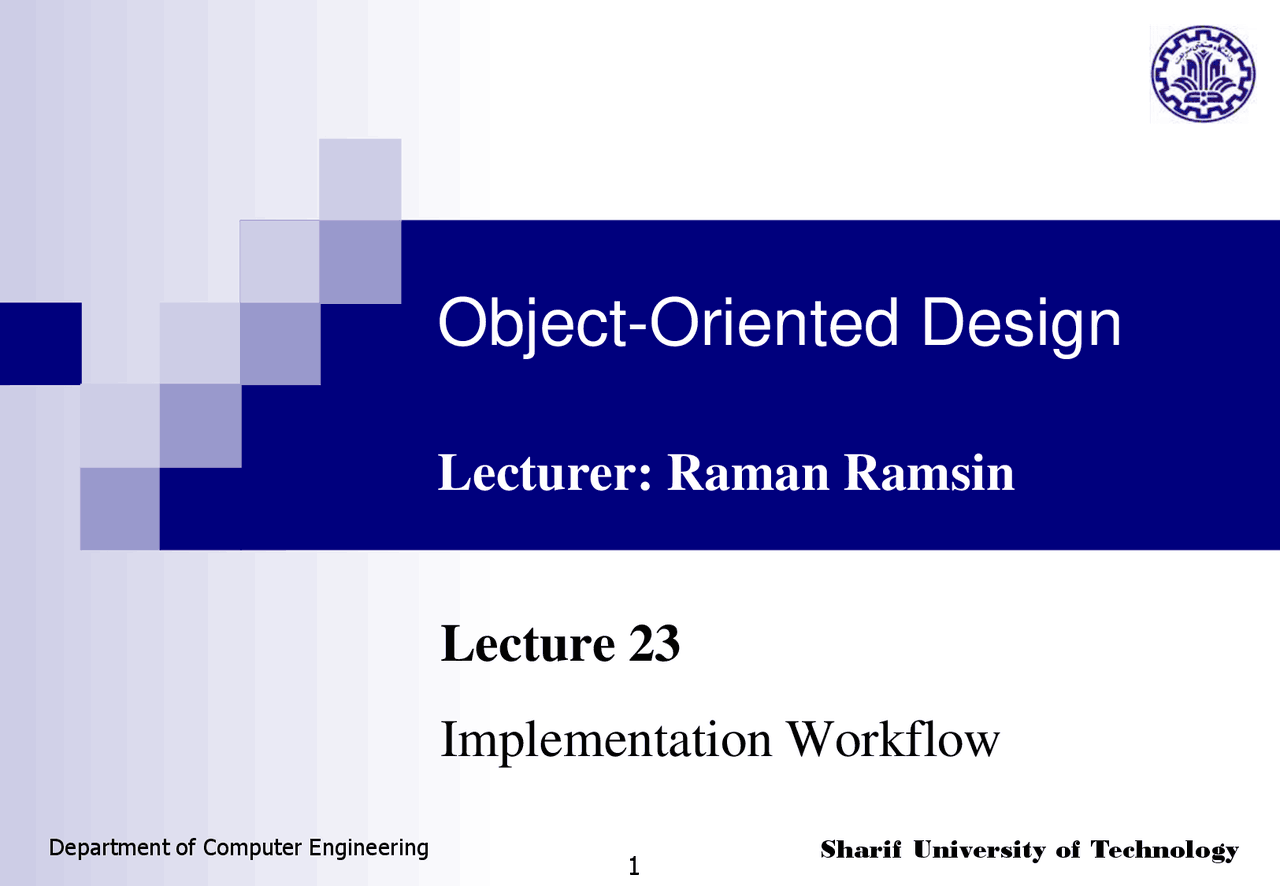

Department of Computer Engineering
Sharif University of Technology
Object-Oriented Design
Lecturer: Raman Ramsin
Lecture 23
Implementation Workflow
Department of Computer Engineering
Sharif University of Technology
Implementation Workflow Implementation is primarily about creating code. However, the OO analyst/designer may be called on to create an implementation model. This workflow is the main focus of the Construction phase. The Implementation Workflow consists of the following activities: Architectural Implementation Integrate System Implement a Component Implement a Class Perform Unit Test
Department of Computer Engineering
Sharif University of Technology
Implementation Model
Department of Computer Engineering
Sharif University of Technology
Deployment Diagram: Descriptor Form The descriptor form deployment diagram may be used to model what types of hardware, software, and connections there will be in the final deployed system. It describes a whole set of possible deployments.
Department of Computer Engineering
Sharif University of Technology
Deployment Diagram: Artifacts Artifact - represents the specification of a real-world thing such as a particular executable file, source file, document or database table. Artifacts can manifest one or more components. Artifact instance - represents a specific instance of a particular artifact, such as a specific copy of a particular executable file deployed on a particular machine.
Department of Computer Engineering
Sharif University of Technology
Artifacts: Example
Department of Computer Engineering
Sharif University of Technology
Artifacts: Profile Stereotypes – Example
Department of Computer Engineering
Sharif University of Technology
Deployment Diagram: Complete Example
