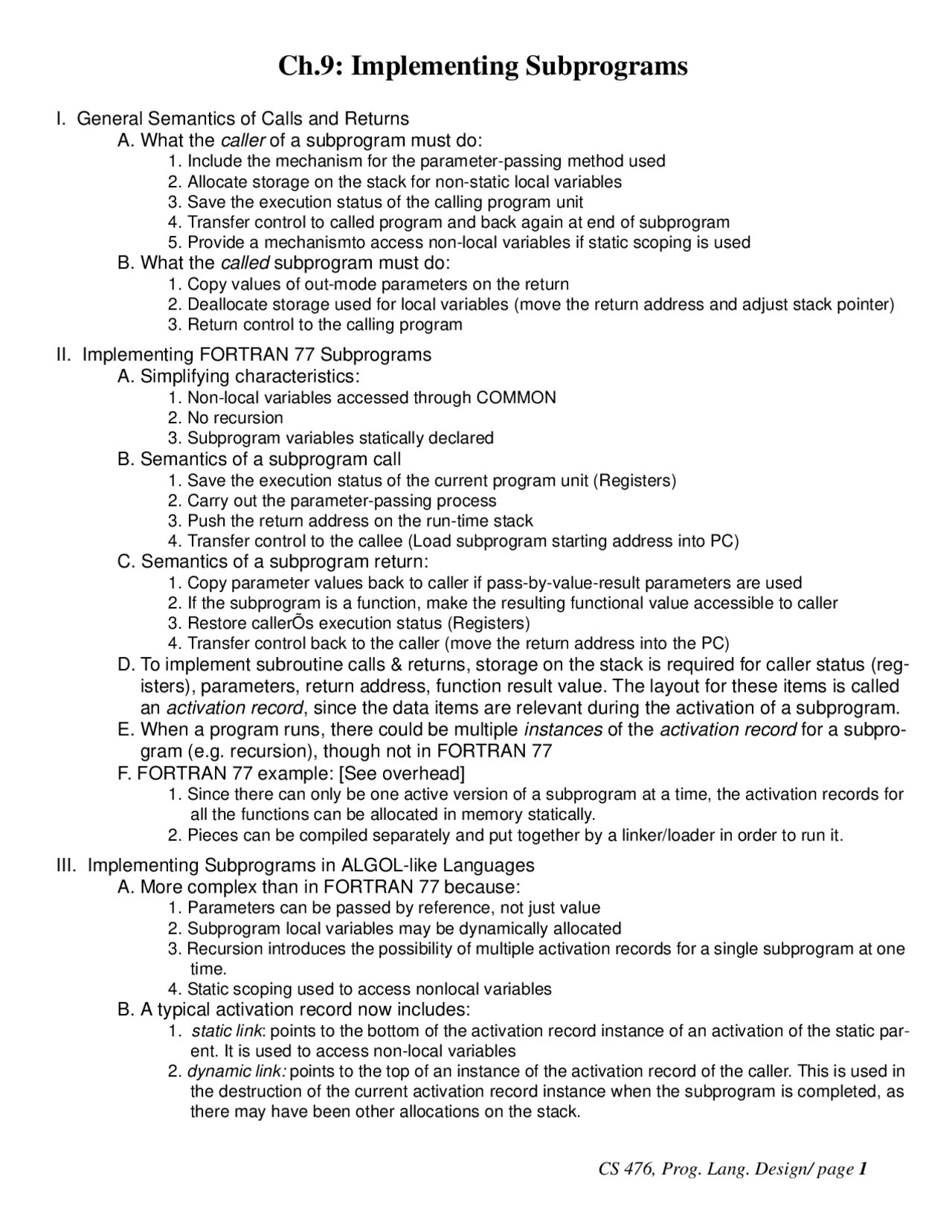

CS 476, Prog. Lang. Design/ page 1

Ch.9: Implementing Subprograms

I. General Semantics of Calls and Returns

A. What the caller of a subprogram must do:

1. Include the mechanism for the parameter-passing method used

2. Allocate storage on the stack for non-static local variables

3. Save the execution status of the calling program unit

4. Transfer control to called program and back again at end of subprogram

5. Provide a mechanismto access non-local variables if static scoping is used

B. What the called subprogram must do:

1. Copy values of out-mode parameters on the return

2. Deallocate storage used for local variables (move the return address and adjust stack pointer)

3. Return control to the calling program

II. Implementing FORTRAN 77 Subprograms

A. Simplifying characteristics:

1. Non-local variables accessed through COMMON

2. No recursion

3. Subprogram variables statically declared

B. Semantics of a subprogram call

1. Save the execution status of the current program unit (Registers)

2. Carry out the parameter-passing process

3. Push the return address on the run-time stack

4. Transfer control to the callee (Load subprogram starting address into PC)

C. Semantics of a subprogram return:

1. Copy parameter values back to caller if pass-by-value-result parameters are used

2. If the subprogram is a function, make the resulting functional value accessible to caller

3. Restore callerÕs execution status (Registers)

4. Transfer control back to the caller (move the return address into the PC)

D. To implement subroutine calls & returns, storage on the stack is required for caller status (reg-

isters), parameters, return address, function result value. The layout for these items is called

an activation record, since the data items are relevant during the activation of a subprogram.

E. When a program runs, there could be multiple instances of the activation record for a subpro-

gram (e.g. recursion), though not in FORTRAN 77

F. FORTRAN 77 example: [See overhead]

1. Since there can only be one active version of a subprogram at a time, the activation records for

all the functions can be allocated in memory statically.

2. Pieces can be compiled separately and put together by a linker/loader in order to run it.

III. Implementing Subprograms in ALGOL-like Languages

A. More complex than in FORTRAN 77 because:

1. Parameters can be passed by reference, not just value

2. Subprogram local variables may be dynamically allocated

3. Recursion introduces the possibility of multiple activation records for a single subprogramat one

time.

4. Static scoping used to access nonlocal variables

B. A typical activation record now includes:

1. static link: points to the bottom of the activation record instance of an activation of the static par-

ent. It is used to access non-local variables

2. dynamic link: points to the top of an instance of the activation record of thecaller. This is used in

the destruction of the current activation record instance when the subprogram is completed, as

there may have been other allocations on the stack.

Partial preview of the text

Download Implementing Subprograms - Lecture Notes | CS 476 and more Study notes Programming Languages in PDF only on Docsity!

Ch.9: Implementing Subprograms

I. General Semantics of Calls and Returns A. What the caller of a subprogram must do:

Include the mechanism for the parameter-passing method used
Allocate storage on the stack for non-static local variables
Save the execution status of the calling program unit
Transfer control to called program and back again at end of subprogram
Provide a mechanismto access non-local variables if static scoping is used B. What the called subprogram must do:
Copy values of out-mode parameters on the return
Deallocate storage used for local variables (move the return address and adjust stack pointer)
Return control to the calling program

II. Implementing FORTRAN 77 Subprograms A. Simplifying characteristics:

Non-local variables accessed through COMMON
No recursion
Subprogram variables statically declared B. Semantics of a subprogram call
Save the execution status of the current program unit (Registers)
Carry out the parameter-passing process
Push the return address on the run-time stack
Transfer control to the callee (Load subprogram starting address into PC) C. Semantics of a subprogram return:
Copy parameter values back to caller if pass-by-value-result parameters are used
If the subprogram is a function, make the resulting functional value accessible to caller
Restore callerÕs execution status (Registers)
Transfer control back to the caller (move the return address into the PC) D. To implement subroutine calls & returns, storage on the stack is required for caller status (reg- isters), parameters, return address, function result value. The layout for these items is called an activation record , since the data items are relevant during the activation of a subprogram. E. When a program runs, there could be multiple instances of the activation record for a subpro- gram (e.g. recursion), though not in FORTRAN 77 F. FORTRAN 77 example: [See overhead]
Since there can only be one active version of a subprogram at a time, the activation records for all the functions can be allocated in memory statically.
Pieces can be compiled separately and put together by a linker/loader in order to run it.

III. Implementing Subprograms in ALGOL-like Languages A. More complex than in FORTRAN 77 because:

Parameters can be passed by reference, not just value
Subprogram local variables may be dynamically allocated
Recursion introduces the possibility of multiple activation records for a single subprogram at one time.
Static scoping used to access nonlocal variables B. A typical activation record now includes:
static link : points to the bottom of the activation record instance of an activation of the static par- ent. It is used to access non-local variables
dynamic link: points to the top of an instance of the activation record of the caller. This is used in the destruction of the current activation record instance when the subprogram is completed, as there may have been other allocations on the stack.

C. The order of items on the activation record is significant: return address, static & dynamic links, parameters, local variables. (This may be a bit different in practice...) D. See example of a simple activation record on the [overhead] E. An Example without recursion and nonlocal references [overhead] F. An Example with recursion [overhead] G. Mechanisms for Implementing Nonlocal References

Background: a. A two-step process: (1). Find the instance of the activation record (2). Use the local offset of the variable within the activation record instance. b. Note that a procedure is callable only when all of its static ancestor program units are active. c. As in the case of recursion, the parent scope activation record need not be adjacent to the child's activation record.
Static Chain: a chain of static links connecting certain activation record instances in the stack a. During execution, the static link of an ARI (Activation Record Instance) P points to an ARI of P's static parent unit. This continues for the parent, etc., giving a static chain con- necting all the static ancestors of P. b. At compile time the compiler can determine not only the length of the chain needed to access a nonlocal variable, but the offset within the ARI as well. This is done as follows: (1). Static depth is the depth of nesting from the outermost scope, with the main pro- gram being depth 0. (2). The nesting depth (a.k.a. chain offset ) between a calling procedure and the called variable is the difference between the static depth of the calling procedure and the static depth of the procedure containing the declaration for the called vari- able. (3). The local offset within an ARI can be determined at compile time as well, so actual variable names themselves need not be stored in the ARI (4). These concepts are illustrated in the [overheads] (5). Note that the (chain,local) offsets are determined statically, as the compiler keeps track of nesting information to verify scopes as compilation progresses. c. Returning from a subprogram means simply removing the subprogram's ARI from the stack d. Calling a subprogram means the most recent activation record instance of the parent scope must be found. (1). This situation can be treated the same as non-local variable references explained above, giving a compile-time computed static_depth to be traversed when the subroutine is called at run-time. This traversal will give the ARI of the static scope parent to which the new subroutine's ARI's static link should point. (2). To create the static links, first find the static distance (chain offset) between the caller and the parent scope of the subprogram being called. Then set the static link of the ARI of the subprogram being called to be the caller’s ARI + the chain offset. e. Problem: references to variables beyond the static parent are costly, since a potentially lengthy chain may need to be followed. (e.g. when there are many nested levels and a ref- erenced variable is at the outermost level - the chain must be followed all the way.)

VI. Implementing Parameters that are Subprogram Names A. Static Chaining -The caller and callee must share a static ancestor, which should be the static parent of the callee. The address of this static parent is then passed along with the subprogram name, where this address is then used to set the static link in the callee's ARI. B. Displays

It is possible that the entire display must be stored and replaced, as the callee could have an entirely different path of static ancestors.
