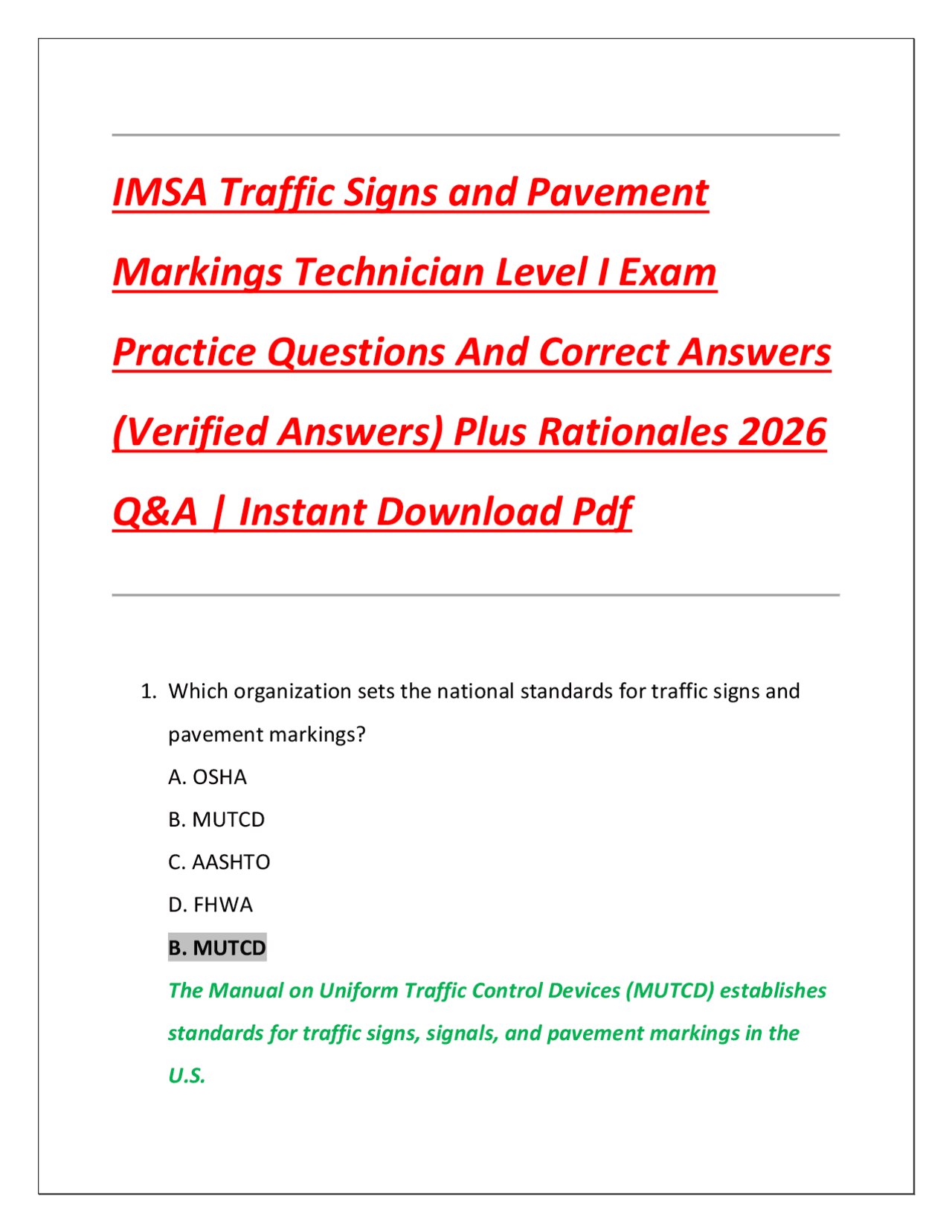

IMSA Traffic Signs and Pavement
Markings Technician Level I Exam
Practice Questions And Correct Answers
(Verified Answers) Plus Rationales 2026
Q&A | Instant Download Pdf
- Which organization sets the national standards for traffic signs and pavement markings? A. OSHA B. MUTCD C. AASHTO D. FHWA B. MUTCD The Manual on Uniform Traffic Control Devices (MUTCD) establishes standards for traffic signs, signals, and pavement markings in the U.S.
- What color background is typically used for warning signs? A. Red B. Yellow C. Blue D. Green B. Yellow Yellow indicates general warnings and cautionary messages.
- What is the purpose of a regulatory sign? A. Guide drivers B. Warn of hazards C. Control traffic by law D. Provide tourist information C. Control traffic by law Regulatory signs convey rules that must be obeyed, such as speed limits.
- What shape is commonly used for stop signs? A. Circle B. Octagon C. Triangle D. Rectangle B. Octagon Stop signs are octagonal to provide a unique shape recognizable from a distance.
- Which type of pavement marking separates lanes moving in the same direction? A. Solid white line B. Broken white line C. Solid yellow line D. Broken yellow line B. Broken white line Broken white lines indicate lanes moving in the same direction that can be crossed.
- What type of line prohibits crossing? A. Broken white line B. Broken yellow line C. Solid yellow or white line D. Double broken line C. Solid yellow or white line Solid lines indicate that lane changes are not allowed.
- A sign with a red circle and a diagonal slash indicates: A. Warning B. Regulatory – Prohibition C. Guidance D. Construction B. Regulatory – Prohibition
The red circle with a slash universally indicates that an action is not allowed.
- When installing a stop sign, the bottom of the sign should be how many feet above the roadway? A. 3 feet B. 5 feet C. 7 feet D. 10 feet C. 7 feet MUTCD specifies a minimum of 7 feet from the bottom of the sign to the surface of the roadway in urban areas.
- What is the minimum retroreflectivity requirement for traffic signs? A. 50 cd/lx/m² B. 100 cd/lx/m² C. 150 cd/lx/m² D. Varies by sign type D. Varies by sign type Retroreflectivity standards differ depending on sign size, type, and location as per MUTCD.
- Which color is used for emergency management or incident management signs? A. Red
B. Triangle pointing down C. Square D. Pentagon B. Triangle pointing down A downward-pointing triangle universally indicates yield.
- What is the purpose of a work zone sign? A. Provide guidance B. Alert drivers to construction or maintenance C. Indicate services D. Give speed limits B. Alert drivers to construction or maintenance Work zone signs are temporary signs used to warn of roadway work and changed conditions.
- What color is used for recreational or cultural interest signs? A. Blue B. Brown C. Green D. Orange B. Brown Brown is used for parks, historic sites, and recreational areas.
- A broken yellow line alongside a solid yellow line means: A. Passing is allowed on both sides B. Passing is allowed only on the side with the broken line
C. Passing is prohibited on both sides D. Passing is allowed only at night B. Passing is allowed only on the side with the broken line The broken line side may cross to pass, while the solid line side may not.
- What is the minimum height for sign placement in rural areas? A. 5 feet B. 7 feet C. 10 feet D. 12 feet B. 7 feet MUTCD requires a minimum of 7 feet from the bottom of the sign to the roadway in rural areas.
- Which type of sign is blue with a white “H”? A. Warning B. Regulatory C. Guide – Hospital D. Construction C. Guide – Hospital Blue signs indicate services; the “H” denotes hospital access.
- What marking is used to indicate a bicycle lane? A. Solid white line with bike symbol B. Broken white line
B. Loading zones or limited parking C. Handicap parking D. Fire lane B. Loading zones or limited parking White curbs generally indicate areas for short-term parking or loading/unloading.
- What is the purpose of raised pavement markers? A. Decorate roads B. Reflect light to guide drivers C. Replace signs D. Indicate speed limits B. Reflect light to guide drivers Raised markers enhance lane visibility, especially at night or in adverse conditions.
- What color is used for disabled parking signs? A. Red B. Blue C. Green D. Yellow B. Blue Blue is the standard color for accessible parking designations.
- What is the meaning of a flashing yellow traffic signal? A. Stop immediately
B. Proceed with caution C. Yield to pedestrians only D. Speed up B. Proceed with caution Flashing yellow signals warn drivers to slow down and proceed carefully.
- Which type of sign indicates a dead-end street? A. Regulatory B. Warning C. Guide D. Service B. Warning Dead-end signs warn drivers that the roadway has no outlet.
- How is a one-way street typically marked? A. Two-way arrow B. One-way arrow sign and lane markings C. Stop sign D. Yield sign B. One-way arrow sign and lane markings One-way streets are indicated by both signs and directional lane markings.
- What is the meaning of a solid white edge line? A. Lane separation
B. Rectangular guide sign C. Regulatory stop sign D. Service sign A. Diamond-shaped warning sign Merging traffic is indicated by a yellow diamond warning sign with merging lane graphic.
- A raised yellow pavement marker indicates: A. Lane separation for same-direction traffic B. Lane separation for opposing traffic C. Parking areas D. Bicycle lanes B. Lane separation for opposing traffic Yellow markers mark separation between opposing traffic lanes.
- Which type of sign warns drivers of a sharp curve ahead? A. Regulatory B. Warning C. Guide D. Service B. Warning Curves are typically indicated by yellow diamond-shaped warning signs.
- What color is used for evacuation route signs? A. Green
B. Blue C. Fluorescent Pink D. Orange A. Green Evacuation routes are marked with green signs for direction.
- What does a double yellow line with a broken line on the driver’s side indicate? A. No passing B. Passing allowed on the broken line side C. Passing allowed on both sides D. Lane merges ahead B. Passing allowed on the broken line side Drivers on the broken line side may pass; solid line side may not.
- When placing a stop sign at an intersection, which factor is critical? A. Height above ground B. Visibility from all approaches C. Proximity to crosswalk D. All of the above D. All of the above Stop sign placement must consider height, sight distance, and crosswalk location.
- What color is typically used for temporary traffic control in work zones? A. Red B. Orange C. Blue D. Brown B. Orange Orange is universally used for temporary work zones to alert drivers.
- Which line indicates that passing is permitted on both sides? A. Broken yellow line B. Solid yellow line C. Double solid yellow line D. Solid white line A. Broken yellow line A broken yellow line indicates passing is allowed in either direction when safe.
- What does a rectangular white sign with black letters indicate? A. Warning B. Regulatory C. Guide D. Service B. Regulatory
Rectangular white signs with black letters are typically regulatory signs like speed limits.
- What type of pavement marking indicates a pedestrian crossing? A. Parallel white lines B. Broken yellow line C. Solid yellow line D. Diagonal stripes A. Parallel white lines Crosswalks are marked with parallel white lines to indicate pedestrian paths.
- What is the standard shape for a railroad crossing advance warning sign? A. Circular B. Square C. Triangle D. Octagon A. Circular Railroad advance warning signs are round to distinguish them from other signs.
- Which color is used for tourist attraction signs? A. Blue B. Brown C. Green
C. Regulatory – Speed limit D. Guide – Route marker B. School zone or school crossing The pentagon shape is reserved for school-related signs.
- What color are route marker signs for interstate highways? A. Green B. Red, white, and blue C. Blue D. Yellow B. Red, white, and blue Interstate route signs have a shield shape with red, white, and blue colors.
- Which sign indicates a divided highway begins? A. Diamond warning sign B. Rectangular regulatory sign C. Guide sign D. Pentagon school sign A. Diamond warning sign A diamond-shaped warning sign alerts drivers to the beginning of a divided highway.
- What is the minimum retroreflectivity for pedestrian signs? A. 50 cd/lx/m² B. 75 cd/lx/m²
C. 100 cd/lx/m² D. Varies by MUTCD standards D. Varies by MUTCD standards Retroreflectivity levels depend on sign type, location, and intended visibility per MUTCD.
- What is the primary purpose of guide signs? A. Control traffic B. Provide warning C. Direct and inform drivers D. Indicate construction zones C. Direct and inform drivers Guide signs help motorists with directions, distances, and services.
- What marking is used to indicate a left-turn lane? A. Solid yellow line B. Arrow pavement marking C. Broken white line D. Crosswalk lines B. Arrow pavement marking Arrow markings guide drivers into turn lanes safely.
- Which color indicates a recreational area on a sign? A. Green B. Brown C. Blue
