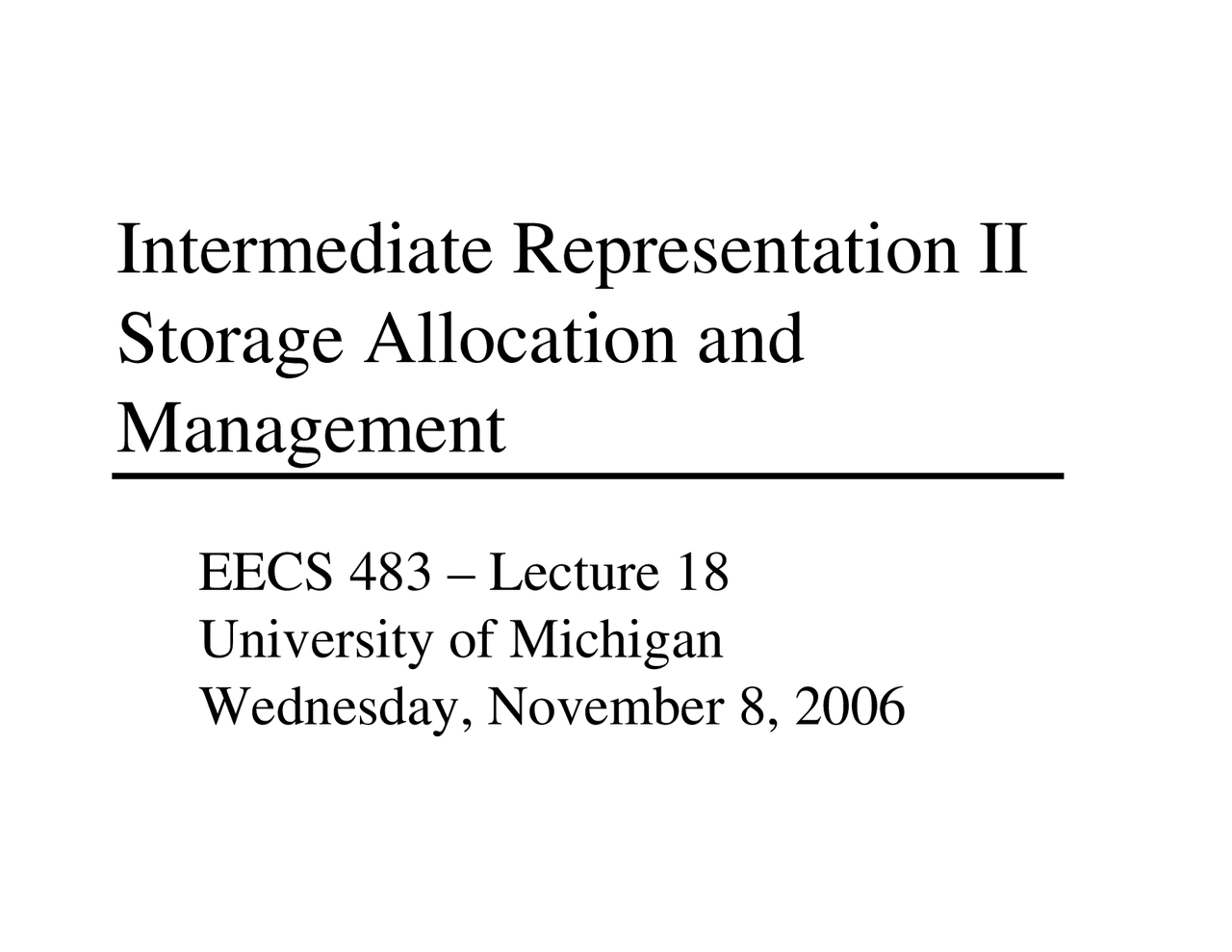

Intermediate Representation II Storage Allocation and Management

EECS 483 – Lecture 18 University of Michigan Wednesday, November 8, 2006

• 1 -

2 Classes of Storage in Processor

Registers

» Fast access, but only a few of them » Address space not visible to programmer

y

Doesn’t support pointer access!

Memory

» Slow access, but large » Supports pointers

Storage class for each variable generallydetermined when map HIR to LIR

• 3 -

4 Distinct Regions of Memory

Code space – Instructions to be executed

» Best if read-only

Static (or Global) – Variables that retaintheir value over the lifetime of the program

Stack – Variables that is only as long as theblock within which they are defined (local)

Heap – Variables that are defined by callsto the system storage allocator (malloc,new)

• 4 -

Memory Organization

Code

Static Data

Stack^ Heap

Code and static data sizes determined by the compiler Stack and heap sizes vary at run-time

Stack grows downward Heap grows upward

Some ABI’s have stack/heap switched

• 6 -

Variable Binding

Definitions:

» Environment – A function that maps a name to

a storage location

» State – A function that maps a storage location

to a value

When an environment associates a storagelocation S with a name N, we say N isbound to S

» If N is a composite type, then N might be

bound to a set of locations (usuallycontiguous, though not required)

• 7 -

Static Allocation

Static storage has fixed allocation that isunchanged during program execution

Used for:

» Global variables » Constants » All static variables in C have this (hence a

global lifetime!)

int count (int n) {

static int sum = 0; sum += n;

sum has local visibility coupled with a global lifetime

Æ

lots of bugs!

• 9 -

Accessing Static/Heap Variables

Static

» Addresses are known to compiler

y

Assigned by linker

» Compiler backend uses symbolic names (labels)

y

Same for branch addresses

Heap

» Are unnamed locations » Can be accessed only by dereferencing variables

which hold their addresses

• 10 -

Run-Time Stack

™

A frame (or activation record) for each functionexecution

» Represents execution environment of the function

y

Per invocation! Recursive function – each dynamic call hasits own frame

» Includes: local variables, parameters, return value,

temporary storage (register spill)

™

Run-time stack of frames

» Push frame of f on stack when program calls f » Pop stack frame when f returns » Top frame = fame of currently executing function

• 12 -

Why 2 Stack Pointers?

For fun – not quite!

Keep small offsets

» Instruction encoding limits sizes of literals that

can be encoded

Real reason

» Stack frame size not

always known at compiletime

» Example: alloca (dynamic

allocation on stack)

Prev Frame

Top Frame

FP SP

stackgrows

• 13 -

Anatomy of a Stack Frame

Param 1... Param n

Return address^ Previous FP

Local 1... Local n

Temp 1... Temp nParam 1... Param n

Return address

Outgoing parameters Incoming parameters

SP

FP

Current frame responsibility of the callee

Previous frame responsibility of the caller

• 15 -

Class Problem

For the following program: int foo(int a) {

int x; if (a = 1) return 1; x = foo(a-1) + foo(a-2); return (x);

} main() {

int y, z = 10; y = foo(z);

1. Show the first 3 stack frames created when this program is executed (starting with main). 2. Whats the maximum number of frames the stack grows to during the execution of this program?

• 16 -

Static Links

™

Problem for languages withnested functions (Pascal,ML): How do we accesslocal variables from otherframes?

™

Need a static link: a pointerto the frame of the enclosingfunction

»

Defined away in C as C hasonly a 2 level binding

™

Previous FP = dynamic link,ie, pointer to the previousframe in the currentexecution

Previous FP

Local 1... Local n

Temp 1... Temp nParam 1... Param n

Return address

SP

FP

Static link

• 18 -

Calling Sequences

How to generate the code that builds theframes?

Generate code which pushes values onstack:

» Before call instructions (caller responsibilities) » At function entry (callee responsibilities)

Generate code which pops values off stack:

» After call instructions (caller responsibilities) » At return instructions (callee responsibilities)

• 19 -

Push Values on Stack

™

Code before call instruction

» Push each actual parameter » Push caller-saved registers » Push static link (if necessary) » Push return address (current PC) and jump to caller

code

™

Prologue = code at function entry

» Push dynamic link (ie FP) » Old stack pointer becomes new frame pointer » Push callee-saved registers » Push local variables
