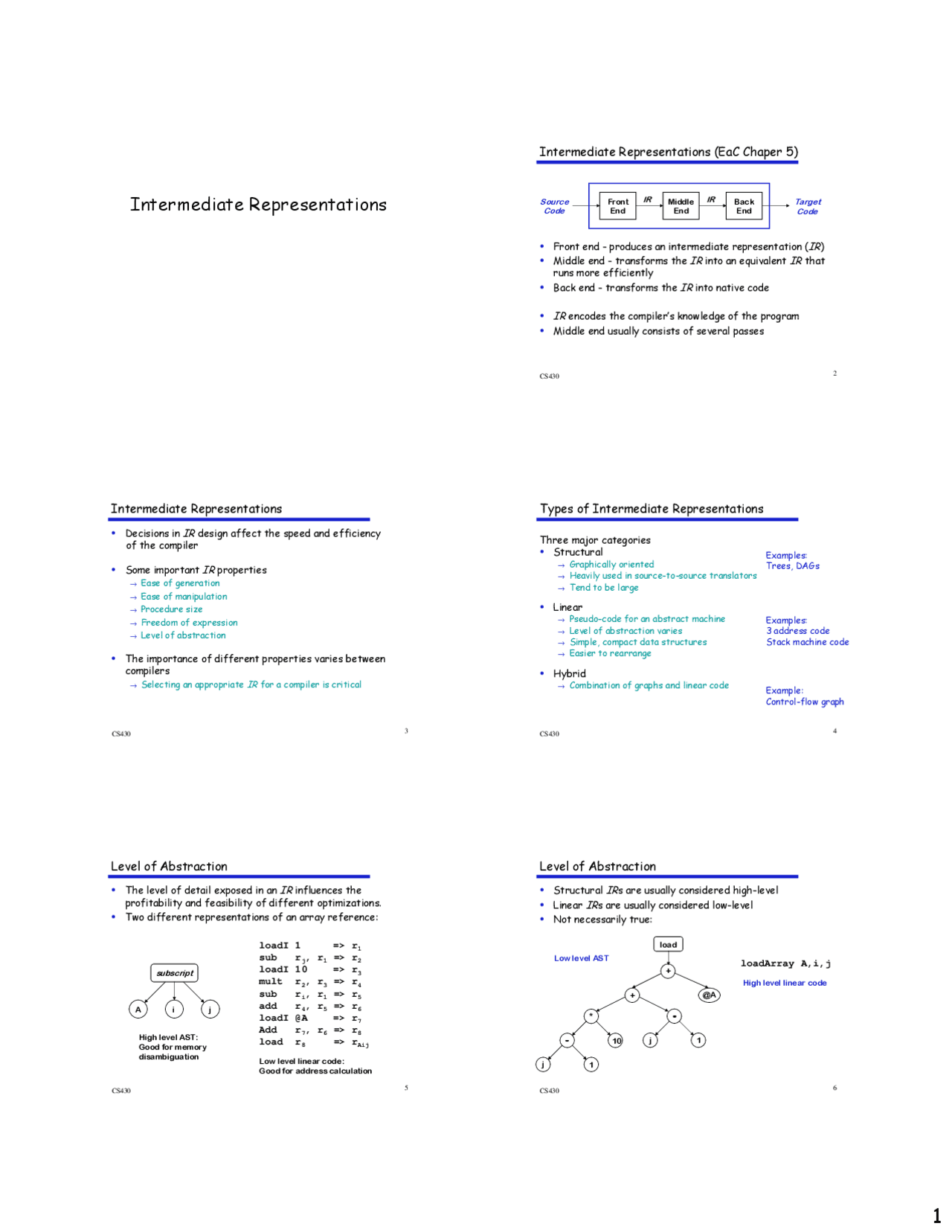

Intermediate Representations
CS430 2
Intermediate Representations (EaC Chaper 5)
- Front end - produces an intermediate representation ( IR)
- Middle end - transforms the IR into an equivalent IR that runs more efficiently
- Back end - transforms the IR into native code
- IR encodes the compiler’s knowledge of the program
- Middle end usually consists of several passes
Front End
Middle End
Back End
Source^ IR IR Code
Target Code
CS430 3
Intermediate Representations
- Decisions in IR design affect the speed and efficiency of the compiler
- Some important IR properties
→ Ease of generation → Ease of manipulation → Procedure size → Freedom of expression → Level of abstraction
- The importance of different properties varies between compilers → Selecting an appropriate IR for a compiler is critical
CS430 4
Types of Intermediate Representations
Three major categories
- Structural → Graphically oriented → Heavily used in source-to-source translators → Tend to be large
- Linear → Pseudo-code for an abstract machine → Level of abstraction varies → Simple, compact data structures → Easier to rearrange
- Hybrid → Combination of graphs and linear code
Examples: Trees, DAGs
Examples: 3 address code Stack machine code
Example: Control-flow graph
CS430 5
Level of Abstraction
- The level of detail exposed in an IR influences the profitability and feasibility of different optimizations.
- Two different representations of an array reference:
subscript
A i j
loadI 1 => r 1 sub rj, r 1 => r 2 loadI 10 => r 3 mult r 2 , r 3 => r 4 sub ri, r 1 => r 5 add r 4 , r 5 => r 6 loadI @A => r 7 Add r 7 , r 6 => r 8 High level AST:Good for memory load r 8 => rAij
disambiguation (^) Low level linear code: Good for address calculation
CS430 6
Level of Abstraction
- Structural IRs are usually considered high-level
- Linear IRs are usually considered low-level
- Not necessarily true:
10
j 1
@A
load Low level AST (^) loadArray A,i,j
High level linear code
CS430 7
Abstract Syntax Tree
An abstract syntax tree is the procedure’s parse tree with the nodes for most non-terminal nodes removed
x - 2 * y
- Can use linearized form of the tree → Easier to manipulate than pointers x 2 y * - in postfix form - * 2 y x in prefix form
- S-expressions are (essentially) ASTs
x
2 y
CS430 8
Directed Acyclic Graph
A directed acyclic graph (DAG) is an AST with a unique node for each value
- Makes sharing explicit
- Encodes redundancy
x
2 y
z (^) /
w
z ← x - 2 * y w ← x / 2
Same expression twice means that the compiler might arrange to evaluate it just once!
CS430 9
Stack Machine Code
Originally used for stack-based computers, now Java
x - 2 * y becomes
Advantages
- Compact form
- Introduced names are implicit, not explicit
- Simple to generate and execute code
Useful where code is transmitted over slow communication links ( the net )
push x push 2 push y multiply subtract
Implicit names take up no space, where explicit ones do!
CS430 10
Three Address Code
Several different representations of three address code
- In general, three address code has statements of the form: x ← y op z With 1 operator ( op ) and, at most, 3 names (x, y, z)
Example: z ← x - 2 * y becomes
Advantages:
- Resembles many machines
- Introduces a new set of names
- Compact form
t ←←←← 2 * y z ←←←← x - t
CS430 11
Three Address Code: Quadruples
Naïve representation of three address code
- Table of k * 4 small integers
- Simple record structure
- Easy to reorder
- Explicit names
sub 5 4 2
load 4 X
mult 3 2 1
loadi 2 2
load 1 Y load r1, y loadI r2, 2 mult r3, r2, r load r4, x sub r5, r4, r
RISC assembly code Quadruples
The original FORTRAN compiler used “quads”
CS430 12
Three Address Code: Triples
- Index used as implicit name
- 25% less space consumed than quads
- Much harder to reorder
sub (4) (3)
load x
mult (1) (2)
loadI 2
(1) load y
(2)
(3) (4) (5)
Implicit names take no space!
CS430 19
The Rest of the Story…
Representing the code is only part of an IR
There are other necessary components
- Symbol table (already discussed)
- Constant table → Representation, type → Storage class, offset
- Storage map → Overall storage layout → Overlap information → Virtual register assignments
CS430 20
Virtual Machines
- Can interpret IR using virtual machine
- Examples → P-code for Pascal → postscript for display devices → Java byte code for everywhere
- Result → easy & portable → much slower
- Just-in-time compilation (JIT) → begin interpreting IR → find performance critical section(s) → compile section(s) to native code → ...or just compile entire program → compilation time becomes execution time
CS430 21
Java Virtual Machine (JVM)
- The JVM consists of four parts
- Memory
→ Stack (for function call frames) → Heap (for dynamically allocated memory) → Constant pool (shared constant data) → Code segment (instructions of class files)
→ Stack pointer (SP), local stack pointer (LSP), program counter (PC)
- Condition codes → Stores result of last conditional instruction
- Execution unit
- Reads current JVM instruction
- Change state of virtual machine
- Increment PC (modify if call, branch)
CS430 22
Java Byte Codes
CS430 23
Java Byte Codes
CS430 24
Java Byte Codes
CS430 25
Java Byte Codes
CS430 26
Java Byte Code Interpreter
