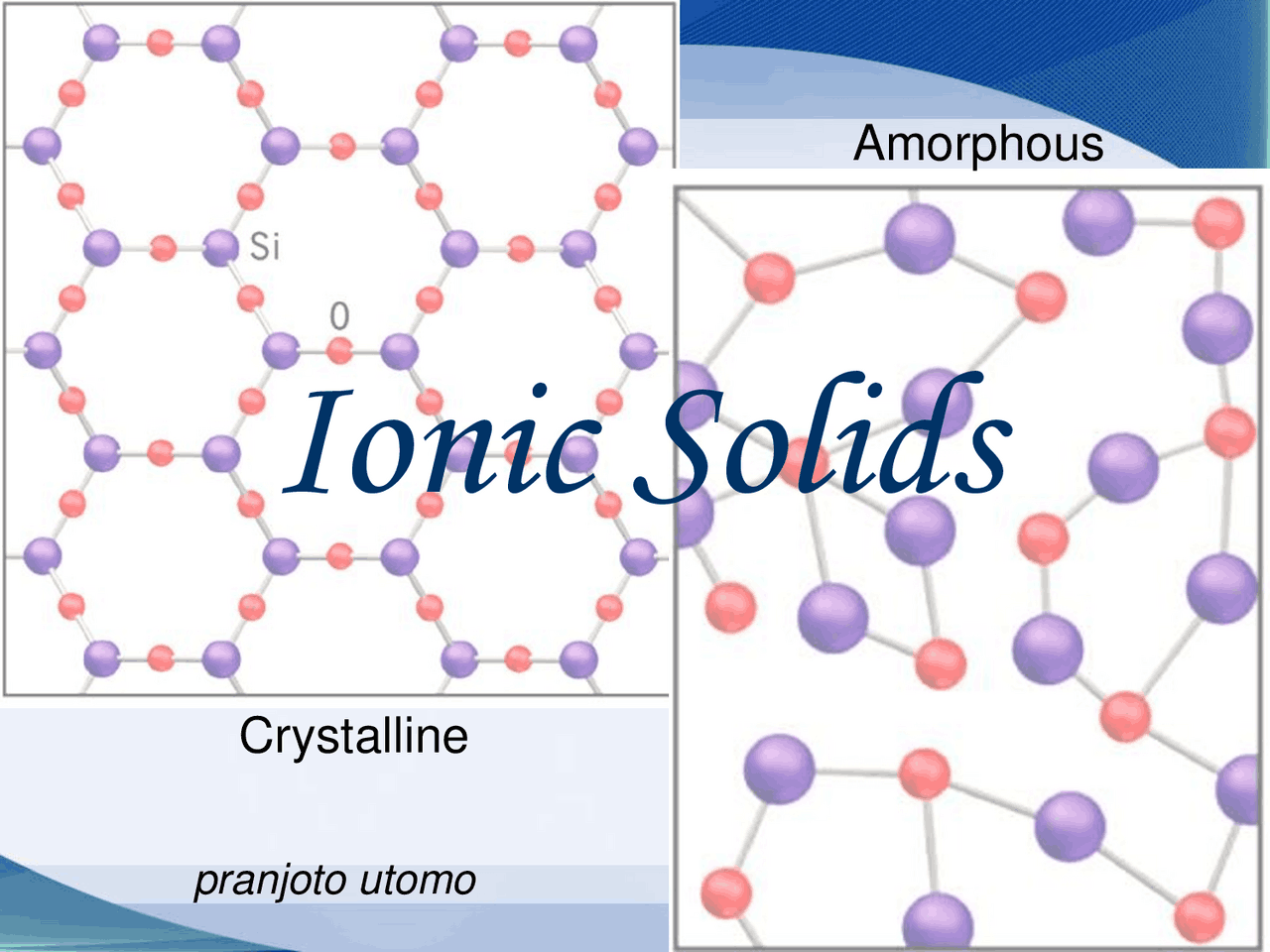

pranjoto utomo

Crystalline

Amorphous

Ionic Solids

Categories of solids

Categories of solids based on the particles that form the solid pack

1. Crystalline solids
2. Amorphous solids
3. Polycrystalline solids

Amorphous solids

• (literally, "solids without form") have a random structure.

Polycrystalline solids

• Aggregate of a large number of small crystals or grains in which the structure is regular, but the crystals or grains are arranged in a random fashion.

Molecular solids

• Intramolecular bonds between the atoms that form the molecules >>>
• intermolecular bonds between these molecules <<<
• Soft substances with low melting points.

Molecular solids

• Example: dry ice, or solid carbon dioxide
• The van der Waals forces holding the CO 2 molecules together are weak enough that dry ice sublimesit passes directly from the solid to the gas phase at -78oC.

Diamond

• Each carbon atom in diamond is covalently bound to four other carbon atoms oriented toward the corners of a tetrahedron
• Because all of the bonds in this structure are equally strong, covalent solids are often very hard and they are notoriously difficult to melt.

Ionic solids

• Held together by the strong force of attraction between ions of opposite charge.
• The strength of an ionic bond depends on the radii of the ions that form the solid.

Metallic solids

• Metal atoms don't have enough electrons to fill their valence shells by sharing electrons with their immediate neighbors.
• Electrons in the valence shell are therefore shared by many atoms, instead of just two.
• In effect, the valence electrons are delocalized over many metal atoms.

Metallic solids

• Because these electrons aren't tightly bound to individual atoms, they are free to migrate through the metal.
• As a result, metals are good conductors of electricity.
• Electrons that enter the metal at one edge can displace other electrons to give rise to a net flow of electrons through the metal.
