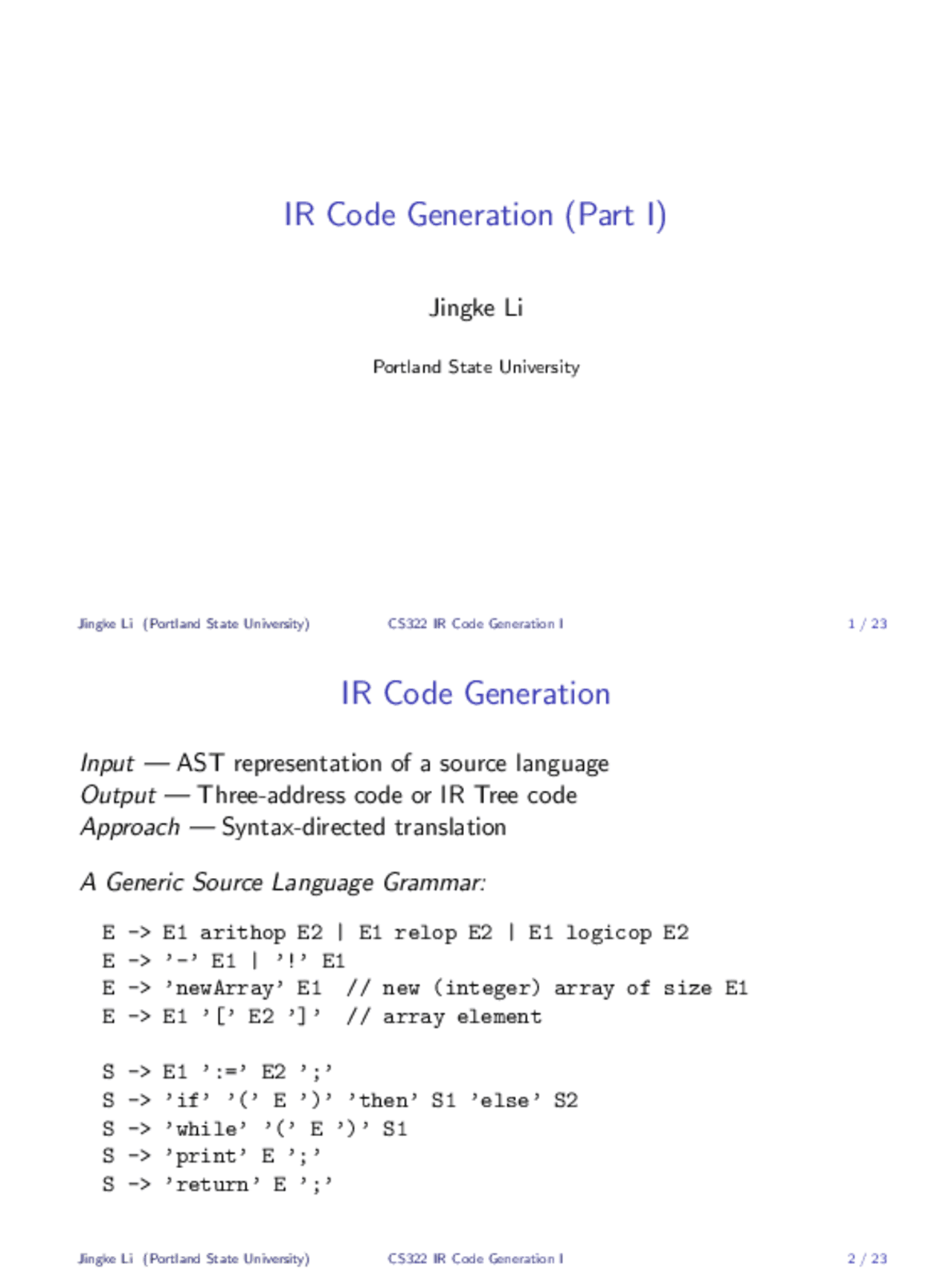

IR Code Generation (Part I)
Jingke Li
Portland State University
Jingke Li (Portland State University) CS322 IR Code Generation I 1 / 23
IR Code Generation
Input — AST representation of a source language Output — Three-address code or IR Tree code Approach — Syntax-directed translation
A Generic Source Language Grammar:
E -> E1 arithop E2 | E1 relop E2 | E1 logicop E E -> ’-’ E1 | ’!’ E E -> ’newArray’ E1 // new (integer) array of size E E -> E1 ’[’ E2 ’]’ // array element
S -> E1 ’:=’ E2 ’;’ S -> ’if’ ’(’ E ’)’ ’then’ S1 ’else’ S S -> ’while’ ’(’ E ’)’ S S -> ’print’ E ’;’ S -> ’return’ E ’;’
IR Codegen Issue Overview
- (^) Arithmetic Expressions — Simple to handle
- (^) Boolean Expressions — IR version much restrictive; needs major changes
- Array definitions and references — Slightly complex
- Statements — Mostly straightforward
Jingke Li (Portland State University) CS322 IR Code Generation I 3 / 23
Arithmetic Expressions
- Generating Three-Address Code — Introduces a new temp for each operation; uses two attributes: E .s holds the statements evaluating E ; E .t represents the temp that holds the value of E.
E -> E1 arithop E t = new Temp(); E.s := [ E1.s; E2.s; t := E1.t arithop E2.t; ] E.t := t;
E -> ’-’ E t = new Temp(); E.s := [ E1.s; t := - E1.t; ] E.t := t;
Value Representation Approach
One approach for handling Boolean expressions is to encode true and false numerically into 1 and 0, and map Boolean expressions into conditional jump statements.
Example: a < 5 || b > 2
t1 := 1; if (a < 5) goto L1; t1 := 0; L1: t2 := 1; if (b > 2) goto L2; t2 := 0; L2: t3 := 1; if (t1 == 1) goto L3; if (t2 == 1) goto L3; t3 := 0; L3:
(ESEQ [ [MOVE t3 (CONST 1)] [CJUMP == (ESEQ [ [MOVE t1 (CONST 1)] [CJUMP < (NAME a) (CONST 5) L1] [MOVE t1 (CONST 0)] [LABEL L1] ] t1) (CONST 1) L3] [CJUMP == (ESEQ [ [MOVE t2 (CONST 1)] [CJUMP > (NAME b) (CONST 2) L2] [MOVE t2 (CONST 0)] [LABEL L2] ] t2) (CONST 1) L3] [MOVE t3 (CONST 0)] [LABEL L3] ] t)
Jingke Li (Portland State University) CS322 IR Code Generation I 7 / 23
Better Handling for Logical Operations
Many architectures provide hardware support for bit-wise logical operations, such as and, or, xor not, and etc. And we know that 1 and 1 = 1; 1 and 0 = 0; 0 and 1 = 0; 0 and 0 = 0; 1 or 1 = 1; 1 or 0 = 1; 0 or 1 = 1; 0 or 0 = 0;
Taking advantage of this, when using value-representation for Boolean expressions, logical operations can be simply translated into arithmetic operations with corresponding bit-wise operators. For instance, the
expression a<5 || b>2 can be translated to
t1 := 1; if (a < 5) goto L1; t1 := 0; L1: t2 := 1; if (b > 2) goto L2; t2 := 0; L2: t3 := t1 or t2;
(BINOP || (ESEQ [ [MOVE t1 (CONST 1)] [CJUMP < (NAME a) (CONST 5) L1] [MOVE t1 (CONST 0)] [LABEL L1] ] t1) (ESEQ [ [MOVE t2 (CONST 1)] [CJUMP > (NAME b) (CONST 2) L2] [MOVE t2 (CONST 0)] [LABEL L2] ] t2))
Value Representation Approach (cont.)
E -> E1 relop E
- Three-Address Code: L = new Label(); t = new Temp(); E.s := [ E1.s; E2.s; t := 1; if (E1.t relop E2.t) goto L; t := 0; L: ] E.t := t;
- IR Tree Code: L = new NAME(); t = new TEMP(); E.tr := (ESEQ [ [MOVE t (CONST 1)] [CJUMP relop E1.tr E2.tr L] [MOVE t (CONST 0)] [LABEL L] ] t)
Jingke Li (Portland State University) CS322 IR Code Generation I 9 / 23
Value Representation Approach (cont.)
More Three-Address Code:
E -> E1 ’||’ E
L = new Label(); t = new Temp(); E.s := [ E1.s; E2.s; t := 1; if (E1.t==1) goto L; if (E2.t==1) goto L; t := 0; L: ] E.t := t;
E -> E1 ’&&’ E
L = new Label(); t = new Temp(); E.s := [ E1.s; E2.s; t := 0; if (E1.t==0) goto L; if (E2.t==0) goto L; t := 1; L: ] E.t := t;
E -> ’!’E1 t = new Temp(); E.s := [ E1.s; t := 1 - E1.t; ] E.t := t;
Control-Flow Representation (cont.)
[More Efficient Code:] if (a < 5) goto L4; if (b > 2) goto L4; goto L5; L4: [code for S1] goto L6; // then clause L5: [code for S2] // else clause L6:
In this new version, there is no need to create all those temps for holding 0s and 1s.
One Issue Remaining — The two labels, L4 and L5, are not available when the Boolean expression (a<5 || b>2) is being processed. How can the conditional jump statements be generated, then?
Answer: Use the idea of “back-patching” — Each block of code may contain jumps to unresolved labels; these labels will be patched when the environment of the block is processed.
Jingke Li (Portland State University) CS322 IR Code Generation I 13 / 23
Back-Patching Example
if (a<5 || b>2) S1 else S2;
- Handling a<5: if (a < 5) goto ; // needs to be patched
- (^) Handling b>2: if (b > 2) goto ; // needs to be patched
- Handling ..||..: if (a < 5) goto ; // .. else fall through if (b > 2) goto ; // is patched to goto // needs to be patched
- (^) Handling if .. S1 else S2: if (a < 5) goto L4; // is patched to L if (b > 2) goto L4; goto L5; // is patched to L L4: [code for S1] goto L6; // then clause L5: [code for S2] // else clause L6:
Note that in the approach, the logical operations are implemented by properly patching expressions’ labels; no actual new code is generated.
Back-Patching Jump Labels
- (^) Three-Address Code: Add two attributes E.true — position to jump to when E evals to true; E.false — position to jump to when E evals to false.
E -> E1 relop E
E.s := [ E1.s; E2.s; if (E1.t relop E2.t) goto E.true; E.false: ]
E -> E1 ’||’ E
E1.true := E.true; E1.false := new Label(); E2.true := E.true; E2.false := E.false; E.s := [ E1.s; E1.false: E2.s; ]
Jingke Li (Portland State University) CS322 IR Code Generation I 15 / 23
Back-Patching: Three-Address Code (cont.)
E -> E1 ’&&’ E
E1.true := new Label(); E1.false := E.false; E2.true := E.true; E2.false := E.false; E.s := [ E1.s; E1.true: E2.s; ]
E -> ’!’ E
E1.true := E.false; E1.false := E.true; E.s := E1.s;
Converting Back to Value
What if we have boolean x = a<5 || b>2;
We still need to generate a value for the Boolean expression!
This can be implemented by patching the two labels E.true and E.false for the Boolean expression E with two assignment statements for assigning 1 and 0, respectively.
Boolean expression E
t = new Temp(); E.true := new Label(); E.false := new Label(); L := new Label(); E.s := [ E.true: t := 1; goto L; E.false: t := 0; L: ] E.t := t;
Jingke Li (Portland State University) CS322 IR Code Generation I 19 / 23
New Arrays
E -> ’newArray’ E
- Storage allocation — Follow Java’s array storage convention. The length of array is stored as the 0th element of the array. So the storage for a 10-element array actually has 11 cells.
- Cell initialization — All elements are automatically initialized to 0.
Pseudo IR Code:
L: new Label; t1,t2,t3: new Temps; E.s := [ E1.s; t1 := (E1.t + 1) * wdSize; // storage size t2 := malloc(t1); // t2 points to cell 0 t2[0] := E1.t; // store array length t3 := t2 + (E1.t * wdSize); // t3 points to last cell L: t3[0] := 0; // init a cell to 0 t3 := t3 - wdSize; // move down a cell if (t3 > t2) goto L; ] // loop back E.t := t2;
Array Elements
E -> E1 ’[’ E2 ’]’
- (^) Calculating address — addr(a[i]) = base(a) + (i + 1) × wdSize
- (^) Bounds-checking — Java performs array index bounds-checking to make sure it is within bounds.
L1,L2: new Label; t1,t2,t3,t4: new Temps; E.s := [ E1.s; E2.s; t1 := E1.t[0]; if (E2.t < 0) goto L1; if (E2.t >= t1) goto L1; t2 := E2.t + 1; t3 := t2 * wdSize; t4 := E1.t[t3]; goto L2; L1: param E1.t; param E2.t; call arrayError,2; L2: ] E.t := t4;
Jingke Li (Portland State University) CS322 IR Code Generation I 21 / 23
Statements
- Assignments: S -> E1 ’:=’ E2 ’;’
S.s := [ E1.s; E2.s; E1.t := E2.t; ]
- If Statement: S -> ’if’ ’(’ E ’)’ ’then’ S1 ’else’ S
L1,L2,L3: new Labels; E.true := L1; E.false := L2; S.s := [ E.s; L1: S1.s; goto L3; L2: S2.s; L3: ]
