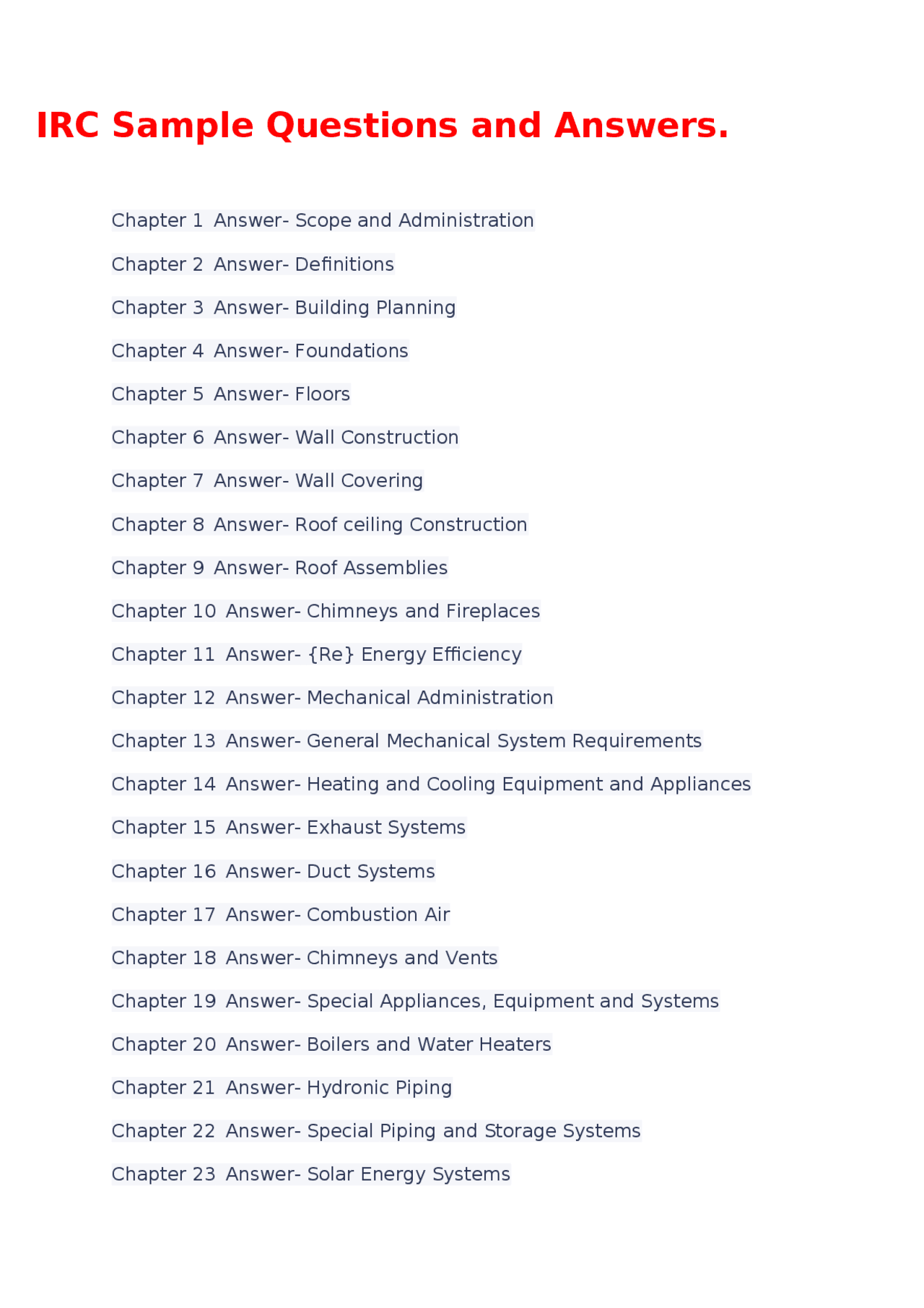

IRC Sample Questions and Answers.
Chapter 1 Answer- Scope and Administration
Chapter 2 Answer- Definitions
Chapter 3 Answer- Building Planning
Chapter 4 Answer- Foundations
Chapter 5 Answer- Floors
Chapter 6 Answer- Wall Construction
Chapter 7 Answer- Wall Covering
Chapter 8 Answer- Roof ceiling Construction
Chapter 9 Answer- Roof Assemblies
Chapter 10 Answer- Chimneys and Fireplaces
Chapter 11 Answer- {Re} Energy Efficiency
Chapter 12 Answer- Mechanical Administration
Chapter 13 Answer- General Mechanical System Requirements
Chapter 14 Answer- Heating and Cooling Equipment and Appliances
Chapter 15 Answer- Exhaust Systems
Chapter 16 Answer- Duct Systems
Chapter 17 Answer- Combustion Air
Chapter 18 Answer- Chimneys and Vents
Chapter 19 Answer- Special Appliances, Equipment and Systems
Chapter 20 Answer- Boilers and Water Heaters
Chapter 21 Answer- Hydronic Piping
Chapter 22 Answer- Special Piping and Storage Systems
Chapter 23 Answer- Solar Energy Systems
pf3
pf4
pf5
pf8
pf9
pfa
pfd

Partial preview of the text

Download IRC Sample Questions and Answers. and more Exams Building Materials and Systems in PDF only on Docsity!

IRC Sample Questions and Answers.

Chapter 1 Answer- Scope and Administration Chapter 2 Answer- Definitions Chapter 3 Answer- Building Planning Chapter 4 Answer- Foundations Chapter 5 Answer- Floors Chapter 6 Answer- Wall Construction Chapter 7 Answer- Wall Covering Chapter 8 Answer- Roof ceiling Construction Chapter 9 Answer- Roof Assemblies Chapter 10 Answer- Chimneys and Fireplaces Chapter 11 Answer- {Re} Energy Efficiency Chapter 12 Answer- Mechanical Administration Chapter 13 Answer- General Mechanical System Requirements Chapter 14 Answer- Heating and Cooling Equipment and Appliances Chapter 15 Answer- Exhaust Systems Chapter 16 Answer- Duct Systems Chapter 17 Answer- Combustion Air Chapter 18 Answer- Chimneys and Vents Chapter 19 Answer- Special Appliances, Equipment and Systems Chapter 20 Answer- Boilers and Water Heaters Chapter 21 Answer- Hydronic Piping Chapter 22 Answer- Special Piping and Storage Systems Chapter 23 Answer- Solar Energy Systems

Chapter 24 Answer- Fuel Gas Chapter 25 Answer- Plumbing Administration Chapter 26 Answer- General Plumbing Requirements Chapter 27 Answer- Plumbing Fixtures Chapter 28 Answer- Water Heaters Chapter 29 Answer- Water Supply and Distribution Chapter 30 Answer- Sanitary Drainage Chapter 31 Answer- Vents Chapter 32 Answer- Traps Chapter 33 Answer- Storm Drainage Chapter 34 Answer- General Requirements Chapter 35 Answer- Electrical Definitions Chapter 36 Answer- Services Chapter 37 Answer- Branch Circuit and Feeder Requirements Chapter 38 Answer- Wiring Methods Chapter 39 Answer- Power and Lighting Distribution Chapter 40 Answer- Devices and Luminaires Chapter 41 Answer- Appliance Installation Chapter 42 Answer- Swimming Pools Chapter 43 Answer- Class 2 Remote-control, Signaling and Power limited Circuits What is the nominal thickness of a ridge board? (page 378 R802.3) Answer- 1 inch How many jack studs will be required for a 2 - 2 x 12 header in an interior bearing wall supporting one floor only, building width of 28', and a span of 7'-0"? (page 123 - table R502.5(2)) Answer- 2 jack studs will be required

What is the maximum hole that may be cut in a 2 x 12 nominal floor joist? (page 120 R502.8.1) Answer- 4" What size strap is required if a top plate is notched more than 50% of its width? (page 160 - figure R602.6.1 - R602.6(2)) Answer- 16 gage in thickness and 1 1/2" wide The end of a wood joist must bear on a wood beam by at least inches? (page 120 R502.6) Answer- 1 1/2" Concrete gains most of its strength in how many days? (page 74 - table 402.2 footnote A) Answer- 28 days In what section of the span of a floor joist is it NOT permitted to cut a notch? (page 123 - figure R502.8) Answer- Middle third What material is required for the door of an ash dump cleanout? (page 453 R1001.2.1) Answer- Ferrous metal or masonry A cricket is required when the width of a chimney is greater than inches (page 461 irc 10003.20) Answer- 30" In what direction must the access gate of a pool swing? (page 830 AG105.2.8) Answer- Outwards What is the minimum ceiling height over a bathtub? (page 54 R305.1 - Exception 2) Answer- 6'-8" What is the maximum unsupported height of a pier consisting of 12" x 16" hollow core blocks filled with Type S mortar? (page 265 R606.6) Answer- 120"

  • 10 x 12" = 120" What is the least outside circular diameter of a handrail? (page 61 R311.7.8.3) Answer- 1 1/4" Insulation shall have a smoke-developed index not to exceed?

What is the minimum width of a stairway? (page 60 R311.7.1) Answer- 36" In Virginia, what is the stair riser height and tread depth? (page 60 R317.7.5.1 & 2) Answer- 8 1/4" and 9" (this is a Virgina uniform statewide building code change) What size window is required in a bathroom if there is no mechanical ventilation? (page 53 R303.3) Answer- 3 square feet What is the minimum width of a hallway? (page 60 R311.6) Answer- 3 ' In Virgina, what are the R Value insulation requirements for the ceiling, wall, and floor? (page 481 - table N1102.1 - Use climate zone 4 except marine) Answer- 49, 20, 19 The under floor space vents must be covered with material with a least dimension of? (page 111 R408.2) Answer- 1/4" What is the maximum slump of concrete placed in removable forms? (page 97 R404.1.2.3.4 Answer- 6" The end joints of double top plates must be offset at least? (page 157 R602.3.2) Answer- 24" What is the required clearance of wood siding from the ground before it is required to be pressure treated?] (page 66 R317.1.5) Answer- 6" What is required to support brick veneer above openings in exterior walls? (page 371 R703.7.3) Answer- Lintel What is the minimum stroke width of site address numbers? (page 68 R319.1) Answer- 1/2" What is the thickness of flashing?

(page 62 R312.1.2) Answer- 36" Handrails adjacent to a wall shall have a space of not less than inches between the wall and the handrail (page 61 R311.7.8.2) Answer- 1 1/2" Compressible soil shall not be used as (page 73 R401.4.2) Answer- Fill What is the minimum thickness of a spread footing? (page 74 R403.1.1) Answer- 6" In Virginia, what is the minimum specified compressive strength in psi of concrete in a basement wall exposed to weather? (page 74 - table R402.2 - use the severe column for Virginia) Answer- 3, What is the minimum depth of a footing? (page 79 R403.1.4) Answer- 12" What is the dimension of the air space between masonry veneer and the wall sheathing? (page 373 - figure R703.7.4.2) Answer- 1" What is the minimum number of anchor bolts required for a wall section? (page 79 R403.1.6) Answer- 2 What type of fastener is required in a wood foundation knee wall? (page 73 R402.1.1) Answer- Stainless steel What is the presumptive load bearing value of sand? (page 73 - table R401.4.1) Answer- 2,000 PSF What is the thickness of the vapor retarder placed above the base course and the concrete floor slab? (page 144 R506.2.3) Answer- 6 MIL What size nail is used to secure the collar tie to the rafter? (page 150 - table R602.3(1) Line 4) Answer- 10 D
