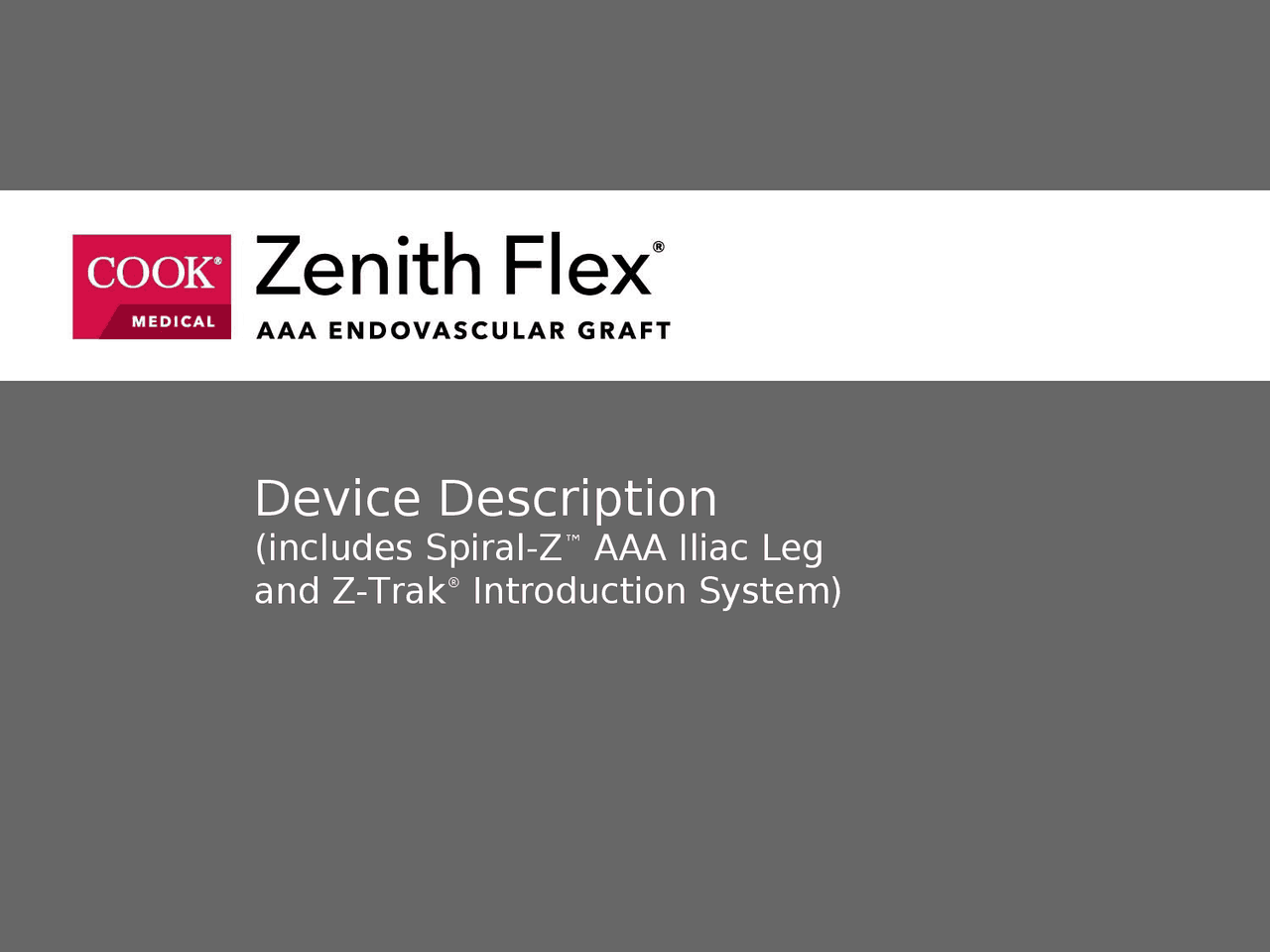

Device Description
(includes Spiral-Z
™
AAA Iliac Leg
and Z-Trak
®
Introduction System)
Flex Design
Increased gap length between the z-stents on the proximal
segment of the main body designed to provide greater
conformance to angulated anatomy.
Unique Stent-Graft Design
Independent z-stent configuration
provides graft flexibility.
Modular stent-graft construction allows
unique adaptability to individual anatomy.
Varied z-stent lengths and gage
diameters promote secure graft-to-vessel
apposition, columnar strength and graft
flexibility.
Modular Design
Three-piece modular system allows
the physician to customize a graft to
the patient’s individual anatomy.
Main Body
Iliac Leg
Iliac Leg
R adial force
A ctive fixation
C olumnar strength
Active Fixation
Anchoring Barbs
The angle, staggered configuration
and beveled tip of our barbs make
them the industry standard for design
and migration resistance.
Columnar Strength
Long Main-Body Design
Mimics natural anatomy and features
a time-tested balance of length,
stability and flexibility.
Woven Polyester
A lightweight, strong,
shrink- and stretch-resistant
synthetic polymer used
in both plastics and fibers.
This material is also
used for open surgical
AAA procedures.
Contralateral Limb Gold
Radiopaque Marker
Gold check mark () identifies
proper contralateral limb orientation,
simplifying contralateral limb
wire-guide access.
Highly Visible Z-Stents
Contralateral Limb
Gold Marker
Contralateral limb
“check mark”
Radiopaque Cannulas
4 Gold Proximal Markers
2 mm from most proximal
segment of graft material
Precise Placement
Bifurcated Main Body
Dimensions
Graft Diameters: 22-36 mm
Graft Lengths (Contralateral):
82-149 mm
Z-Trak
®
Introduction System
with Flexor
®
Introducer Sheath
- Unique sheath construction provides optimal flexibility and
maximum resistance to kinking and compression.
- Radiopaque band incorporated within sheath material identifies
precise location of sheath’s distal tip for positioning accuracy.
- Hydrophilic coating allows precise delivery by dramatically
reducing surface friction.
Trigger-Wire Release
Mechanisms
The top stent and ipsilateral
limb release knobs are
attached to their respective
trigger wires and are used
when the device is ready to
be released from the delivery
system. Sequential release
knob positioning simplifies
the deployment process.
