CS 1530 Software 2004 Engineering Fall

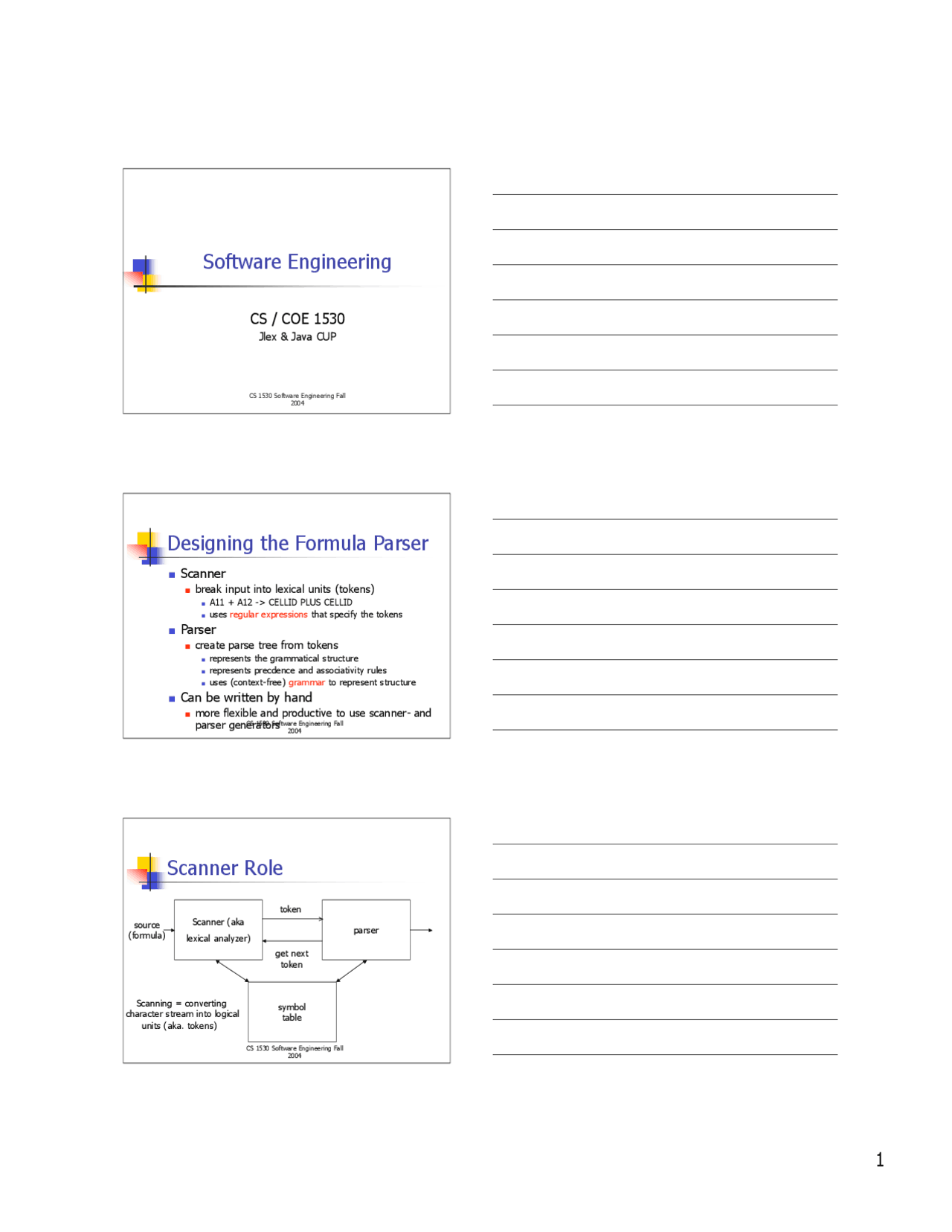

Software Engineering
CS / COE 1530
Jlex & Java CUP
CS 1530 Software Engineering Fall 2004
Designing the Formula Parser
■ Scanner
■ break input into lexical units (tokens)
■ A11 + A12 -> CELLID PLUS CELLID
■ uses regular expressions that specify the tokens ■ Parser
■ create parse tree from tokens
■ represents the grammatical structure ■ represents precdence and associativity rules ■ uses (context-free) grammar to represent structure ■ Can be written by hand
■ more flexible and productive to use scanner- and
parser generators
CS 1530 Software 2004 Engineering Fall
Scanner Role
Scanner (aka lexical analyzer) symbol table (formula)^ source^ parser token get next token Scanning = converting character stream into logical units (aka. tokens)
CS 1530 Software 2004 Engineering Fall
Parser Role
lexical analyzer symbol table source parser token get next token parse tree Rest of spreadsheet
Parsing = determining whether a string of tokens
can be generated by a grammar
CS 1530 Software Engineering Fall 2004
Jlex: a scanner generator
JLex.Main
(java)
JLex.Main
(java)
javacjavac
P.main
(java)
P.main
(java)
jlex specification
xxx.jlex
xxx.jlex.java
generated scanner
xxx.jlex.java
Yylex.class
Yylex.class
input program
test.sim Output^ of^ P.main
CS 1530 Software 2004 Engineering Fall
Creation & Invokation
public class P { public static void main(String[] FileReader inFile = new FileReader args) {(args[0]); Yylex scanner = new Yylex(inFile); while (token.sym != sym.EOF) {^ Symbol token = scanner.next_token(); switch (token.sym) { case sym.INTLITERAL: System.out.println("INTLITERAL ("
- ((IntLitTokenVal)token.value).intVal \
- ")"); break; … } }^ token = scanner.next_token(); }
CS 1530 Software 2004 Engineering Fall
Regular expressions
■ Closely follow standard conventions.
■ most characters match themselves:
■ abc ■ == ■ while
■ characters in quotes, including special characters,
except \”, match themselves
■ “a|b” matches a|b not a or b ■ “a\”\”\tb” matches a””\tb not a””b CS 1530 Software Engineering Fall 2004
Regular-expression
operators
■ the traditional ones, plus the?
operator
| means "or"
* means zero or more instances of
+ means one or more instances of
? means zero or one instance of
() are used for grouping
CS 1530 Software 2004 Engineering Fall
Backslash is special escape
character:
\n newline
\t tab
\” double quote
To match a backslash character, put it in quotes
CS 1530 Software 2004 Engineering Fall
More operators
■ ^ matches beginning of line
^main matches string “main” only when it appears
at the beginning of line.
■ $ matches end of line
main$ matches string “main” only when it appears
at the end of line.
. (dot) matches any character except newline –
usually used in the last rule of specification to
match all “bad” characters
CS 1530 Software Engineering Fall 2004
Character classes
■ [abc] ■ matches one character (either a or b or c) ■ [a-z] ■ matches any character between a and z, inclusive ■ [^abc] ■ matches any character except a, b, or c. ■ ^ has special meaning only at 1 st^ position in […] ■ [\t\] ■ matches tab or
■ [a bc] is equivalent to a|" "|b|c ■ white-space in char class and strings matches itself CS 1530 Software 2004 Engineering Fall
JLex directives
■ specified in the second part of xxx.jlex. ■ can also specify (see the manual for details) ■ the value to be returned on end-of-file, ■ that line counting should be turned on, and ■ that the scanner will be used with the parser generator java cup. ■ directives includes macro definitions (very useful): ■ ■ name is any valid Java identifier ■ DIGIT= [0-9] ■ LETTER= [a-zA-Z] ■ WHITESPACE= [ \t\n] ■ To use a macro, use its name inside curly braces. ■ {LETTER}({LETTER}|{DIGIT})*
CS 1530 Software 2004 Engineering Fall
Another example
{DIGIT}+ {
int val = (new Integer(yytext())).intValue(); Symbol S = new Symbol(sym.INTLITERAL, new IntLitTokenVal(yyline+1, CharNum.num, val)); CharNum.num += yytext().length(); return S; } {WHITESPACE}+ {CharNum.num += yytext().length();} CS 1530 Software 2004 Engineering Fall
Java CUP
Parser generator -
generates a bottom up
parser
CS 1530 Software 2004 Engineering Fall
What is Java CUP
■ a parser generator
■ CUP = Construction of Useful Parsers
■ Java successor to yacc
■ a standard UNIX parser generator
■ yacc = Yet Another Compiler Compiler
Java_CUP.Main
java Java_CUP.Main < xxx.cup
xxx.cup
parser specification
parser.java
sym.java
CS 1530 Software 2004 Engineering Fall
Input to Java CUP
■ The specification includes:
■ optional package and import declarations ■ optional user code ■ terminal and nonterminal declarations ■ optional precedence and associativity declarations ■ grammar rules with associated actions CS 1530 Software Engineering Fall 2004
Example of calling the parser
FileReader inFile = new FileReader(args[0]); parser P = new parser(new Yylex(inFile)); Symbol root=null; // the parser will return a Symbol whose value // field's type is the type associated with the // root nonterminal (i.e., with the nonterminal // "program") root = P.parse(); // do the parse CS 1530 Software 2004 Engineering Fall
Declarations of terminals and
nonterminals
■ all terminals and nonterminals used by your grammar must be declared terminal type name1, name2, ... ; non terminal type name1, name2, ... ; non terminal name1, name2, ... ;
■ all terminals must declare their type
■ type = the type of Symbol. value returned by scanner
■ non terminals with a value must also declare their
type
CS 1530 Software 2004 Engineering Fall
Precedence declarations again
terminal UMINUS, LPAREN, RPAREN, … ;
precedence left PLUS, MINUS;
precedence left TIMES, DIVIDE, MOD;
precedence left UMINUS;
exp ::= exp PLUS exp
| exp DIVIDE exp
| MINUS exp %prec UMINUS
